Square D™ 9007J

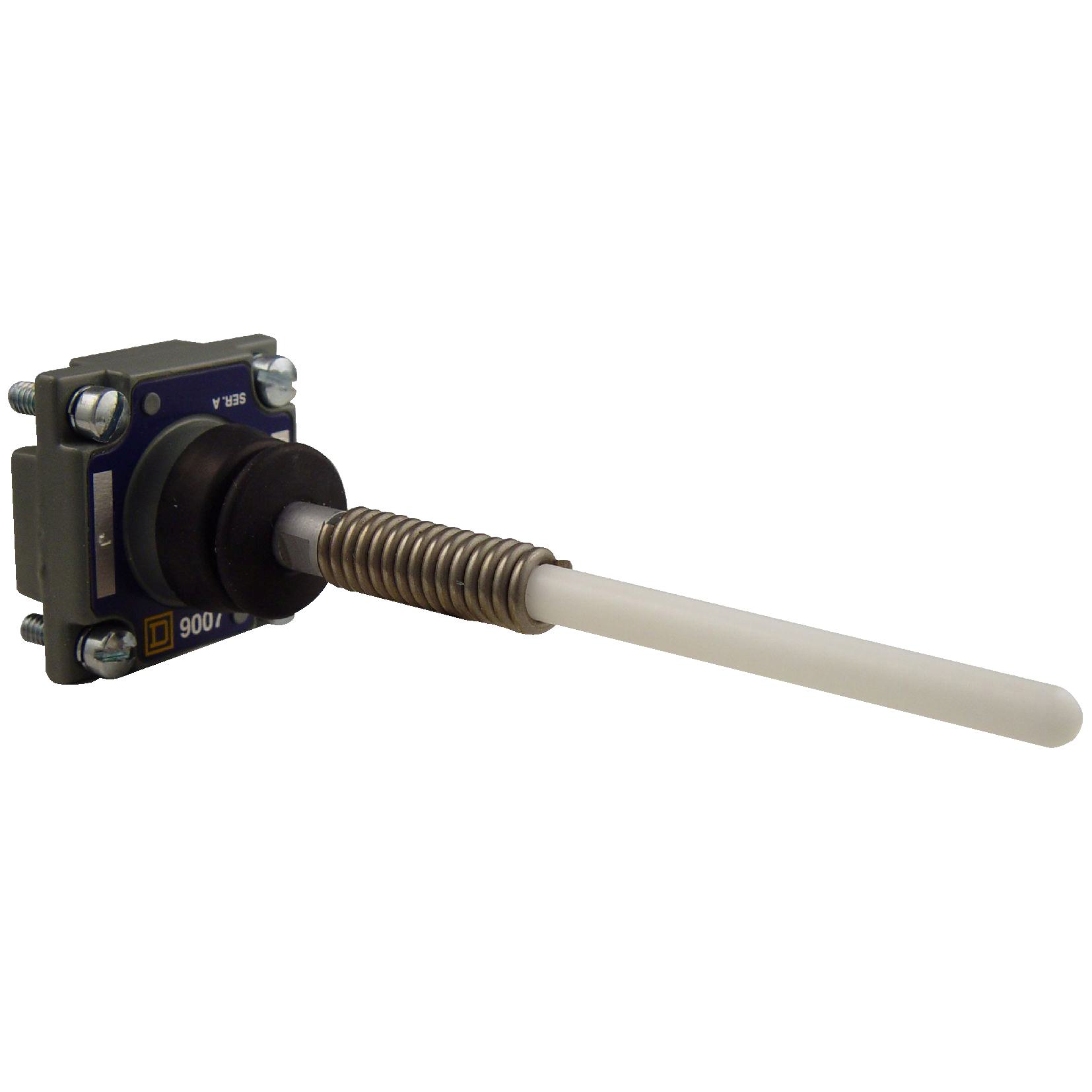

Square D™ OsiSense® 9007J Standard Heavy Duty Multi-Directional Limit Switch Head, Top Spring Return Wobble Stick Delrin® Extension, For Use With 9007C Series Limit Switch, 1/2/4/6/6P/12/13 NEMA Rating
Brand: Square D™
Item ID: 436690
MPN: 9007J
UPC: 785901543527
Login for Price
Features
- Snap action contact operation
- Plastic wobble stick head, spring return
- Momentary action
- Any direction actuation
- Standard environment
Description
Square D™ OsiSense® Limit Switch Head, Standard Heavy Duty Multi-Directional, Series: 9007, Spring Return Wobble Stick Delrin® Extension Actuator, Top Actuator Location, For Use With: 9007C Series Limit Switch, 3 in-lb Operating Force, 90 deg Travel, 1/2/4/6/6P/12/13 NEMA Rating, 0 to 185 deg F, Zinc Alloy
Specifications
Actuator Location |
Top |
Actuator Type |
Spring Return Wobble Stick Delrin® Extension |
Material |
Zinc Alloy |
NEMA Rating |
1/2/4/6/6P/12/13 |
Operating Force |
3 in-lb |
Series |
9007 |
Suitable For Use With |
9007C Series Limit Switch |
Temperature Rating |
0 to 185 deg F |
Travel |
90 deg |
Type |
Standard Heavy Duty Multi-Directional |
Standard Approval |
CE Marked|CSA File No. LR25490 Class 3211-03|RoHS Compliant|UL File No. E42259 CCN NKCR|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov. |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9007C54B2Y1901_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9007CO68_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9007CO68_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_30ef312711c0b0c4fba5e37eb179416dfe3fd11ca436d1632959506ae3e10ae2.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XCKP2149M12_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9007J_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d831369e5062f5b5d987e5532fec62e1b1a8fc20c70070a18d58873ae58bc3e9.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9007J_Specification_Sheet.pdf
