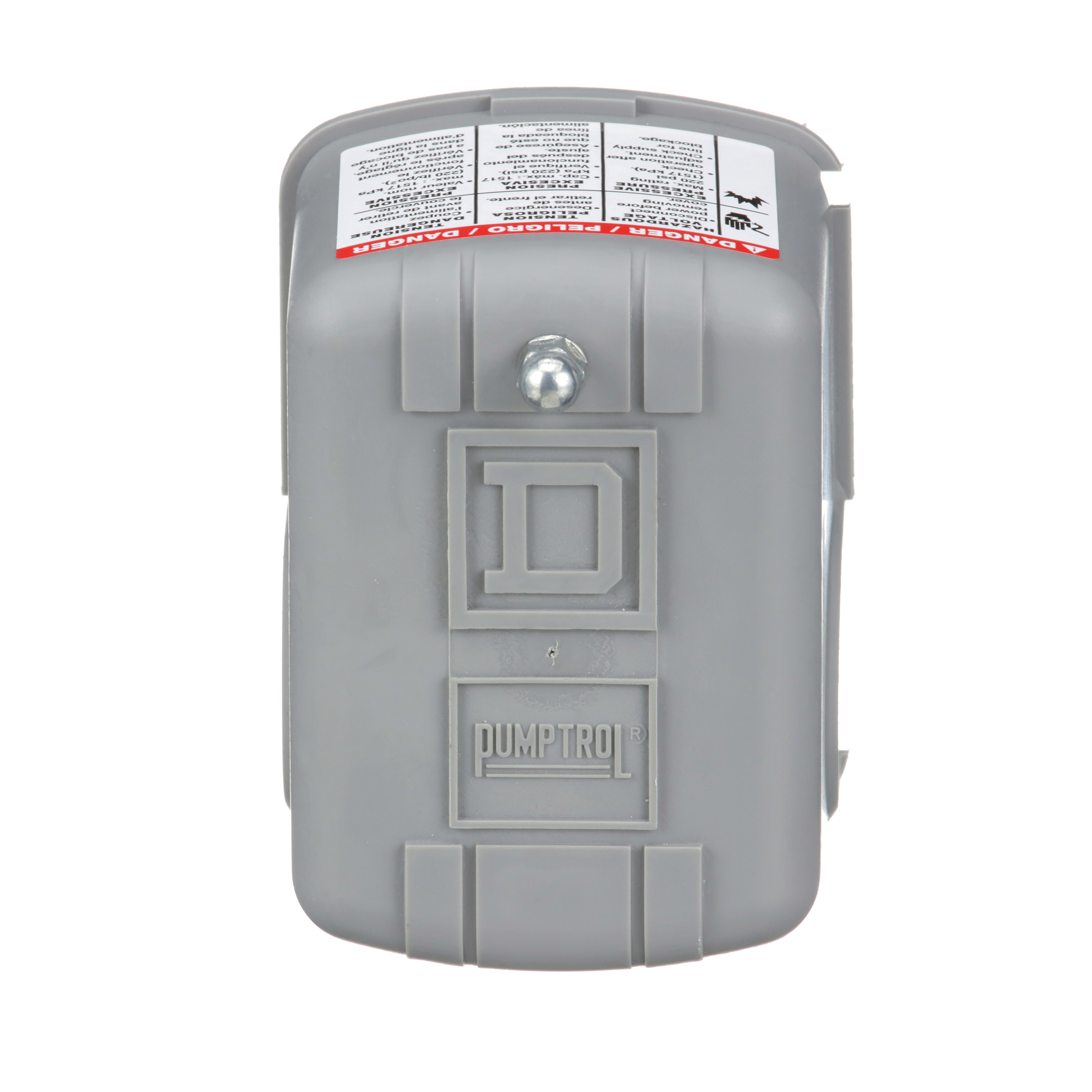

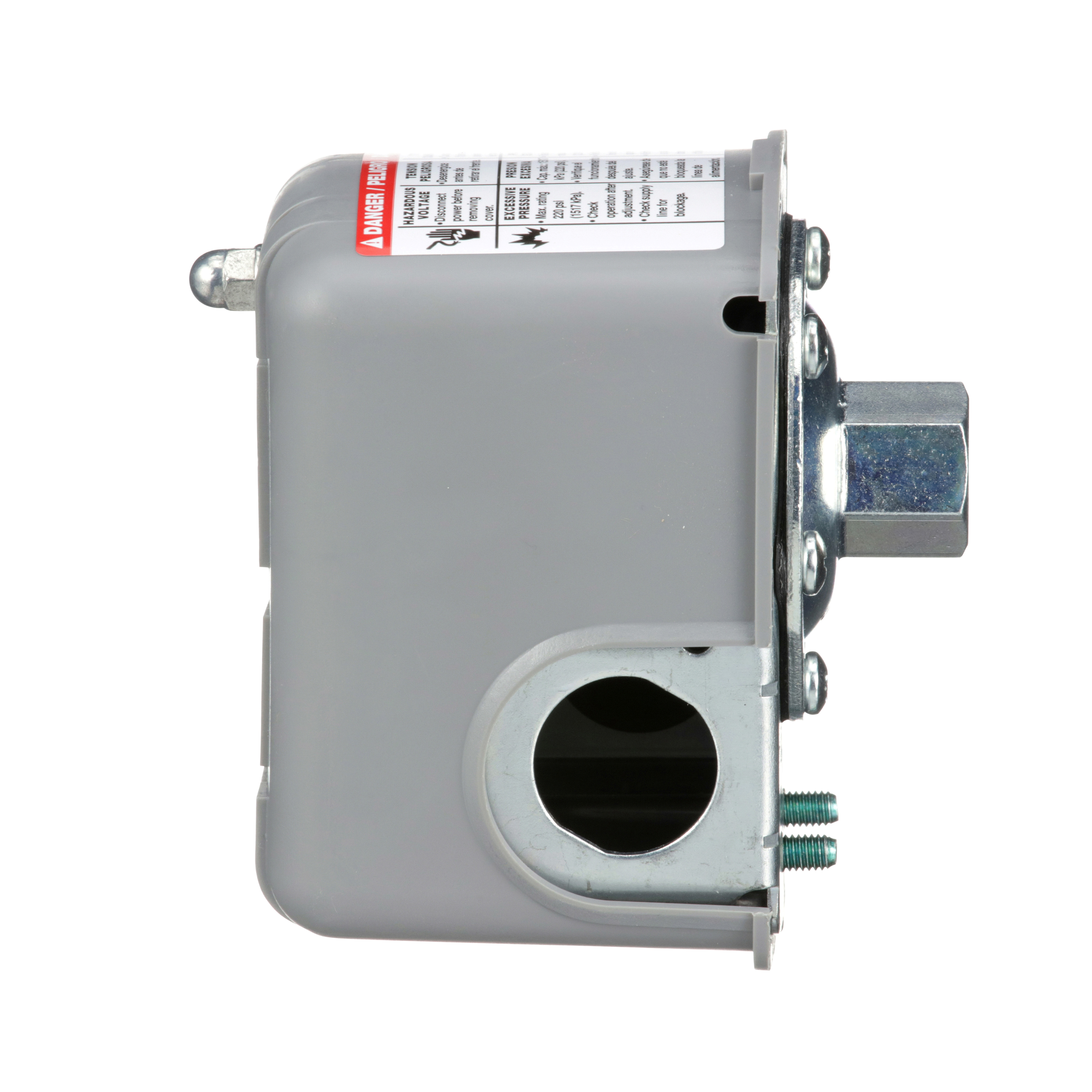

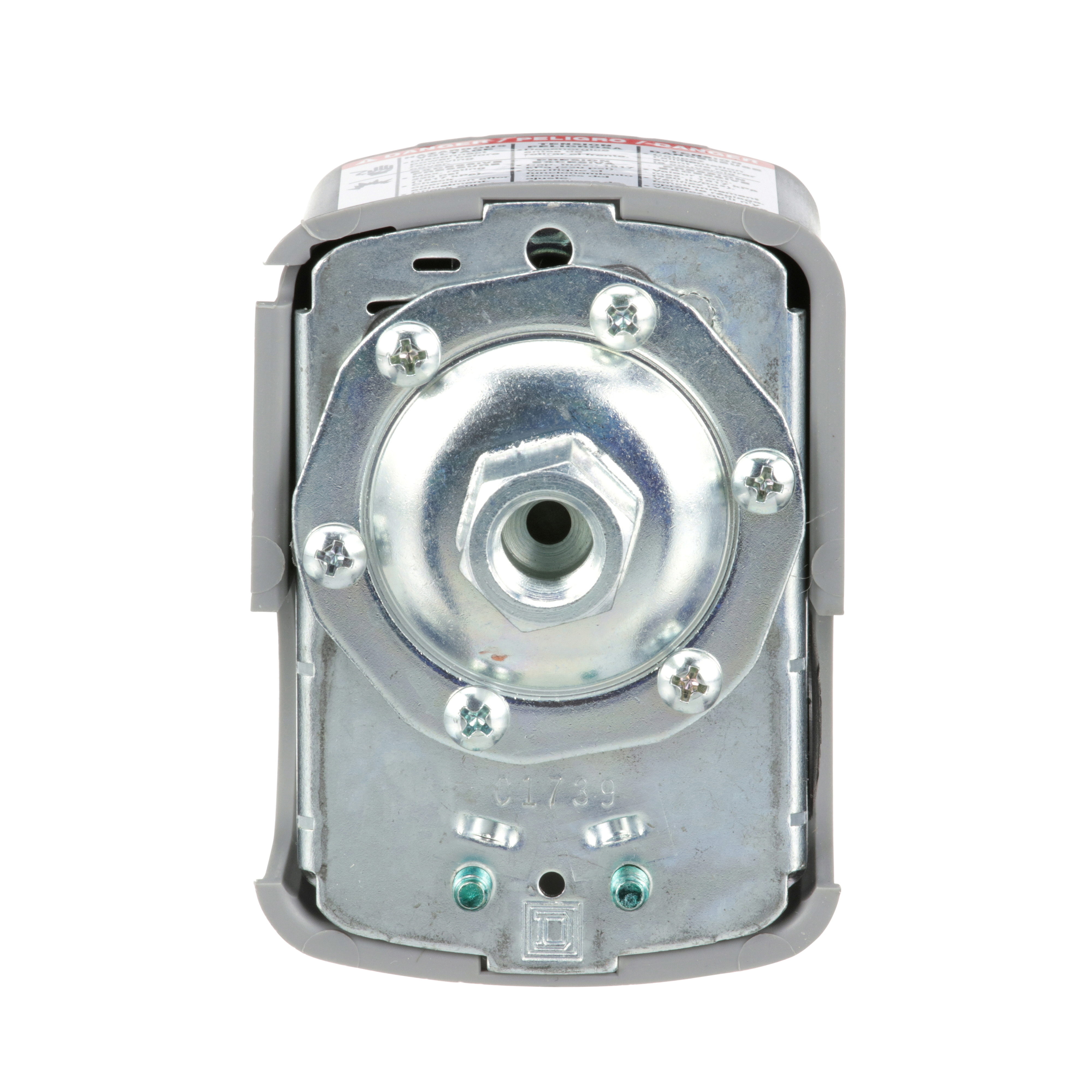

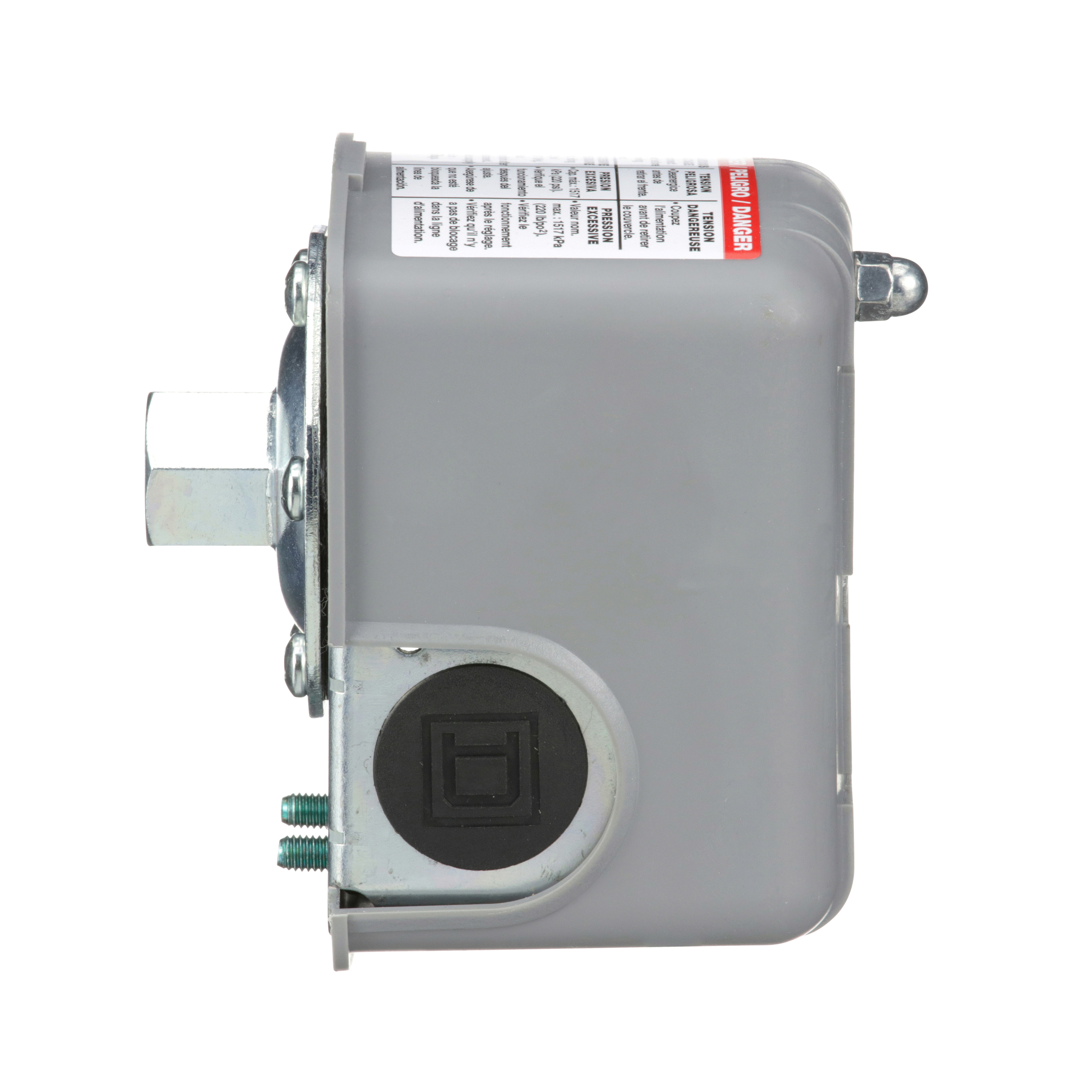

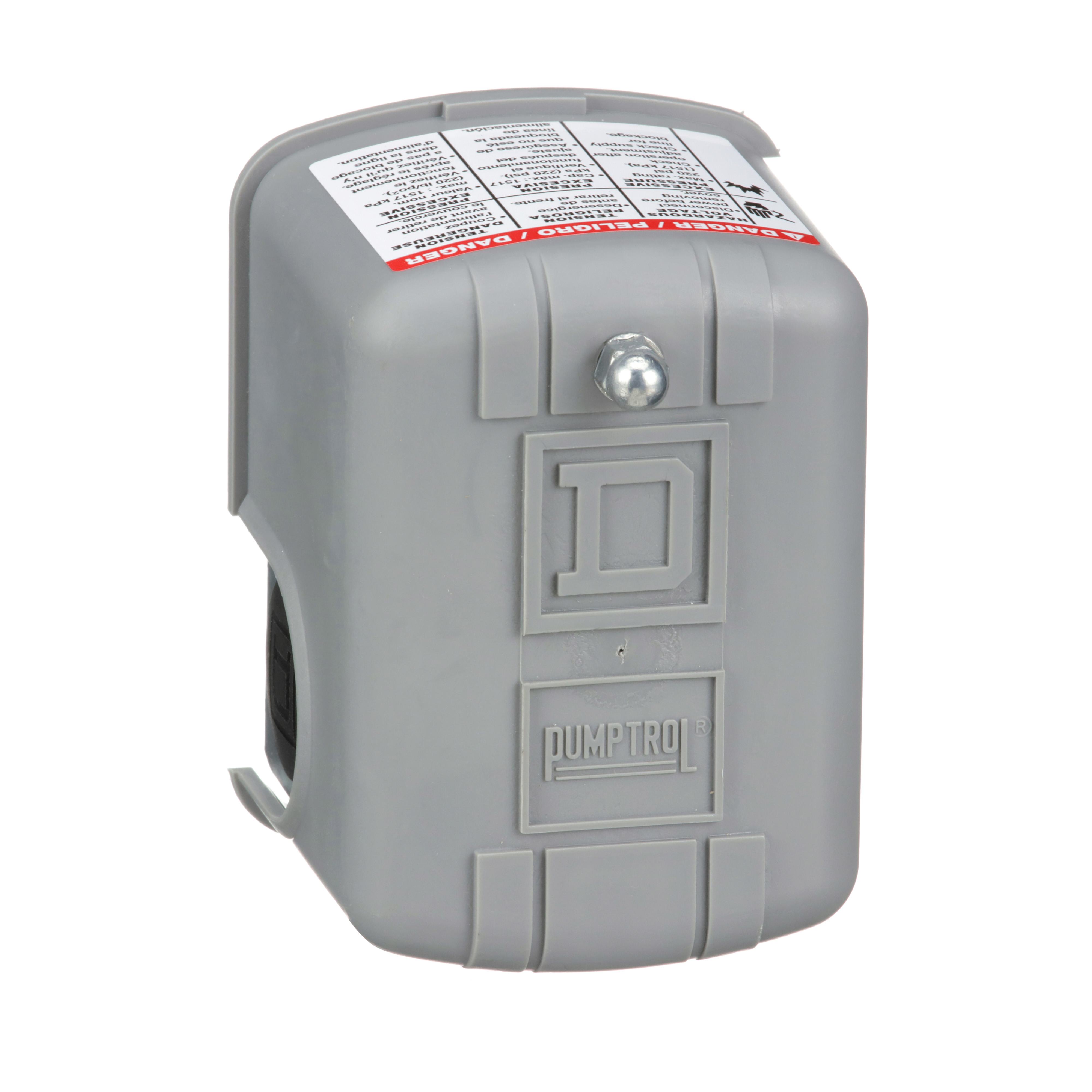

Square D™ 9013FSG2J20
Square D™ Pumptrol® 9013FSG2J20 Adjustable Electro-Mechanical Pressure Switch, 10 to 45 psig Pressure, 15 to 30 psi Differential, 2NC/DPST Contact, Screw Clamp Connection, 1 hp at 575 VAC Contact
Brand: Square D™
Item ID: 531840
MPN: 9013FSG2J20
UPC: 785901559245
Login for Price
Features
- The type FSG standard water pump switch is suitable for all types of pumps, including jets, submersible and reciprocating
- Diaphragm actuated
- 2NC, snap action, DPST-DB, form YY contact
- -22 to 257 deg F fresh water controlled fluid
- 1/4 in NPSF internal fluid connection
- Regulation between 2 thresholds, adjustable differential scale
- Four-terminal block
- 10 AWG clamping capacity electrical connection
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
- Zinc plated steel or equivalent flange
- General purpose (indoor) environmental conditions
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats
- Noryl thermoplastic resin
- 220 psig system pressure
Description
Square D™ Pumptrol® Pressure Switch, Adjustable Electro-Mechanical, Series: 9013FS, 10 to 45 psig Pressure, 15 to 30 psi Differential, 220 psi Maximum, 2NC/DPST Contact Configuration, 1 hp at 575 VAC Contact, 10 cpm Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Zinc Plated Steel Connection, Nitrile Diaphragm, Noryl Thermoplastic Resin/Polypropylene Housing Material, NEMA 1/IP20 Enclosure, 2.78 in W x 3.76 in D x 2.8 in H Dimensions
Specifications
Connection Material |
Zinc Plated Steel |
Connection Type |
Screw Clamp |
Contact Configuration |
2NC/DPST |
Contact Rating |
1 hp at 575 VAC |
Diaphragm Material |
Nitrile |
Differential |
15 to 30 psi |
Dimensions |
2.78 in W x 3.76 in D x 2.8 in H |
Enclosure Type |
NEMA 1/IP20 |
Housing Material |
Noryl Thermoplastic Resin/Polypropylene |
Maximum Pressure |
220 psi |
Operating Cycles |
10 cpm |
Pressure Rating |
10 to 45 psig |
Series |
9013FS |
Temperature Rating |
-33 to 257 deg F |
Type |
Adjustable Electro-Mechanical |
Standard Approval |
CE Certified|CSA File No. LR26817|NSF Annex G|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508 File No. E12158 CCN NKPZ |
Application |
For controlling electrically driven water pump, indoor and general purpose applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_81f309266e4e871fed8081390cc7172759ce0fde5667558b7bd0d5ccddb00338.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J20M1_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J20M1_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J21U_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ddf972614eb024c97d993859bdad13337d5f94e0ee845405d08edff0f0e6526d.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9037HW31_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038CG31_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038CG31_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_STBXBA3000_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J20_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4dc23ad2aa61e44eaa5b2d0612484d7074624ca9278c663c9178e3be53412bcc.pdf
