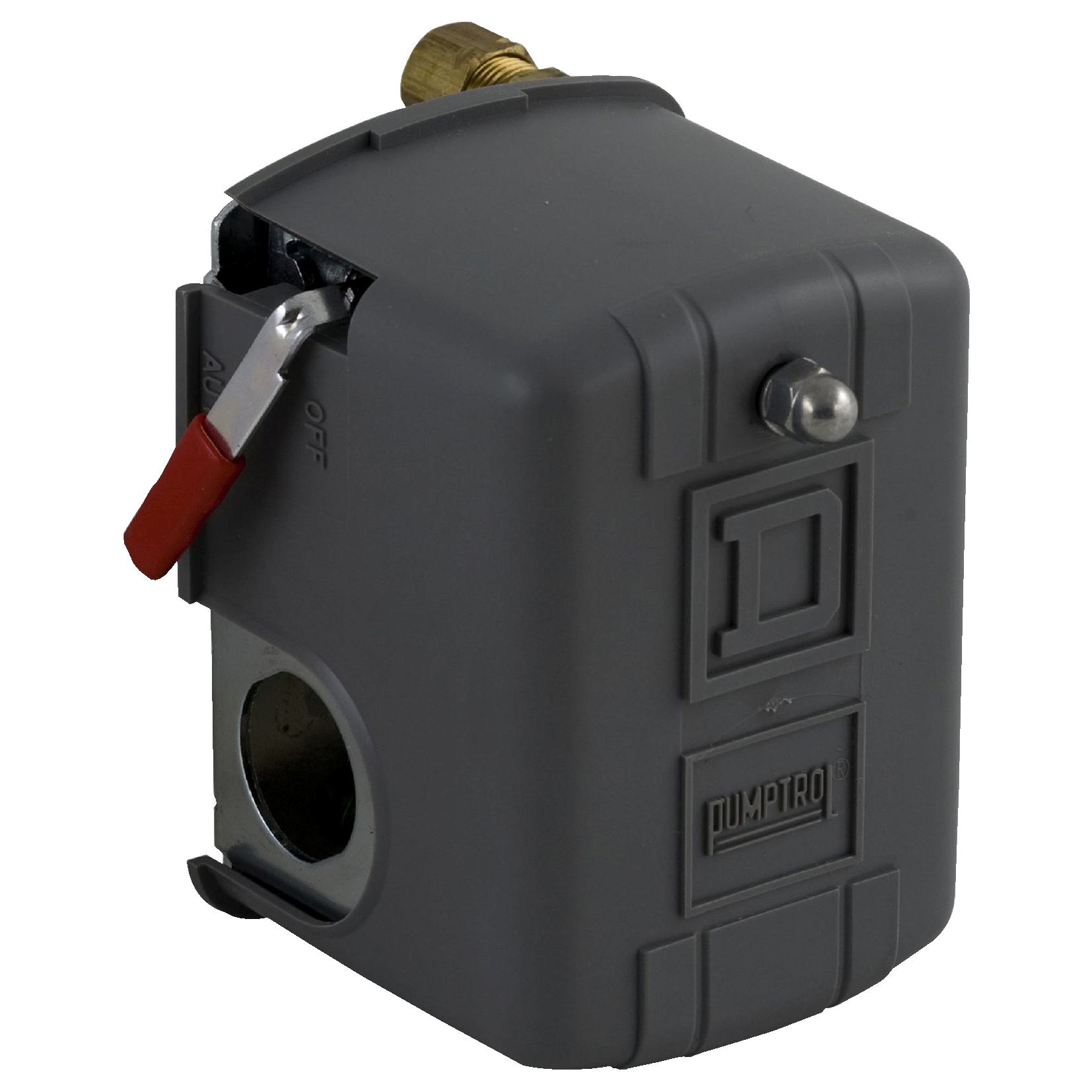

Square D™ 9013FSG2J21M4
Square D™ Pumptrol™ 9013FSG2J21M4 Type F Electromechanical Pressure Switch, 10 to 45 psi Pressure, 20 to 65 psi Differential, 2NC Contact, Screw Clamp Connection
Brand: Square D™
Item ID: 468339
MPN: 9013FSG2J21M4
UPC: 785901066187
Login for Price
Features
- 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Driftproof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- 30 to 50 psi pressure
- Adjustable differential <= 1.5 hp, standard action
- Low pressure cut off (auto-start-off) FSG, FYG
Description
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex, special machines, HVAC, automotive, food, beverage, healthcare facilities, pharmaceutical and more. Classes 9012, 9013, 9016, 9036, 9037 and 9038.
Square D™ Pumptrol™ Pressure Switch, Type F Electromechanical, Series: 9013FS, 10 to 45 psi Pressure, 20 to 65 psi Differential, 65 psi Maximum, 2NC Contact Configuration, 10 cpm Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Steel Connection, Nitrile Diaphragm, Polypropylene Housing Material, NEMA 1/IP20 Enclosure
Specifications
Connection Material |
Steel |
Connection Type |
Screw Clamp |
Contact Configuration |
2NC |
Diaphragm Material |
Nitrile |
Differential |
20 to 65 psi |
Enclosure Type |
NEMA 1/IP20 |
Housing Material |
Polypropylene |
Maximum Pressure |
65 psi |
Operating Cycles |
10 cpm |
Pressure Rating |
10 to 45 psi |
Series |
9013FS |
Temperature Rating |
-33 to 257 deg F |
Type |
Type F Electromechanical |
Standard Approval |
ECCN: EAR99|CE Marked|CSA LR25490|IEC 60529|REACH Compliant|RoHS Compliant|UL 50/508/E12158|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Industrial, Pressure Control, Monitoring of Water Pumps, Compressors, Agricultural/Irrigation Water Systems, Molding Presses, Injection Molders, Grinding Machines, Machining Centers, Complex/Special Machines, HVAC, Automotive, Food, Beverage, Healthcare Facilities and Pharmaceutical Applications and Regulation Between 2 Thresholds |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3461e3dcb9eca8b0dce0d26b775155003c514d9eda94efec230a6e808ffa1ee4.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb21b795a142dabfa1a068a191d45eea41df0f8865fac03091cf172446c9475a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9012GCW3_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9012GCW3_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_144e32a343243fc78b184be5cbf0203f90691753e6a5d12a6e52965fd623f651.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_CA2SKE20M7_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J21M4_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0b5601d816bd48f5b886e05946fb3de615a4c37e13adba44fcadd221e31adaf5.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_84315c31abed3dd5bc0fda7d2f6b5382190c01b8e6457922f0336e27718e0028.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J21M4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9013FSG2J21M4_Specification_Sheet.pdf
