Square D™ 9037HG34

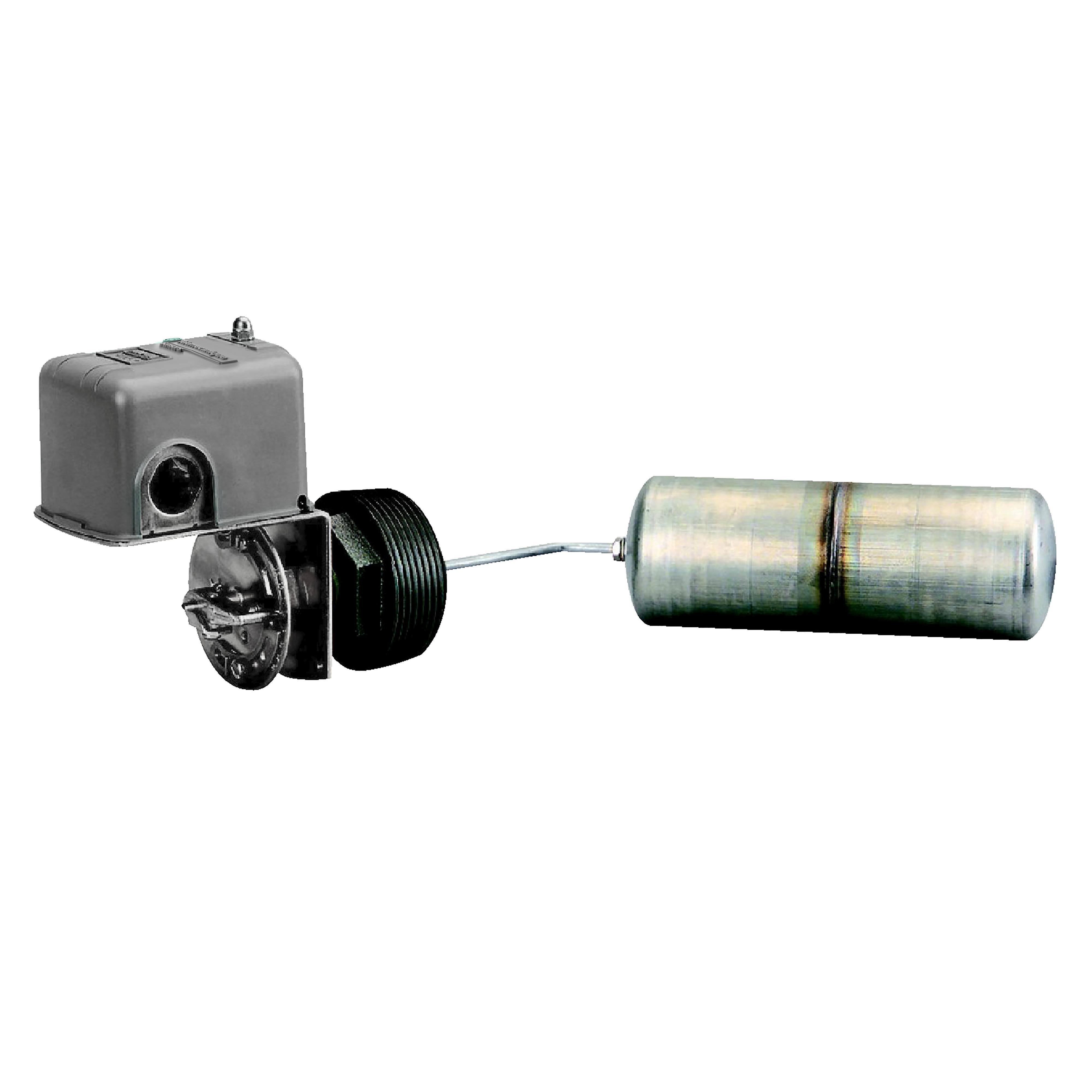

Square D™ 9037HG34 Standard Float Switch, DPST Output, 575 VAC
Brand: Square D™
Item ID: 429979
MPN: 9037HG34
UPC: 785901075592
Login for Price
Features
- 2 NC DPST - dB contact
- 3 knockouts for 1/2 in conduit UL508 cable entry
- Contacts close on liquid rise contacts operation
- 2 to 5 in adjustable float movement
- Left float position
- 45 deg float rod angle
- Polypropylene or equivalent enclosure
- 100 cycles at 60 cycles/min electrical durability
- 300 cycles mechanical durability
- 4 terminals, 60 cycles/min operating rate
- Yellow brass, nitrile (Buna-N) or equivalent rubber, 304/316 stainless steel, cast iron material in contacts with fluid
- 20 A by cartridge fuse, type gG short circuit protection
Description
Square D™ Float Switch, Standard, Series: 9037H, DPST Output, 575 VAC, 20 A, Screw Clamp Connection, NEMA 1 Enclosure, -22 to 220 deg F Operating, Screw-In Bushing Mounting
Specifications
Amperage Rating |
20 A |
Connection Type |
Screw Clamp |
Enclosure Type |
NEMA 1 |
Mounting Type |
Screw-In Bushing |
Operating Temperature |
-22 to 220 deg F |
Output Type |
DPST |
Series |
9037H |
Type |
Standard |
Voltage Rating |
575 VAC |
Standard Approval |
RoHS Compliant|UL 50/508 E12158|CSA LR25490|CE Marked|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Closed Tank and Liquid Level Controls |
