Square D™ 9038DG7

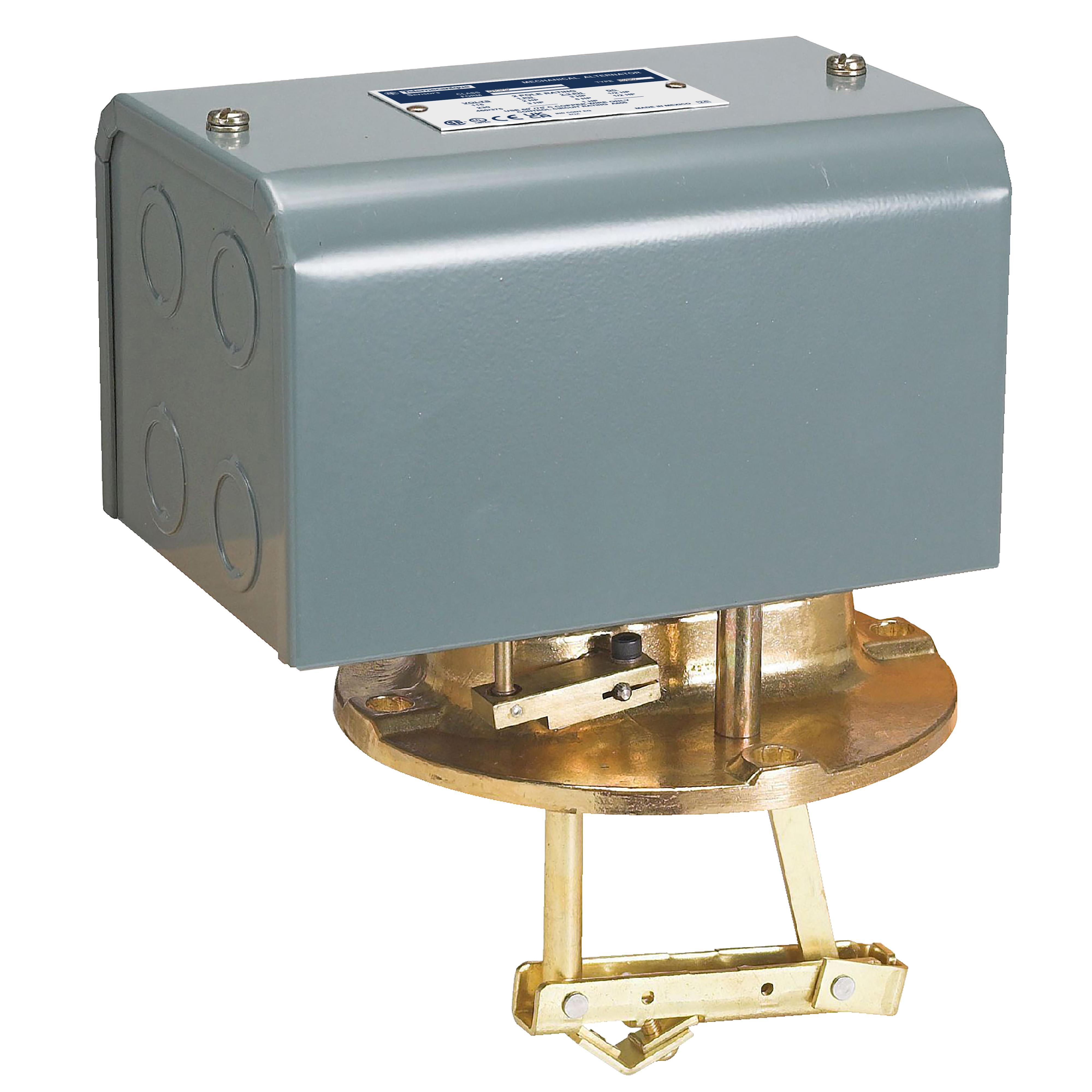

Square D™ 9038DG7 Type D Float Switch, 575 VAC
Brand: Square D™
Item ID: 465897
MPN: 9038DG7
UPC: 785901508069
Login for Price
Features
- A complete line of switches designed for open or closed tank applications they detect rising or falling liquid levels in various types of containers
- Float movement is transmitted through a quad ring seal
- Mechanically alternating the operation of two pumps or motors
- Standard (contacts close on liquid rise)
- Variable fixed float moment
- Liquid level control
- 20 A by cartridge fuse, type gG short circuit protection
Description
Type D mechanical alternators are designed for applications where flange mounting is to be made at the top of a closed tank.
Square D™ Float Switch, Type D, Series: 9038, 575 VAC, 20 A, Screw Clamp Connection, NEMA 1 Enclosure, -22 to 220 deg F Operating, Flange Mounting
Specifications
Amperage Rating |
20 A |
Connection Type |
Screw Clamp |
Enclosure Type |
NEMA 1 |
Mounting Type |
Flange |
Operating Temperature |
-22 to 220 deg F |
Series |
9038 |
Type |
Type D |
Voltage Rating |
575 VAC |
Standard Approval |
ECCN EAR99|CE Marked|CSA File LR25490|REACH Compliant|RoHS Compliant|UL 50/508/File E12158|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Closed Tank Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3c8e564b048f5a95630db2e059f1bc821f03e6e8c1176fa522990662293f8afc.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dcb000fa45edf292887d68791bee641ac7e208540feb88883f518fcf475f6629.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9012GAW5K_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038CG36N4LZ20_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038CG36N4LZ20_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038DG7_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070EL3D9_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8da97e8b27950f4729493f44dc450da1ed1f00a8f1e1e6cb023e66dfd1f155ba.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9038DG7_Specification_Sheet.pdf
