Square D™ 9050JCK70V20

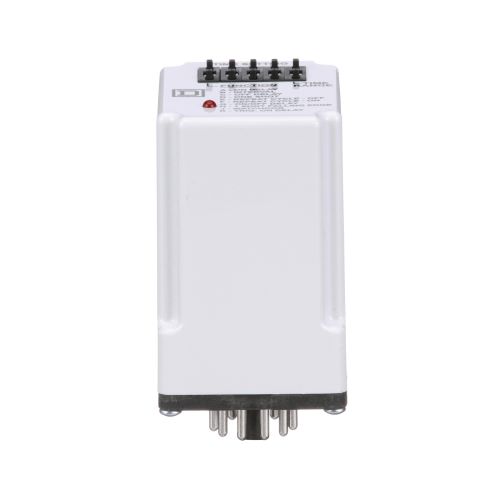

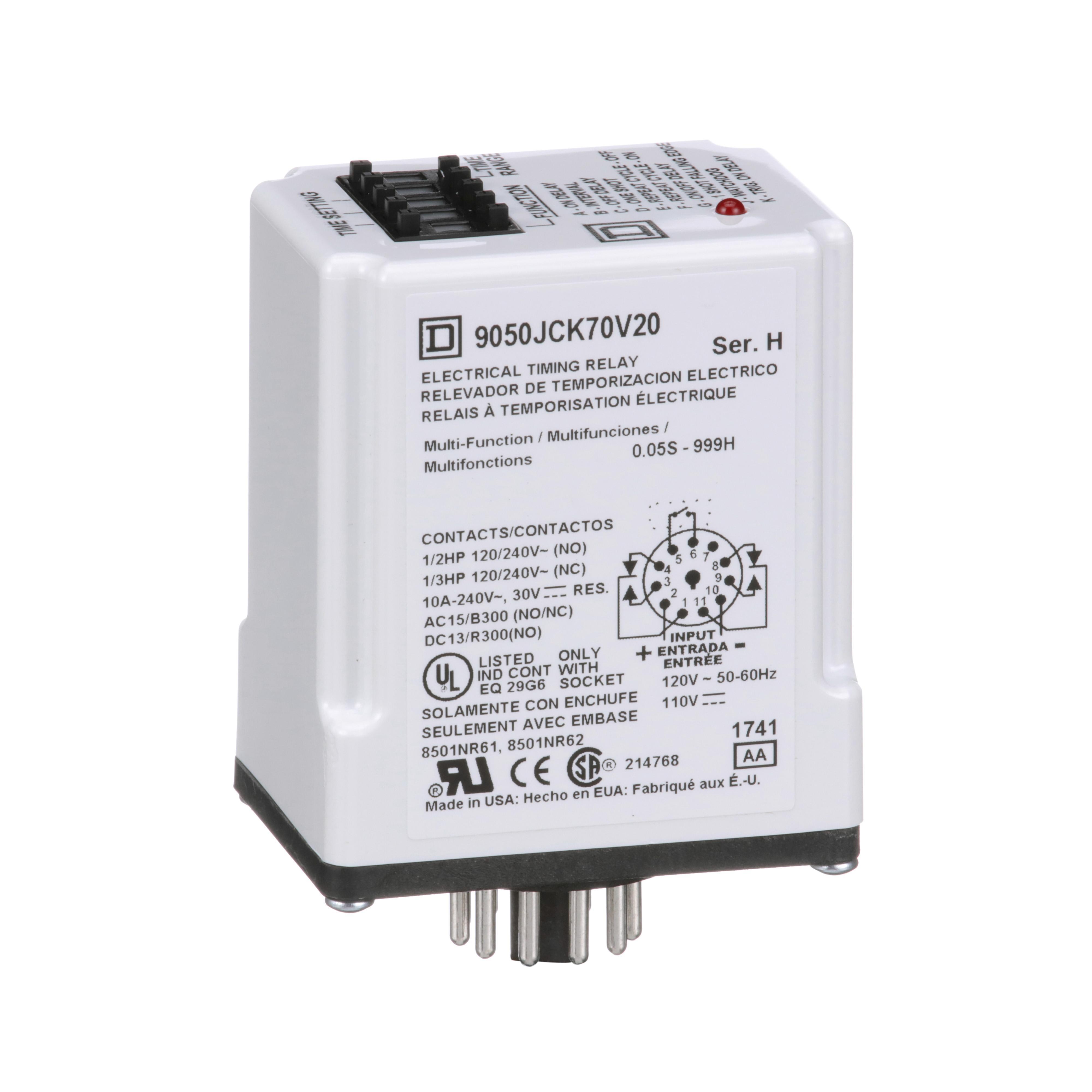

Square D™ 9050JCK70V20 Type JCK Timing Relay, 1 to 999 min Setting, 240 VAC, 11 Pin, 2NO-2NC/DPDT Contact
Brand: Square D™
Item ID: 45416
MPN: 9050JCK70V20
Login for Price
Features
- 0.05 to 9.99 s, 0.1 to 99.9 s, 1 to 999 s, 0.1 to 99.9 min, 1 to 999 min
- 1/3 hp at 120 VAC, 1/2 hp at 240 VAC
Description
Square D™ 9050JCK timing relays are designed to provide low-cost timing in a plug-in housing. The Types JCK11 through 59 provide +/-1% repeat accuracy. The Types JCK60 and 70 offer +/-0.1% repeat accuracy. These timers are directly interchangeable with many other 8 and 11 pin octal base timers.
Square D™ Timing Relay, Type JCK, Series: 9050, Operation Mode: On-Delay, 240 VAC, 10 A, 1/2 hp, 11 Pins, 2NO-2NC/DPDT, 1 to 999 min, 120 VAC Coil, Tubular, -18 to 150 deg F, Socket Mount, 44 mm W x 60 mm D x 91 mm H
Specifications
Amperage Rating |
10 A |
Coil Voltage |
120 VAC |
Contact Form |
2NO-2NC/DPDT |
Dimensions |
44 mm W x 60 mm D x 91 mm H |
Electrical Connections |
Tubular |
Horsepower |
1/2 hp |
Mounting Type |
Socket |
Number of Pins |
11 |
Operation Mode |
On-Delay |
Series |
9050 |
Temperature Rating |
-18 to 150 deg F |
Time Setting |
1 to 999 min |
Type |
Type JCK |
Voltage Rating |
240 VAC |
Standard Approval |
CE Certified|CSA File No. LR60905/Class 321104|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX|UL Listed|UL Recognized |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_465283ec152a4ec6d95b836310b8de3e8d2be9c6987d7c6417ec8aeac2a44cda.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c7d77de24cd0bd91add25c728c928e12f849e66a9a98566986742df878f526c6.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK14V14_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK14V14_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK60V20_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_04f5da023c9dcd9bbdf3f03351c33022b8b05e9cbe88bff43dd38b0d79b47f56.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8dc23505cc2ec003d996424407b93030e3dfbc2c566e1a39b709d5bfe52feeeb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK14V14_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK14V14_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK60V20_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK70V20_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ddd1c6710d0494ce0d178cf622f54230c8583b3f61c40394a74c6660a69fae73.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9050JCK70V20_Specification_Sheet.pdf
