Square D™ 9070T100D1

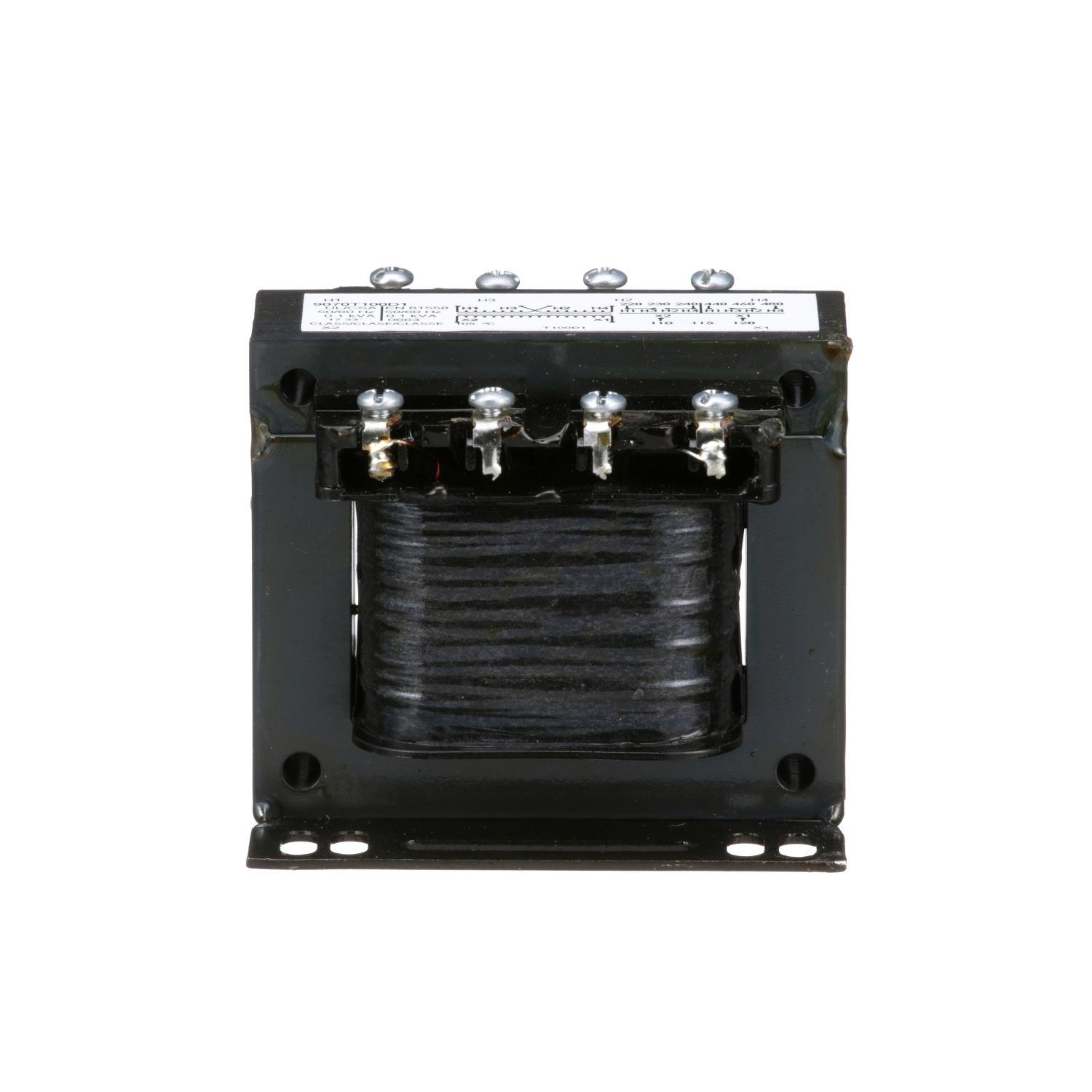

Square D™ 9070T100D1 9070 Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
Brand: Square D™
Item ID: 513876
MPN: 9070T100D1
UPC: 785901904649
Login for Price
Features
- Copper windings
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D™ fingersafe® covers
- Competitively priced with other universal control power transformers on the market
- 240 x 480, 230 x 460, 220 x 440 VAC primary volt
- 115/110/120 VAC secondary volt
Description
Type T transformers are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids and relays. Type T transformers are manufactured using the most advanced insulating materials and are the best choice if size and cost are of concern.
Square D™, 9070T100D1, Control Transformer, Series: 9070, 240/480 VAC Primary, 120 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 2.89 in H x 3.38 in W x 3.34 in D Dimensions
Specifications
Connection Type |
Screw Clamp |
Dimensions |
2.89 in H x 3.38 in W x 3.34 in D |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Insulation |
105 deg C |
Mounting Type |
Panel |
Phase |
1 |
Power Rating |
100 VA |
Primary Voltage |
240/480 VAC |
Secondary Voltage |
120 VAC |
Series |
9070 |
Temperature Rating |
55 deg C |
Type |
Type T Industrial Open Style |
Standard Approval |
CE Certified|CSA File No. LR37055 Guide No. 184-N-90|ECCN: EAR99|NEC Article 450|RoHS Compliant|UL 508 File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For handling high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes and OEM commercial, industrial markets and electrical equipment OEM applications |
