Square D™ 9070T100D23

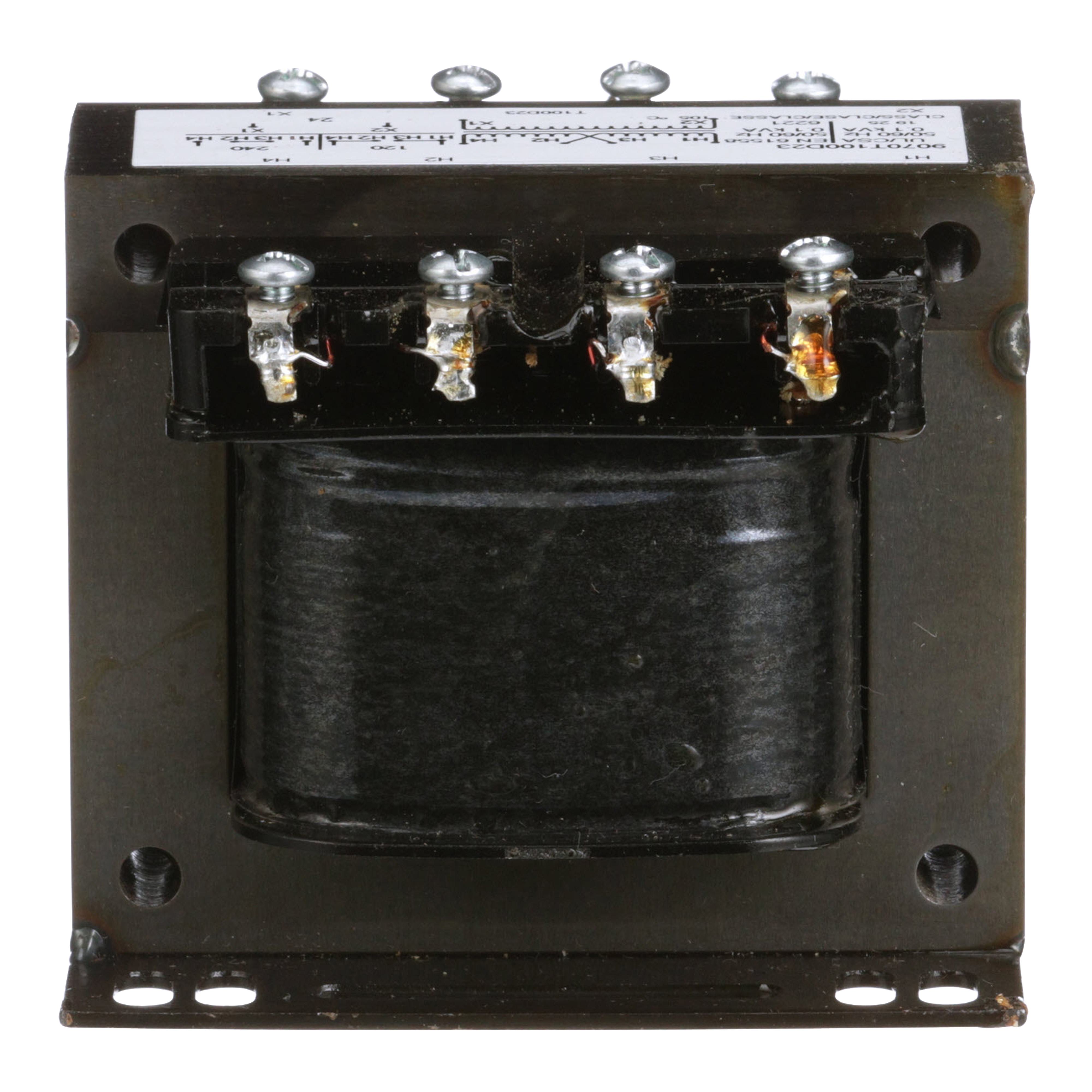

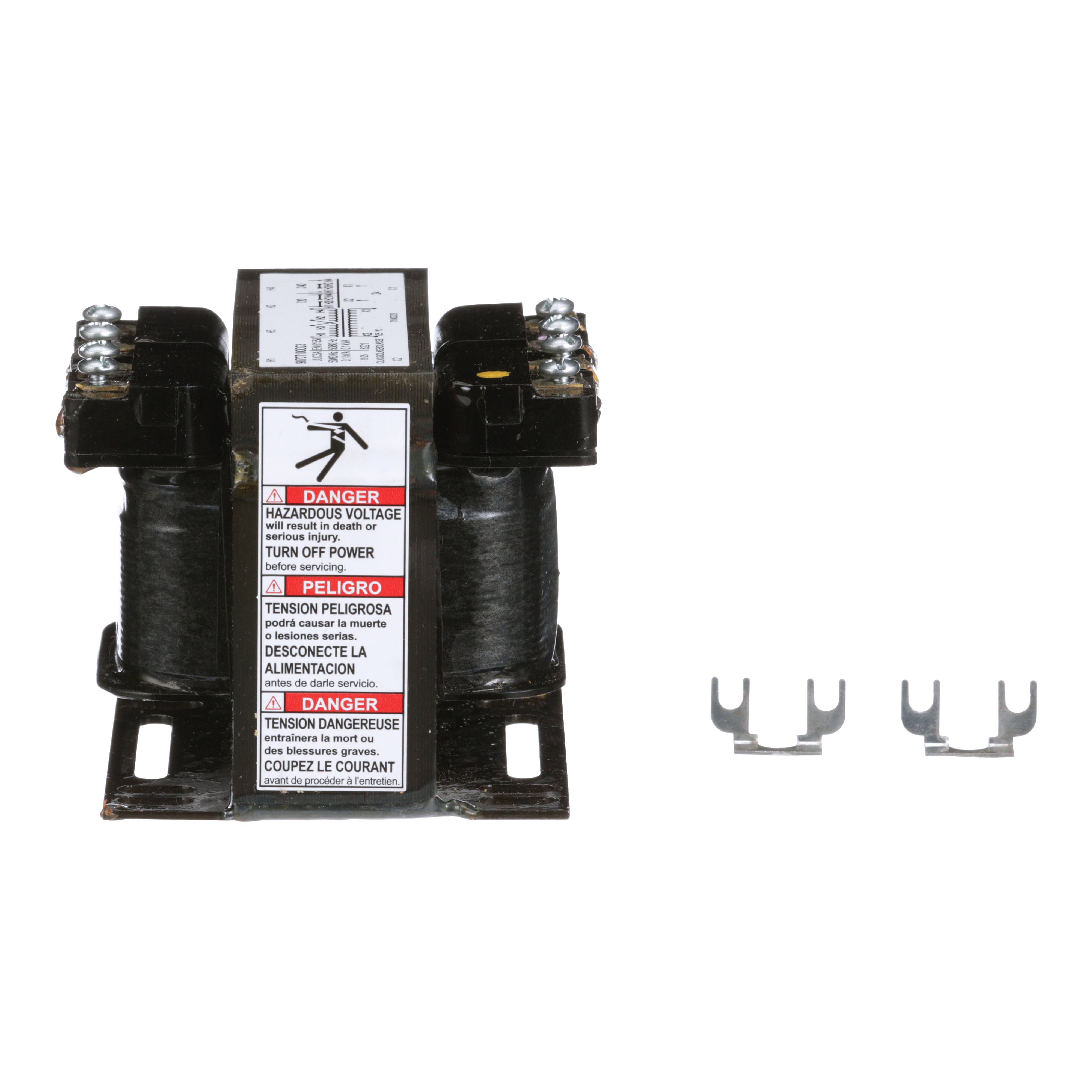

Square D™ 9070T100D23 Type T Industrial Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
Brand: Square D™
Item ID: 543014
MPN: 9070T100D23
UPC: 785901905066
Login for Price
Features
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D™ fingersafe® covers
- Compatible with Square D™ control power fuse kits
- Competitively priced with other universal control power transformers on the market
- Copper winding
- 120/240 VAC primary voltage rating
- 24 VAC secondary voltage rating
Description
Type T transformers are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids and relays. Type T transformers are manufactured using the most advanced insulating materials and are the best choice if size and cost are of concern.
Square D™ Control Transformer, Type T Industrial Open Style, 120/240 VAC Primary, 24 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 3.38 in W x 3.34 in D x 2.89 in H Dimensions
Specifications
Connection Type |
Screw Clamp |
Dimensions |
3.38 in W x 3.34 in D x 2.89 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Insulation |
105 deg C |
Mounting Type |
Panel |
Phase |
1 |
Power Rating |
100 VA |
Primary Voltage |
120/240 VAC |
Secondary Voltage |
24 VAC |
Temperature Rating |
55 deg C |
Type |
Type T Industrial Open Style |
Standard Approval |
RoHS Compliant|ECCN EAR99|CE Certified|CSA File No. LR37055 Guide 184-N-90|ISO9001-Approved|UL File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For used to handle high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications |
