Square D™ 9070T350D1

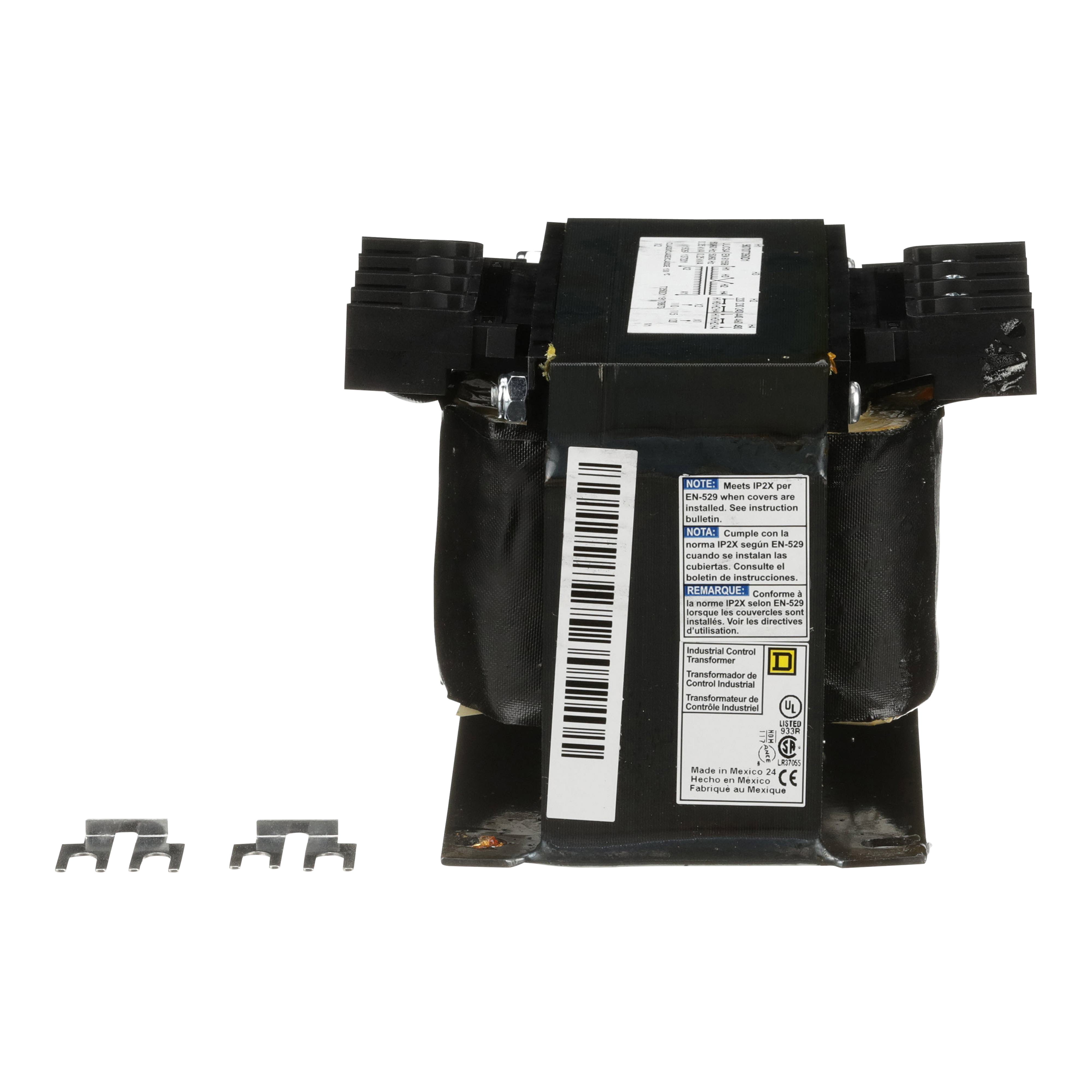

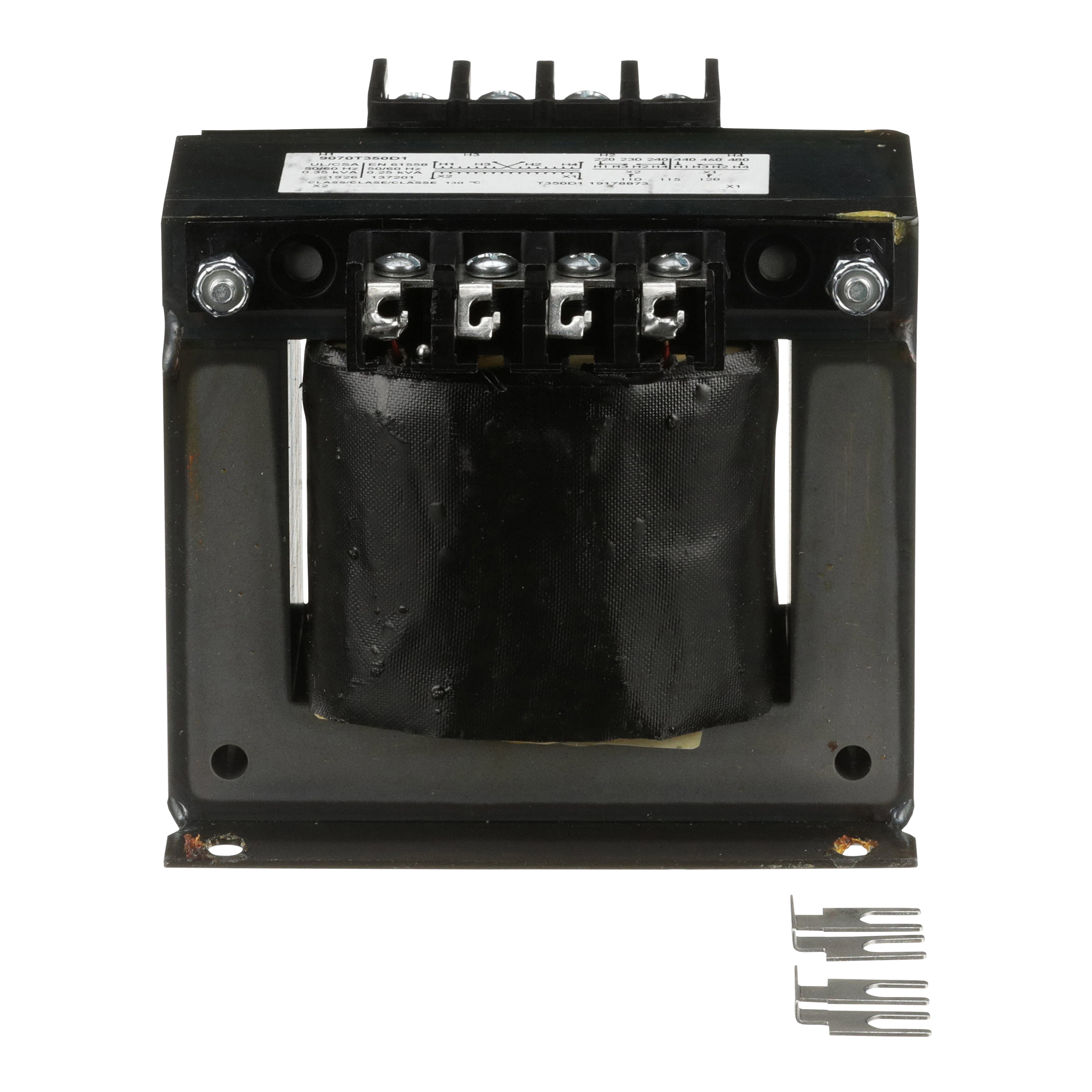

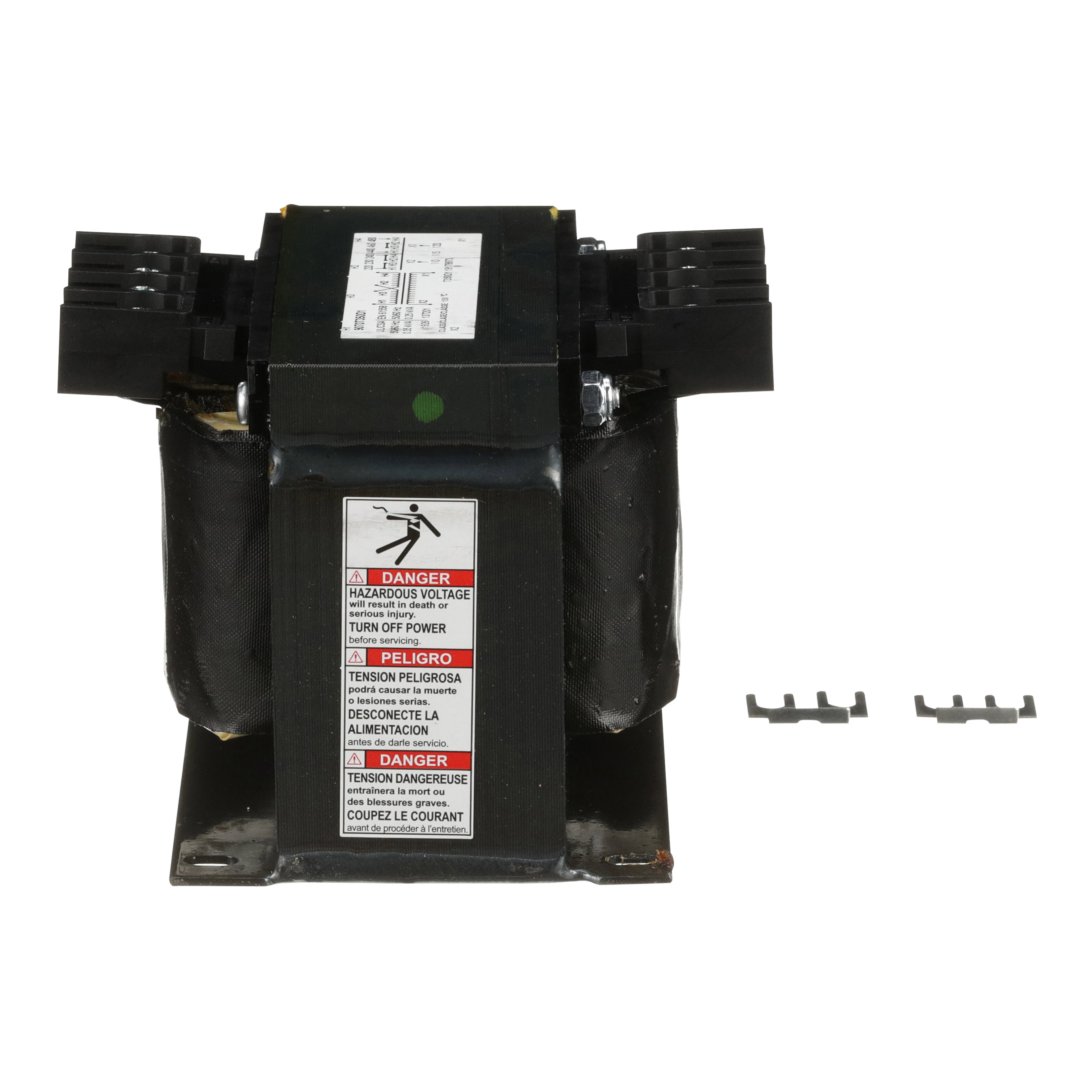

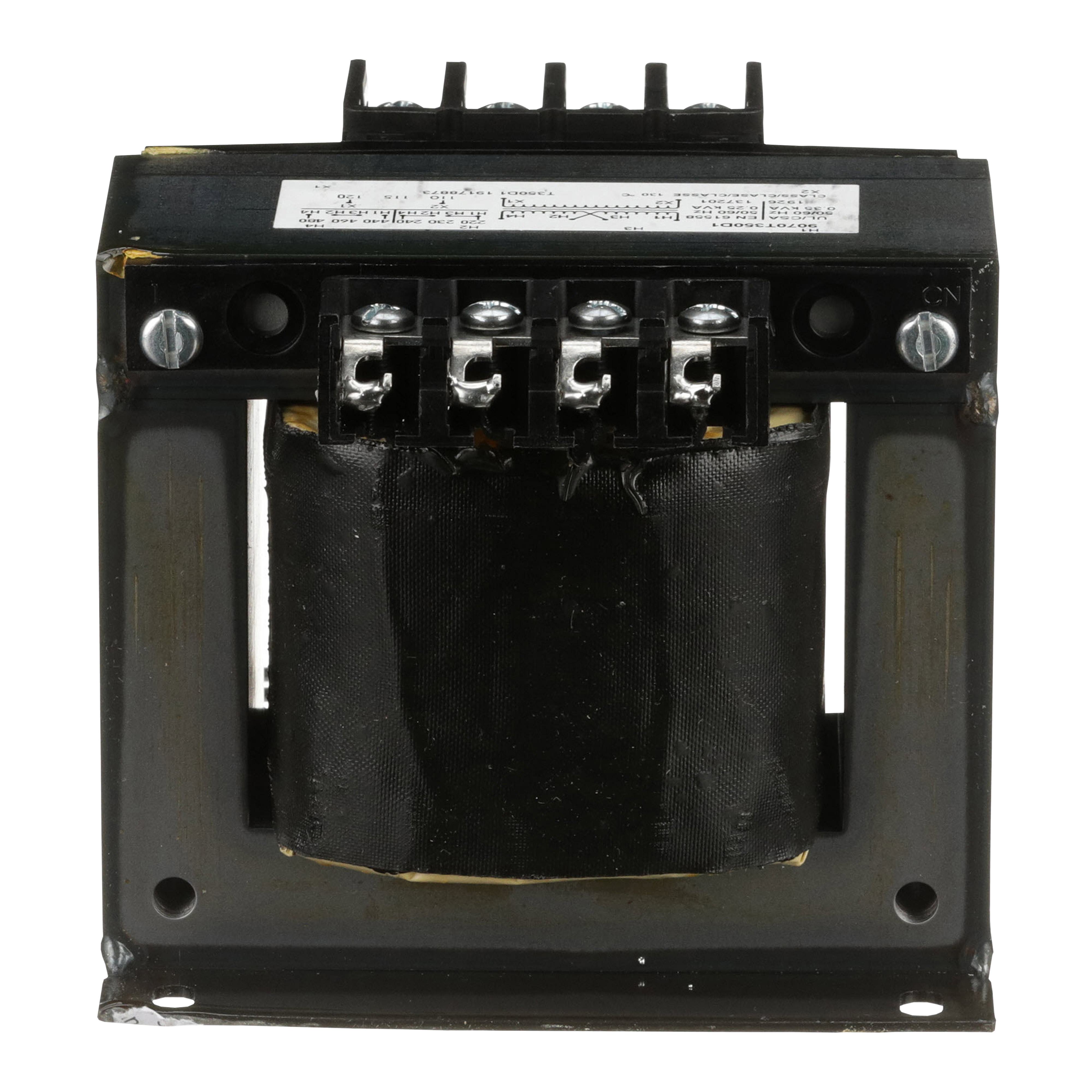

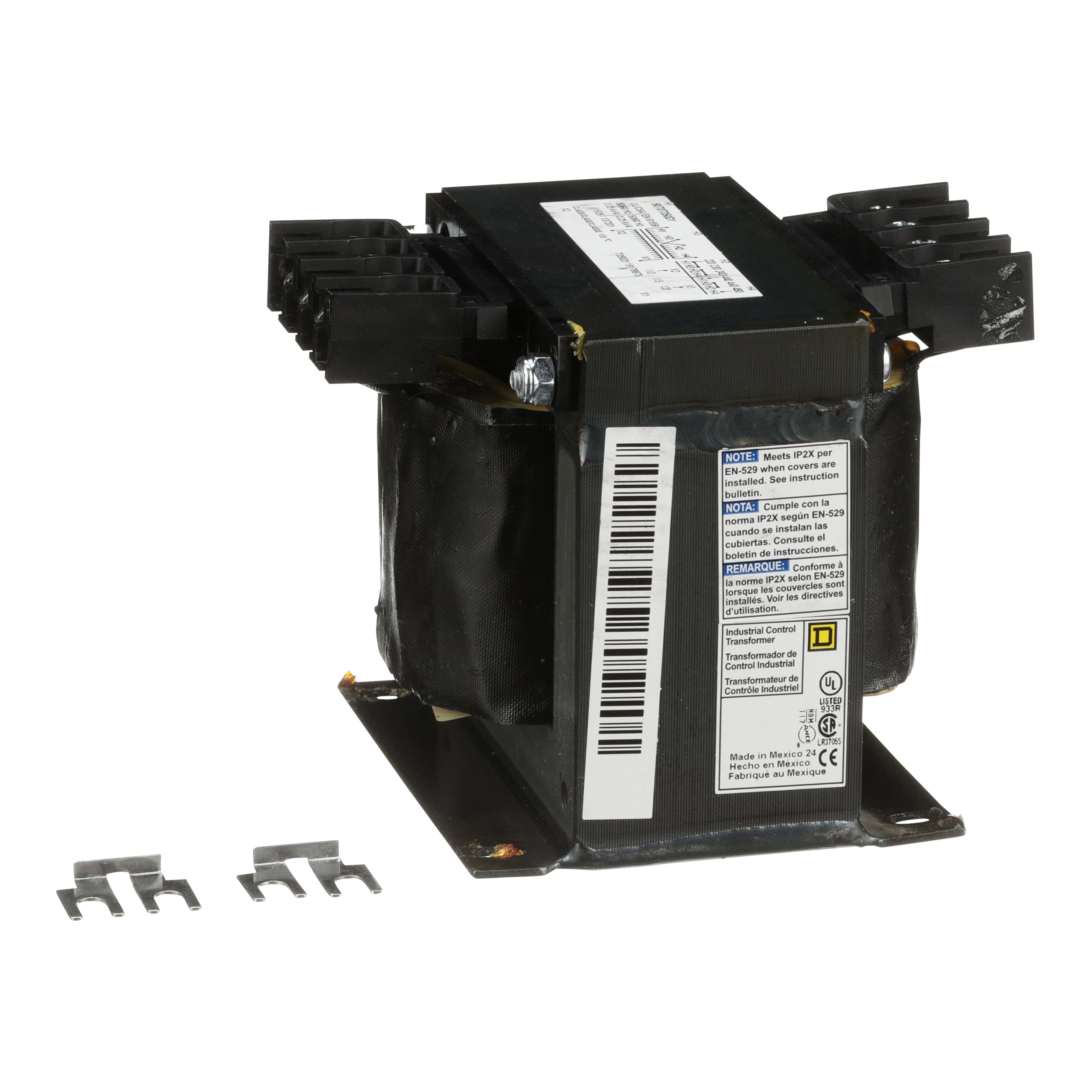

Square D™ 9070T350D1 Type T Industrial Control Transformer, 240 x 480, 230 x 460, 220 x 440 VAC Primary, 110/115/120 VAC Secondary, 350 VA Power Rating, 50/60 Hz, 1 ph Phase
Brand: Square D™
Item ID: 458056
MPN: 9070T350D1
UPC: 785901904694
Login for Price
Features
- Copper winding
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D™ fingersafe® covers
- Compatible with square D™ control power fuse kits
- Competitively priced with other universal control power transformers on the market
Description
Type T transformers are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids and relays. Type T transformers are manufactured using the most advanced insulating materials and are the best choice if size and cost are of concern.
Square D™ Control Transformer, Type T Industrial, 240 x 480, 230 x 460, 220 x 440 VAC Primary, 110/115/120 VAC Secondary, 350 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 130 deg C, Open, 80 deg C, 4.5 in W x 5.09 in D x 3.8 in H
Specifications
Connection Type |
Screw Clamp |
Dimensions |
4.5 in W x 5.09 in D x 3.8 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Insulation |
130 deg C |
Mounting Type |
Panel |
Phase |
1 ph |
Power Rating |
350 VA |
Primary Voltage |
240 x 480, 230 x 460, 220 x 440 VAC |
Secondary Voltage |
110/115/120 VAC |
Temperature Rating |
80 deg C |
Type |
Type T Industrial |
Standard Approval |
RoHS Compliant|UL 508 File No. E61239|CSA File No. LR37055 Guide No. 184-N-90|CE Certified|NEC Article 450|ECCN EAR99|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
For handling high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes and OEM commercial, industrial markets and electrical equipment OEM applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3693e65bc875cb7e695c677856a422c44ec7ebc382aa6f09b8fb10cf6213c58f.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070TF500D5_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T350D1_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_762088bb605e31ba8c7c608e6ce459790811b264ec1d8dc8e702b755ffcdeb77.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T350D1_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T75D55_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T75D55_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070TF500D5_Technical_Bulletin.pdf
