Square D™ 9070T75D3

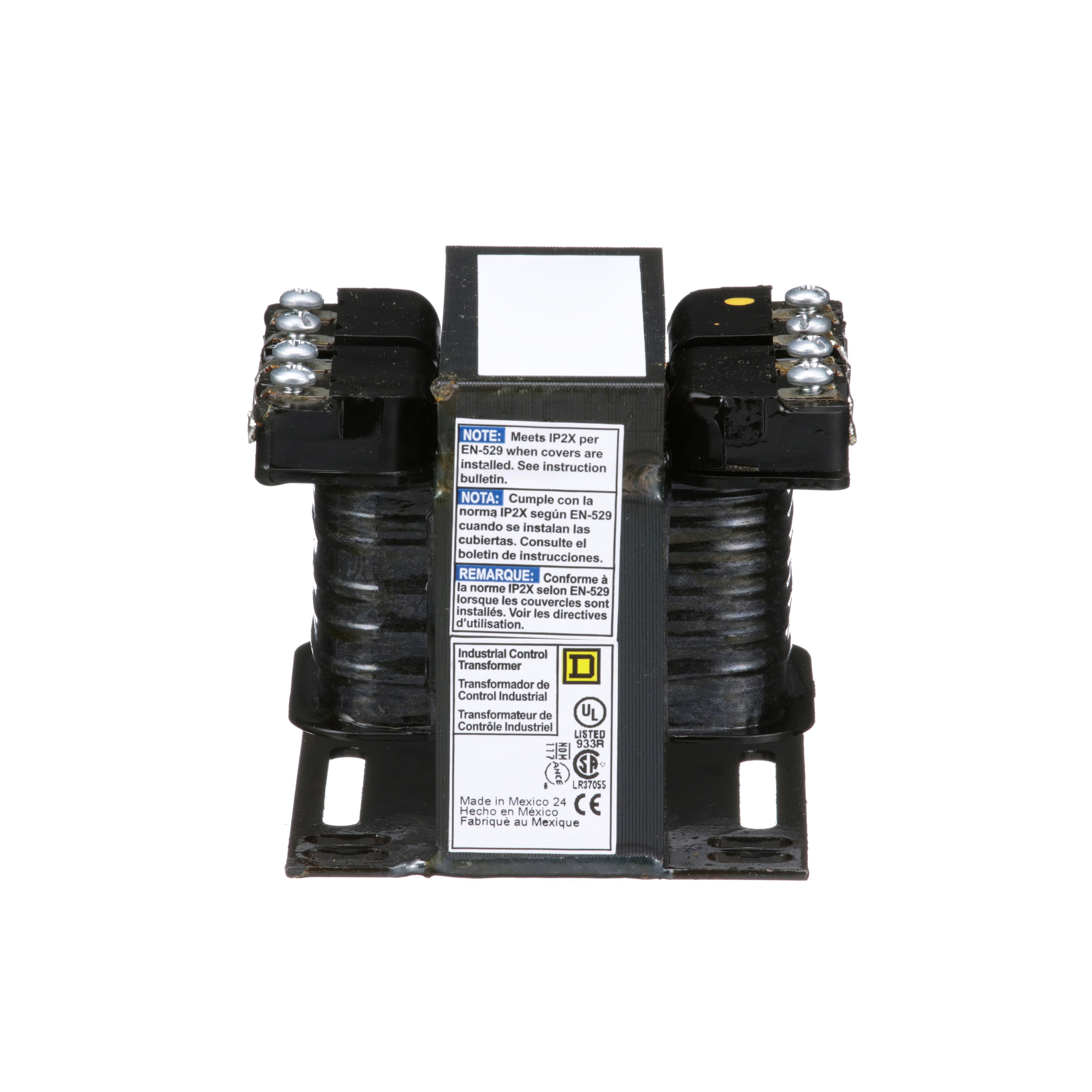

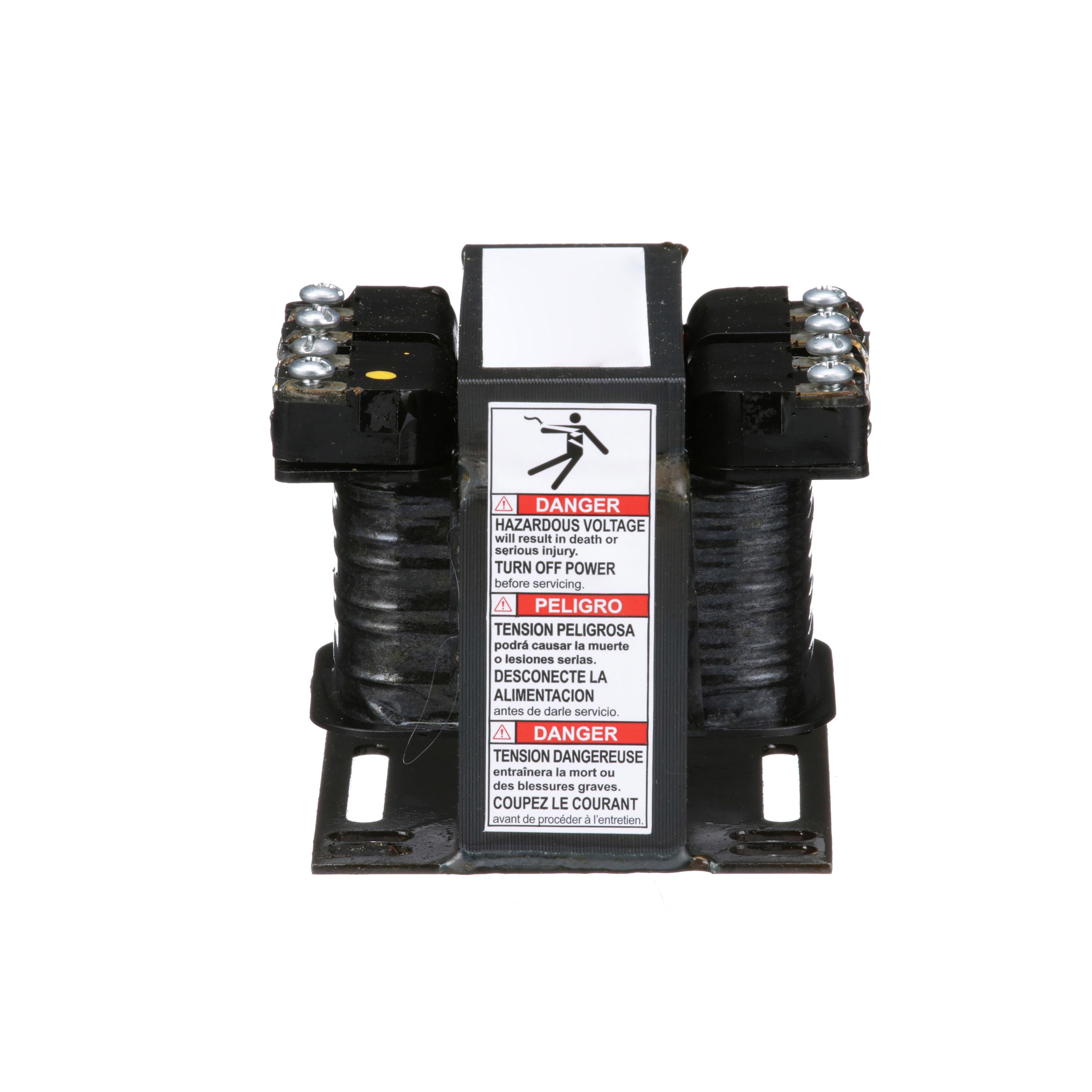

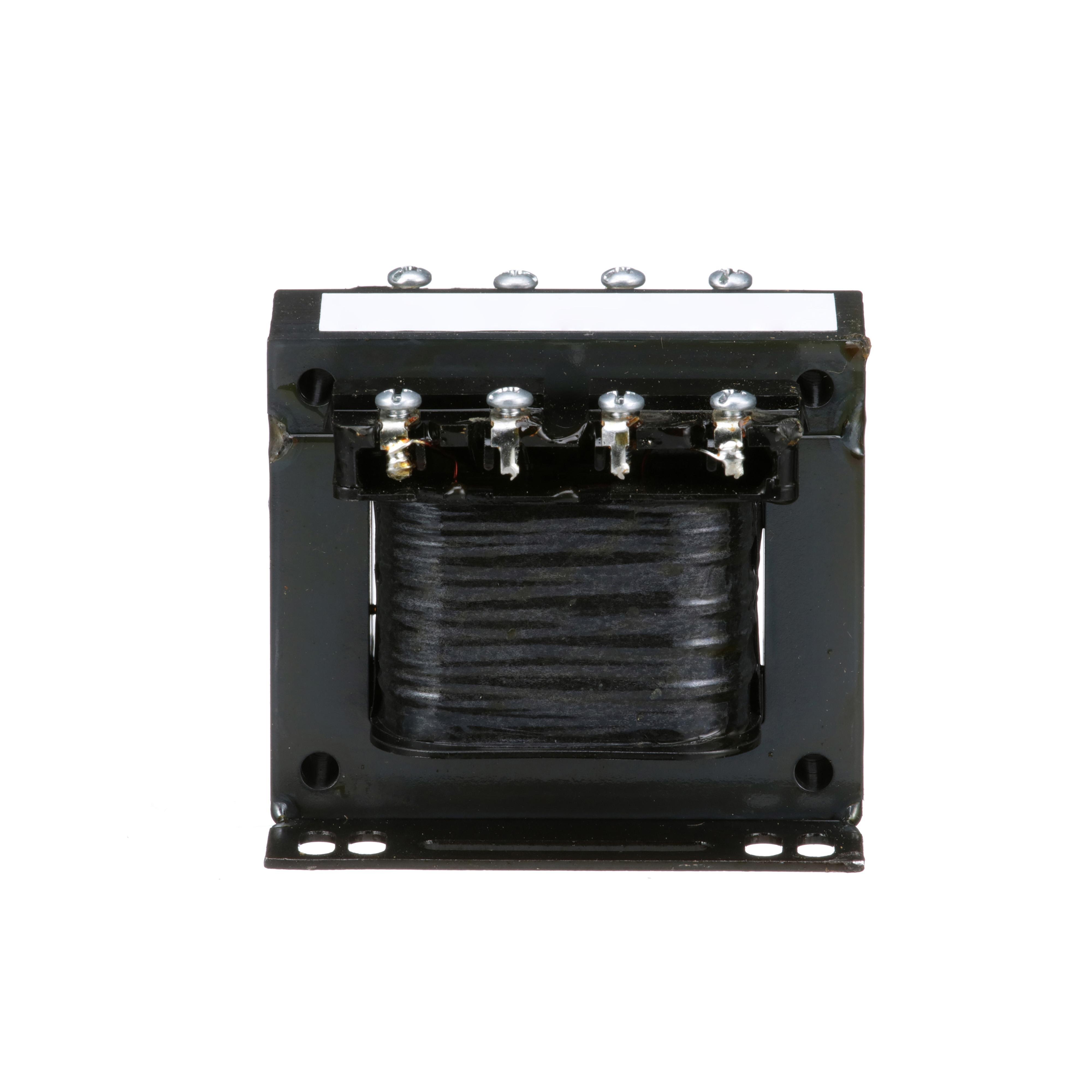

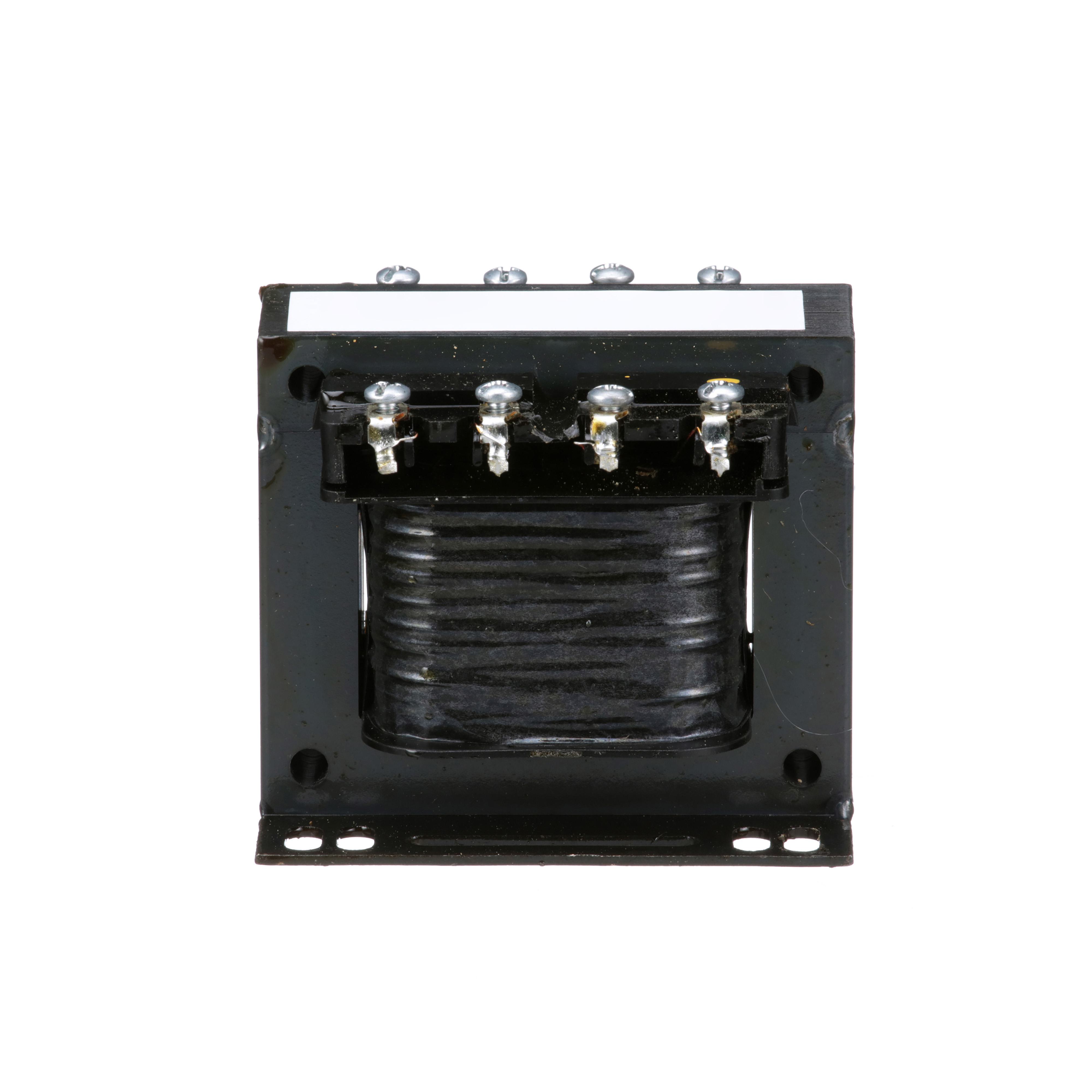

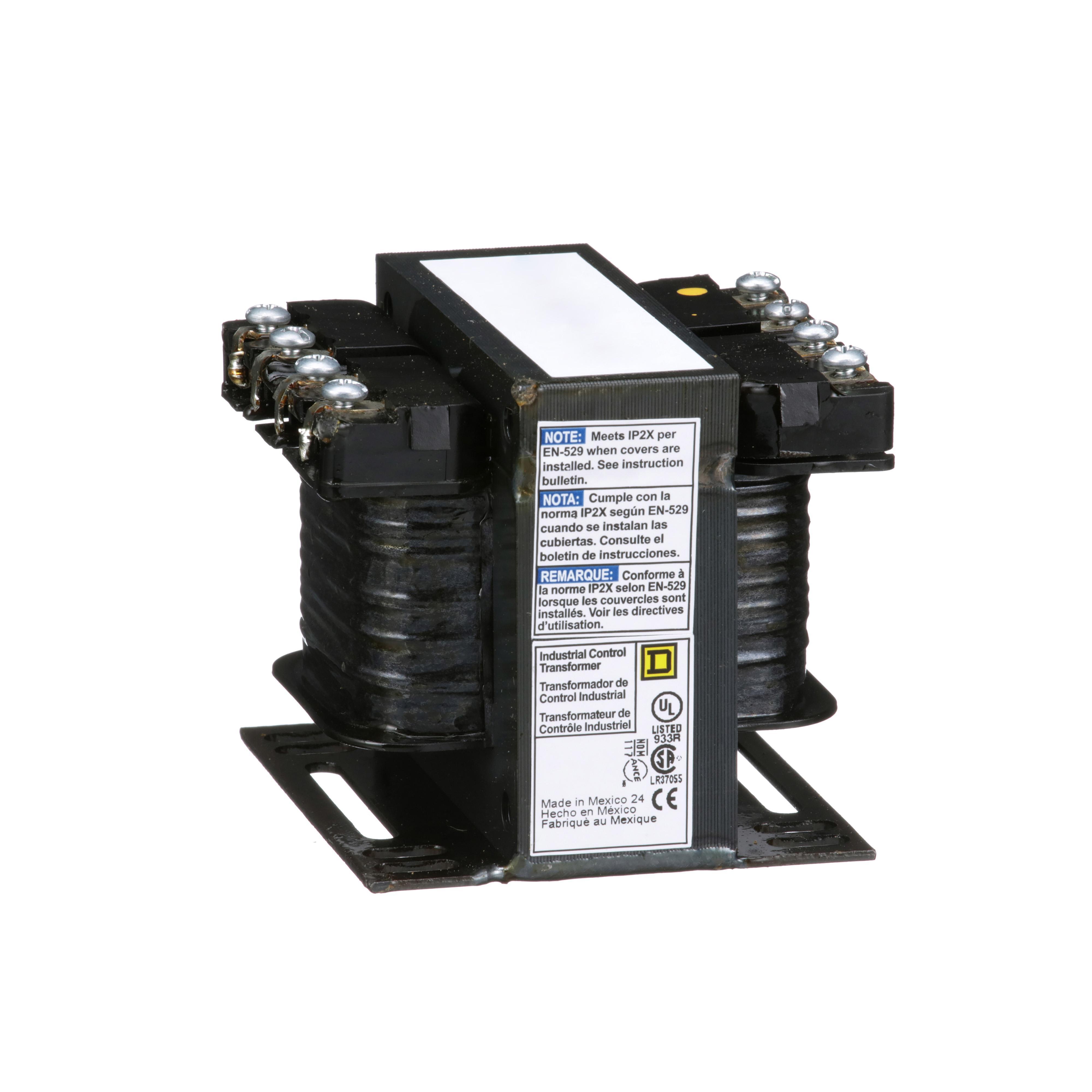

Square D™ 9070T75D3 Type T Control Transformer, 208 VAC Primary, 120 VAC Secondary, 75 VA Power Rating, 50/60 Hz, 1 ph Phase
Brand: Square D™
Item ID: 462409
MPN: 9070T75D3
UPC: 785901736936
Login for Price
Features
- Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes
- Copper winding
Description
Type T transformers are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids and relays. As the most popular and complete line of control transformers with unmatched design innovations for top performance, Type Ts are manufactured using the most advanced insulating materials and are the best choice if size and cost are of concern.
Square D™ Control Transformer, Type T, Series: 9070, 208 VAC Primary, 120 VAC Secondary, 75 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 221 deg F, Open, 55 deg C, 84.2 % Efficiency, 3.38 in W x 3.34 in D x 2.89 in H
Specifications
Connection Type |
Screw Clamp |
Dimensions |
3.38 in W x 3.34 in D x 2.89 in H |
Efficiency |
84.2 % |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Insulation |
221 deg F |
Mounting Type |
Panel |
Phase |
1 ph |
Power Rating |
75 VA |
Primary Voltage |
208 VAC |
Secondary Voltage |
120 VAC |
Series |
9070 |
Temperature Rating |
55 deg C |
Type |
Type T |
Standard Approval |
CE Certified|CSA LR37055, Guide 184-N-90|ECCN EAR99|EN 947923, EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|EN 947923, EN 61 558/01.89 (TUV ref: 00941-RAG/sg E9371495E01)|REACH Compliant|RoHS Compliant|UL E61239, Guide XPTQ2|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Industrial Markets, OEM Commercial, Electrical Equipment OEM |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3c8e564b048f5a95630db2e059f1bc821f03e6e8c1176fa522990662293f8afc.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dcb000fa45edf292887d68791bee641ac7e208540feb88883f518fcf475f6629.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070TF500D5_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T75D3_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed8605438fa7a5ffd3192ddeb03dc574f8f472eced9277327c8be715f0c4b316.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T75D55_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070T75D55_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9070TF500D5_Technical_Bulletin.pdf
