Square D™ 9070TF50D1

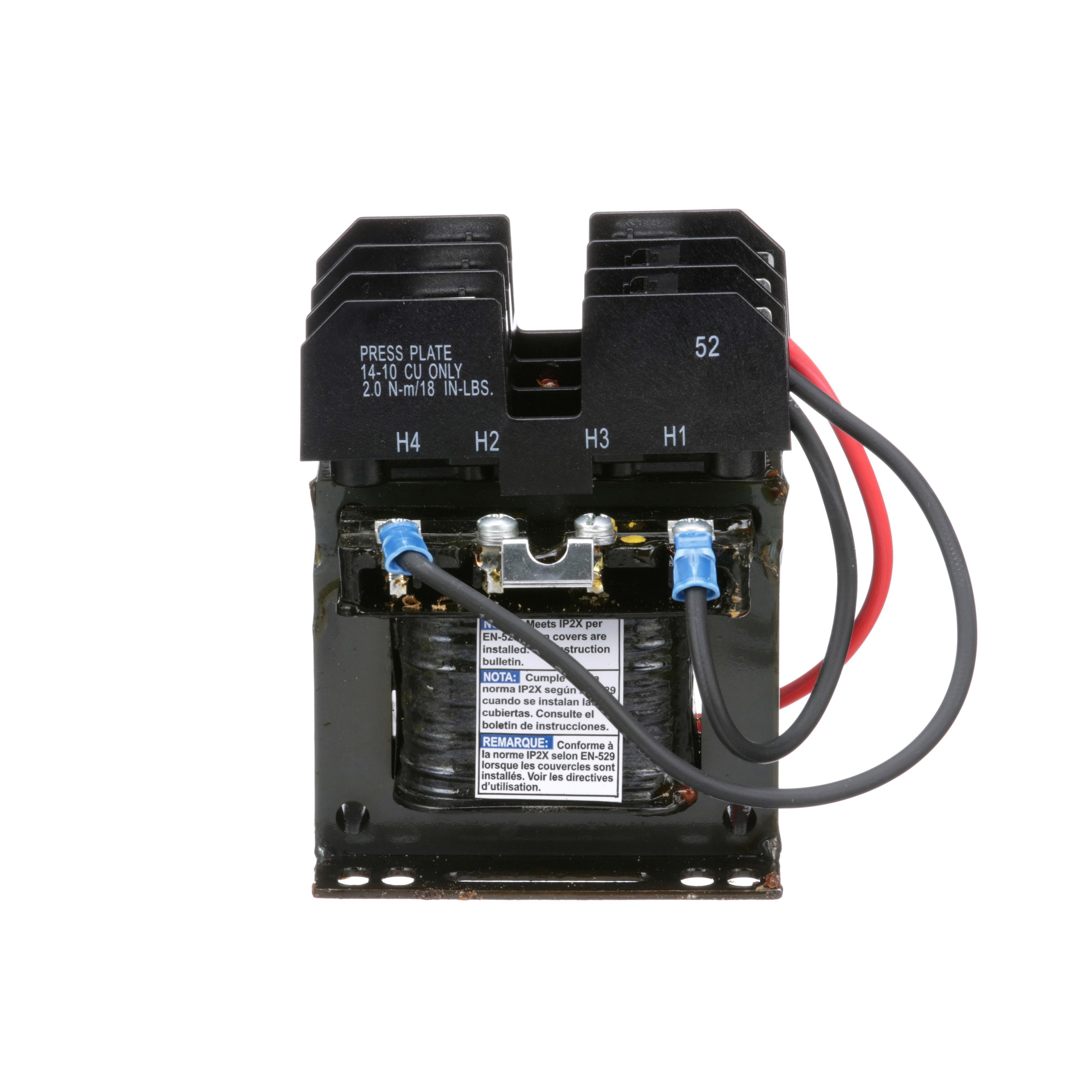

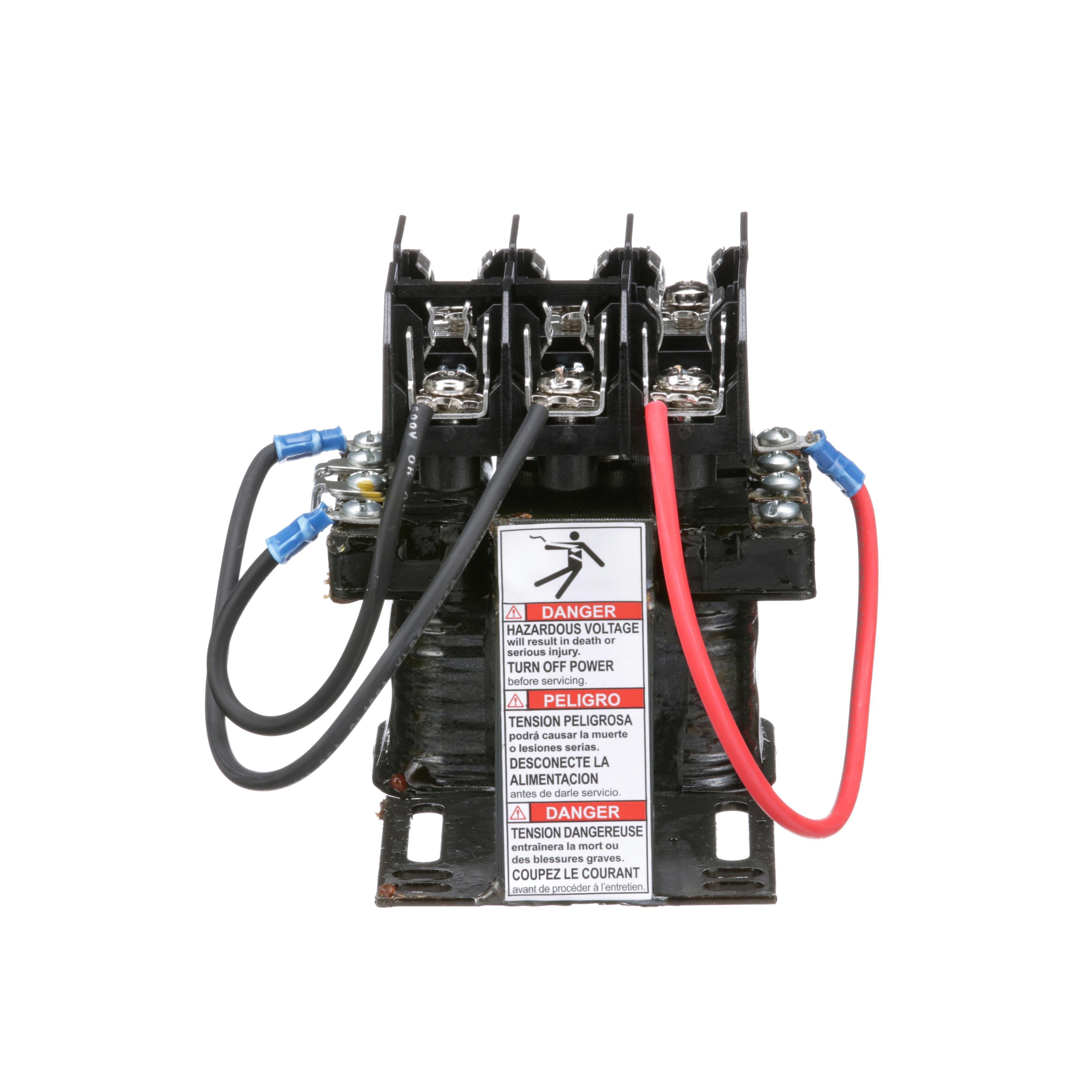

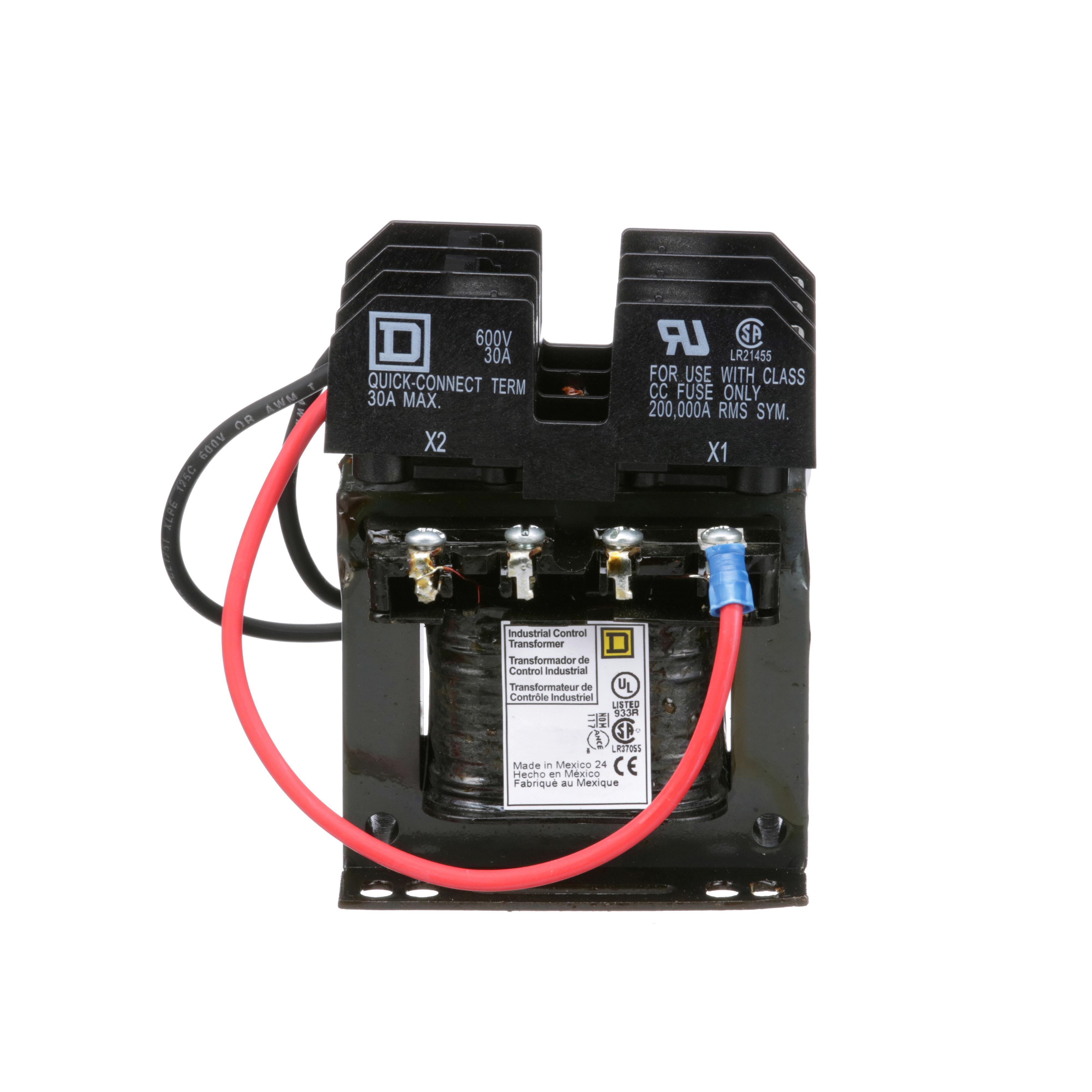

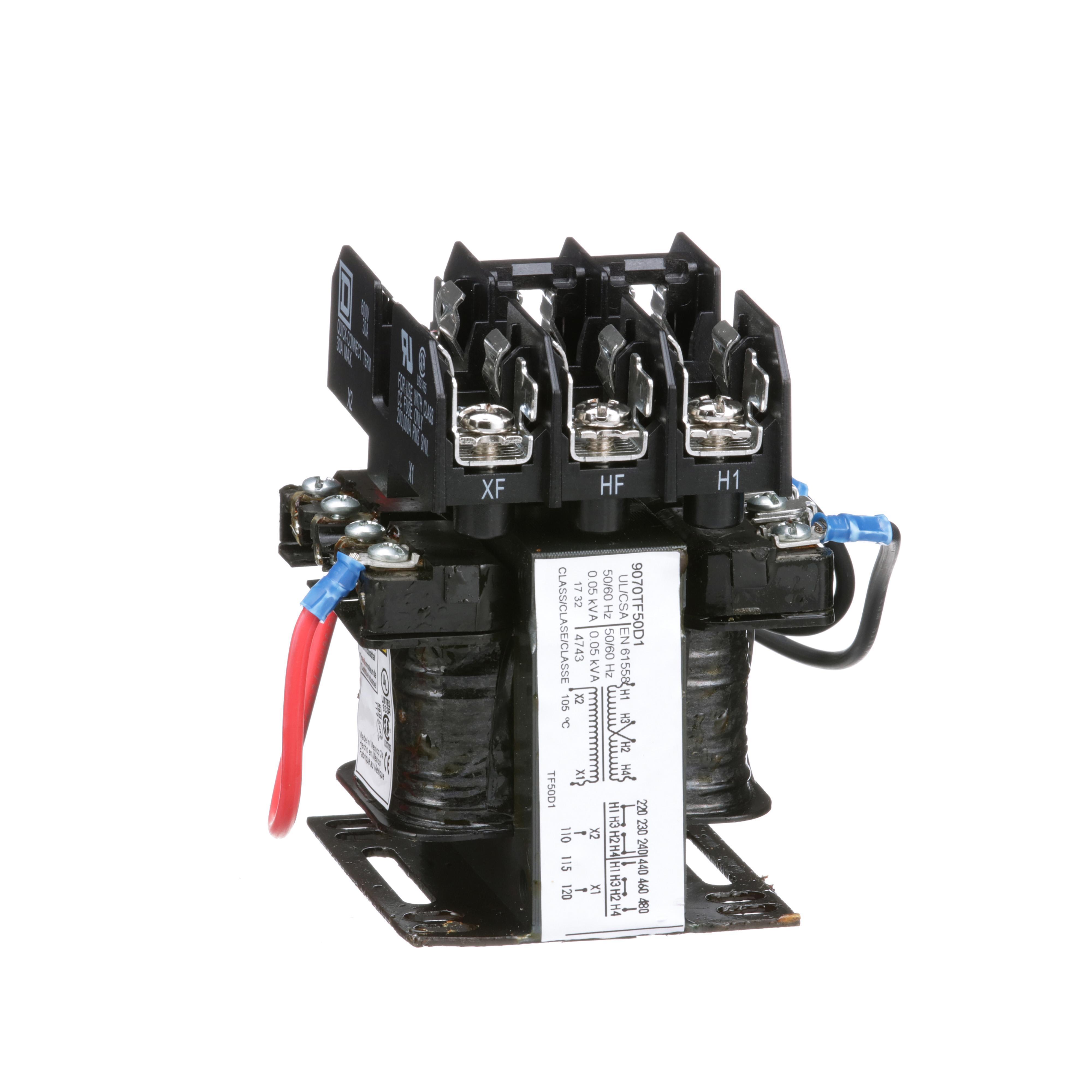

Square D™ 9070TF50D1 Type TF Industrial Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase
Brand: Square D™
Item ID: 9070TF50D1
MPN: 9070TF50D1
UPC: 785901904779
Login for Price
Features
- Copper winding
- Stocked in a wide variety of sizes
- Derives 120 or near 120 VAC control power from a wide variety of supply voltages
- Compatible with Square D™ fingersafe® covers
- Competitively priced with other universal control power transformers on the market
- Copper windings
- 0.41 x 1.5 in (Class CC) primary fuse holders
- 240 x 480, 220 x 440, 230 x 460 VAC primary volt
- 110/115/120 VAC secondary volt
Description
Type TF transformers include factory installed primary and secondary fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block. The primary includes rejection style clips to increase the AIC ratings for the fuses. Since the fuse blocks are mounted on the top of the transformer, type TF transformers are interchangeable with type T transformers except for their increased height.
Square D™, 9070TF50D1, Control Transformer, Type TF Industrial Open Style, 240/480 VAC Primary, 120 VAC Secondary, 50 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 4 in H x 3 in W x 3.09 in D Dimensions
Specifications
Connection Type |
Screw Clamp |
Dimensions |
4 in H x 3 in W x 3.09 in D |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Insulation |
105 deg C |
Mounting Type |
Panel |
Phase |
1 |
Power Rating |
50 VA |
Primary Voltage |
240/480 VAC |
Secondary Voltage |
120 VAC |
Temperature Rating |
55 deg C |
Type |
Type TF Industrial Open Style |
Standard Approval |
Buy American Act Compliant|CE Certified|CSA File No. LR37055 Guide No. 184-N-90|ECCN EAR99|NEC Article 450|RoHS Compliant|UL 508 File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
