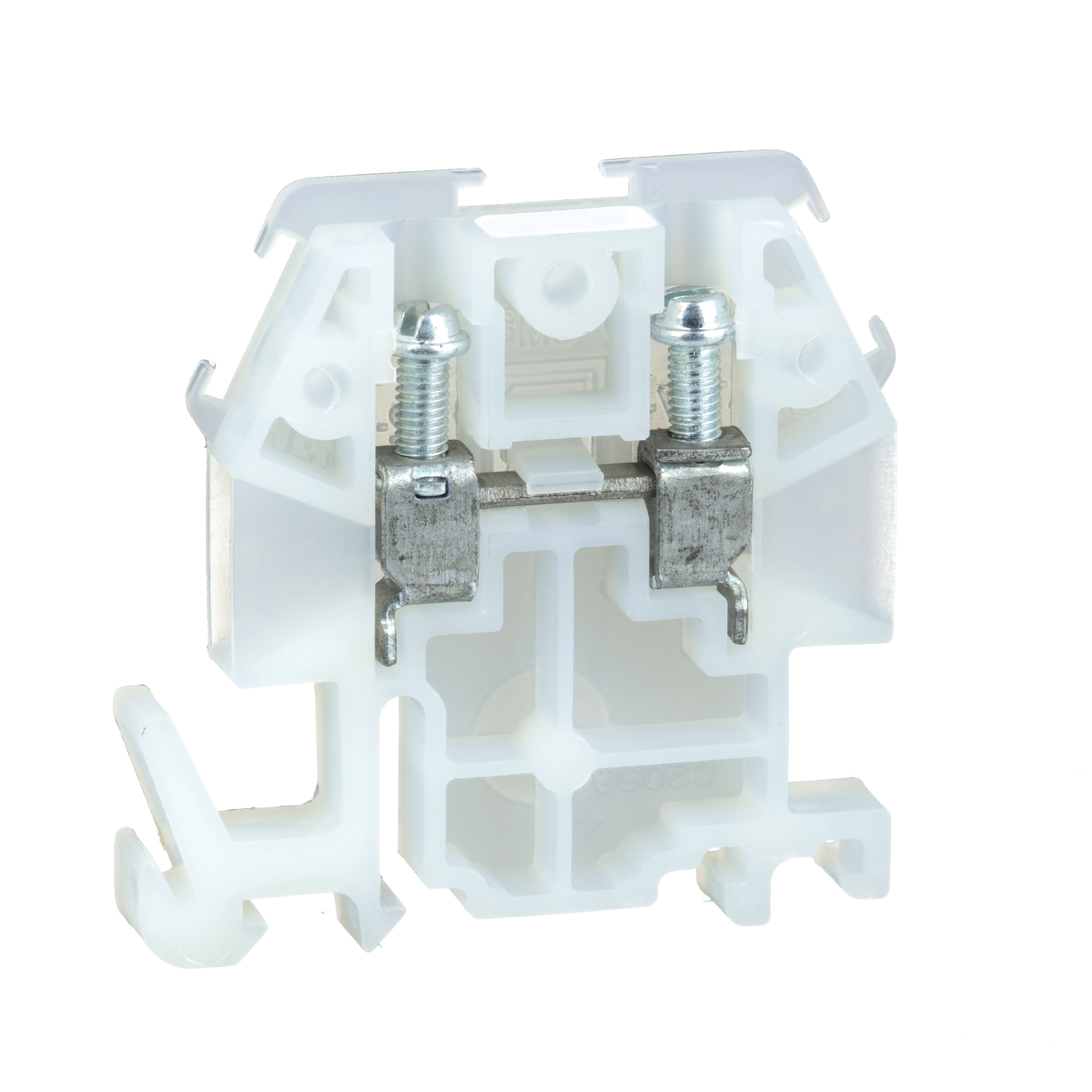

Square D™ 9080GM6
Square D™ 9080GM6 9080G Standard Terminal Block, 600 VAC/VDC, 30 A, 22 to 10 AWG Wire, 1 Poles, DIN Rail Mount
Brand: Square D™
Item ID: 46229
MPN: 9080GM6
UPC: 785901743927
Login for Price
Description
Square D™ Terminal Block, Standard, Series: 9080G, 600 VAC/VDC, 30 A, 1 Pole, 22 to 10 AWG Wire, Box Lug Terminal, DIN Rail Mounting, 75 deg C, Nylon, Natural, 6.3 in L x 3.5 in W x 1.7 in H Dimensions
Specifications
Amperage Rating |
30 A |
Color |
Natural |
Dimensions |
6.3 in L x 3.5 in W x 1.7 in H |
Material |
Nylon |
Mounting Type |
DIN Rail |
Number of Poles |
1 |
Series |
9080G |
Temperature Rating |
75 deg C |
Terminal Size |
51 Section/ft |
Terminal Type |
Box Lug |
Type |
Standard |
Voltage Rating |
600 VAC/VDC |
Wire Size |
22 to 10 AWG |
Standard Approval |
CE Certified|CSA File No. LR62144 Class 6228 01|ECCN: EAR99|RoHS Compliant|UL File No. E60616|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
9080G and GM6B Terminal Blocks |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_6FX50025CA011AB0_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080GMY6B_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080GM6_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080GM6_Specification_Sheet.pdf
