Square D™ 9080LBA265208

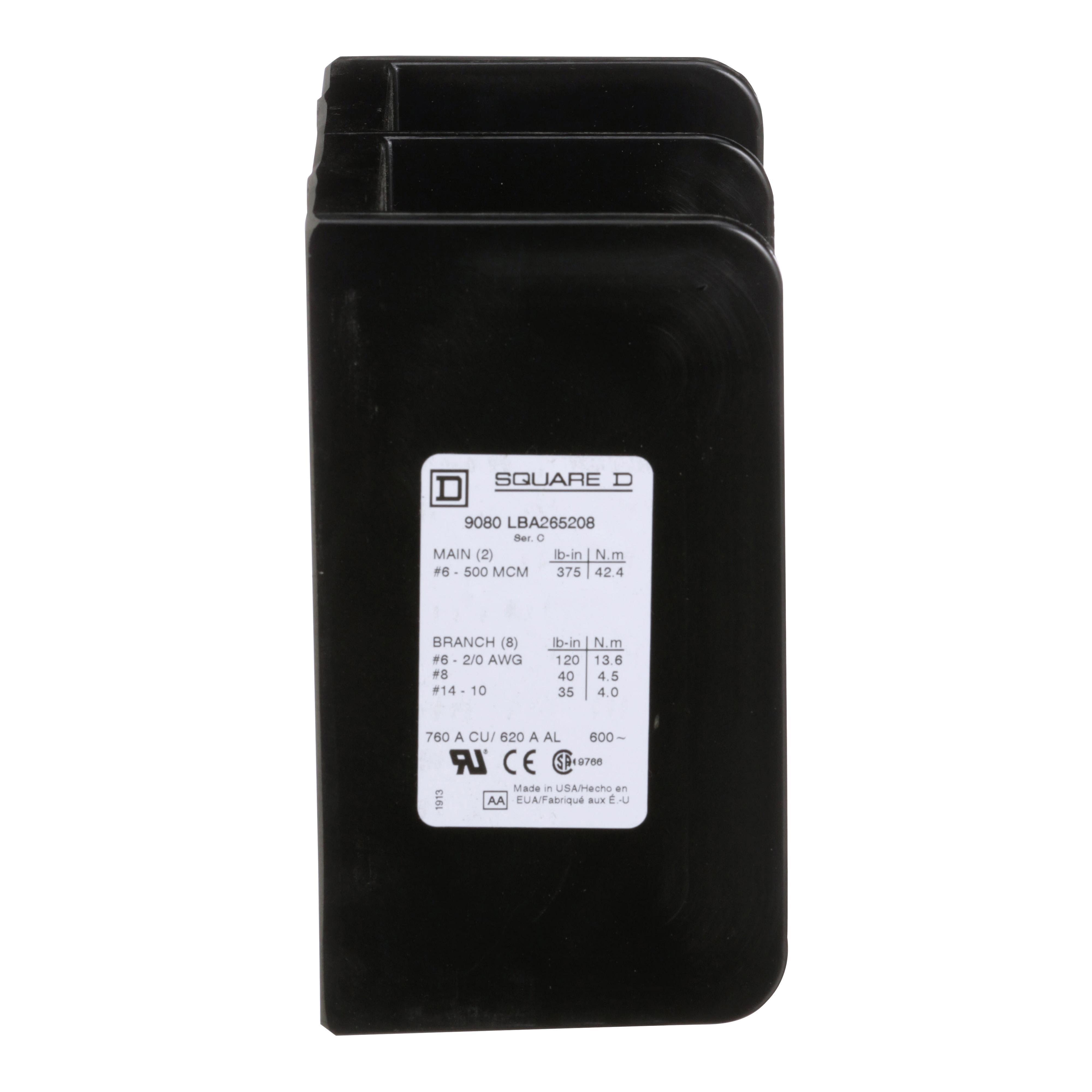

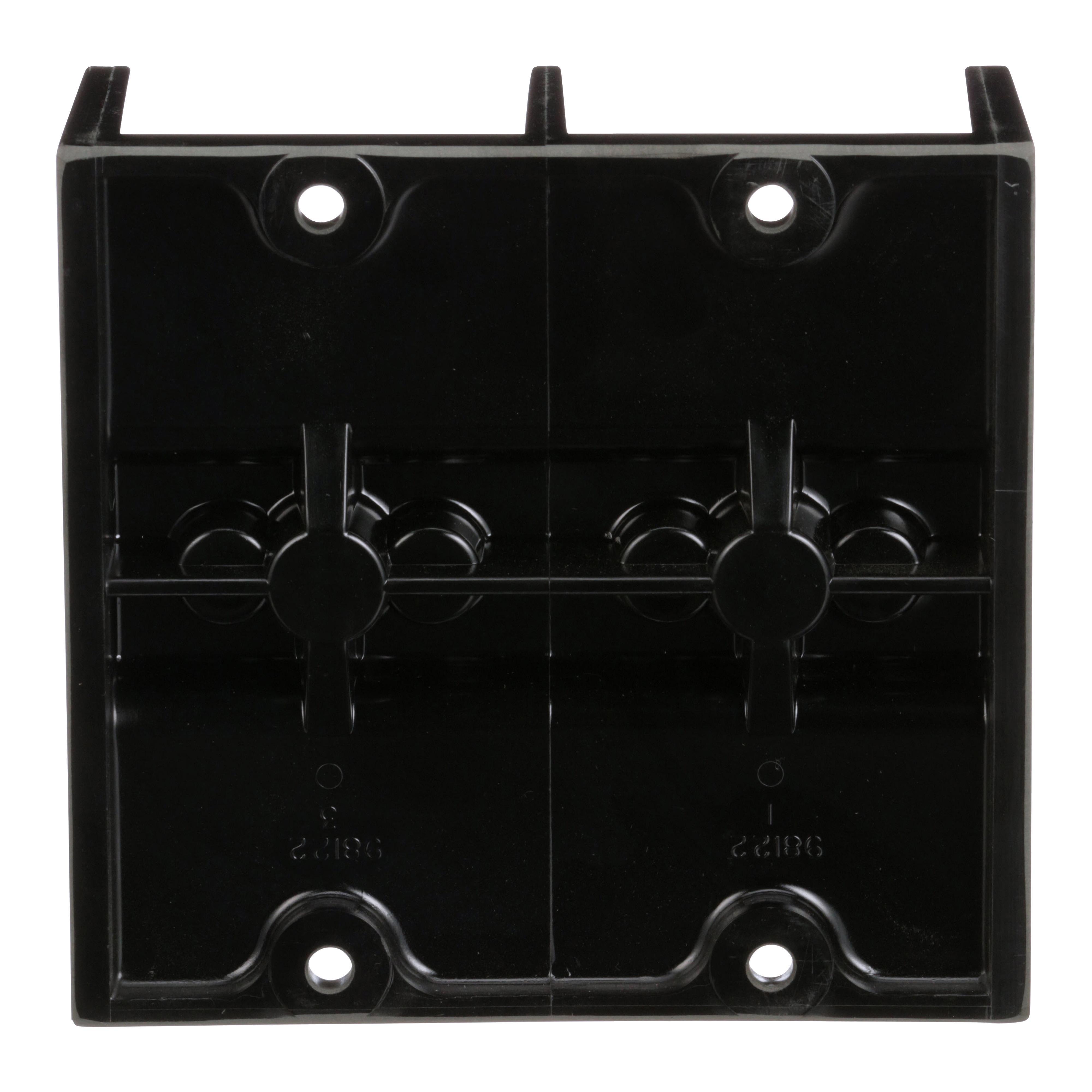

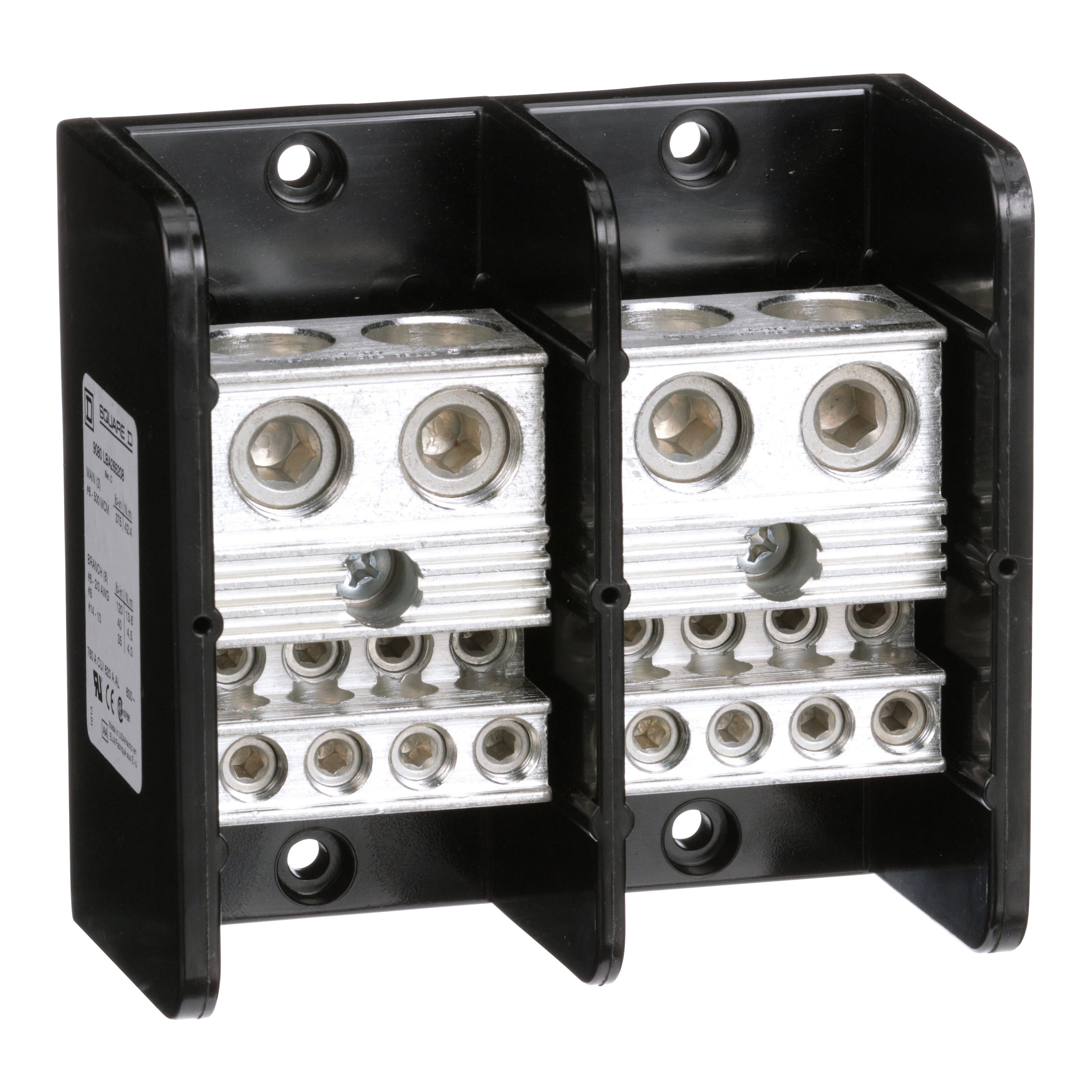

Square D™ 9080LBA265208 Standard Multi-Pole Distribution Block, 600 VAC/VDC, 760/620 A, 2 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Al/Cu Wire, Phenolic
Brand: Square D™
Item ID: 526838
MPN: 9080LBA265208
UPC: 785901157076
Login for Price
Features
- Lugs tin plated aluminum connection
- C service class
- 8 branch, 2 main terminal
- 10 cables
- 42.4 N-m tightening torque
- -40 to 302 deg F temperature rating
- 4 AWG to 500 kcmil aluminum/copper main, 14 to 2/0 AWG aluminum/copper branch wire
- 760 A Cu, 620 A Al amperage rating
Description
Power Distribution Block 2 Pole 2 Line 8 Load 600V 760A CU / 600V 620A AL
Square D™ Multi-Pole Distribution Block, Standard, 600 VAC/VDC, 760/620 A, 2 Pole, 2 Primary Connections/Pole, 8 Secondary Connection/Pole, 4 AWG to 500 kcmil, 14 to 2/0 AWG Al/Cu Wire, Class J/T/RK1/RK5/G/CC Fuse, 100 kA Short Circuit, Phenolic, 5.5 in H x 5.88 in W x 3.13 in D Dimensions
Specifications
Amperage Rating |
760/620 A |
Dimensions |
5.5 in H x 5.88 in W x 3.13 in D |
Fuse Type |
Class J/T/RK1/RK5/G/CC |
Material |
Phenolic |
Number of Poles |
2 |
Primary Connections/Pole |
2 |
Secondary Connection/Pole |
8 |
Short Circuit Current Rating |
100 kA |
Type |
Standard |
Voltage Rating |
600 VAC/VDC |
Wire Size |
4 AWG to 500 kcmil, 14 to 2/0 AWG Al/Cu |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|CE Marked|UL94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov |
Application |
For 9080LB, 9080LB52 power distribution block covers and general purpose applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c50f67c6506a08de39d92bbed10d64855bca254579be71060a388e9fb306652b.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA265208_Full_Engineering_Drawing.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_809b2e60d28b01a07a6202056cba2d36b2335114ce7c06152b8546552564cfcf.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_ADRI0221C24SW_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA265208_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed9598ea453a18e05a2dc4e74d9101694689bfa04f5a300d743d8734229b9729.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA265208_Specification_Sheet.pdf
