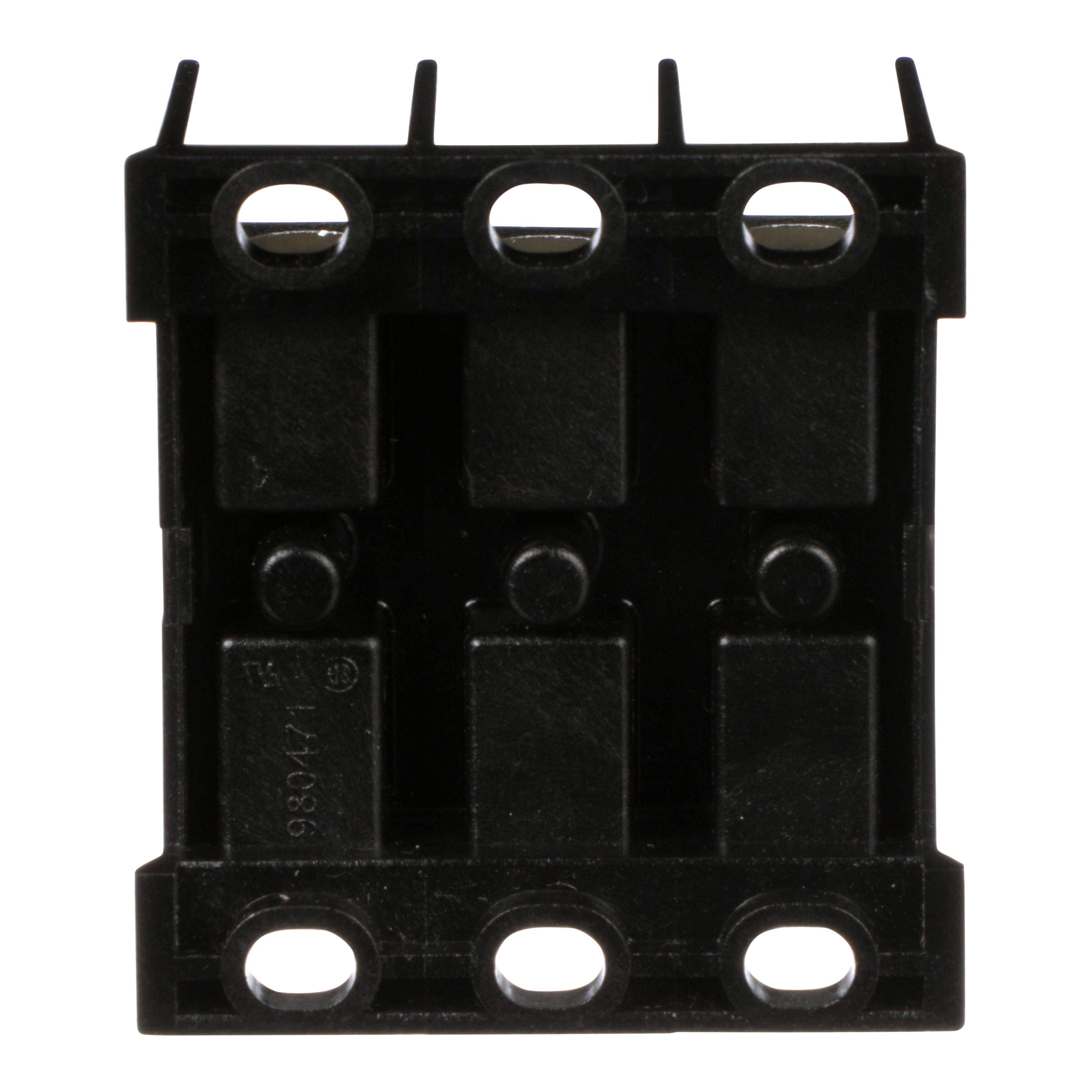

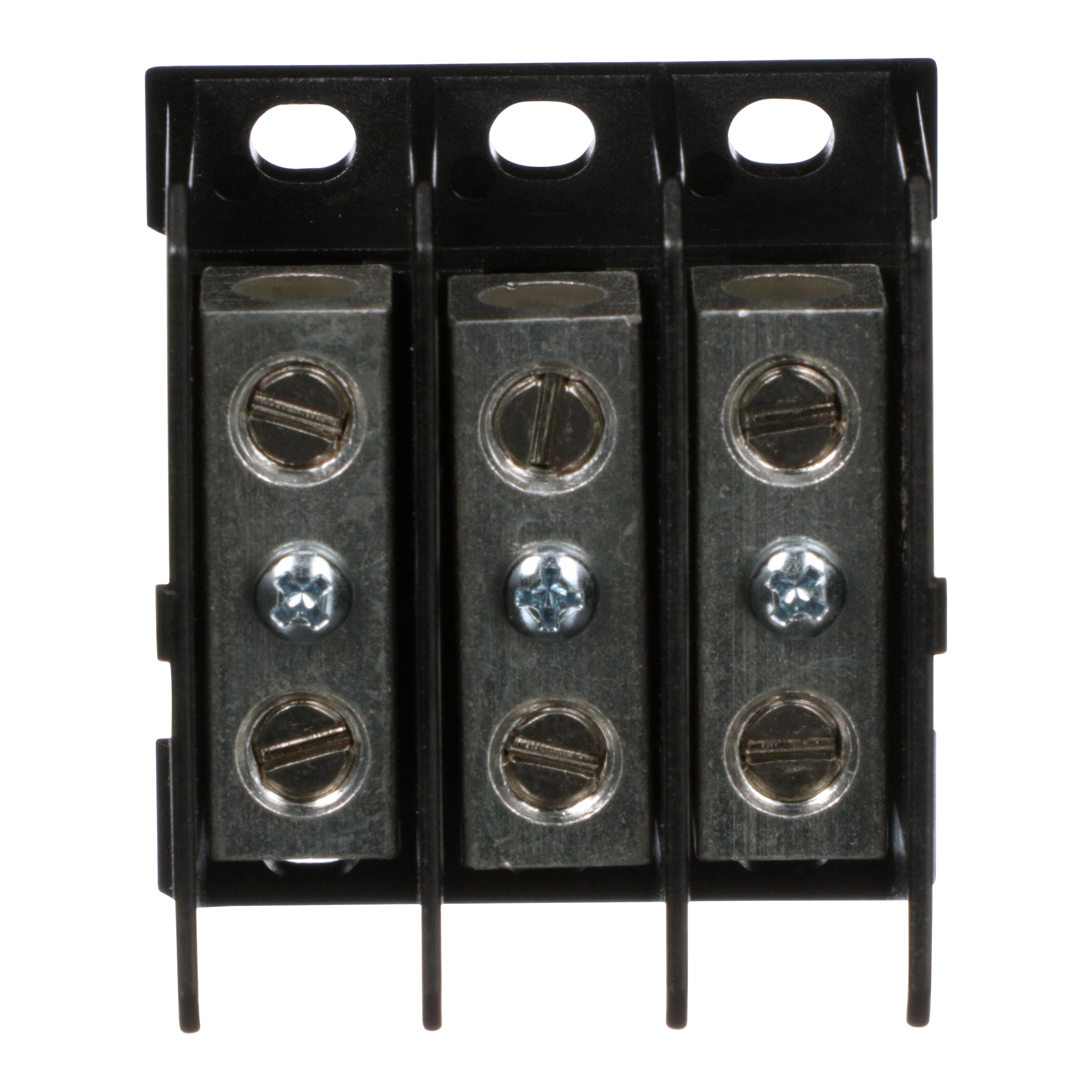

Square D™ 9080LBA361101
Square D™ TeSys® Linergy™ 9080LBA361101 Linergy Miniature Multi-Pole Power Distribution Block, 600 VAC/VDC, 90/115 A, 3 Poles, 14 to 2 AWG Wire, Thermoplastic
Brand: Square D™
Item ID: 549968
MPN: 9080LBA361101
UPC: 785901097426
Login for Price
Features
- Lugs tin plated aluminum connection
- Block type copper or aluminum wire
- Main (1) 14 to 2/0 AWG - branch, (1) 14 to 2/0 awg copper or aluminum wire size
- Service class c
- -40 to 257 deg f temperature rating
- (1) lug primary, (1) lug secondary
- 90 A/115 a
Description
Square D™ TeSys® Linergy™ Multi-Pole Power Distribution Block, Linergy Miniature, Series: 9080LB, 600 VAC/VDC, 90/115 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2 AWG Wire, 65 kA Short Circuit, Thermoplastic, Black, 2.1 in W x 1.53 in D x 2.29 in H Dimensions
Specifications
Amperage Rating |
90/115 A |
Color |
Black |
Dimensions |
2.1 in W x 1.53 in D x 2.29 in H |
Material |
Thermoplastic |
Number of Poles |
3 |
Primary Connections/Pole |
1 |
Secondary Connection/Pole |
1 |
Series |
9080LB |
Short Circuit Current Rating |
65 kA |
Type |
Linergy Miniature |
Voltage Rating |
600 VAC/VDC |
Wire Size |
14 to 2 AWG |
Standard Approval |
RoHS Compliant|UL File No. E60616|UL 94 V-0 Flammability Rating|CSA File No. LR70361|CE Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For use with 9080LB13 power distribution block covers applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA361101_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA361101_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA361101_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9080LBA361101_Specification_Sheet.pdf
