Square D™ 92251

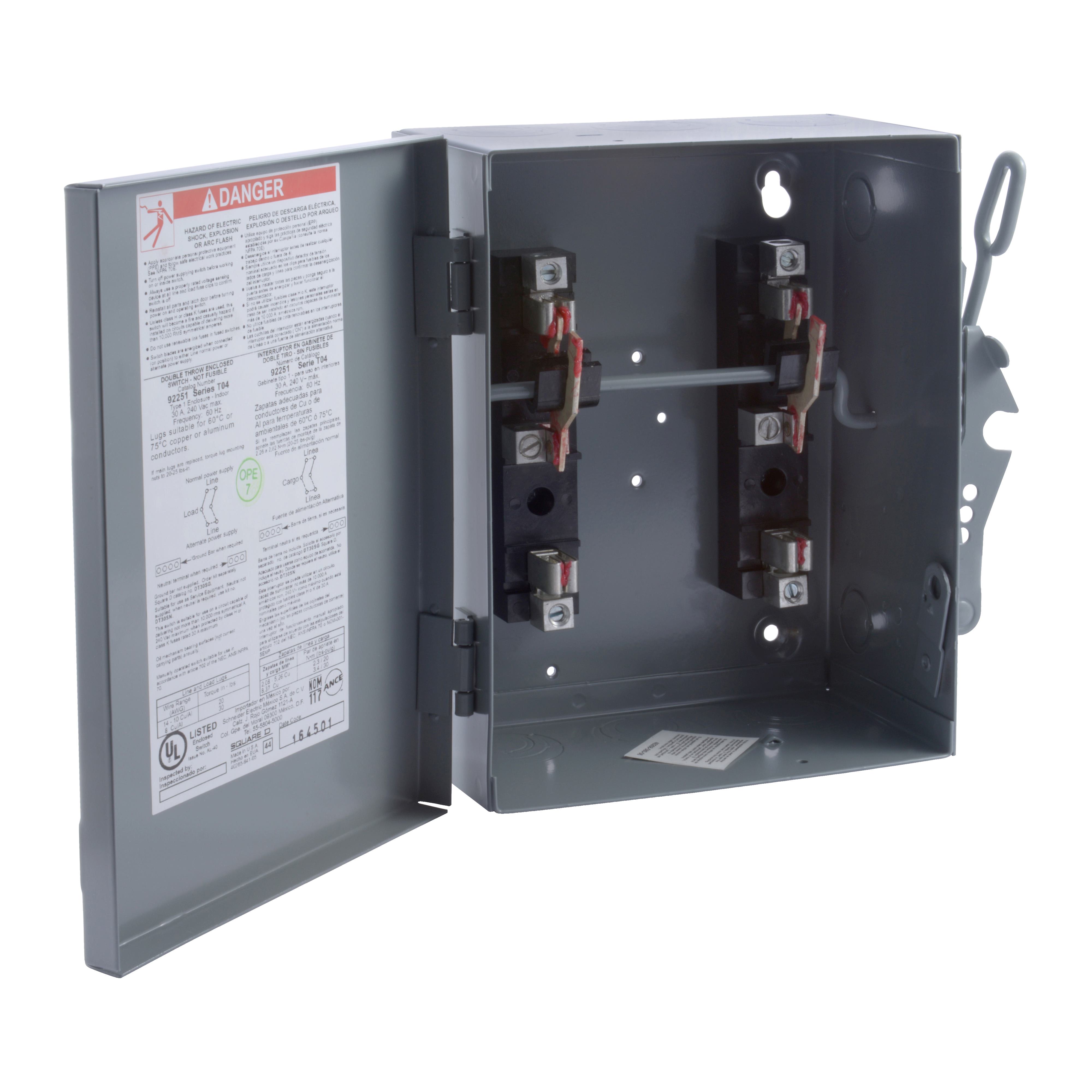

Square D™ 92251 Non-Fusible Disconnect Safety Switch, 240 VAC, 30 A, DPDT Contact, 2 Poles
Brand: Square D™
Item ID: 533013
MPN: 92251
UPC: 785901454465
Login for Price
Features
- Suitable for use as service entrance equipment
- Quick-make, quick-break operating mechanism
- Visible blade switches for positive "Off" indication
Description
Double throw safety switches are designed to transfer a load from 1-power source to another power source. 30 to 100 A F series switches can be field converted to transfer a power source from 1-load to another.
Square D™ Safety Switch, Non-Fusible Disconnect, Series: T4, 240 VAC, 30 A, 1/3 ph, 2 Pole, 2 Wires, 200 kA Short Circuit, DPDT Contact Form, NEMA 1 Enclosure, Surface Mounting, 10 in H x 9-3/4 in W x 4-3/4 in D Dimensions, Steel
Specifications
Amperage Rating |
30 A |
Contact Form |
DPDT |
Dimensions |
10 in H x 9-3/4 in W x 4-3/4 in D |
Enclosure Type |
NEMA 1 |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
2 |
Phase |
1/3 |
Series |
T4 |
Short Circuit Current Rating |
200 kA |
Type |
Non-Fusible Disconnect |
Voltage Rating |
240 VAC |
Standard Approval |
UL 98|ECCN EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial, Indoor and General Purpose Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6aecc15f338b2084b4a02fc4e7f0b04b5d4b280dd5cf21020f7fc89390f8c0eb.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H82344_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92251_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1e0c8695026dcfcabfe3f2ea9010af0c3930f62455c831bc3c8a0cefa7d76384.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92251_Specification_Sheet.pdf
