Square D™ 92351

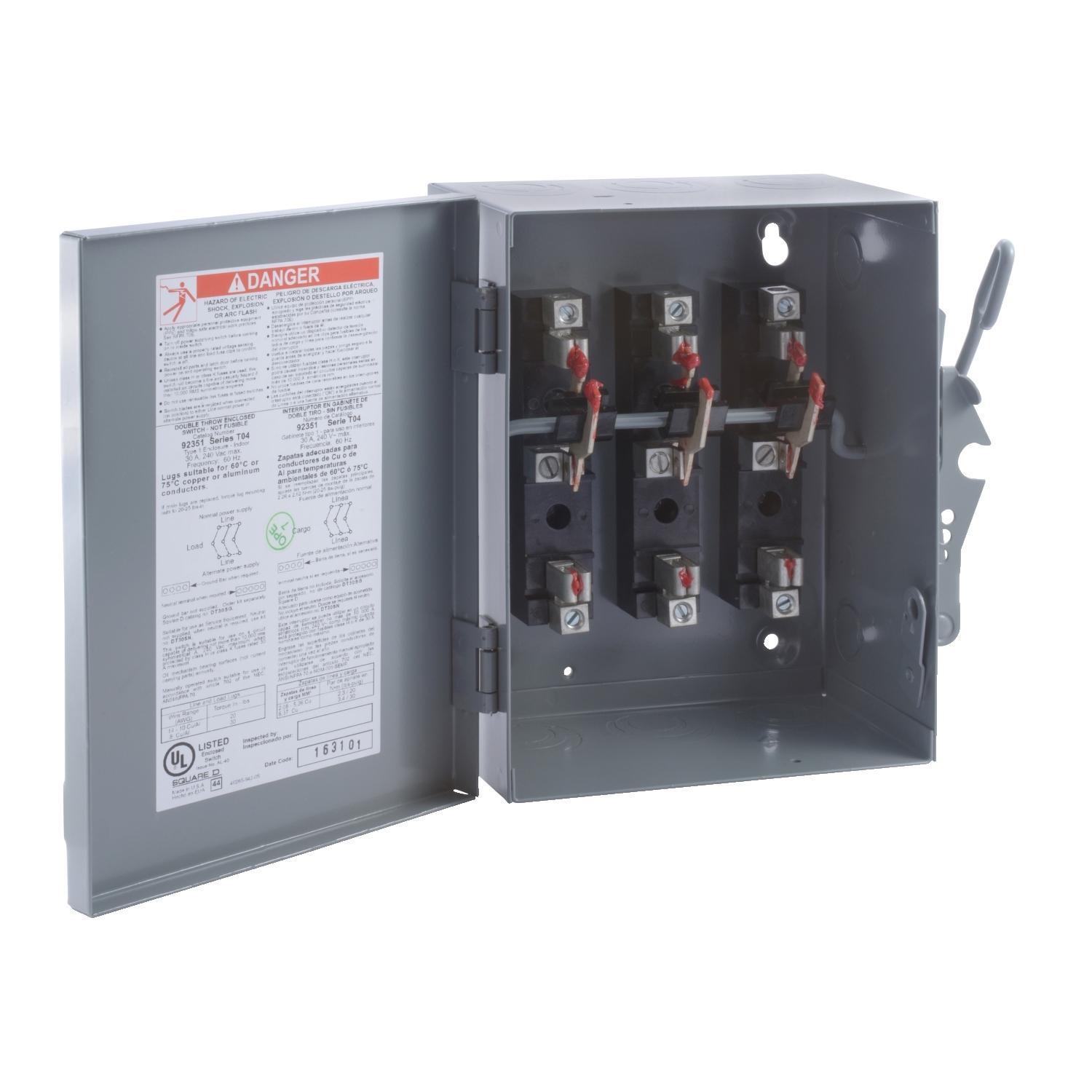

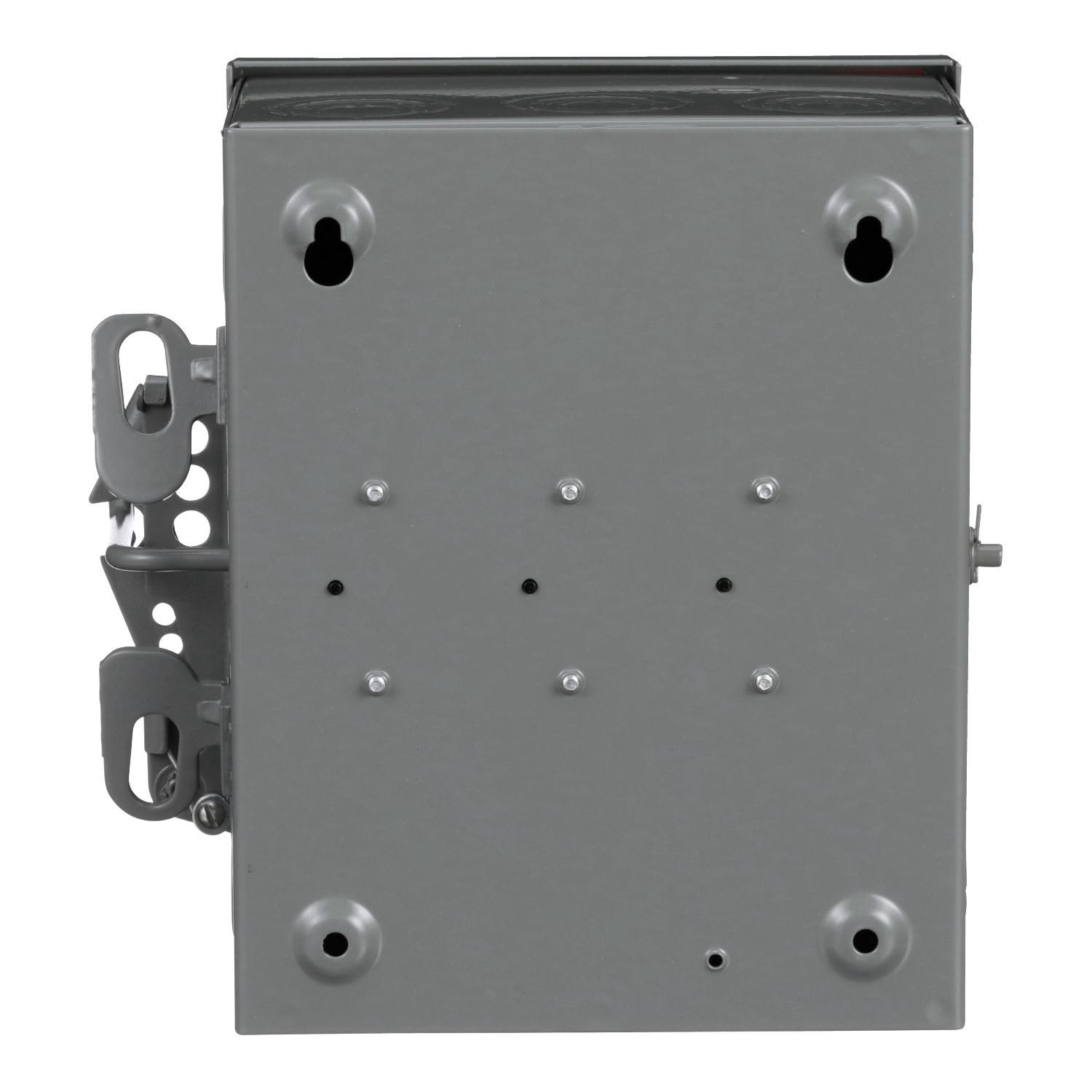

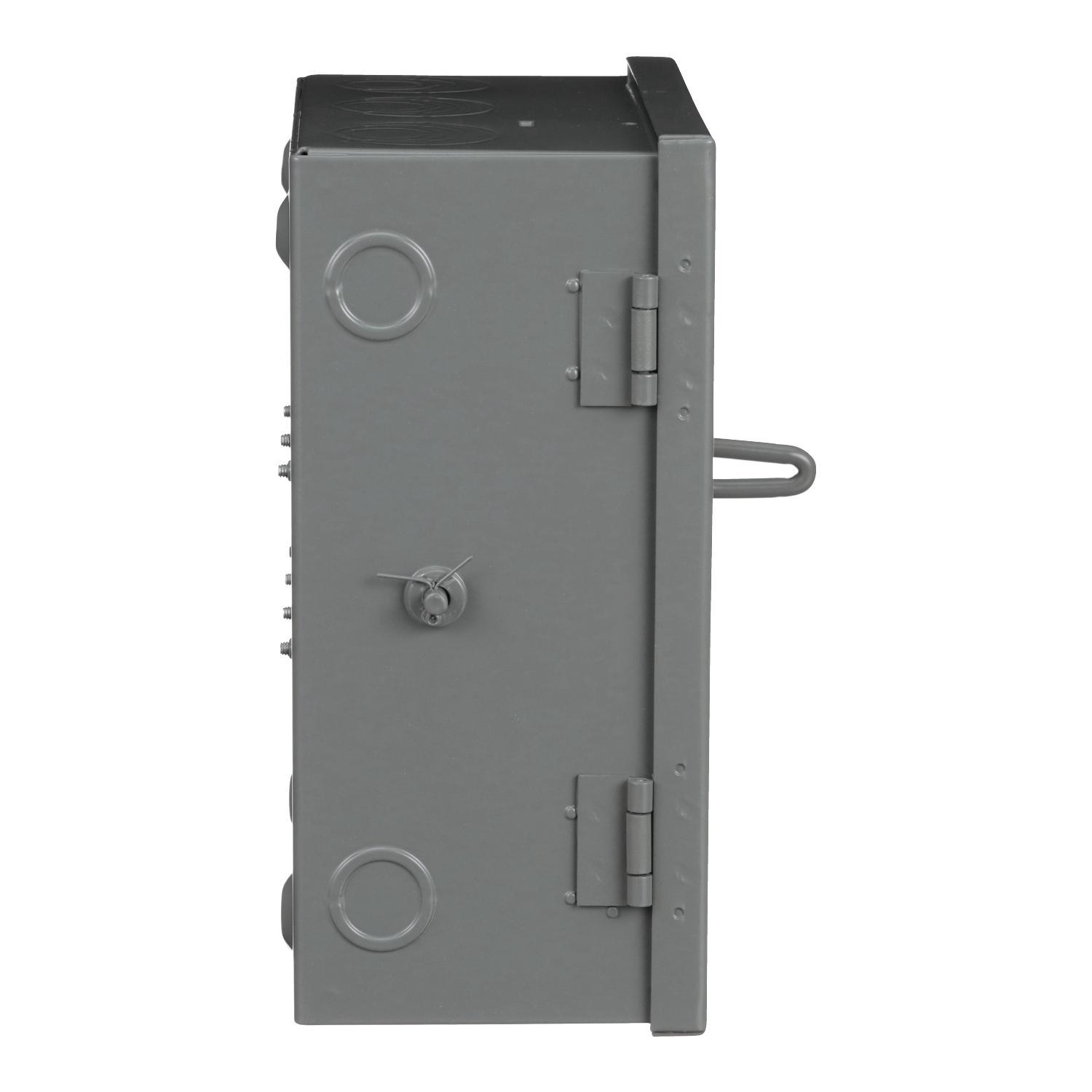

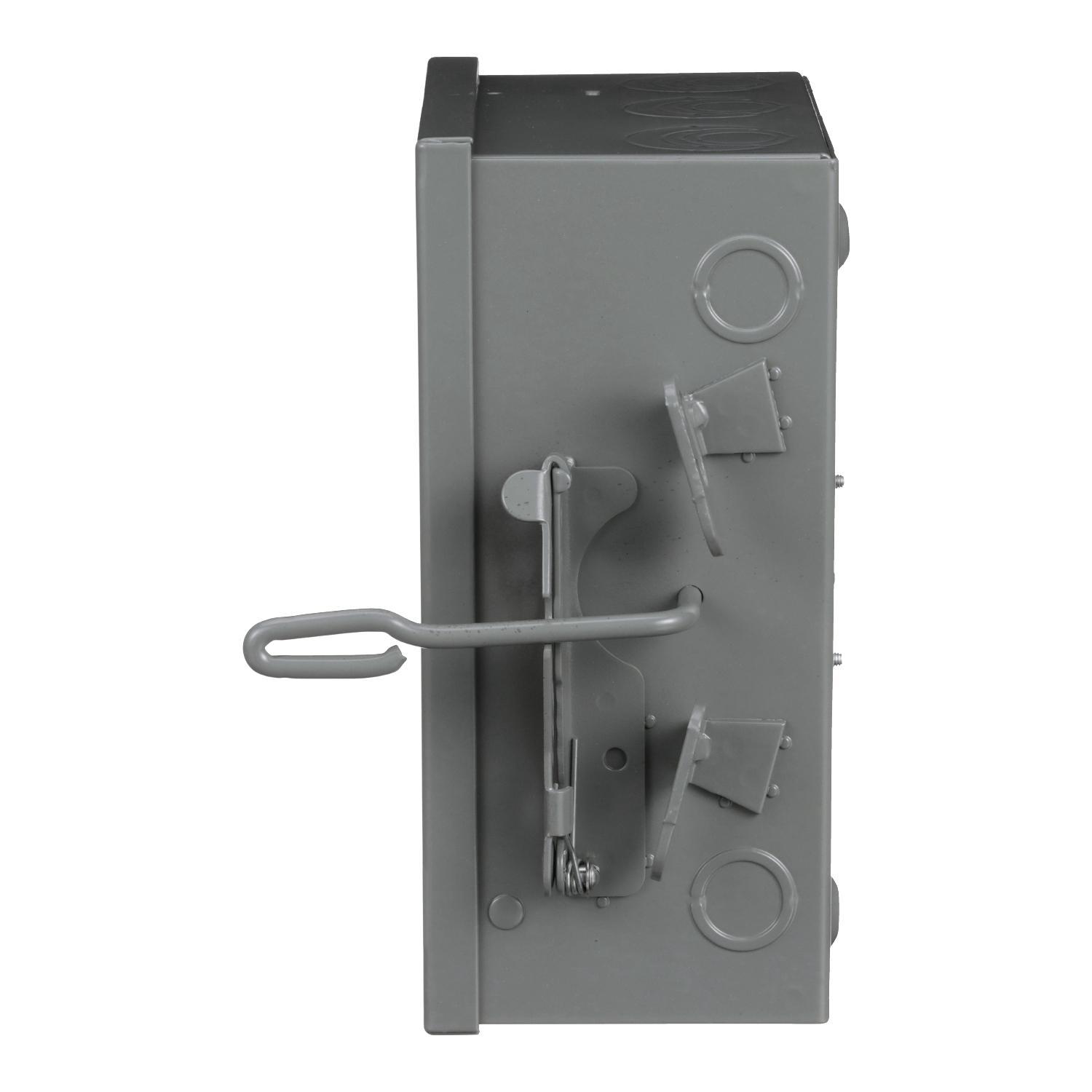

Square D™ 92351 Non-Fusible Safety Switch, 240 VAC, 250 VDC, 30 A, TPDT Contact, 3 Poles
Brand: Square D™
Item ID: 546833
MPN: 92351
UPC: 785901454588
Login for Price
Features
- Used for manual transfer of one load between two power sources
- N wire type
- 1 lb maximum load
Description
Double throw safety switches are designed to transfer a load from 1-power source to another power source. 30 to 100 A F series switches can be field converted to transfer a power source from 1-load to another.
Square D™ Safety Switch, Non-Fusible, 240 VAC, 250 VDC, 30 A, 3 Pole, 10 kA Short Circuit, TPDT Contact Form, Class H/K Insulation, NEMA 1 Enclosure, Surface Mounting, 10 in H x 9-3/4 in W x 4-3/4 in D Dimensions, Steel
Specifications
Amperage Rating |
30 A |
Contact Form |
TPDT |
Dimensions |
10 in H x 9-3/4 in W x 4-3/4 in D |
Enclosure Type |
NEMA 1 |
Insulation Type |
Class H/K |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Short Circuit Current Rating |
10 kA |
Type |
Non-Fusible |
Voltage Rating |
240 VAC/250 VDC |
Standard Approval |
UL 98 File No. E2875|eccn: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Residential, Light Commercial, Industrial, Indoor and General Purpose Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92351_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92351_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92351_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_92351_Specification_Sheet.pdf
