Square D™ 9422TDN60

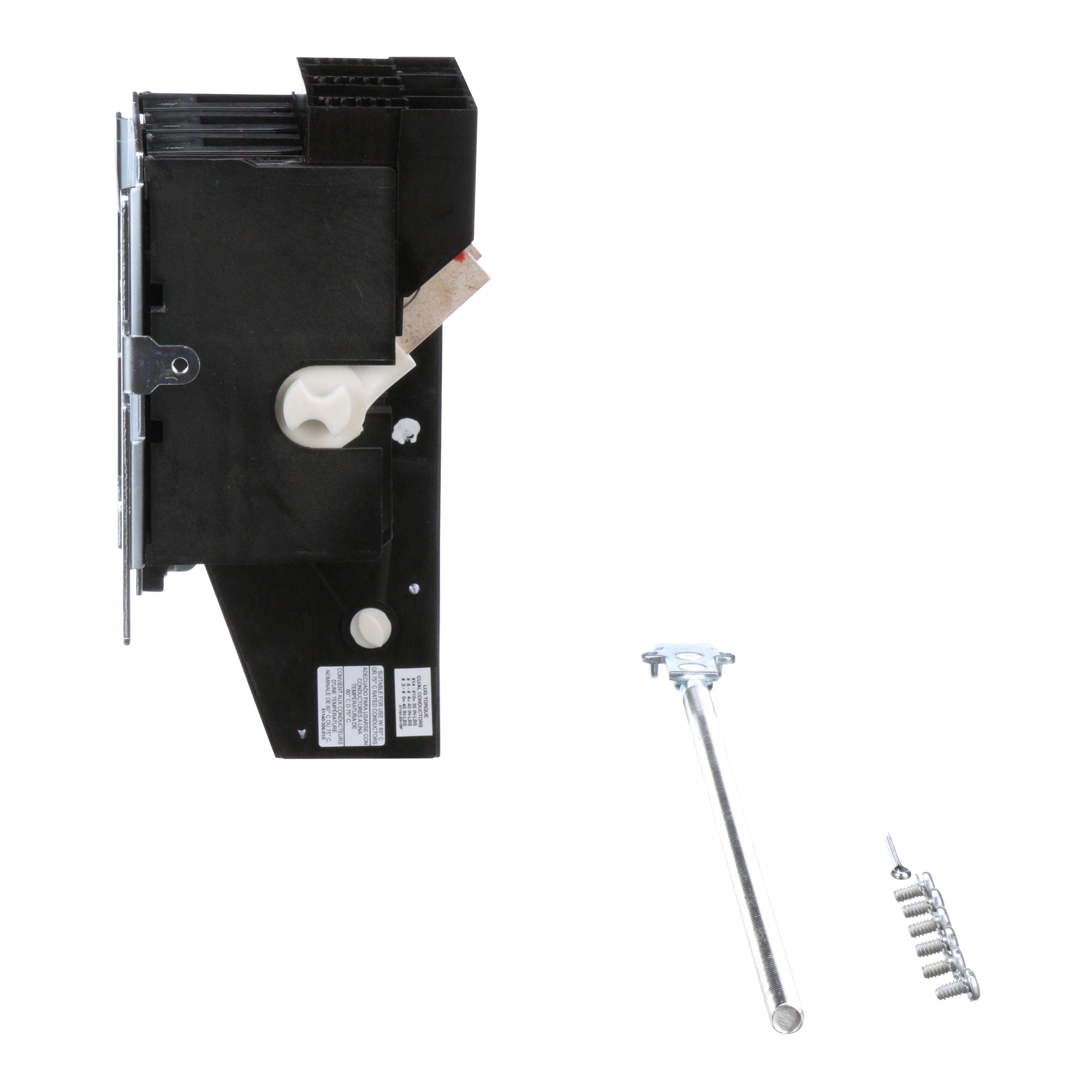

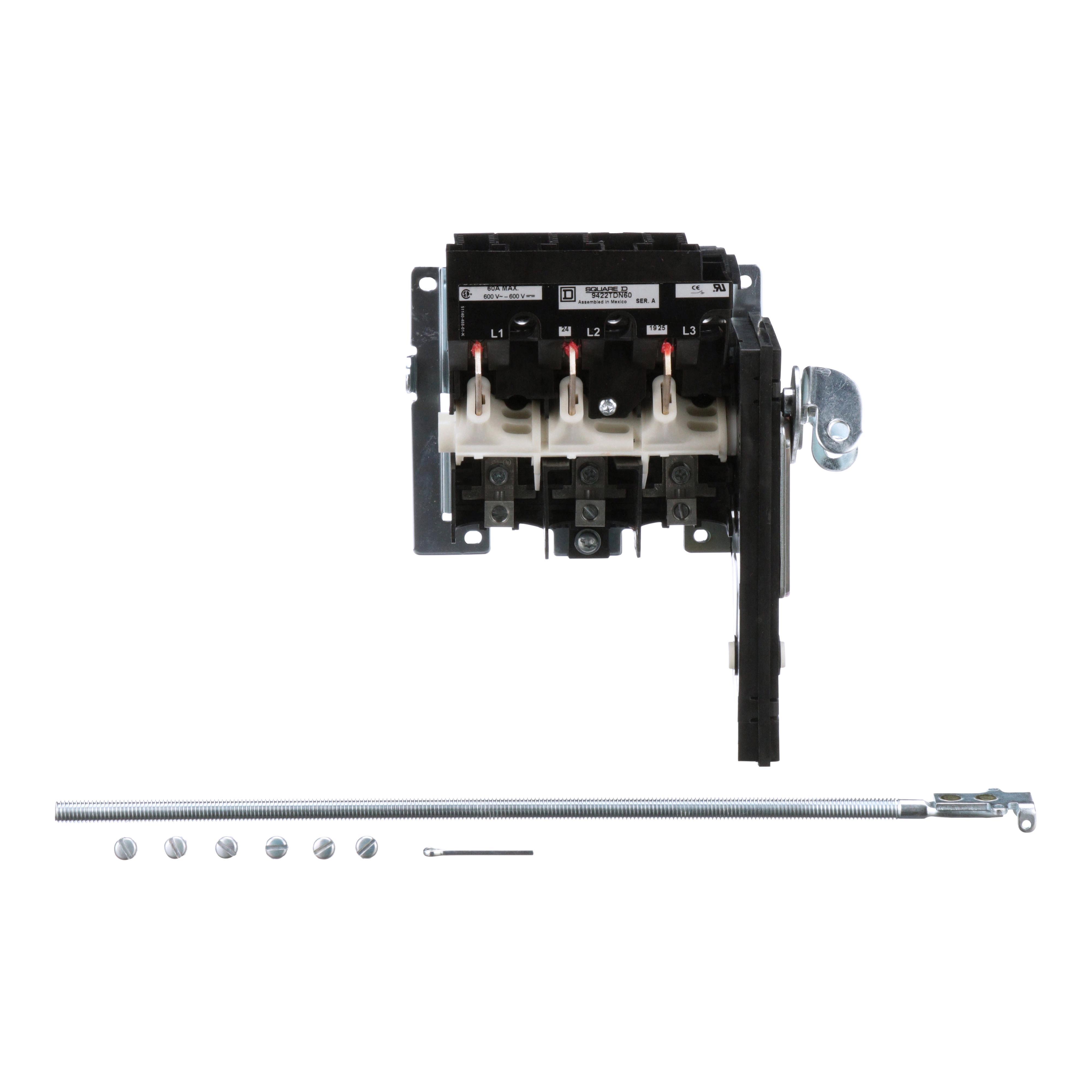

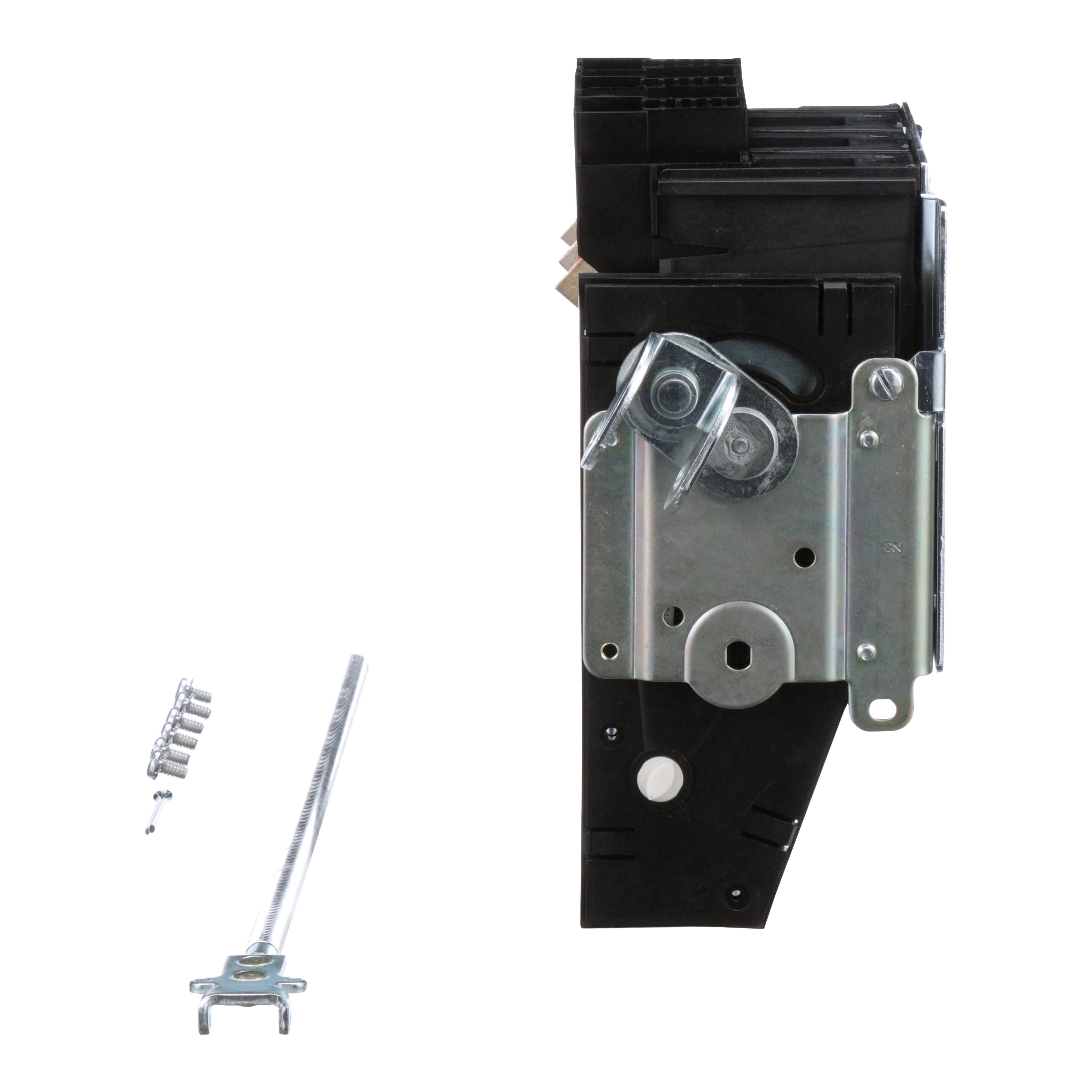

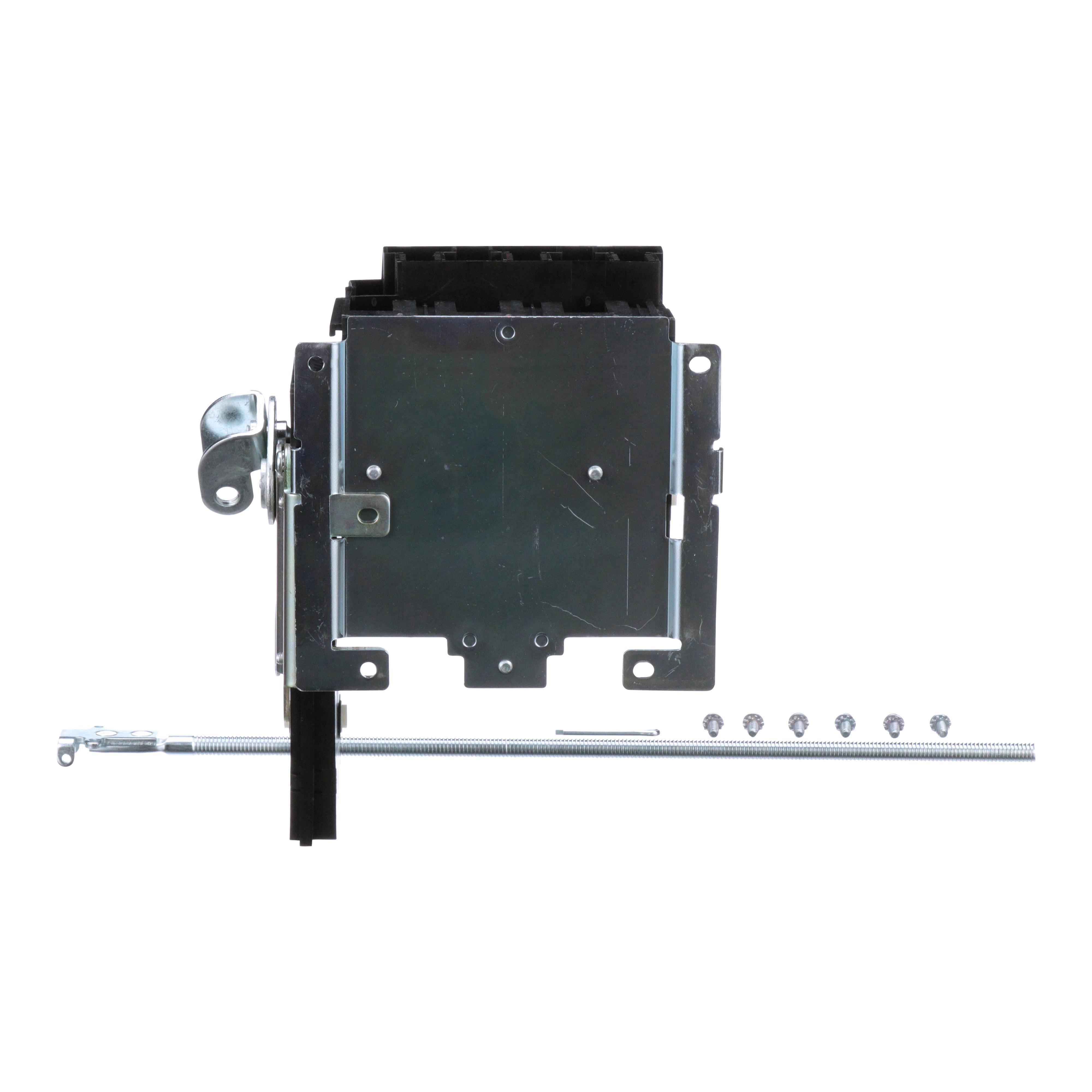

Square D™ 9422TDN60 Fixed/Variable Depth Non-Fusible Rod Operated Disconnect Switch, 600 VAC, 60 A, 15 hp at 200/230 VAC, 30 hp at 460 VAC, 50 hp at 575 VAC, 10 hp at 250 VDC, 3 Poles
Brand: Square D™
Item ID: 545137
MPN: 9422TDN60
UPC: 785901879787
Login for Price
Features
- One common switch profile for 30 to 100 a switches
- Interchangeable fuse clips 30 to 60 a and the ability to add fuse clip kits and cable mechanisms for flexibility
- Fully compatible with the 9422 handle operators and 9423 door closing mechanisms for a wide-range of applications
- Right or left flange mounting
Description
Square D™ Disconnect Switch, Fixed/Variable Depth Non-Fusible Rod Operated, Series: 9422T, 600 VAC, 60 A, 15 hp at 200/230 VAC, 30 hp at 460 VAC, 50 hp at 575 VAC, 10 hp at 250 VDC, 3 Pole, Flange Mounting
Specifications
Amperage Rating |
60 A |
Horsepower |
15 hp at 200/230 VAC, 30 hp at 460 VAC, 50 hp at 575 VAC, 10 hp at 250 VDC |
Mounting Type |
Flange |
Number of Poles |
3 |
Series |
9422T |
Type |
Fixed/Variable Depth Non-Fusible Rod Operated |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CSA Class File No. LR44199/4652/04|UL File No. E52639 CCN Guide No. WHTY2|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TDN60_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TDN60_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TDN60_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TDN60_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO0012V02_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO0012V02_Technical_Bulletin.pdf
