Square D™ 9998LH44

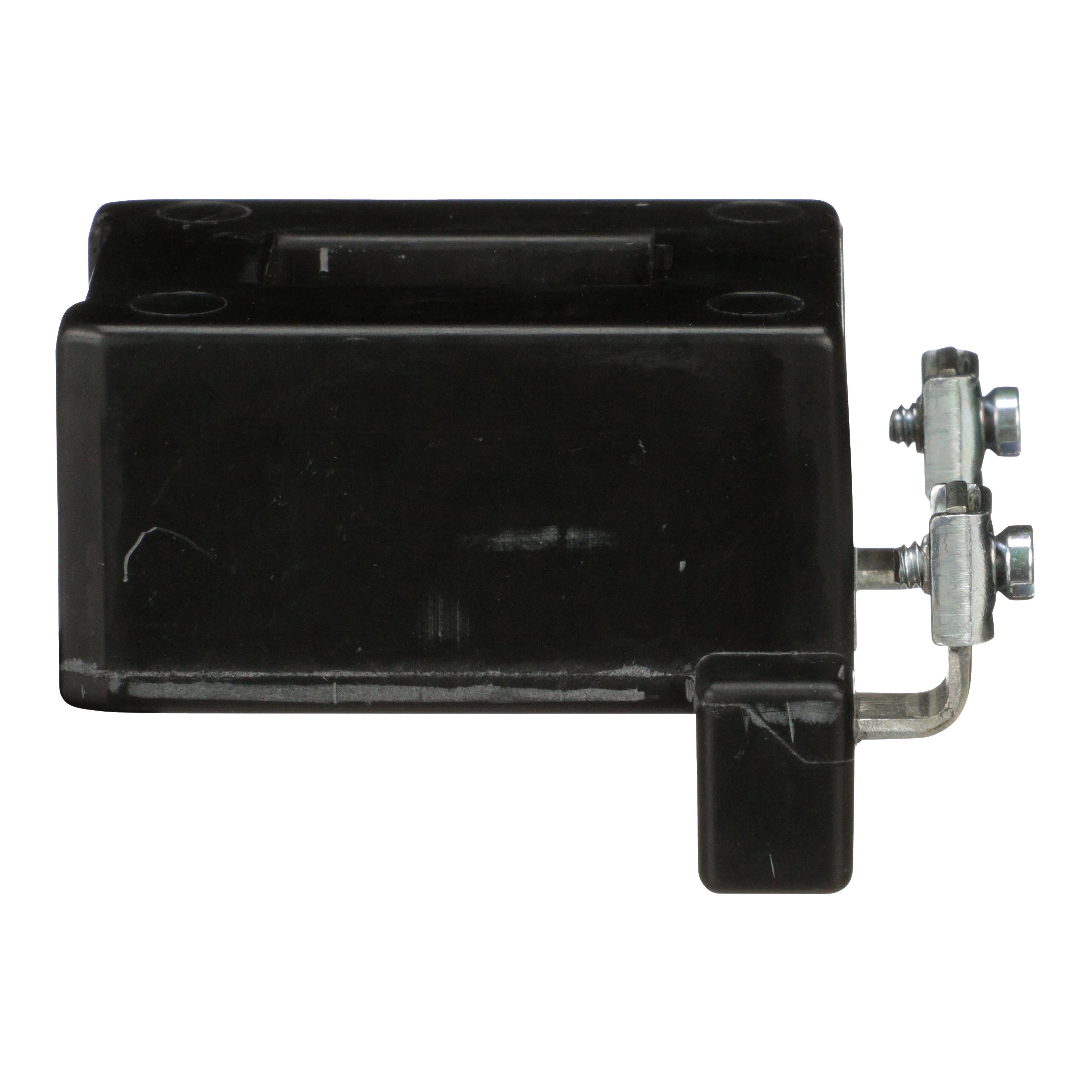

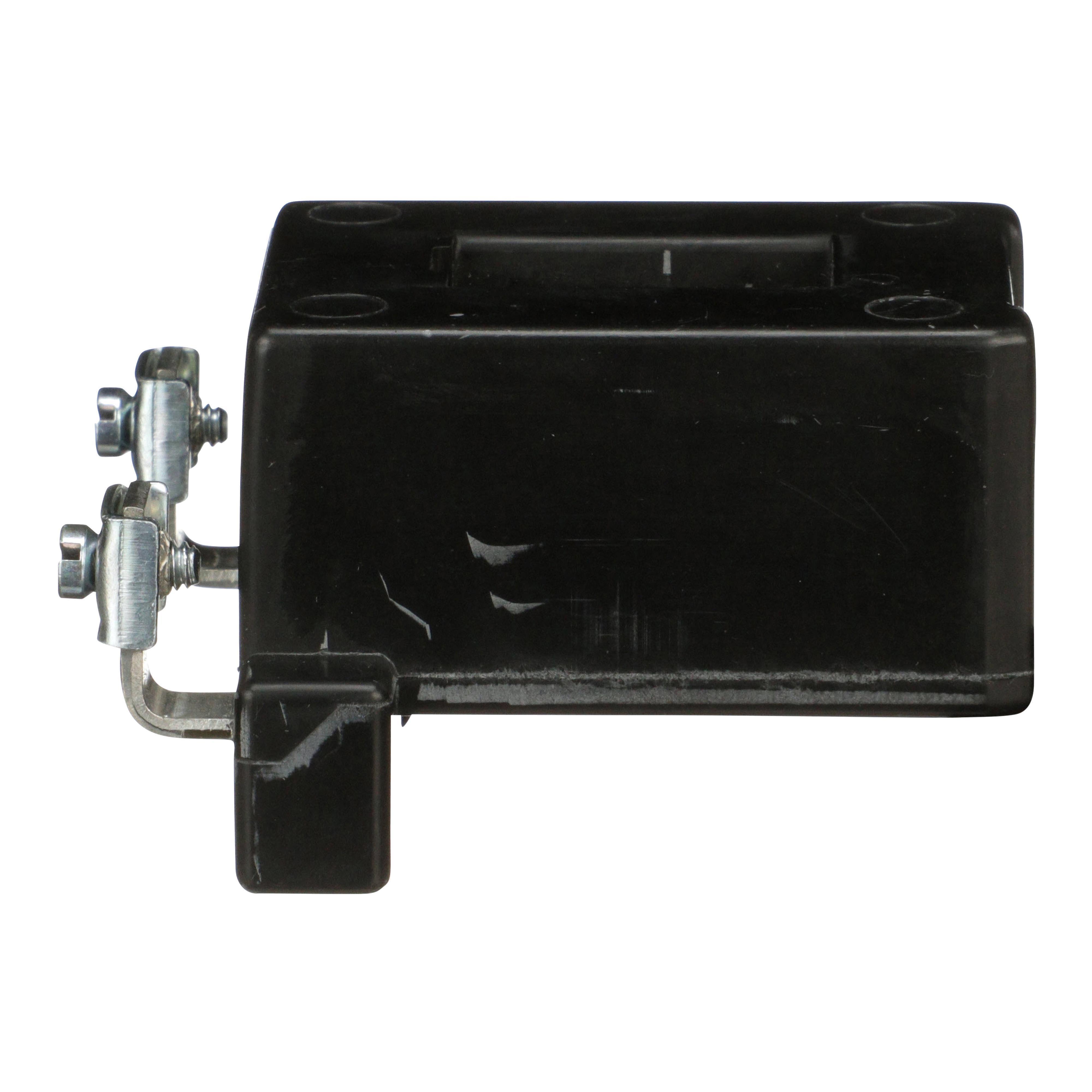

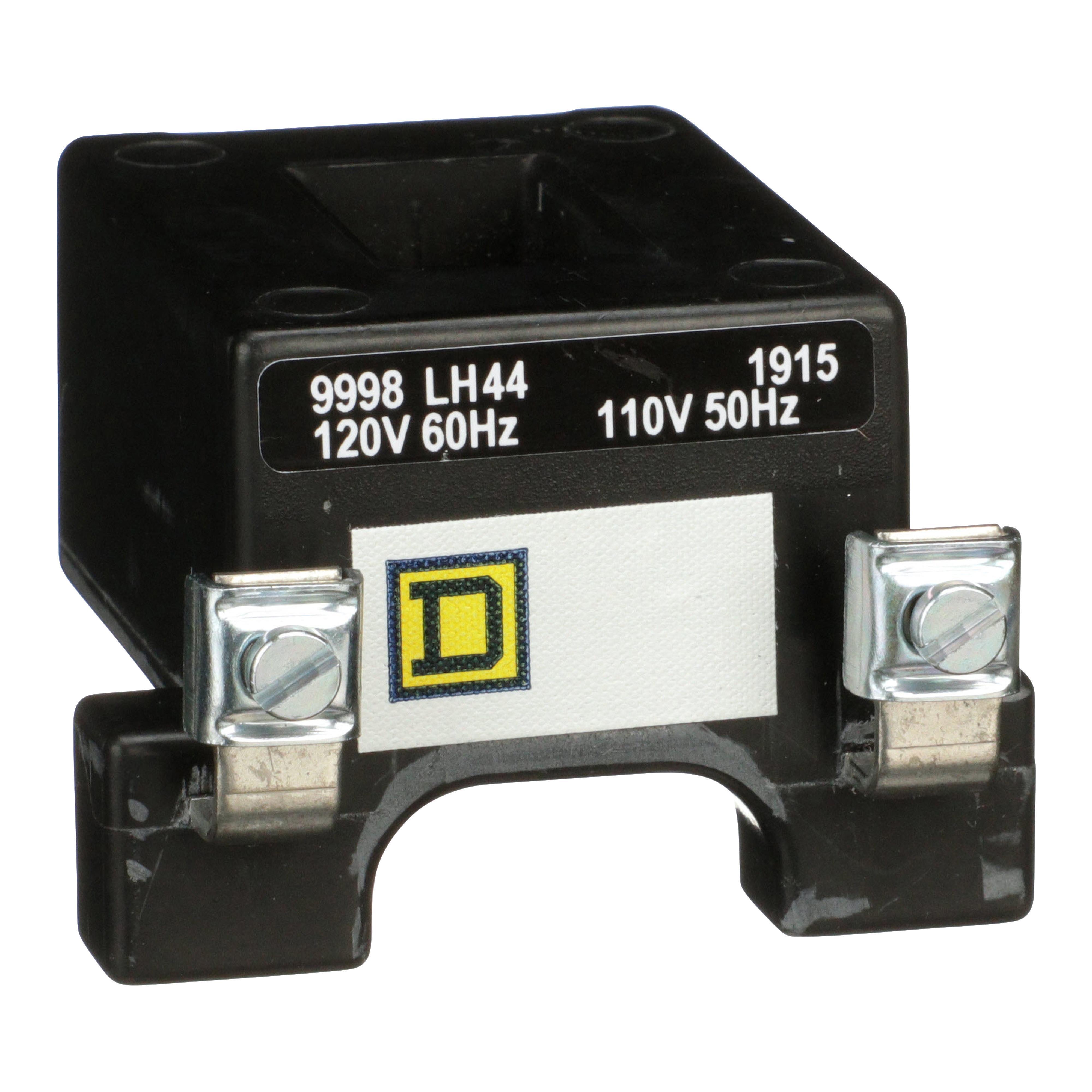

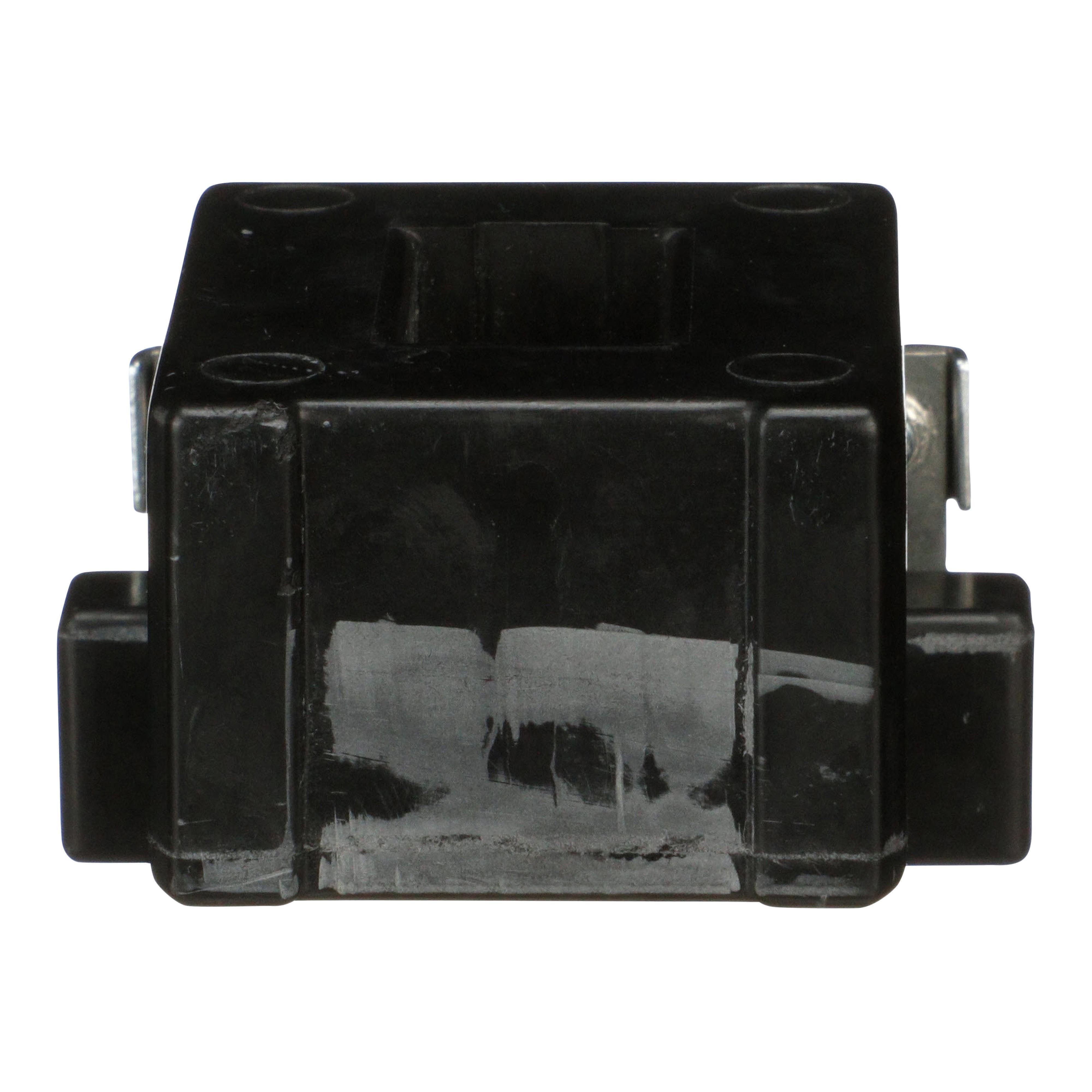

Square D™ 9998LH44 Type L/LX Replacement Relay Coil, 110/115/120 VAC, 50/60 Hz, For Use With Class 8502, 8536, 8538, 8539, 8606 Type L/LX Magnetic Contactor/Starter

Brand: Square D™

Item ID: 46985

MPN: 9998LH44

UPC: 785901081289

Login for Price

Add To Cart

Add to Favorites

Features

  • Screw clamp terminal connection
  • Direct mount
  • Latch coil electrically held with 8 to 12 poles and mechanically held with 6 to 12 poles
  • 30 a current rating

Description

Square D™ Replacement Relay Coil, Type L/LX, Series: 9998, 110/115/120 VAC, 50/60 Hz Frequency, For Use With: Class 8502, 8536, 8538, 8539, 8606 Type L/LX Magnetic Contactor/Starter

Specifications

Frequency Rating

 50/60 Hz

Series

 9998

Suitable For Use With

 Class 8502, 8536, 8538, 8539, 8606 Type L/LX Magnetic Contactor/Starter

Type

 Type L/LX

Voltage Rating

 110/115/120 VAC

Standard Approval

 UL Listed|CSA Certified|REACH Compliant

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b8c25cce877e1d0c155a28ce433dac1c0f98260f2d4bbac2e83e6d0b3d9ab724.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903L1R_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903L1R_Instruction_Installation_Manual.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO0012V02_Installation_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9998LH44_Specification_Sheet.pdf
