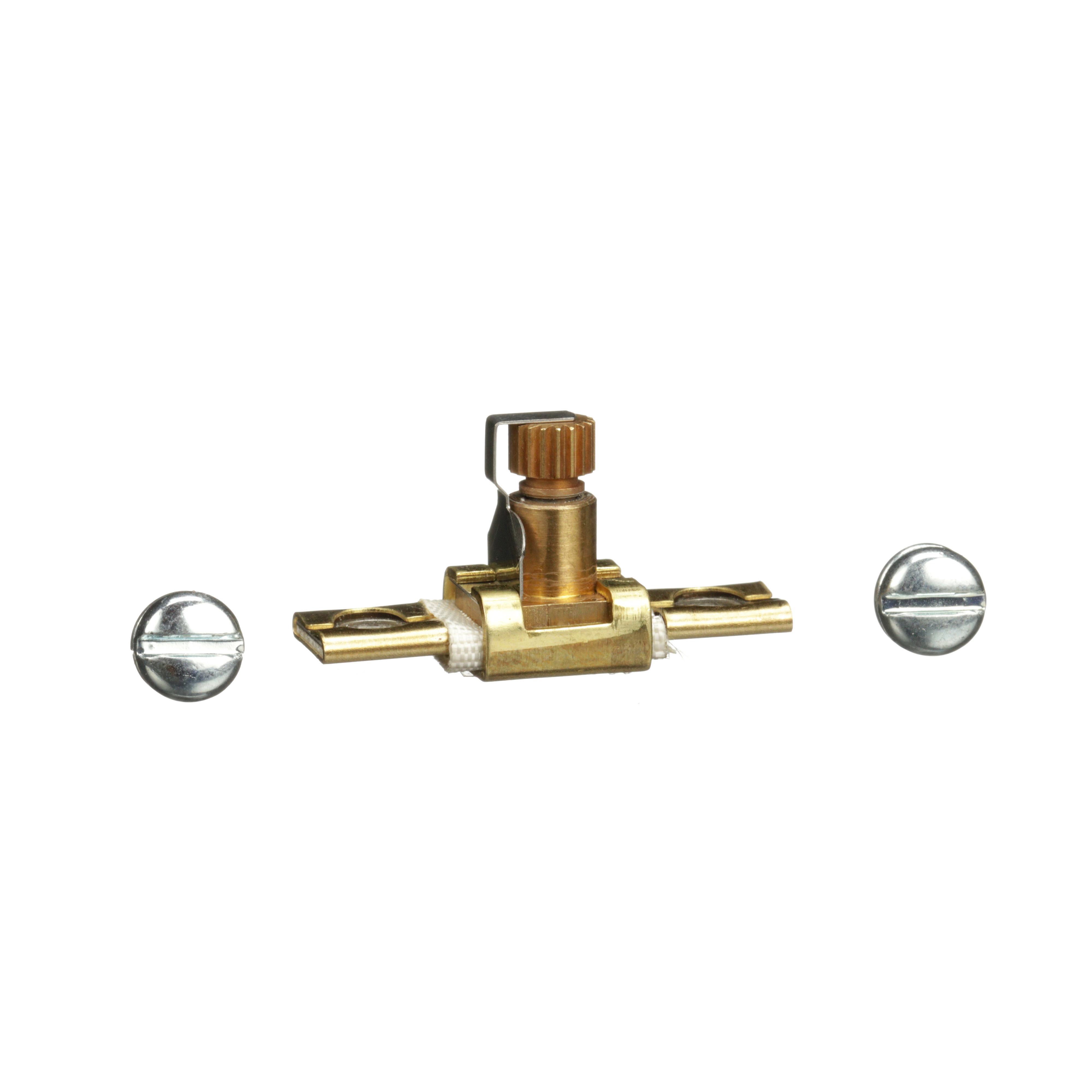

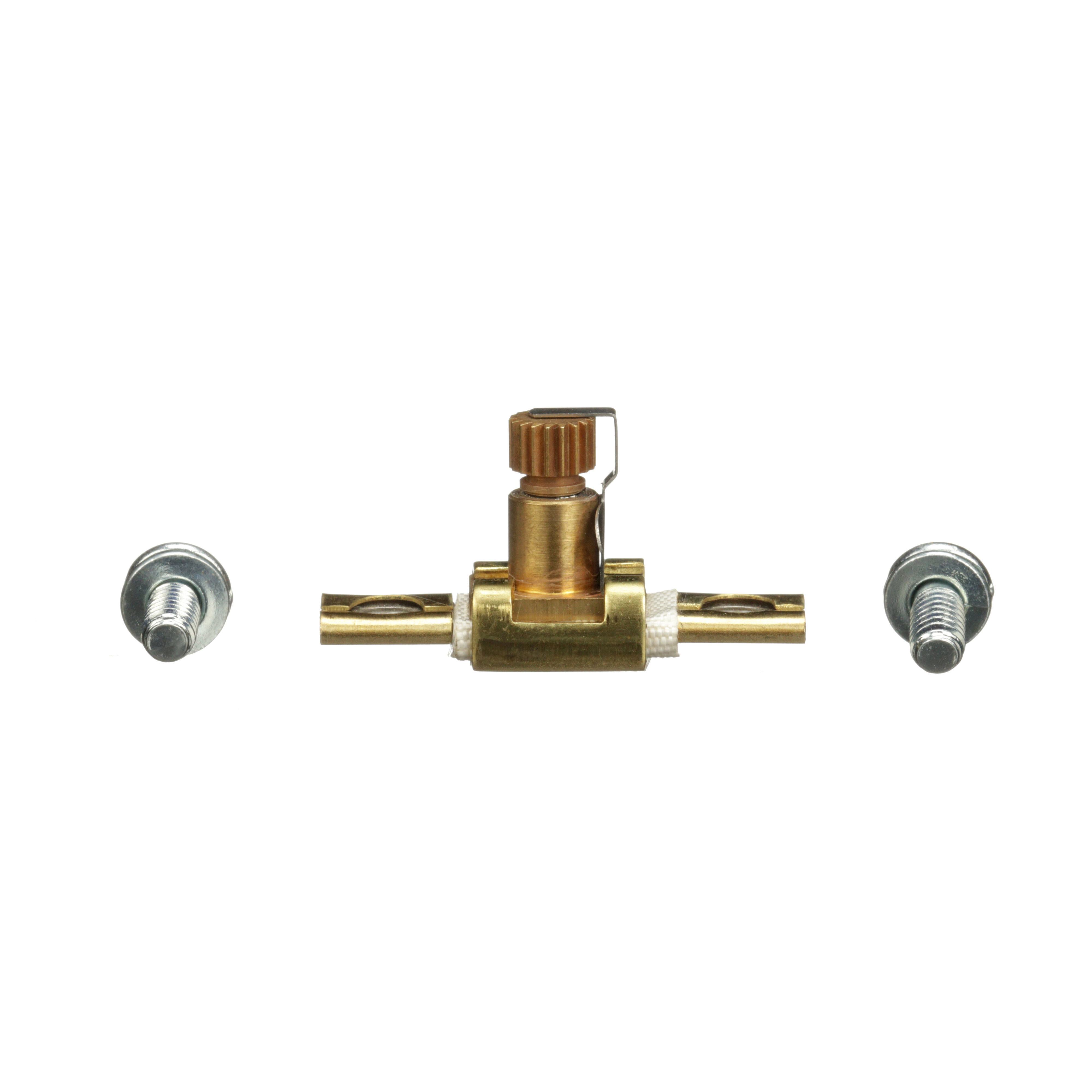

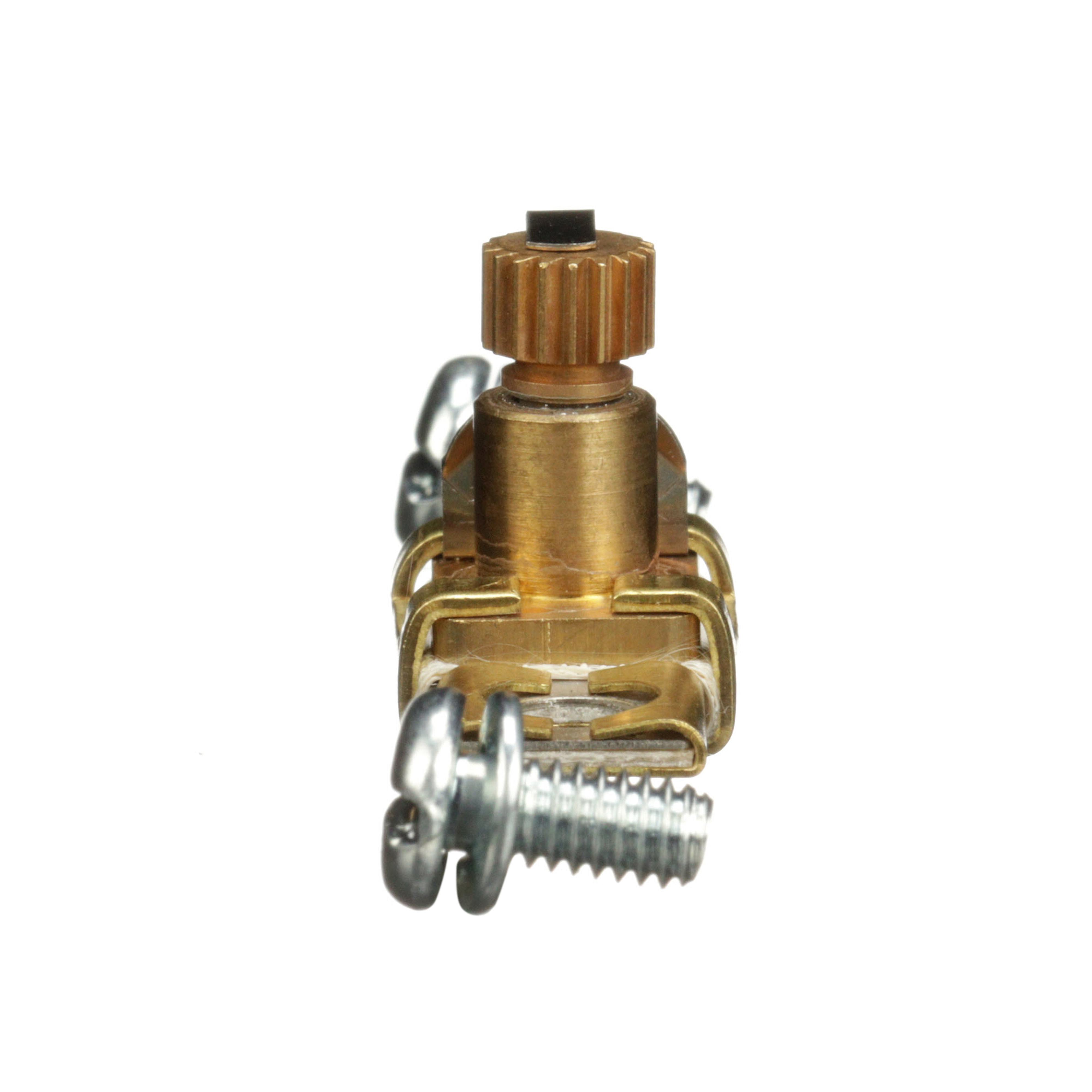

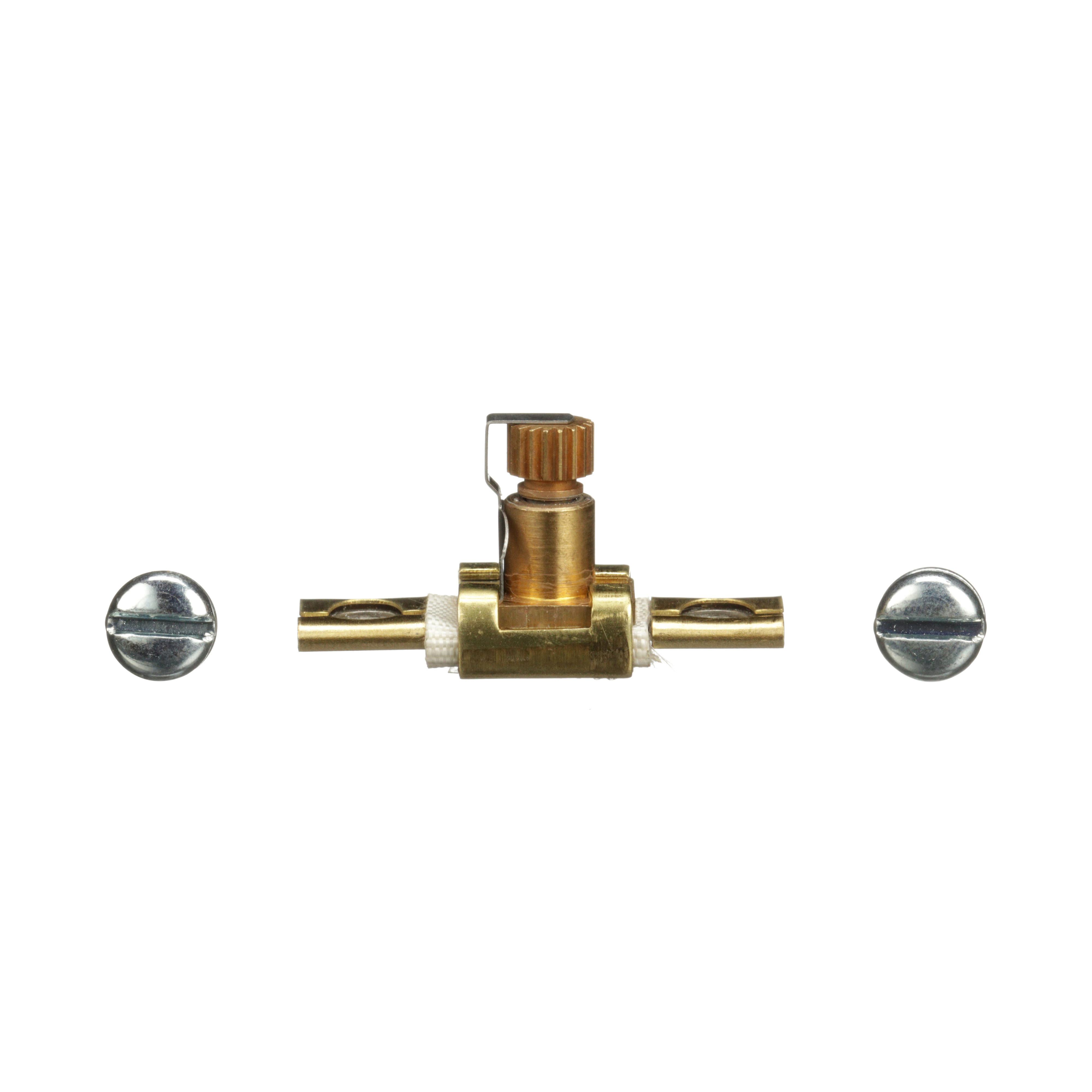

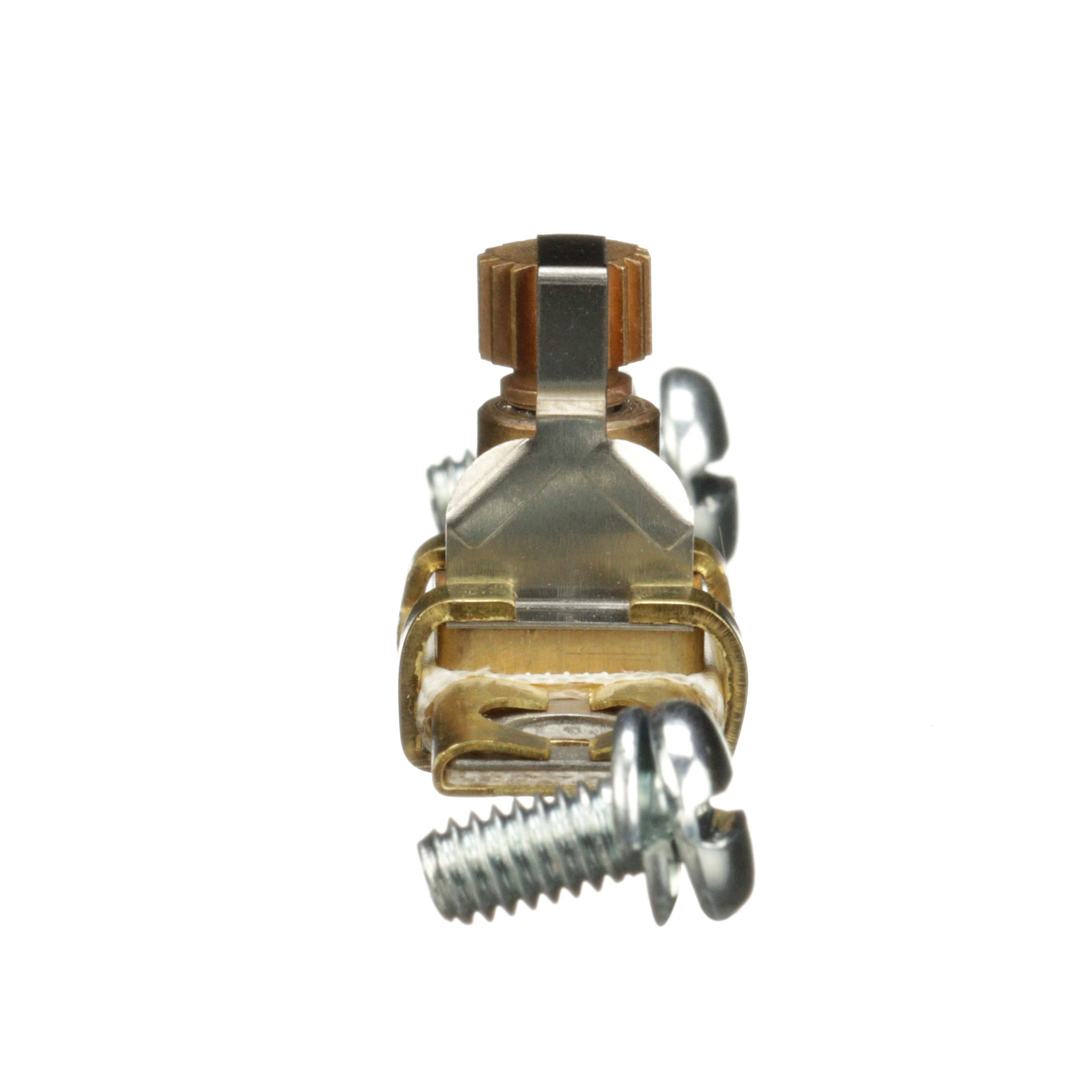

Square D™ A4.32 Melting Alloy Thermal Unit, 600 VAC
Brand: Square D™
Item ID: 452275
MPN: A4.32
UPC: 785901585336
Login for Price
Features
- Manual reset
- Full load current range depends on overload relay
- Type a thermal unit
- 2.86 to 3.83 A (1 thermal unit), 3.15 to 3.75 A (2 thermal unit), 2.91 to 3.46 A (3 thermal unit)
Description
Square D™ Thermal Unit, Melting Alloy, 600 VAC, 2.86 to 3.83 A Full Load, Class 20/Standard Trip, 2.6 in L x 1.7 in W x 3.5 in H, Plug-In Mount, 40 deg C
Specifications
Full Load Current |
2.86 to 3.83 A |
Mounting Type |
Plug-In |
Size |
2.6 in L x 1.7 in W x 3.5 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 20/Standard |
Type |
Melting Alloy |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Thermal Overload Relays, Magnetic Motor Starters and Motor Controls Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bab8e82378b456ab03854c1f193846ca7003e0243a6f87e96aabd3969302c74e.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A_95_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71f98741d4bc4639caba264ad9b56326ed97c57be1108c1ee593fa739b740ad6.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8538SDA46V02S_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_674039bdd7c62baa7fbe4ade484ad2d6134996d42fb108176212104c58b546ce.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5507e09b1bd1c645eaacf44f2c0adf87297f1d2dcd05946f52d00d19ddd2b779.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A432_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A432_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A4_32_Specification_Sheet.pdf
