Square D™ A5.78

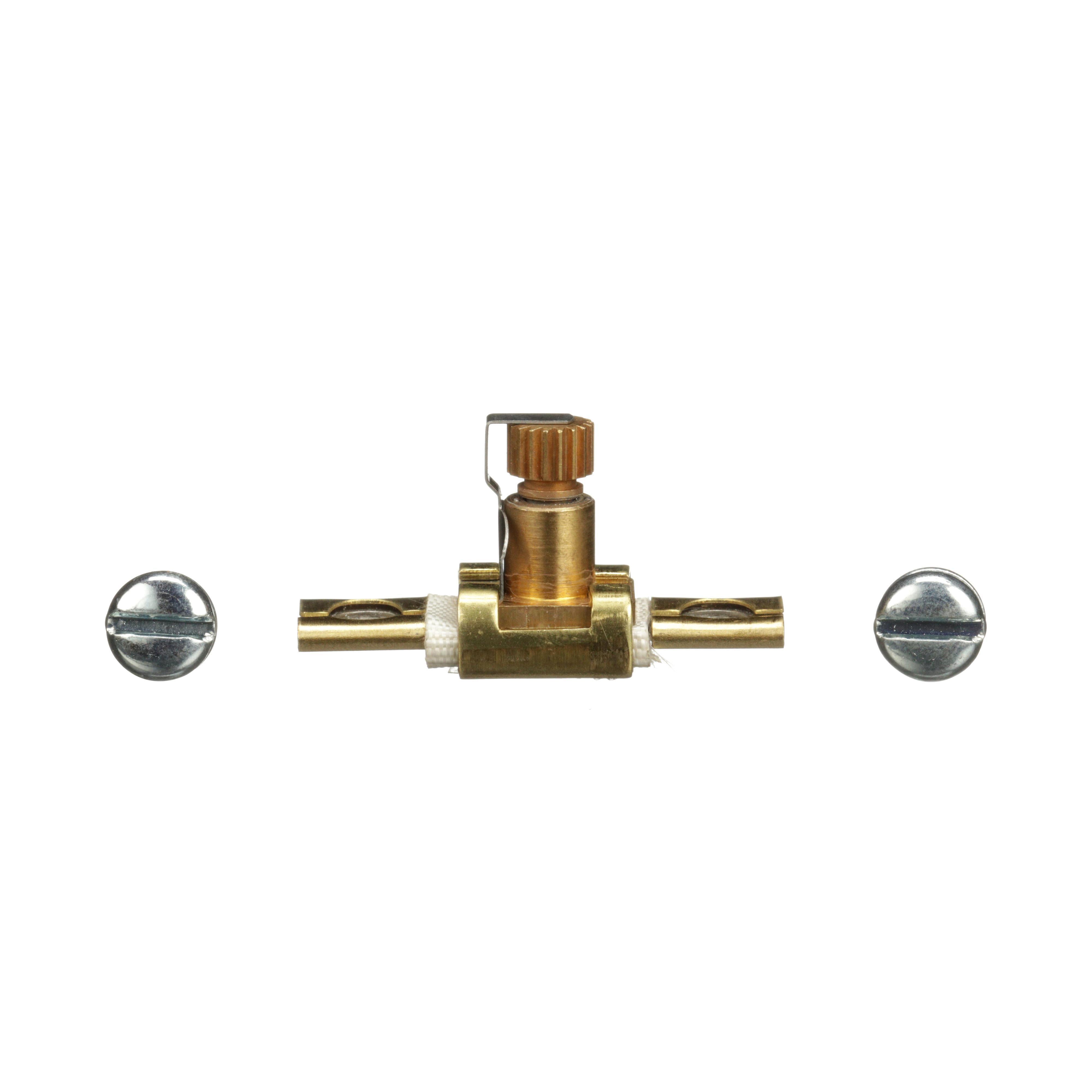

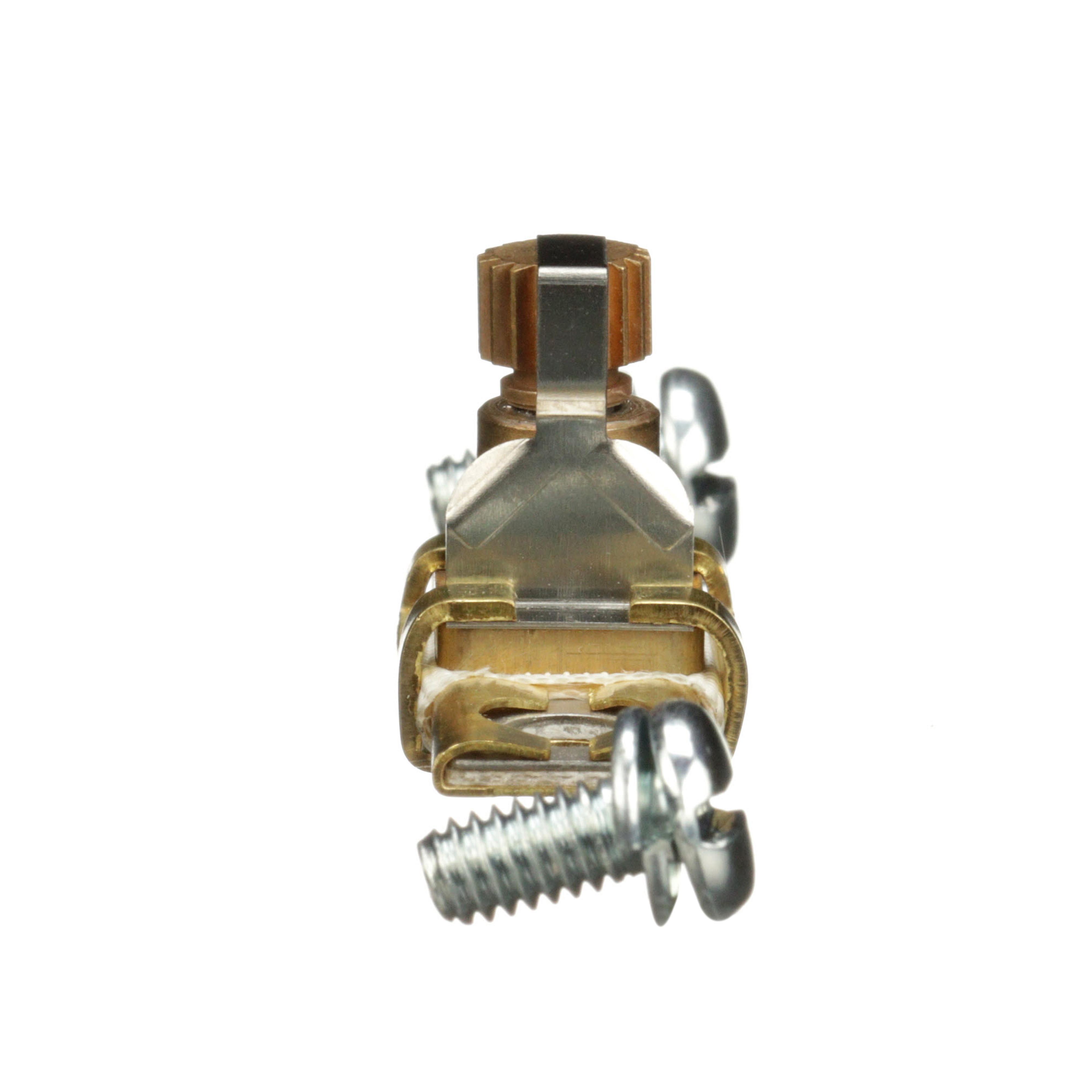

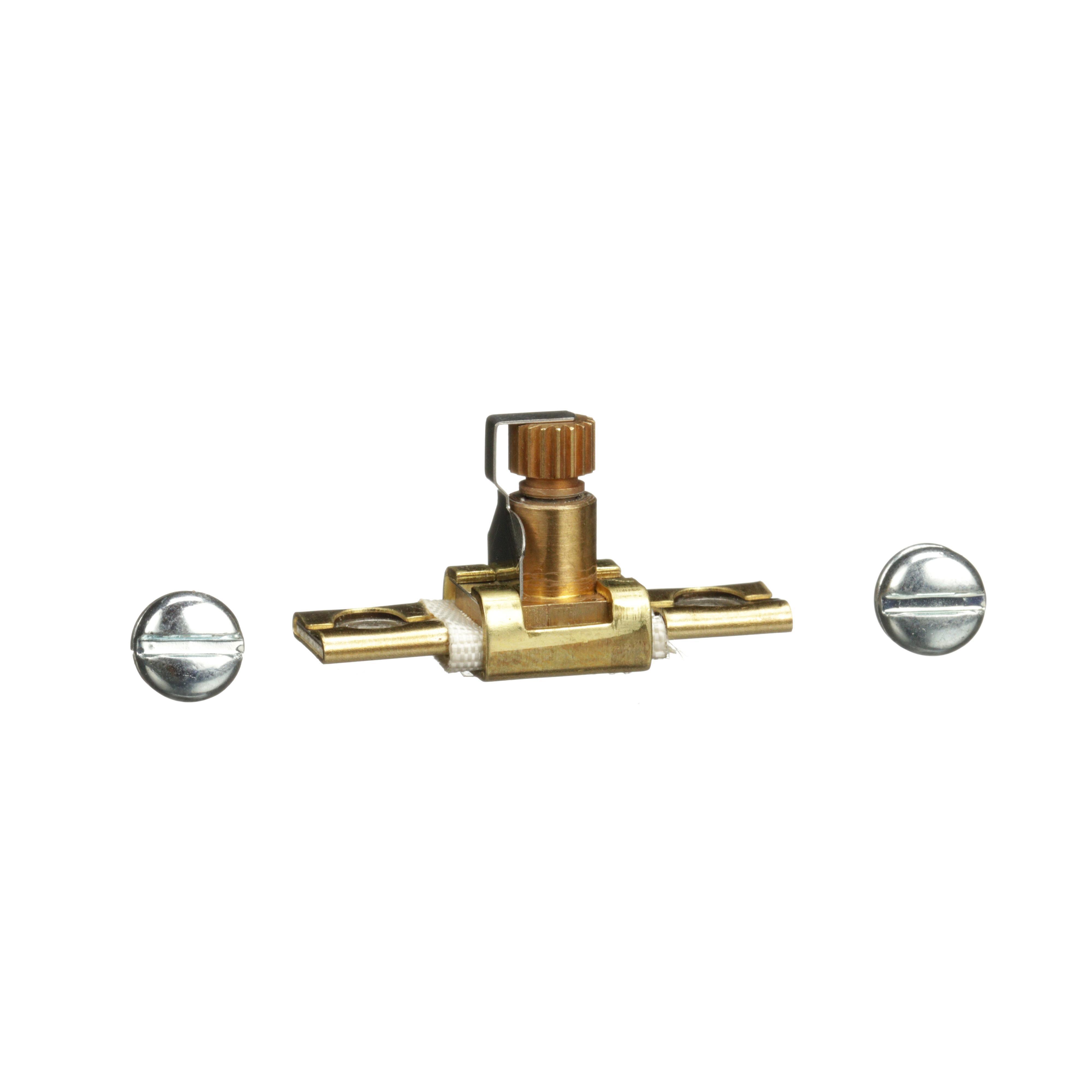

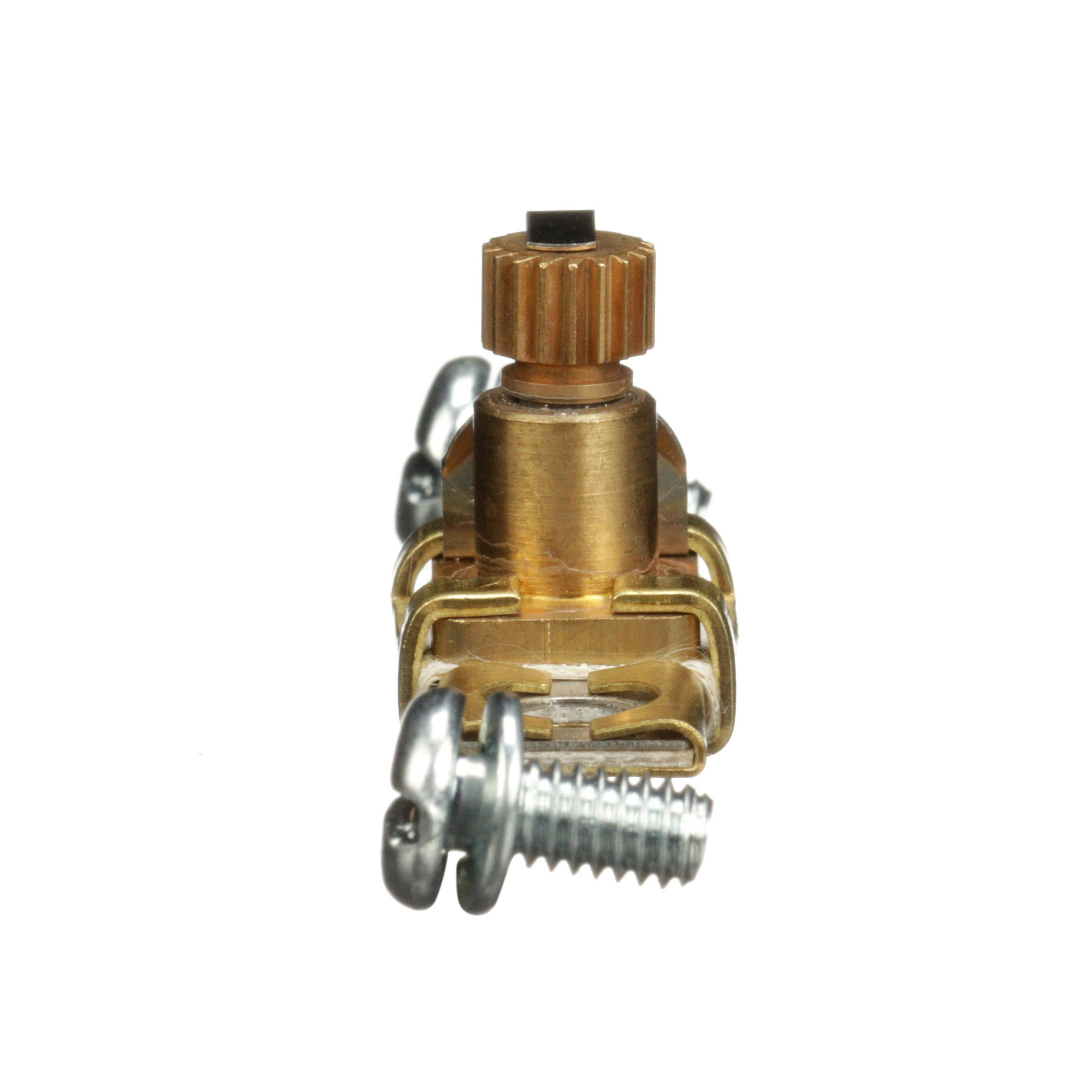

Square D™ A5.78 Melting Alloy Overload Heater, 600 VAC
Brand: Square D™
Item ID: 476913
MPN: A5.78
UPC: 785901585367
Login for Price
Features
- Manual reset
- Full load current range dependent on overload relay
- Type a thermal unit
- 40 deg c or less
- 3.93 to 4.92 a (1 thermal unit), 4.17 to 4.83 a (2 thermal unit), 3.84 to 4.46 a (3 thermal unit)
Description
Square D™, A5.78, Overload Heater, Melting Alloy, 600 VAC, 3.93 to 4.92 A Full Load, Class 20/Standard Trip, 1.8 in L x 2.7 in W x 3.5 in H Size, Plug-In Mounting, 40 deg C
Specifications
Full Load Current |
3.93 to 4.92 A |
Mounting Type |
Plug-In |
Size |
1.8 in L x 2.7 in W x 3.5 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 20/Standard |
Type |
Melting Alloy |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For melting alloy thermal overload relay, magnetic motor starters and motor control applications |
Documentation
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A_95_Full_Engineering_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_A5_78_Specification_Sheet.pdf
