Square D™ A9.25
Square D™ A9.25 Thermal Unit, 600 VAC
Brand: Square D™
Item ID: 463776
MPN: A9.25
UPC: 785901585411
Login for Price
Features
- Manual reset
- Full load current range dependent on overload relay
- Type a thermal unit
- 40 deg c or less
- 5.63 to 7.67 a (1 thermal unit), 6.23 to 7 a (2 thermal unit), 5.88 to 6.95 a (3 thermal unit)
Description

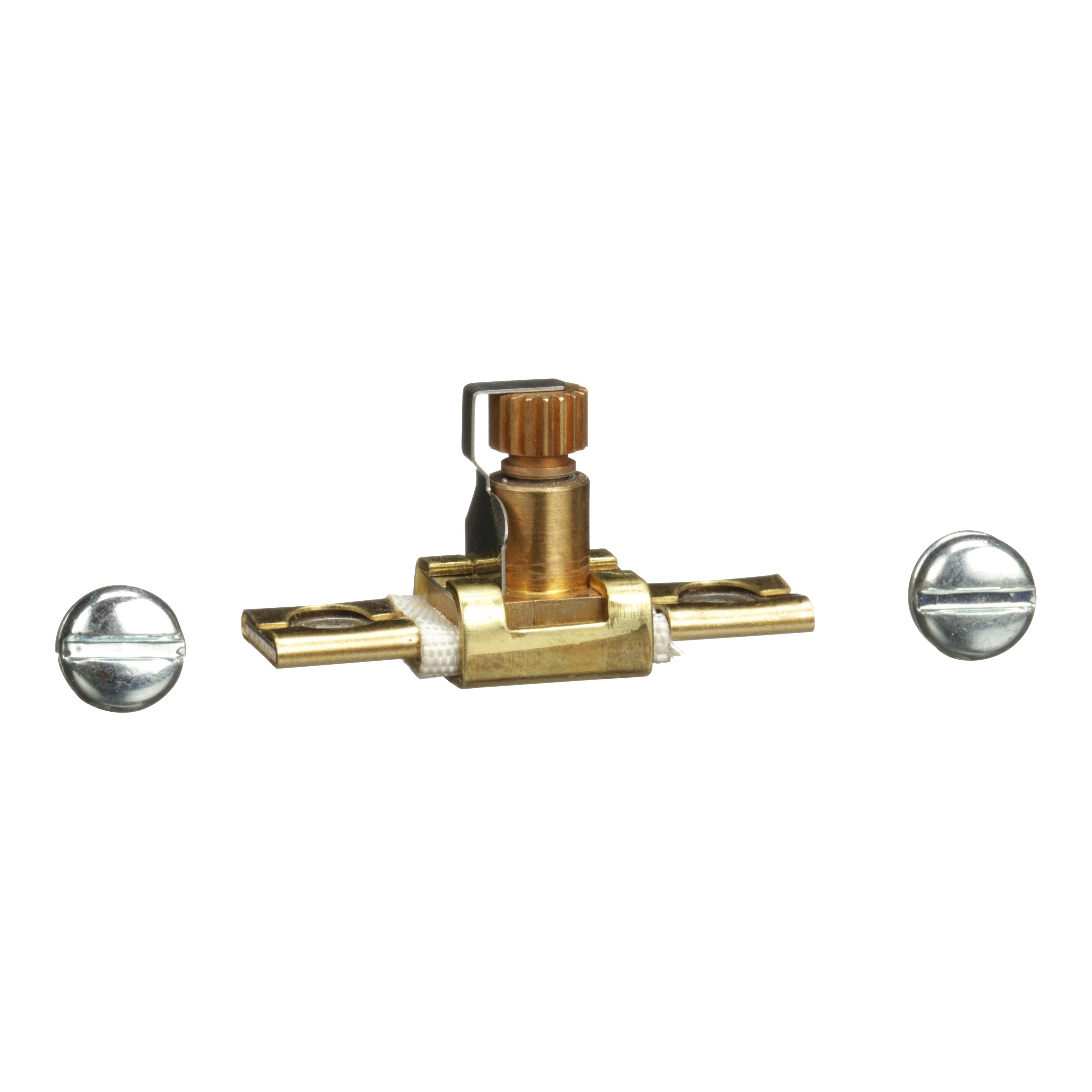

Square D™ Thermal Unit, 600 VAC, 5.63 to 7.67 A Full Load, Class 20/Standard Trip, 3.6 in L x 2.6 in W x 1.7 in H Size, Plug-In Mounting, 40 deg C
Specifications
Full Load Current |
5.63 to 7.67 A |
Mounting Type |
Plug-In |
Size |
3.6 in L x 2.6 in W x 1.7 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 20/Standard |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For melting alloy thermal overload relay, magnetic motor starters and motor control applications |
