Square D™ AL800SN

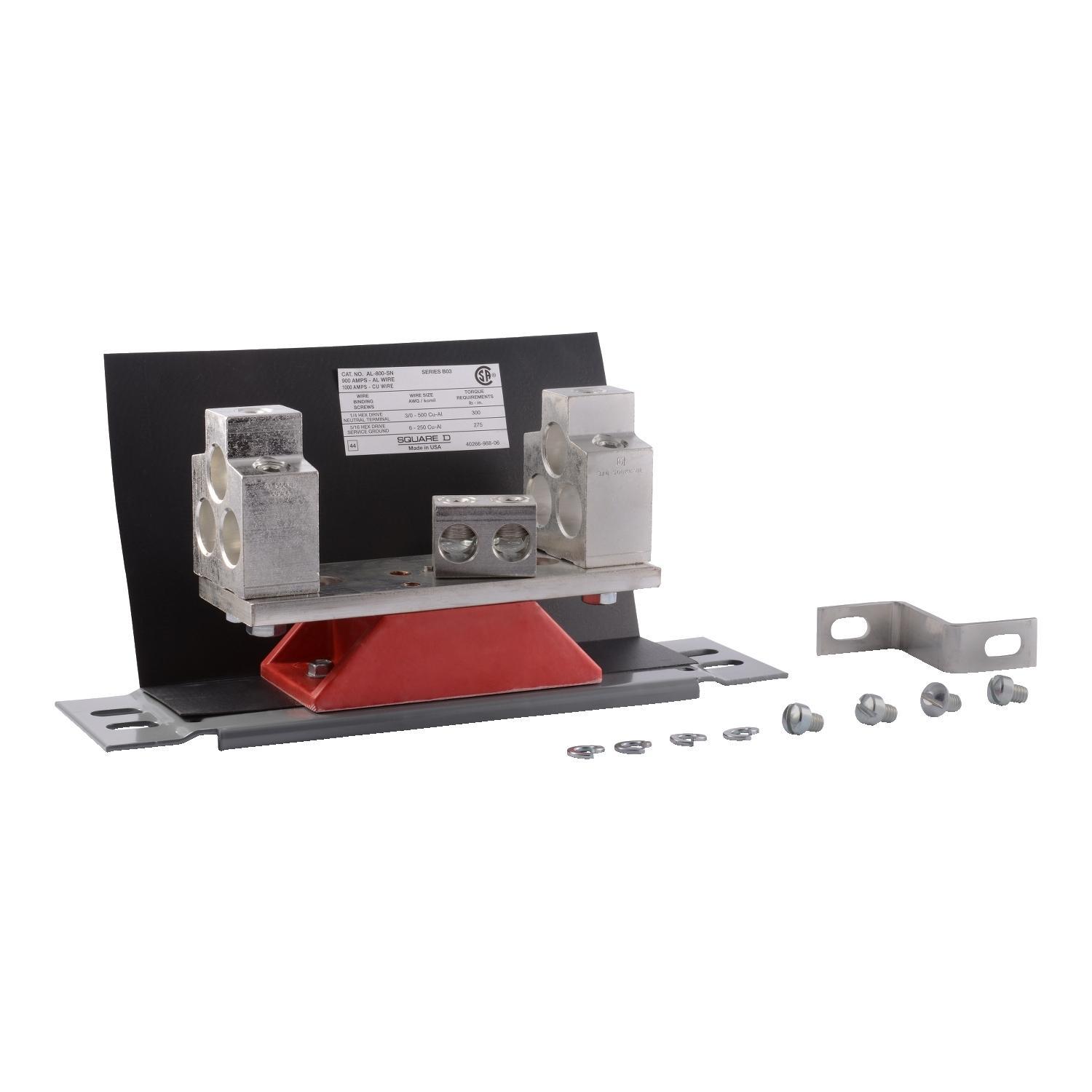

Square D™ AL800SN Insulated Standard Neutral Assembly Kit, For Use With LCL, LXL, LIL, LXIL and LEL Frame 1000 A Circuit Breaker, NEMA 1/3R/4/4X/5/12 Enclosure
Brand: Square D™
Item ID: 48023
MPN: AL800SN
Login for Price
Features
- NEMA 1/3R/4/4X/5/12 rated
- 3/0 AWG to 500 kcmil wire
Description
Square D™ Neutral Assembly Kit, Insulated Standard, For Use With: LCL, LXL, LIL, LXIL and LEL Frame 1000 A Circuit Breaker, NEMA 1/3R/4/4X/5/12 Enclosure
Specifications
Enclosure Rating |
NEMA 1/3R/4/4X/5/12 |
Suitable For Use With |
LCL, LXL, LIL, LXIL and LEL Frame 1000 A Circuit Breaker |
Type |
Insulated Standard |
Standard Approval |
RoHS Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For field installation of neutral assembly applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bab8e82378b456ab03854c1f193846ca7003e0243a6f87e96aabd3969302c74e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3f11a84203276310cfebbd1157e660f290da4a9a0f0c16b93ec78e39627452d.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL800SN_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL800SN_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_675d62338ae7f85f6ae11e74d98e167244d4970d74cc4e58240c4a94cdb7e2c5.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL800SN_Specification_Sheet.pdf
