Square D™ AL900MA

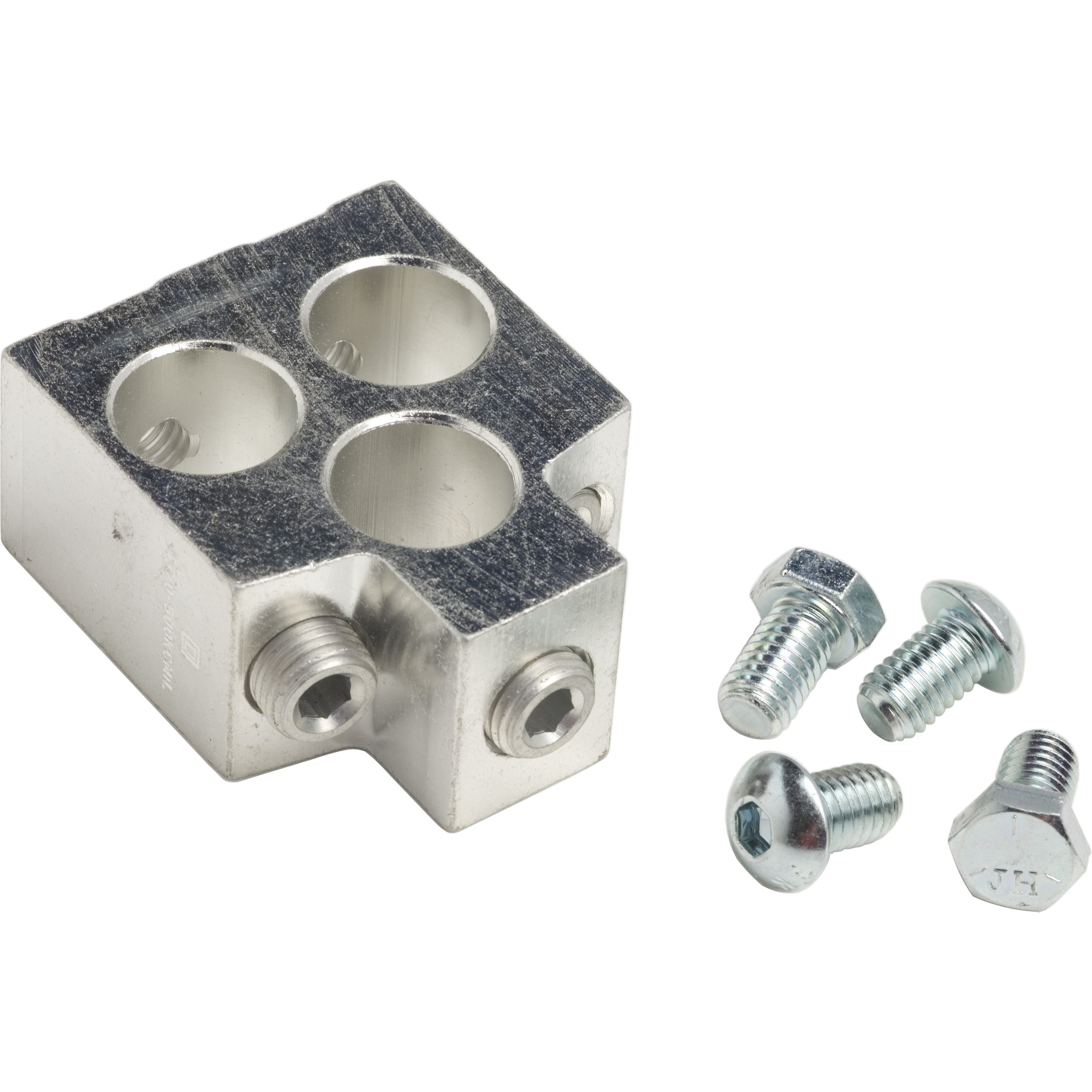

Square D™ AL900MA Mechanical Lug Kit, 14 to 1/0 AWG Copper, 8 to 1/0 AWG Aluminum, For Use With LA, LH, Q4, MA, ME, MH, MX 400 A Molded Case Circuit Breaker
Brand: Square D™
Item ID: 532727
MPN: AL900MA
UPC: 785901368755
Login for Price
Description
Square D™ Mechanical Lug Kit, 14 to 1/0 AWG Copper, 8 to 1/0 AWG Aluminum Conductor, For Use With: LA, LH, Q4, MA, ME, MH, MX 400 A Molded Case Circuit Breaker, Aluminum
Specifications
Conductor Range |
14 to 1/0 AWG Copper, 8 to 1/0 AWG Aluminum |
Material |
Aluminum |
Suitable For Use With |
LA, LH, Q4, MA, ME, MH, MX 400 A Molded Case Circuit Breaker |
Standard Approval |
RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Cable Connection Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_645841a7a8e5572db2ccaf0f052ea31303c03ae6cb72d368c95544313122f5e5.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0c5c595342e753db50085bb47a536ebdee3e44b00bd3e6680c02eeb92ed2794a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL800MA7_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL900MA_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bcacb7bb8448a27b4f57867985cc3dc62a7f1af78b79b050077d84cdd7b9b8d1.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AL900MA_Specification_Sheet.pdf
