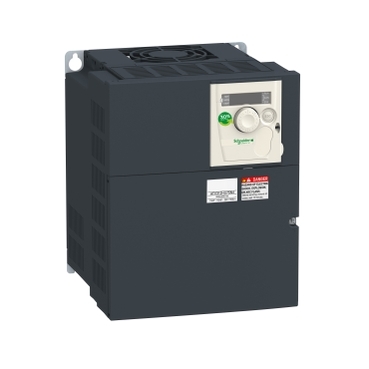

Schneider Electric ATV312HU75M3

Schneider Electric Altivar™ 312 Square D™ ATV312HU75M3 3-Phase Variable Speed Drive With I/O Control Card, Heat Sink, 200 to 240/208 VAC, 33 A, 10 hp, 7.09 in W x 6.77 in D

Brand: Schneider Electric

Item ID: 467694

MPN: ATV312HU75M3

UPC: 785901689362

Add To Cart

Features

Time and costs savings
Energy saving, compact size
Ease of communication
Simplified user interface
Without EMC filter
Open communication, ultra reliable, easy to setup
Modbus, CANopen communication port protocol

Description

The Altivar® 312 mid-featured AC drive is designed to make industrial and commercial machines more energy efficient while simplifying its integration into a single control system architecture. With the highest over torque and the only drive with a remote graphic keypad in its class, the Altivar® 312 mini-drive is ideally suited to the needs of material handling, packaging, food and beverage and other OEM machines. It also comes standard with integrated communications port for Modbus and CANopen networks, optional cards available for CANopen Daisy Chain, DeviceNet and Profibus DP and gateways can be used for Modbus TCP®/IP and FIPIO.

Schneider Electric Altivar™ 312 Square D™ Variable Speed Drive, 3-Phase, 200 to 240/208 VAC, 33 A, 10 hp, 7.09 in Width, 6.77 in Depth, 9.13 in Height, Open/IP20/IP21/IP31/IP41 Enclosure, LED Display, Panel Mounting

Specifications

Amperage Rating	33 A
Depth	6.77 in
Display Type	LED
Enclosure Type	Open/IP20/IP21/IP31/IP41
Height	9.13 in
Horsepower	10 hp
Mounting Type	Panel
Type	3-Phase
Voltage Rating	200 to 240/208 VAC
Width	7.09 in
Standard Approval	CE Certified\|CSA Certified\|NOM Certified\|C-Tick Certified\|DNV Certified\|GOST Certified\|eccn: EAR99\|EN/IEC 60068-2-6/60068-2-27/61800-3 2, 4, 8, 12/61000-4-6/60068-2-6-1/60721-3-3/61000-4-5\|IEC 61800-3/61800-5-1\|RoHS Compliant\|UL Listed
Application	Handling, Packaging, Pumps, Fans, Special Machines, Textile Machines and Simple Machine Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4f26f246c44ab01457ab83f244fe6bab4fa22a4da117a478642a538e0e4bd623.pdf

Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sylvania_73956_Catalog.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Telemecanique_ATV61HD37Y_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Telemecanique_ATV61HD37Y_Catalog.pdf

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_606fb30562bd4ac3b6af79485fcdc06ced194b705c6a6edf75167c5d32880bed.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV312HU75N4_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV312HU75N4_Owners_User_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a0990eb1b10257c3447c81ef0a3c44f063ecca311f8e05ebafc348009936d75.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9df89f97aa96d2c777b47fdbc08d55603b2db0d9a749e346f899ad99bab98755.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV312HU75M3_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ATV312HU75M3_Specification_Sheet.pdf

VIDEO LINK https://www.youtube.com/watch?v=xycaVNobqHU&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_04b602d3c4ac4d9fd936440b23d5f63c29618e8f1543b75839e78899bc64905b.pdf
