Square D™ B100

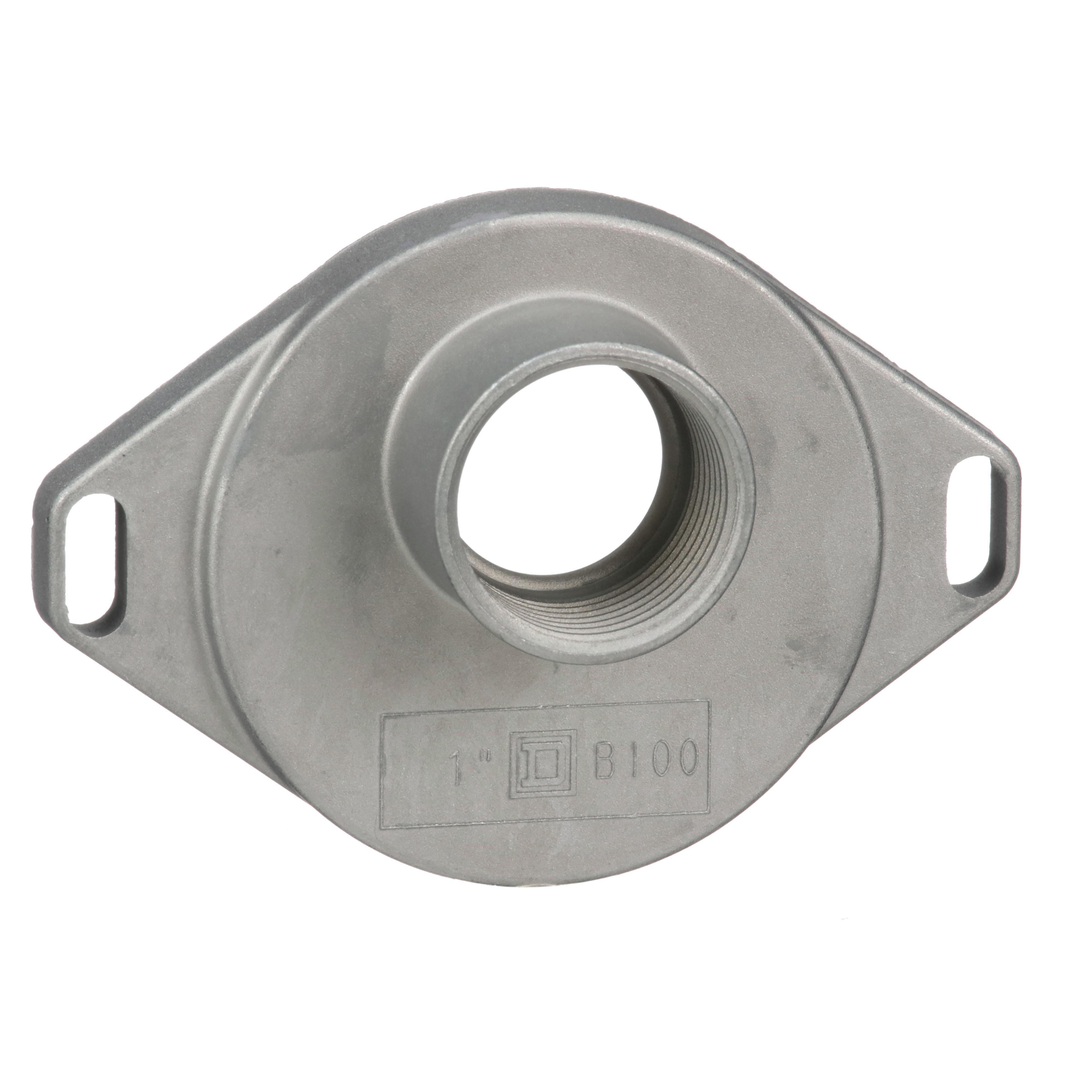

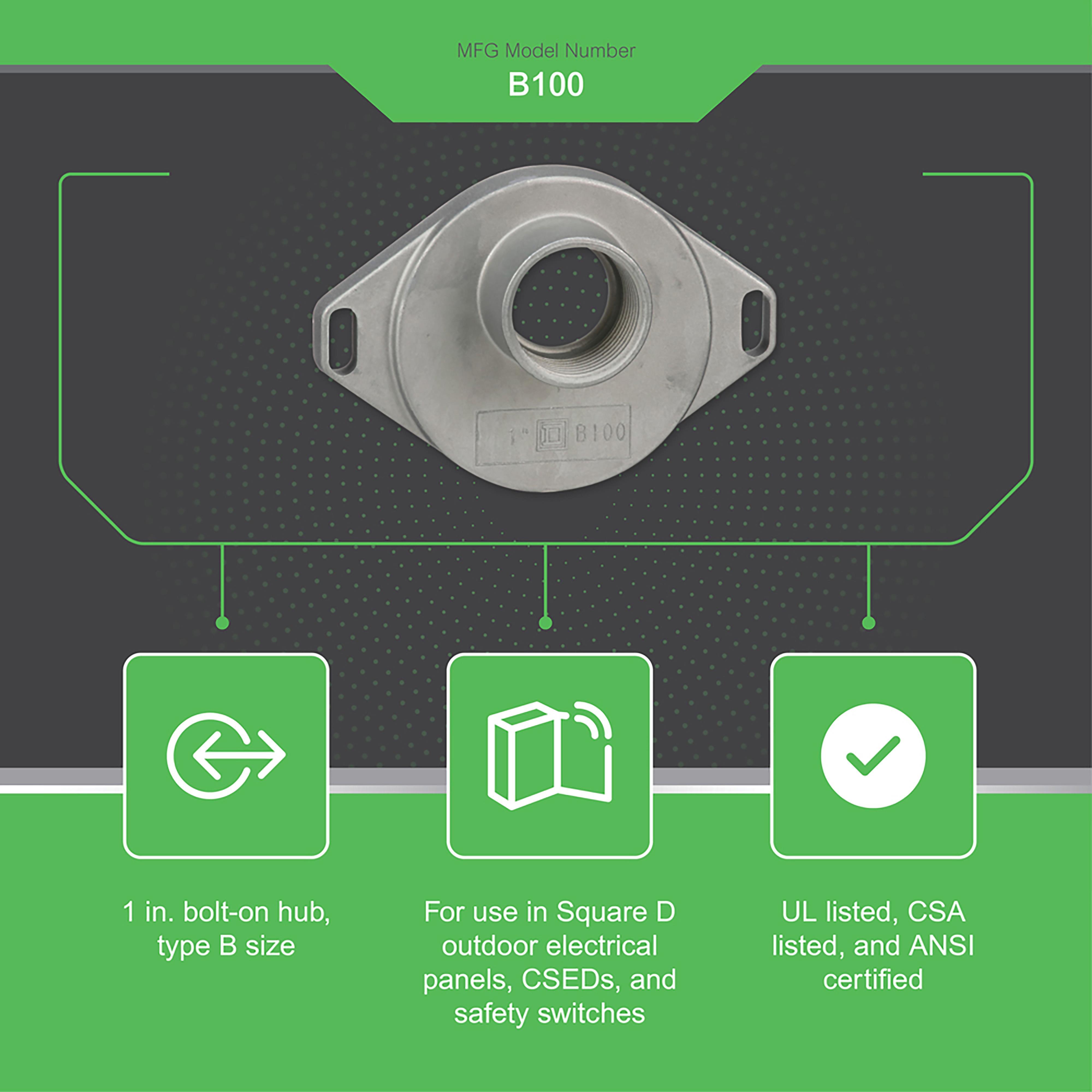

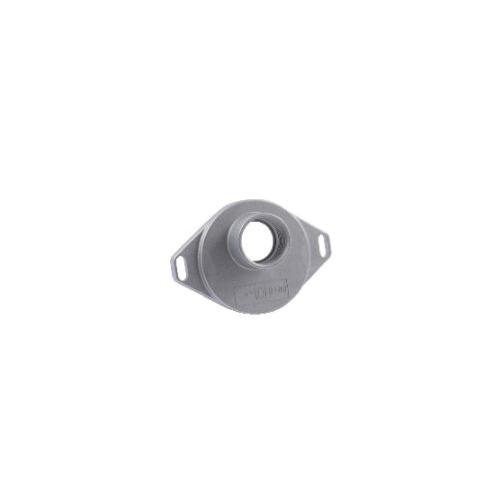

Square D™ B100 Type B Rainproof Socket Hub, 1 in, For Use With QO™ NEMA 3R Load Center and Meter Socket and RB Devices
Brand: Square D™
Item ID: 48458
MPN: B100
Login for Price
Features
- Rainproof
Description
Square D™ Socket Hub, Type B Rainproof, 1 in, Bolt-On Mount, For Use with: QO™ NEMA 3R Load Center and Meter Socket and RB Devices, 13.7 in L x 5 in W x 8.3 in H
Specifications
Dimensions |
13.7 in L x 5 in W x 8.3 in H |
Mounting Type |
Bolt-On |
Size |
1 in |
Suitable For Use With |
QO™ NEMA 3R Load Center and Meter Socket and RB Devices |
Type |
Type B Rainproof |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|REACH Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
RB Devices |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4526510e07e1c5af84f8268ae9877844185927e85b62c61c4788d8b3c95e1a7e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBL22070_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0cc29edae3cd5f5ca3cc782908d2a8bc0cf1ce2b49c57c6a6dd7a02f3290a271.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_Specification_Sheet.pdf
