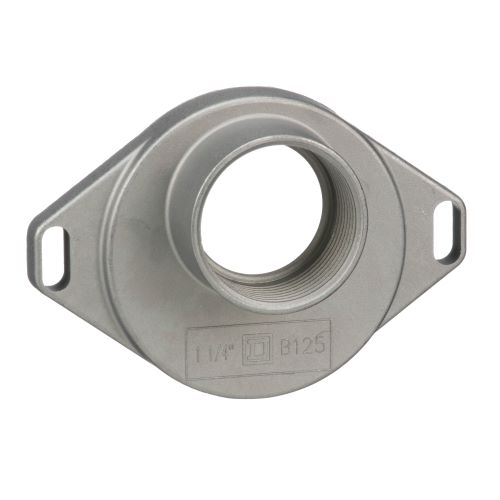

Square D™ B125

Square D™ B125 Type B Rainproof Hub, 1-1/4 in, For Use With QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices

Brand: Square D™

Item ID: 48461

MPN: B125

Add To Cart

Description

Equipment with an RB suffix, meaning Rainproof type 3R construction, uses the bolt-on hubs listed below. RB devices will accept 3/4 in through 2-1/2 in bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Hubs are suitable for use with conduit having ANSI standard taper pipe thread.

Square D™ Hub, Type B Rainproof, 1-1/4 in, Bolt-On Mount, For Use with: QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices, 4.9 in W x 13.5 in D x 8.4 in H

Specifications

Dimensions	4.9 in W x 13.5 in D x 8.4 in H
Mounting Type	Bolt-On
Size	1-1/4 in
Suitable For Use With	QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices
Type	Type B Rainproof
Standard Approval	Buy American Act Compliant\|RoHS Compliant\|UL Listed\|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8b93c36e70ec0f1a3a4cc36bf19e0791b86b97bf07e238f3cc57c2510542707b.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf

Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_User_Manual.pdf

Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBL22070_User_Manual.pdf

RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B125_RoHS.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e7a89ba0555e3013ff6293fad31c8c0c41848122977bc684139f1d6594f2c26e.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B125_Specification_Sheet.pdf

VIDEO LINK https://www.youtube.com/embed/wueWA7jIeT0
