Schneider Electric B125S

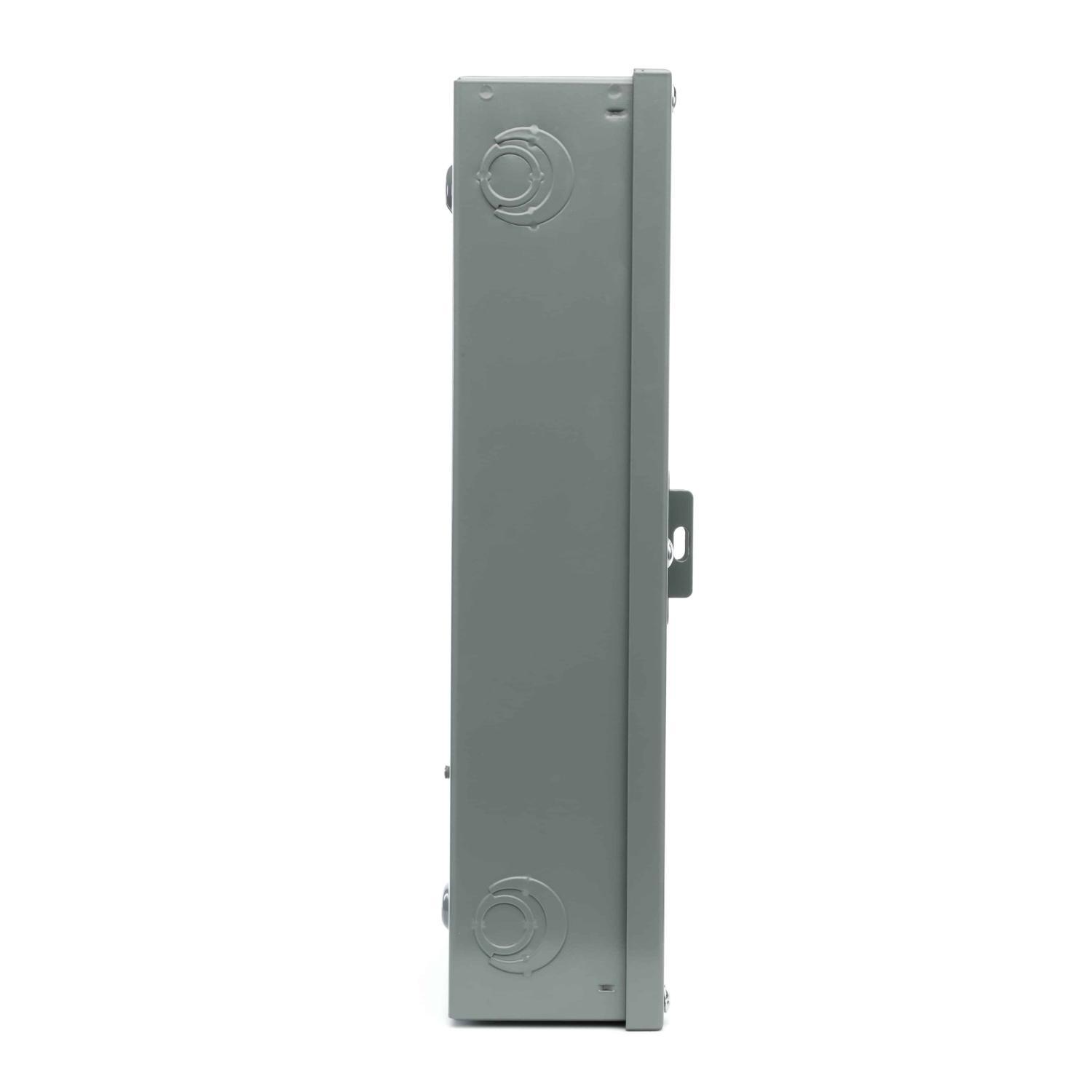

Schneider Electric Square D™ PowerPact™ B125S Circuit Breaker Enclosure, 8.62 in W x 4.13 in D x 18.15 in H, NEMA 1, Stainless Steel
Brand: Schneider Electric
Item ID: 509215
MPN: B125S
UPC: 785901281801
Login for Price
Description
Schneider Electric Square D™ PowerPact™ Circuit Breaker Enclosure, 8.62 in Width, 4.13 in Depth, 18.15 in Height, NEMA 1, B Frame, Surface Mount, Stainless Steel
Specifications
Depth |
4.13 in |
Frame |
B |
Height |
18.15 in |
Material |
Stainless Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Width |
8.62 in |
Standard Approval |
ECCN: EAR99|Green Premium™|REACH Compliant |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_604d16b34c3dbf0bdf75b54960647b76a1d583f5772496fc2792509ce8081ff5.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_M800S_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_B125F_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_B125F_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2a405e452877019cffcd65df0dec02c61a9b6186c77ffc0d99bb17fcf77f11d3.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDA36100_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDA36100_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBL22070_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Stelpro_SCA12102W_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_B125S_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_B125S_Specification_Sheet.pdf
