Square D™ B150
Square D™ B150 Type B Rainproof Hub, 1-1/2 in, For Use With QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices
Brand: Square D™
Item ID: 48464
MPN: B150
Login for Price
Description
Equipment with an RB suffix, meaning Rainproof type 3R construction, uses the bolt-on hubs listed below. RB devices will accept 3/4 in through 2-1/2 in bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Hubs are suitable for use with conduit having ANSI standard taper pipe thread.

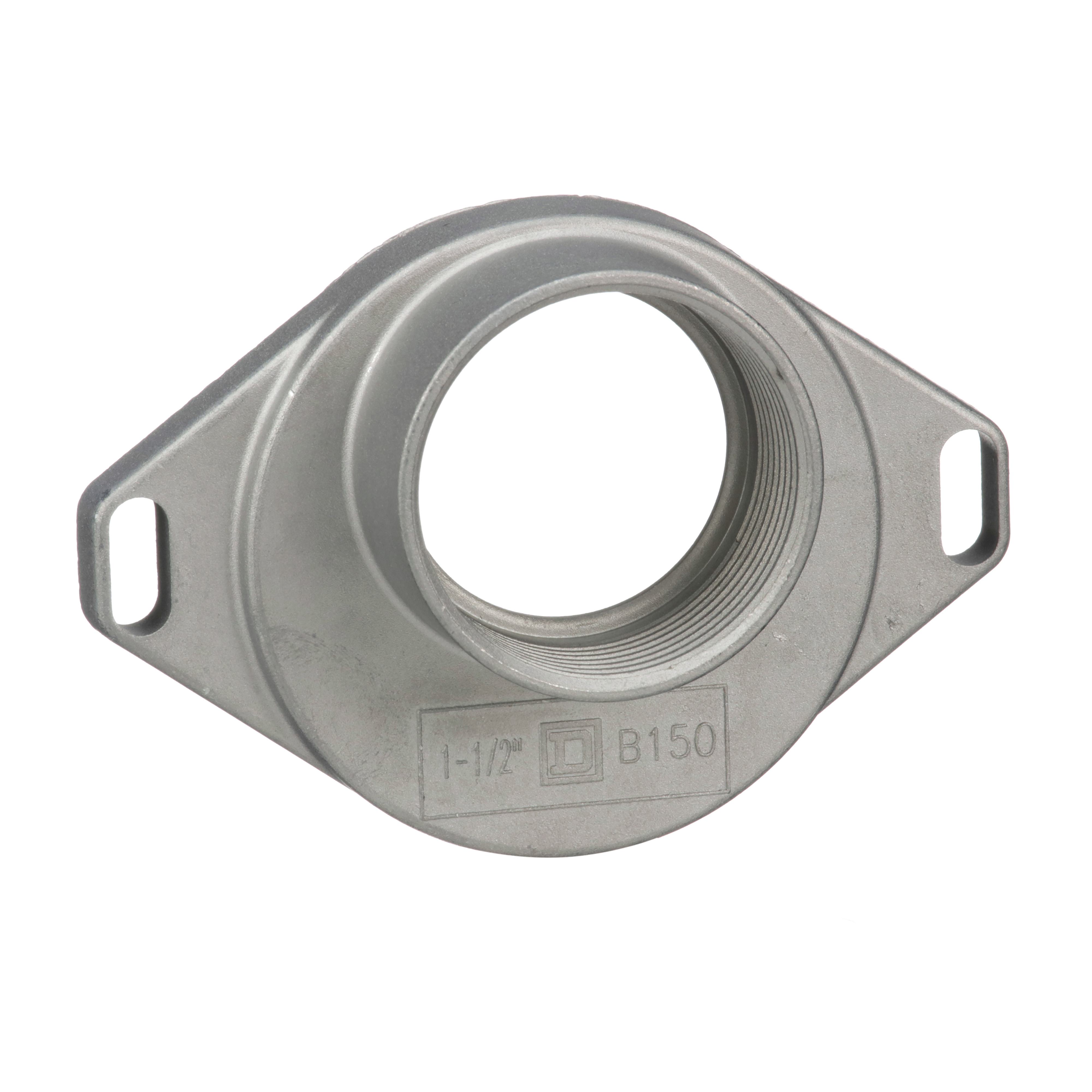

Square D™ Hub, Type B Rainproof, 1-1/2 in, Bolt-On Mount, For Use with: QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices, 5 in W x 13.7 in D x 8.3 in H
Specifications
Dimensions |
5 in W x 13.7 in D x 8.3 in H |
Mounting Type |
Bolt-On |
Size |
1-1/2 in |
Suitable For Use With |
QO™/Homeline™ NEMA 3R Load Center, Safety Switch and RB Devices |
Type |
Type B Rainproof |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0dc55b00dfce76ddbef54c7ec45e082b59fe1dcd3062609951bf4e951aa2979b.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_99c65f927a2926cab2e1218daf691dc757d5e8d692fd19249bc95b559e758c0d.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBL22070_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XUBLAPCNM12R_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B150_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aba531f5bba211e89ddf02b0808abf6677552053426fa73336b496efd8987278.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B150_Specification_Sheet.pdf
