Square D™ B25.0

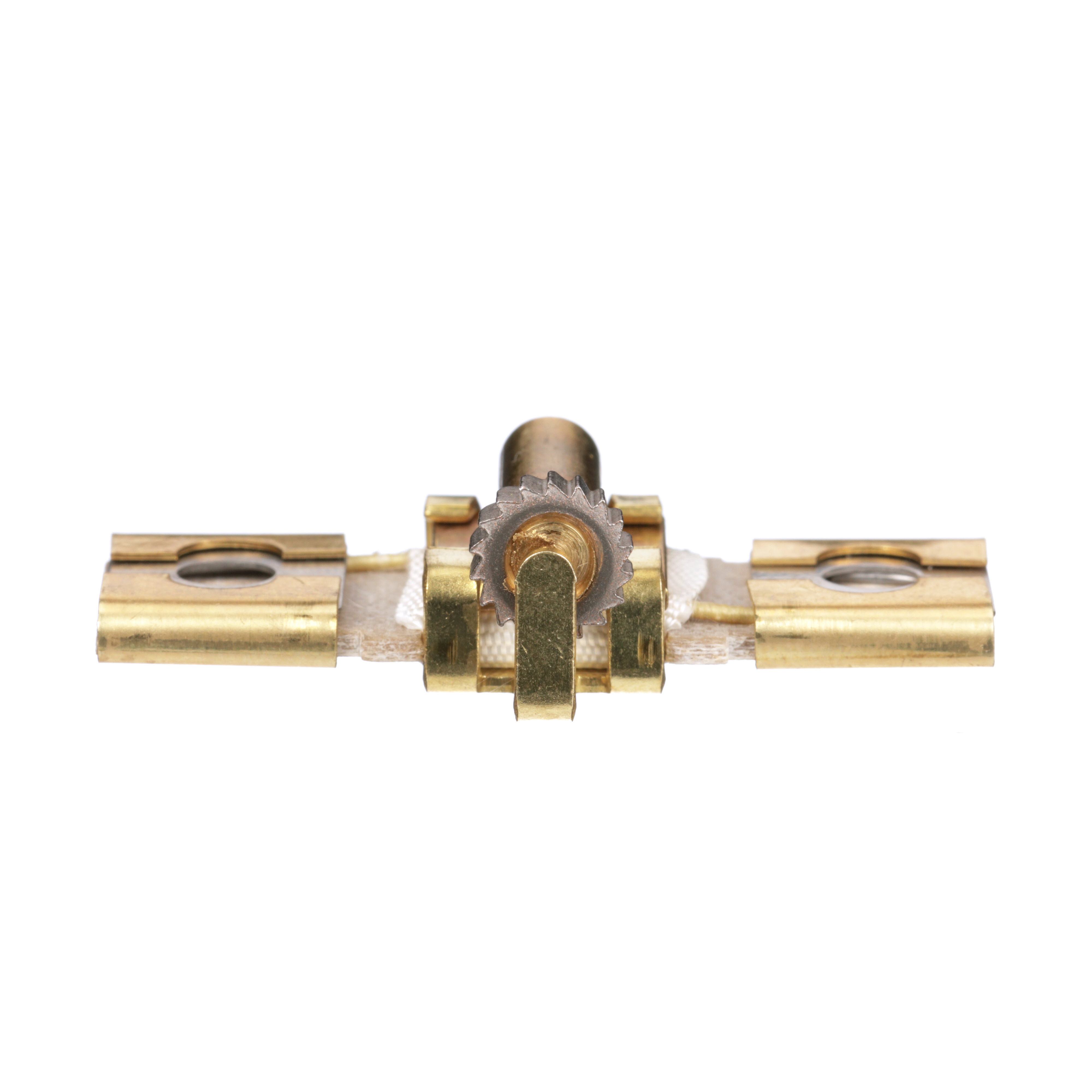

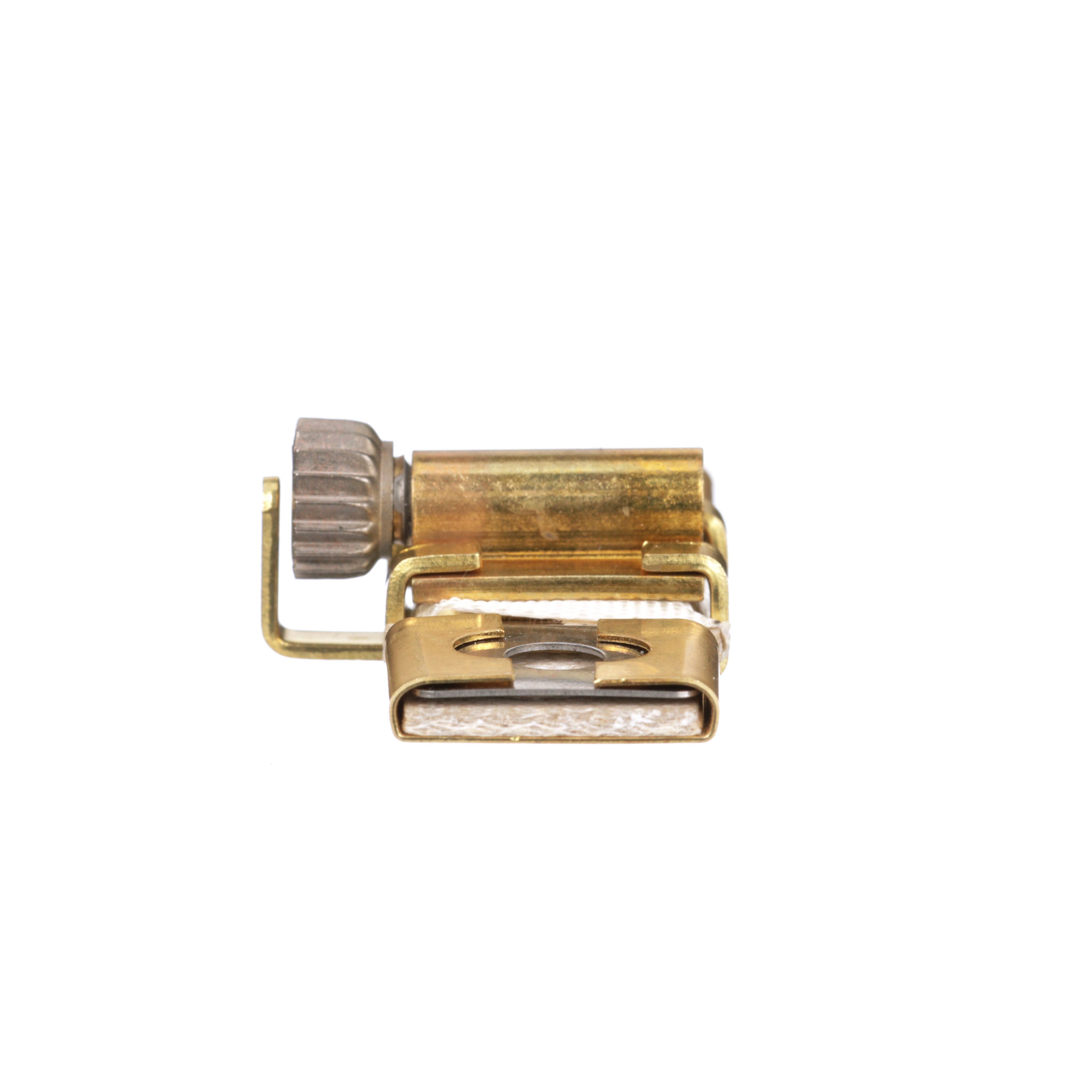

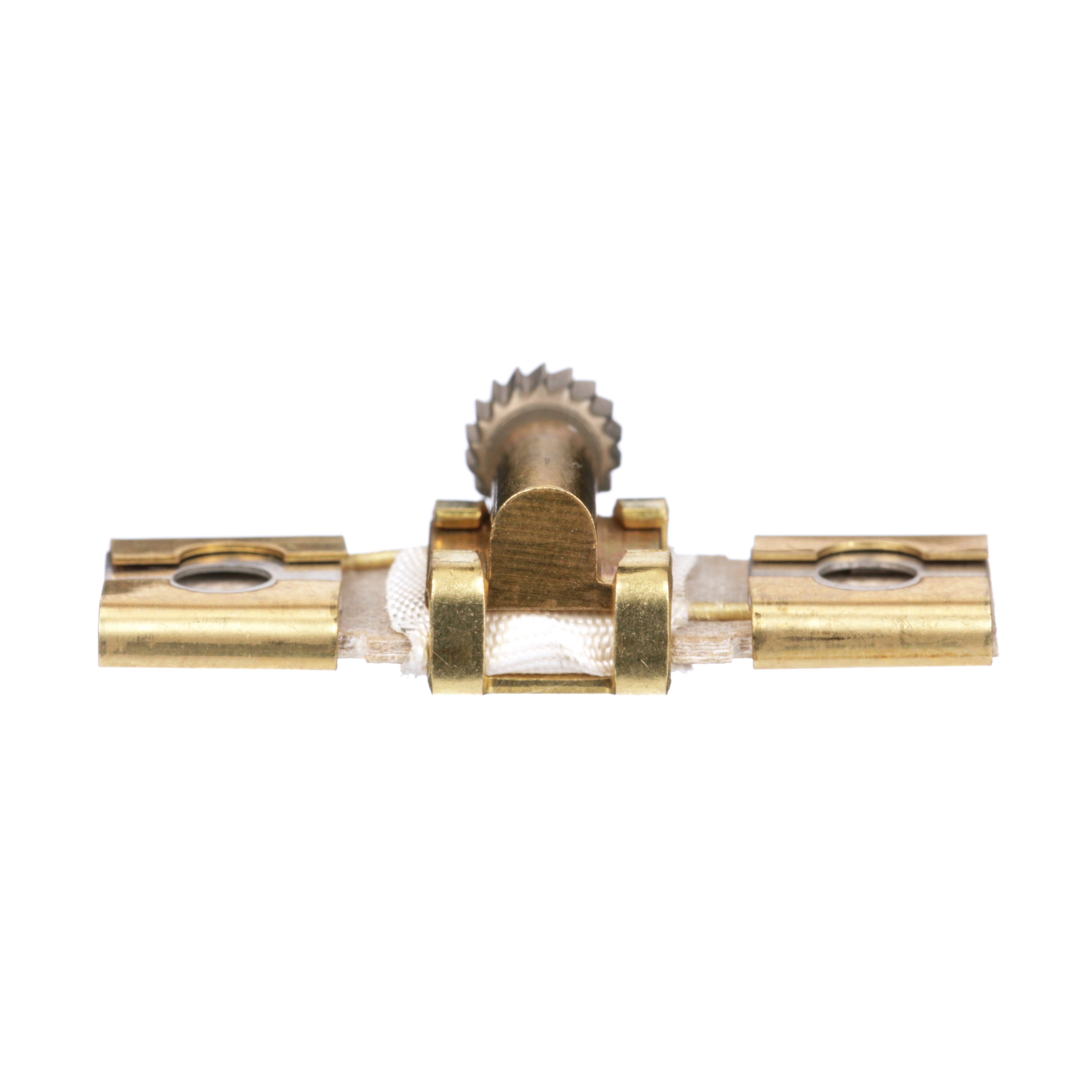

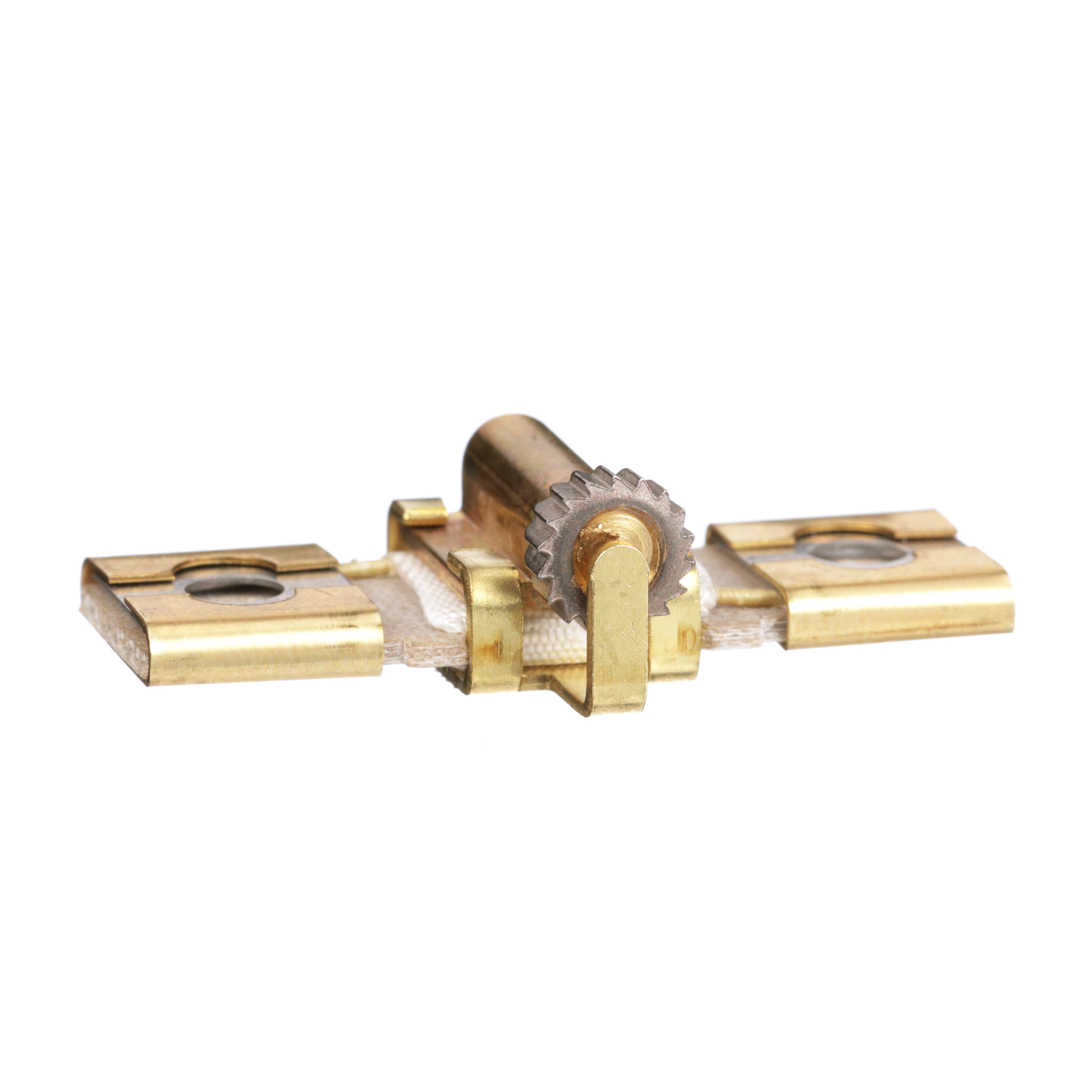

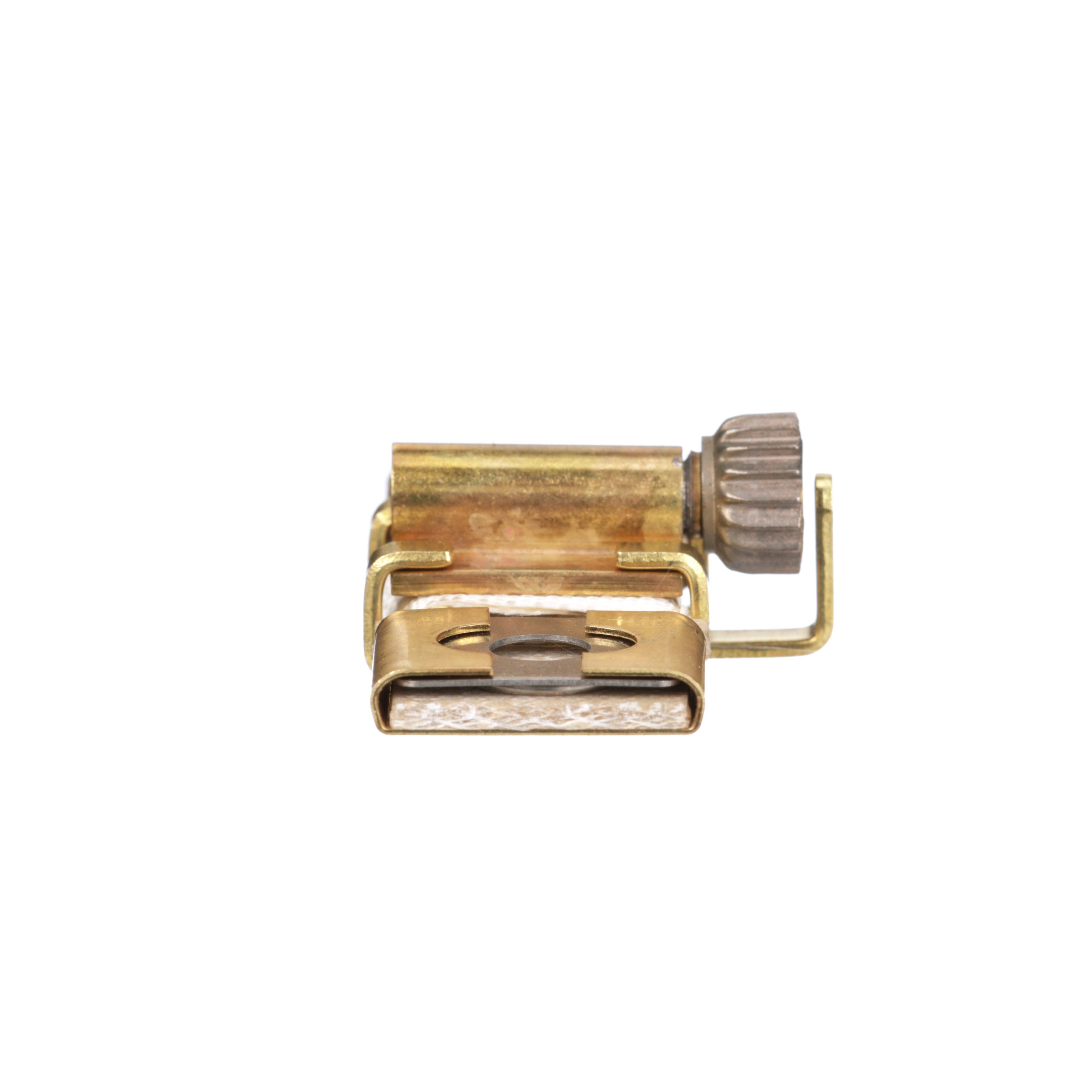

Square D™ B25.0 Melting Alloy Thermal Unit, 600 VAC
Brand: Square D™
Item ID: 48472
MPN: B25.0
UPC: 785901587552
Login for Price
Features
- Manual reset
- Full load current range depends on overload relay
- Type B thermal unit
- 40 deg c or less
Description
Square D™ Thermal Unit, Melting Alloy, 600 VAC, 16.2 to 18 A Full Load, Class 60/Standard Trip, 4.9 in L x 3.5 in W x 0.8 in H, Plug-In Mount, 40 deg C
Specifications
Full Load Current |
16.2 to 18 A |
Mounting Type |
Plug-In |
Size |
4.9 in L x 3.5 in W x 0.8 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 60/Standard |
Type |
Melting Alloy |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For melting alloy thermal overload relay, Manual, NEMA Overload Relays, magnetic motor starters and motor control applications |
