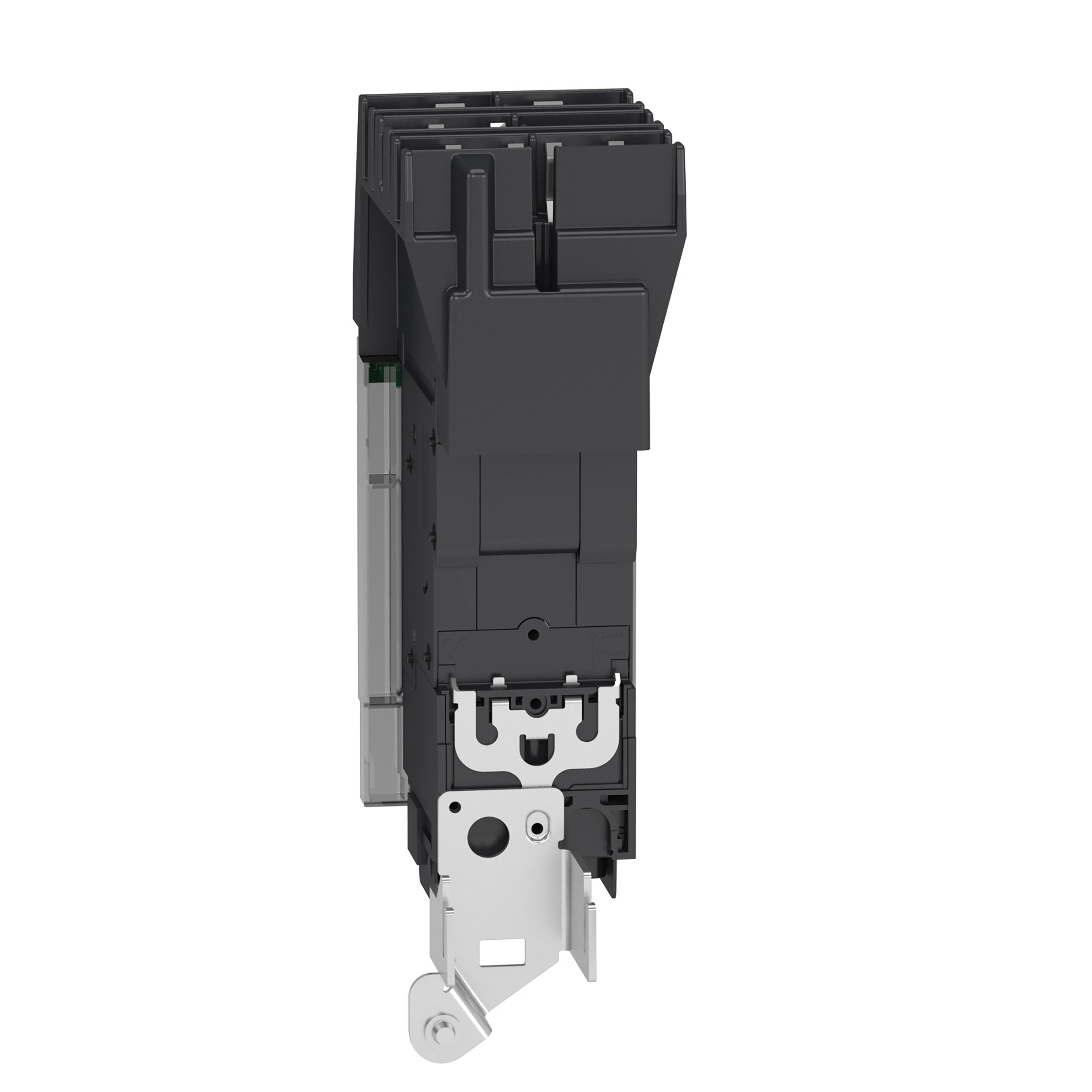

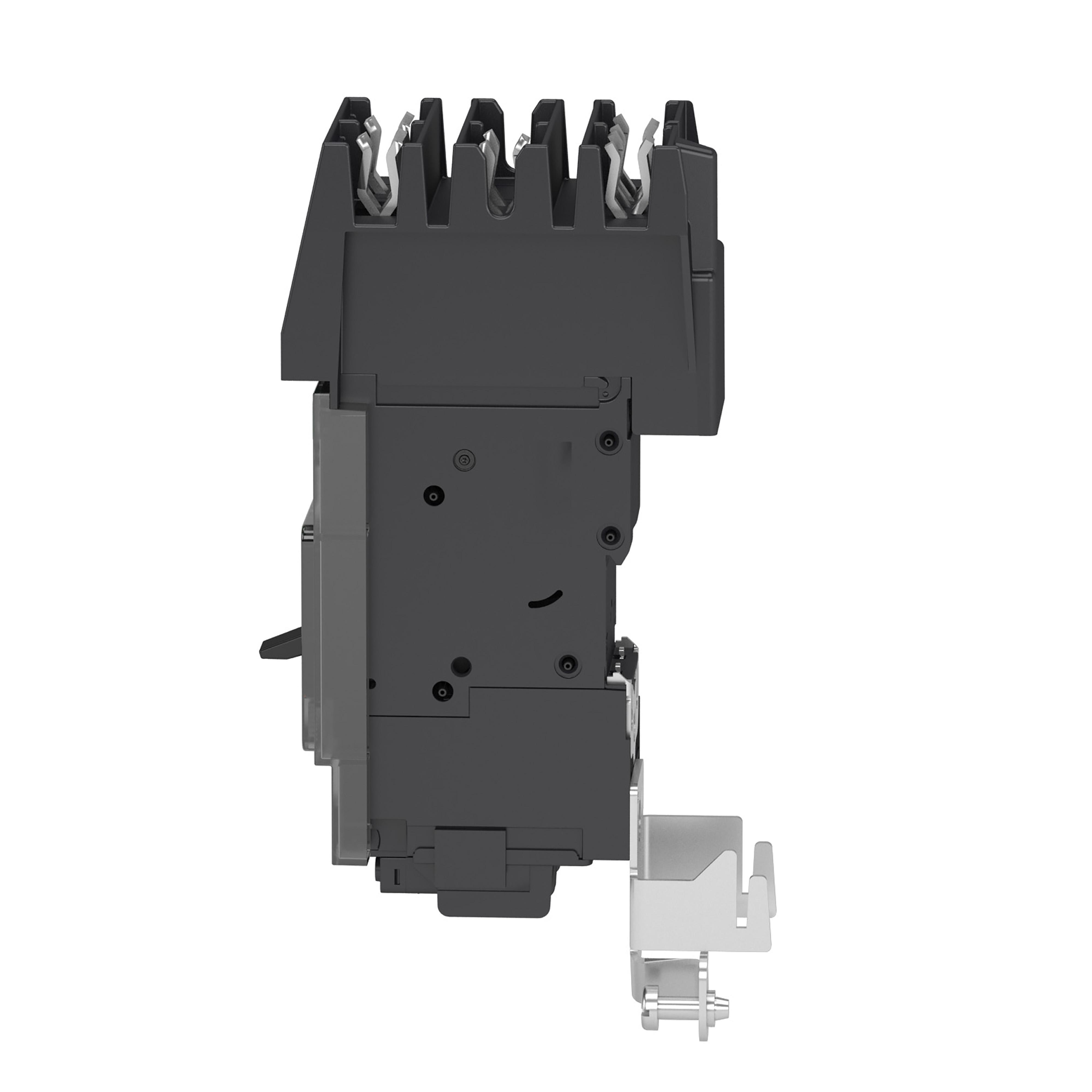

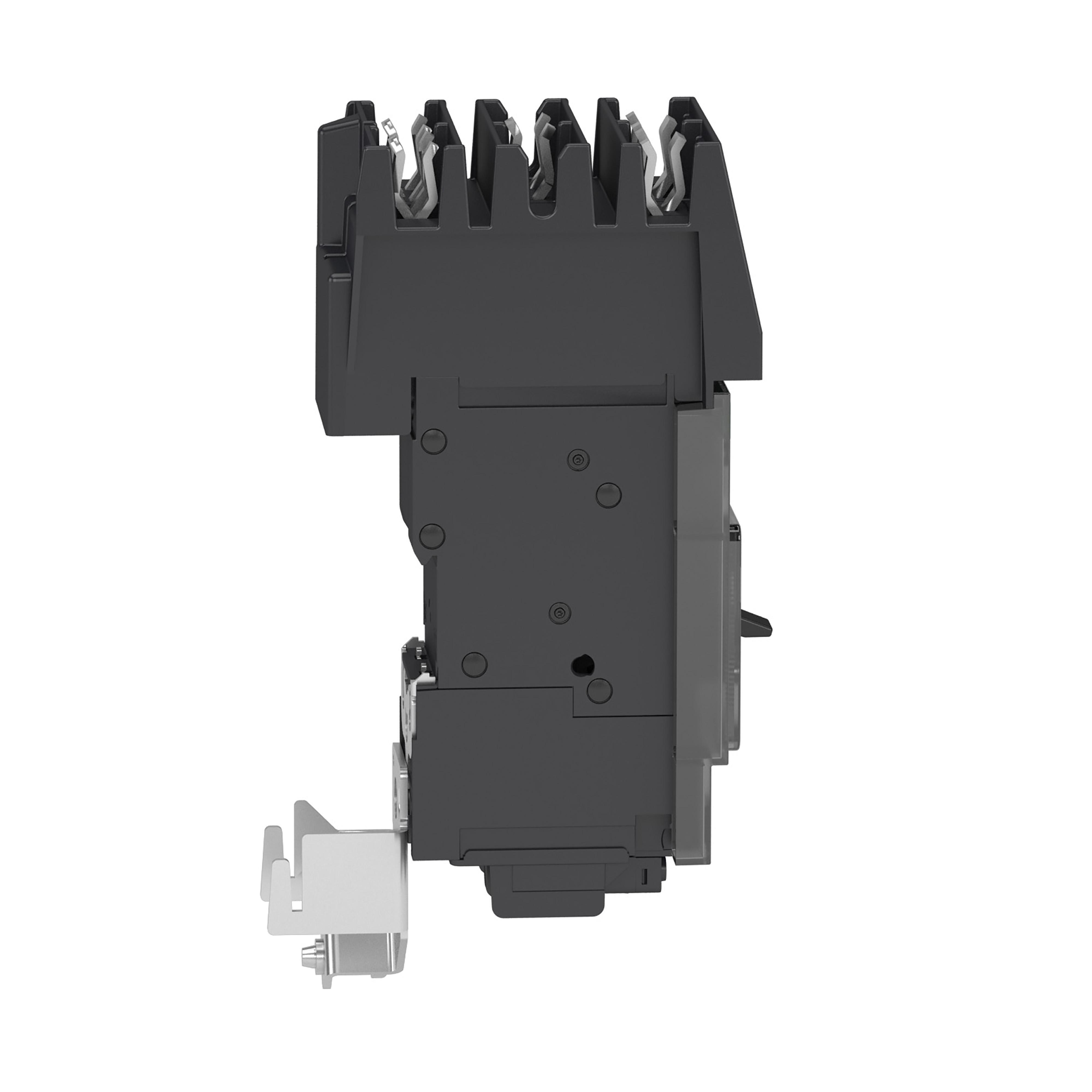

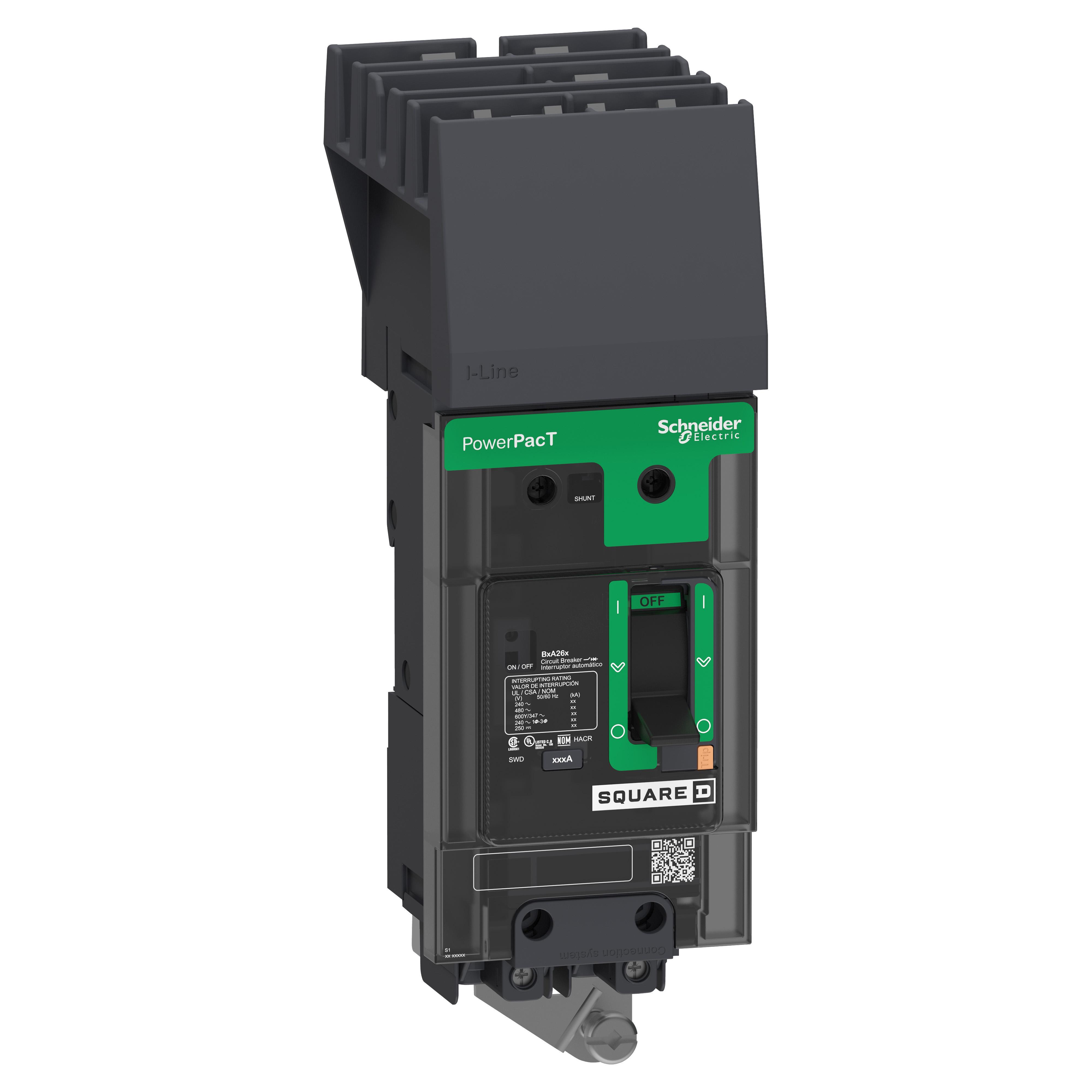

Schneider Electric Square D™ PowerPact™ BDA260402 Molded Case Circuit Breaker, 600Y/347/525 VAC, 40 A, 14 kA at 600Y/347/525 VAC Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Schneider Electric
Item ID: 509445
MPN: BDA260402
Login for Price
Description
Schneider Electric Square D™ PowerPact™ Molded Case Circuit Breaker, 600Y/347/525 VAC, 40 A, 50/60 Hz Frequency, 14 kA at 600Y/347/525 VAC Interrupt, B Frame, Thermal Magnetic Trip, 2 Pole, Toggle Actuator, I-Line Connection Line/Load Lug Connection, 14 to 2/0 AWG AL/CU Wire, IP40/IK07 Enclosure, I-Line Mounting, -13 to 158 deg F, 2.13 in W x 3.5 in D x 5.39 in H Dimensions, Gray
Specifications
Actuator Type |
Toggle |
Amperage Rating |
40 A |
Color |
Gray |
Connection Type |
I-Line Connection Line/Load Lug |
Dimensions |
2.13 in W x 3.5 in D x 5.39 in H |
Enclosure Type |
IP40/IK07 |
Frame |
B |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
14 kA at 600Y/347/525 VAC |
Mounting Type |
I-Line |
Number of Poles |
2 |
Temperature Rating |
-13 to 158 deg F |
Trip Type |
Thermal Magnetic |
Voltage Rating |
600Y/347/525 VAC |
Wire Size |
14 to 2/0 AWG AL/CU |
Standard Approval |
CCC Certified|CE Certified|CSA C22.2 No. 5|EAC Certified|ECCN: EAR99|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NEMA AB1|NMX J-266|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f49e0b950a6507493a601dae628e60dc88cc0f5171c03b0c256ad352b55f39b3.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDA260402_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dc3f0efb3219f7db857cda6a02d50cd3e6de66319c5c3120c812a9f505b0db87.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_358725fe05b9216e1812d1b9ba9eb0c5d08996190b19e8a516d2a75263dbbeed.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDF16025_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_B100_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBL22070_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDA260402_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9ac74b1e787db519989223edb513928466afe6c756480ca4754292c71ddce944.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDA260402_Specification_Sheet.pdf
