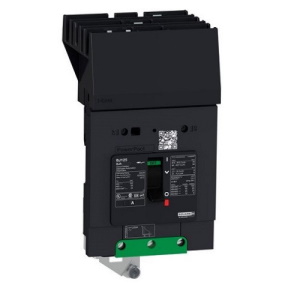

Square D™ BDA260802

Features

• 80A Current Rating: Suited for medium to high-load applications.
• High Voltage Rating: Supports 480/440V AC, ideal for industrial systems.
• 2-Pole Configuration: Provides protection for two-phase circuits.
• Thermal-Magnetic Trip Unit: Offers accurate and reliable circuit protection.
• Compact and Durable Design: Fits seamlessly into standard panel setups.
• Safety Compliance: Meets UL and CSA standards for electrical safety.

Specifications

• Type: Molded Case Circuit Breaker
• Current Rating: 80A
• Voltage Rating: 480/440V AC
• Number of Poles: 2
• Trip Unit: Thermal-Magnetic
• Interrupting Capacity: As specified by the manufacturer (typically 35-65 kA for similar models)
• Mounting Style: Bolt-on or plug-in (verify compatibility)
• Certifications: UL 489, CSA C22.2
• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)
• Dimensions: Standard MCCB size for electrical panels

The SQD BDA260802 480/440V is a high-performance 2-pole circuit breaker, ideal for managing and protecting electrical systems in industrial and commercial applications. With a current rating of 80A and a voltage rating of 480/440V, this breaker ensures safe and reliable operation. Its thermal-magnetic trip unit provides precise protection against overloads and short circuits, while the compact design facilitates easy integration into electrical panels.
