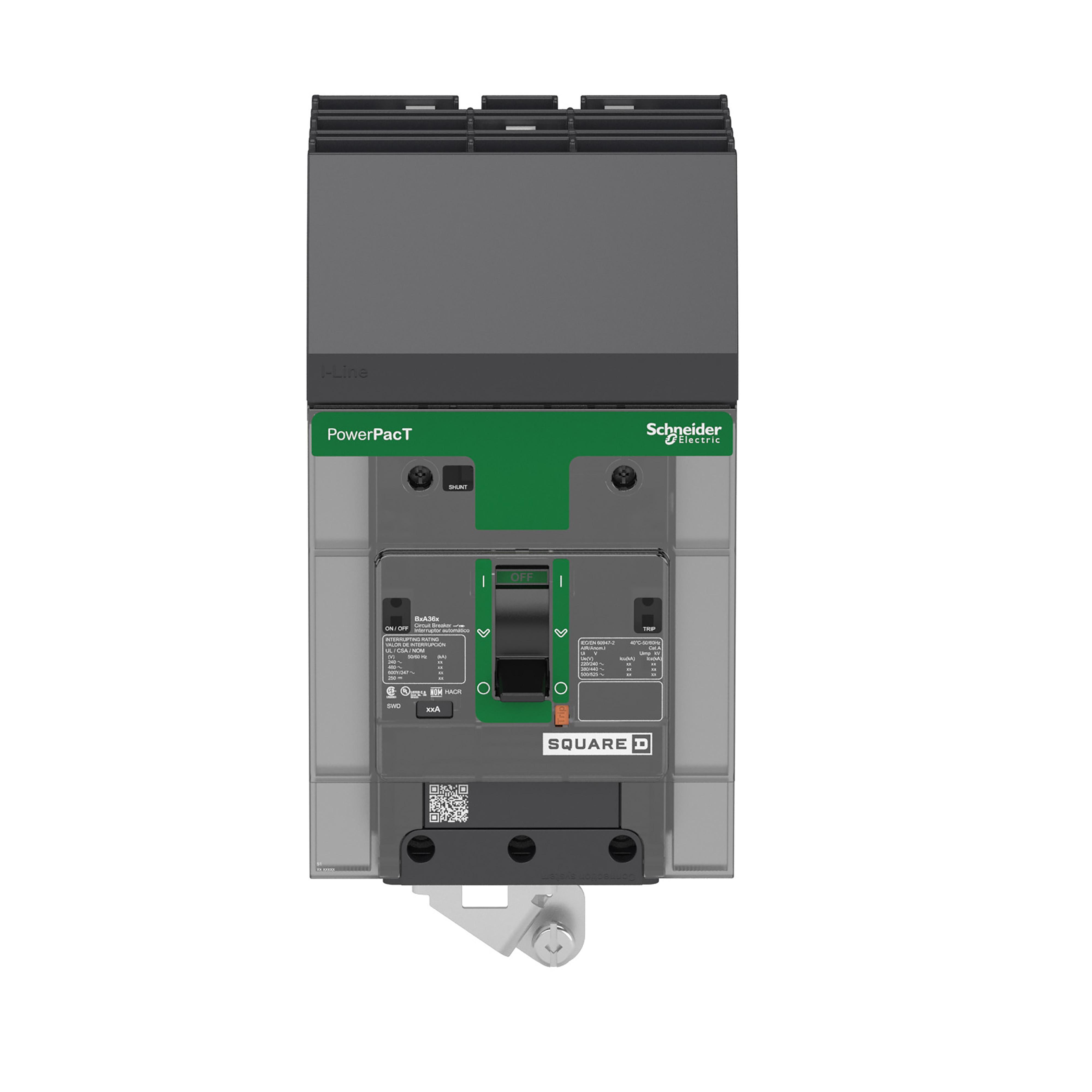

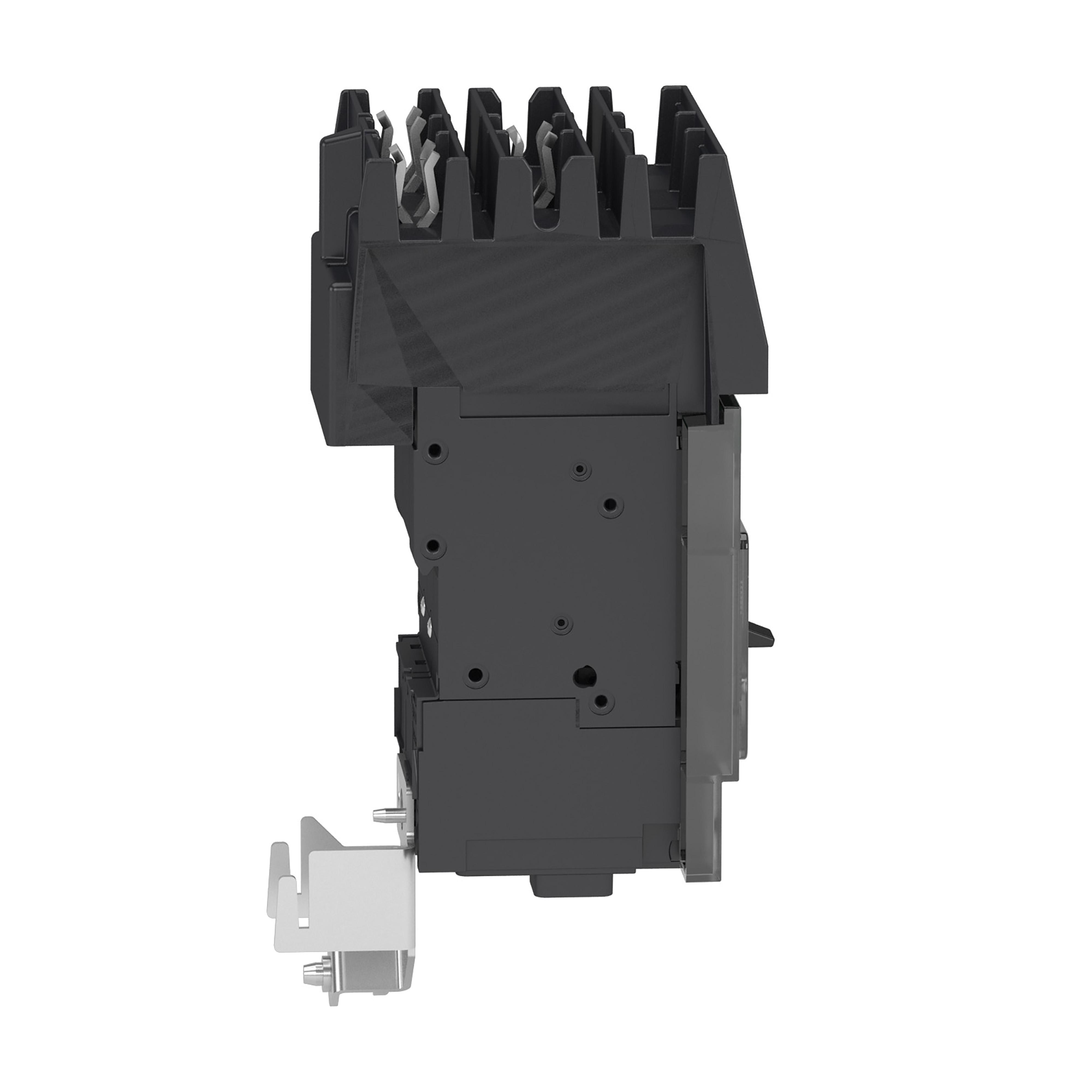

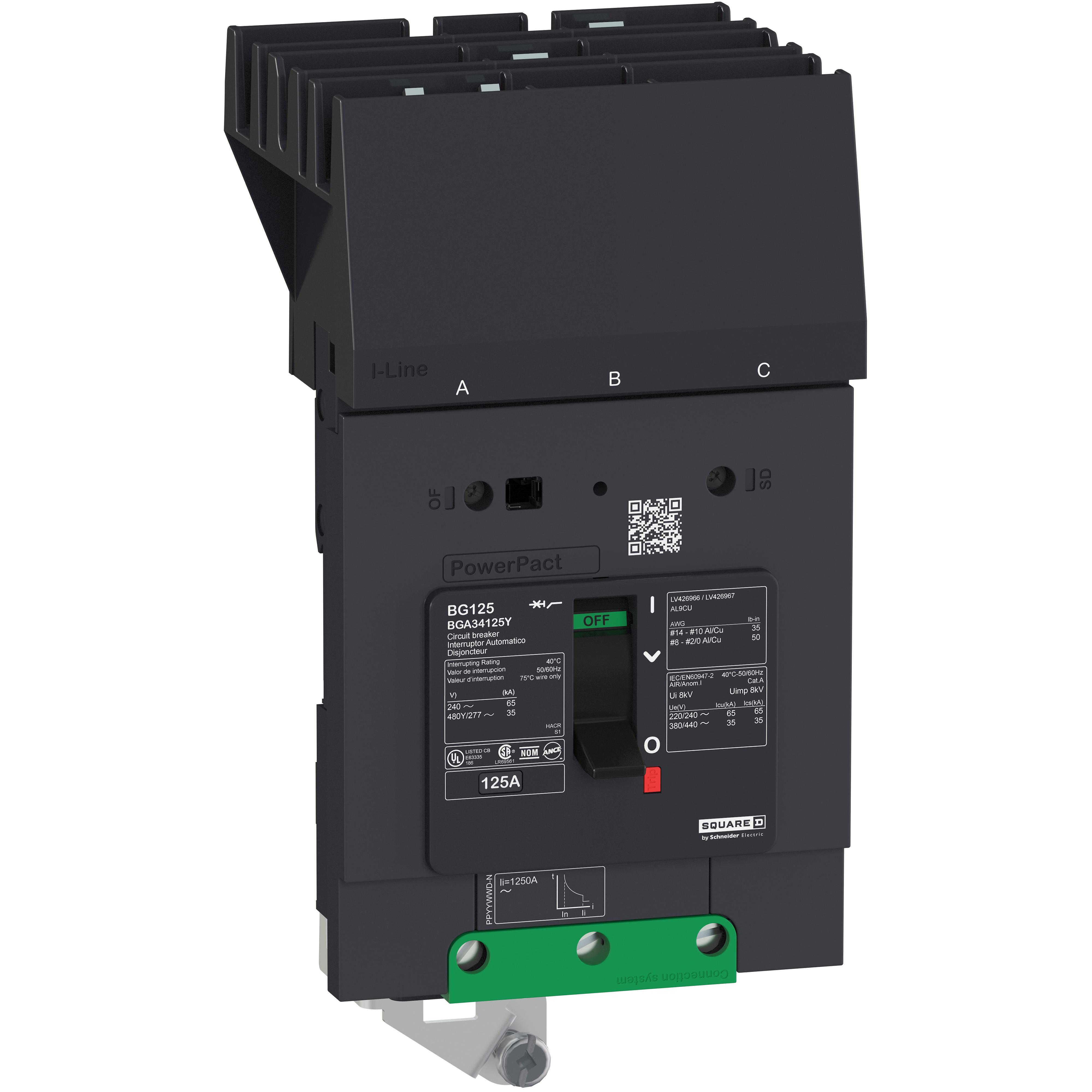

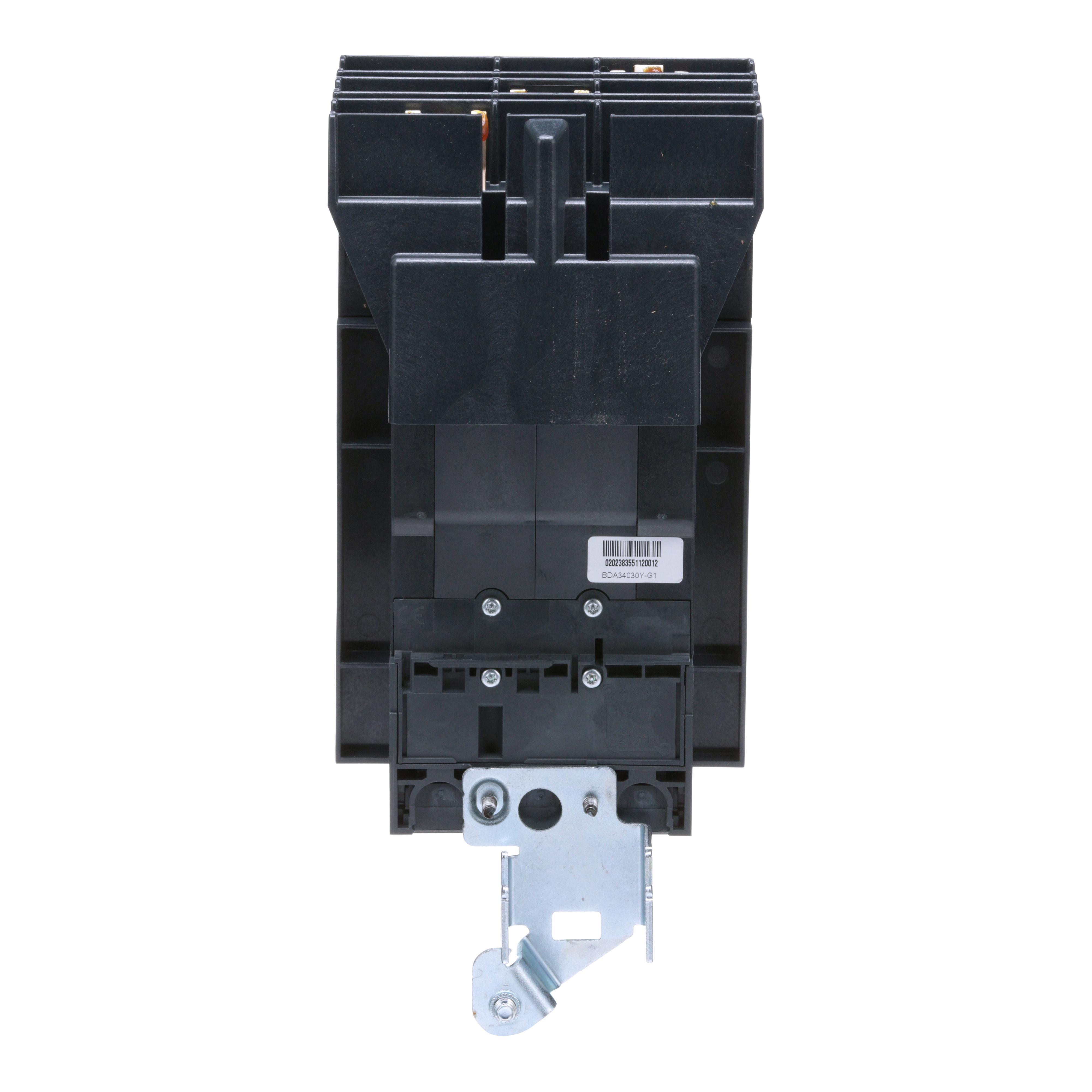

Square D™ BGA34035Y

• PowerPact™ B-frame Molded Case Circuit Breakers delivers unmatched design flexibility from 15 to 125 A and gives you the right combination of features and performance to satisfy circuit breaker requirements
• PowerPact™ B offers the benefits of a flexible, modular and easy to install circuit breaker
• Economical fixed thermal magnetic trip units from 15 to 125 A up to 600Y/347 VAC and 250 VDC
• Best in class I-Line™ mounting for Square D™ panelboard and switchboard applications
• A wide range of field installable accessories for more flexibility and less inventory
• Broad offering of operating mechanisms designed to be used as the main panel disconnect for control panel applications
• With 25% more capacity in less than two-thirds the size of legacy 100 A circuit breakers
• Saves time in electrical design, mounting and wiring
• With integrated DIN rail mounting and built-in control wire terminals, your work clicks right into place
• Tackles last minute changes
• When they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms
• Provides fast startup and fewer call backs

PowerPact™ B-frame circuit breaker, offers proven performance, flexibility and reliability. This PowerPact™ molded case circuit breaker feature new innovations such as the patented EverLink™ connections. PowerPact™ B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25 kA at 220/240 VAC, 50/60 Hz. PowerPact™ B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line™ construction. This circuit breaker has a thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles at 440 V. This I-Line™ breaker has a presence of auxiliary contacts green signaling function. The I-Line™ lug can accept an 14 to 2/0 AWG, aluminum/copper. This breaker complies to UL, IEC, CCC, EAC, CSA, NOM standards PowerPact™ B-frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm H x 81 mm W x 89 mm D and a weight of 1.315 kg. This breaker has a continuous current rating of 80% with an ABC phase connection.

Square D™ PowerPact™ Molded Case Circuit Breaker, Series: BG 035, 480Y/277 VAC, 250 VDC, 35 A, 50/60 Hz Frequency, 35/20 kA Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 3 Poles, Toggle Actuator, I-Line™ Line/Lug Load Connection, 14 to 2/0 AWG Al/Cu Wire, NEMA AB1/IK07/IP40 Enclosure, DIN Rail Mounting, -25 to 70 deg C, 81 mm W x 89 mm D x 137 mm H Dimensions, Gray
