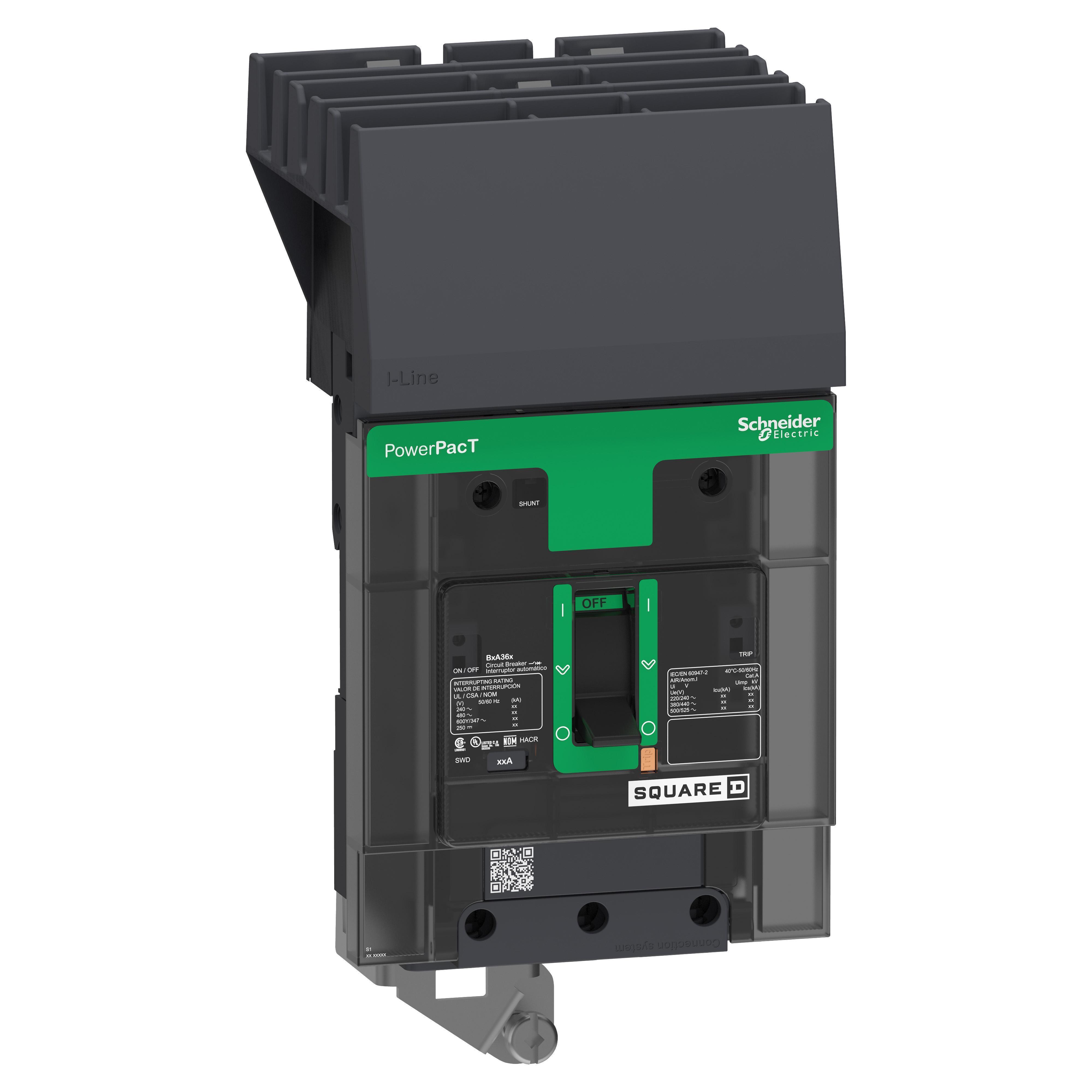

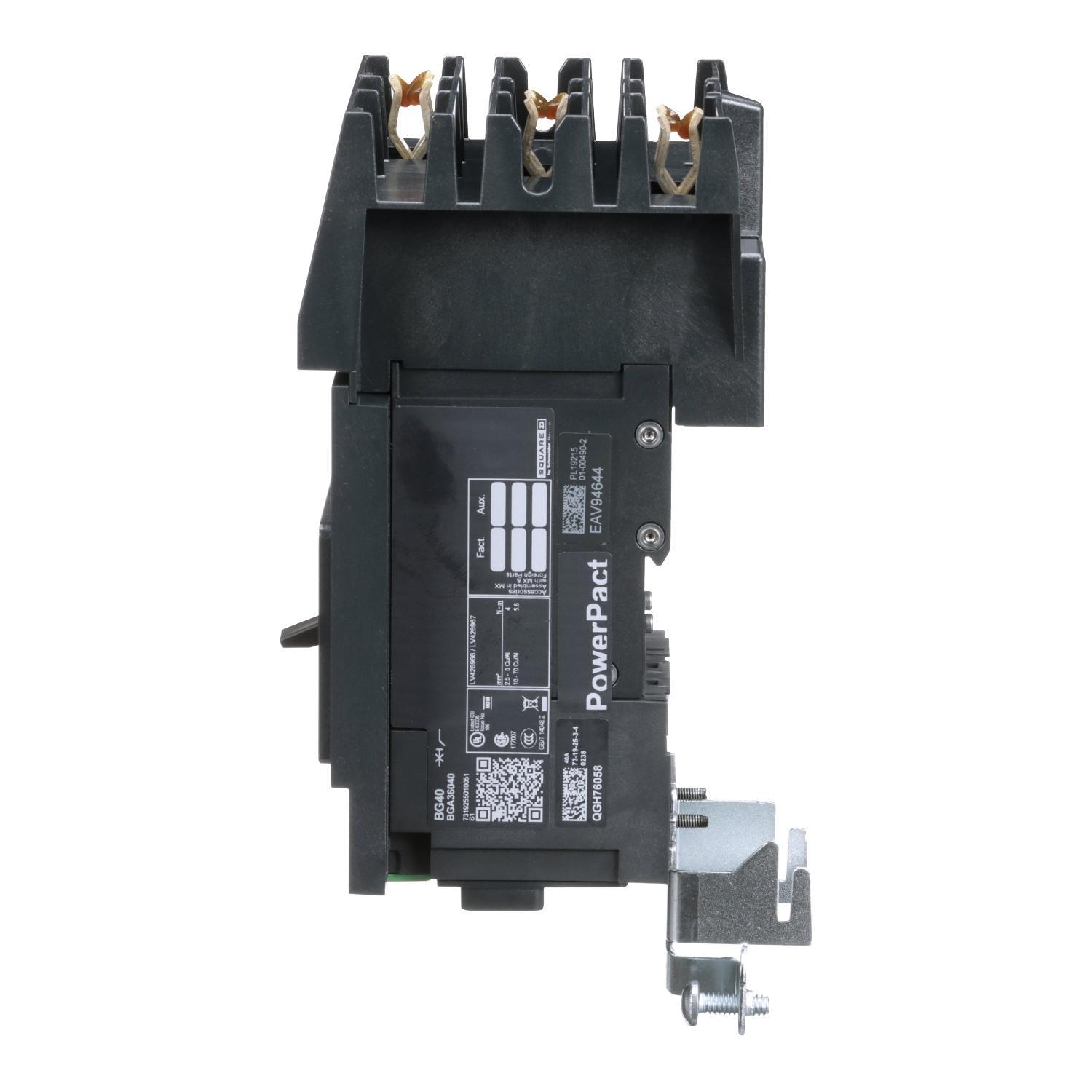

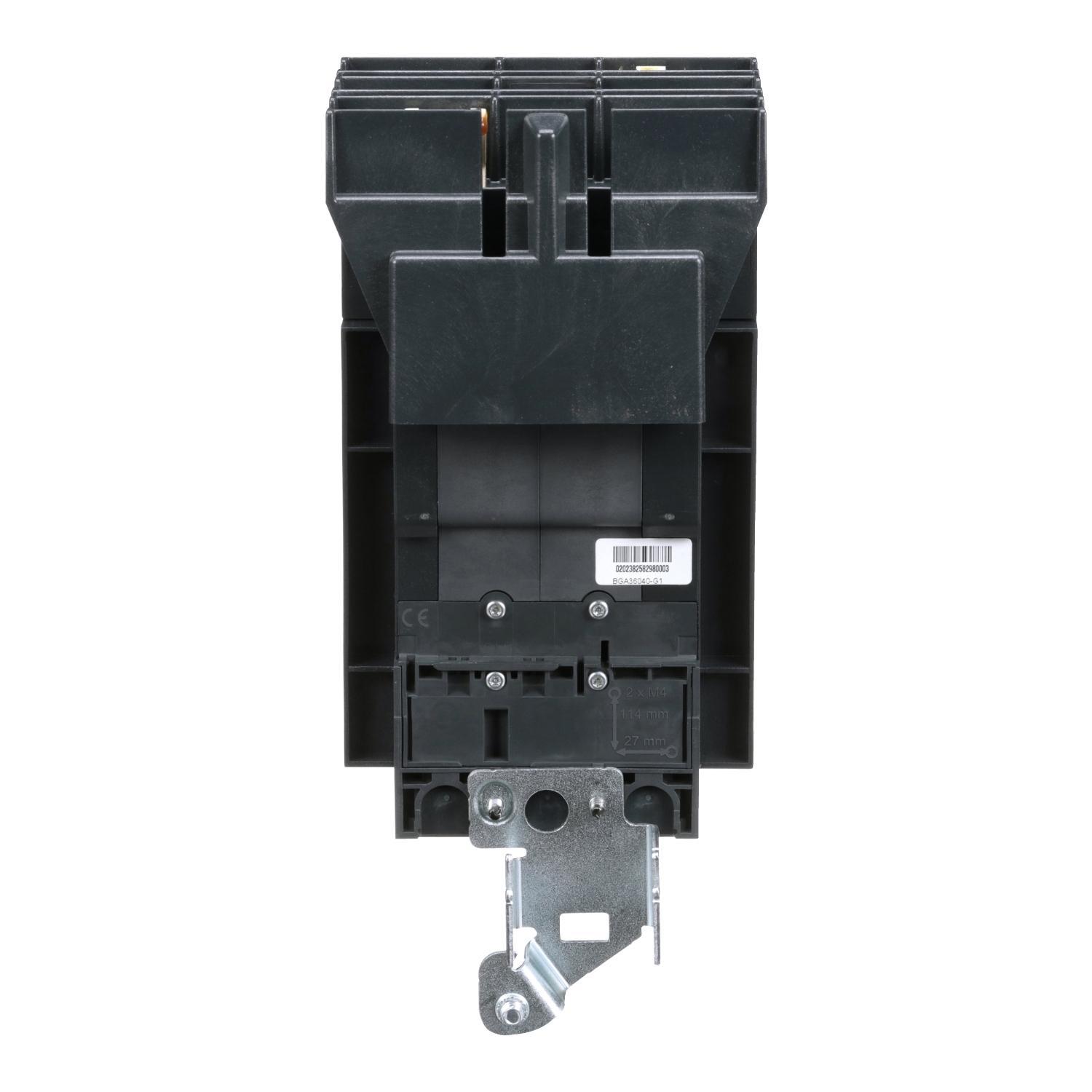

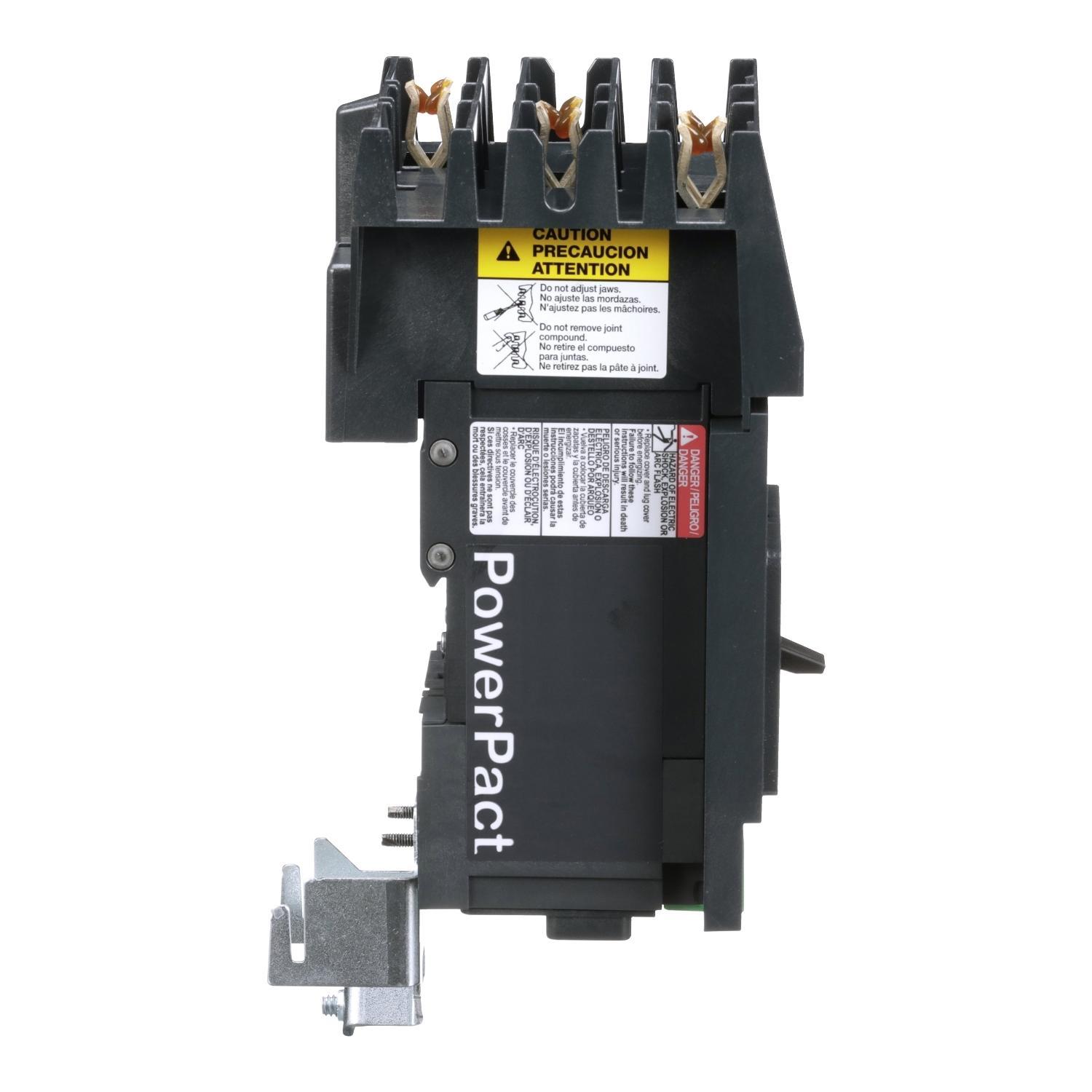

Square D™ BGA36040

• Available in 1, 2, 3, and 4 pole for unit mounts
• Dual rated AC/DC with 3 levels of breaking capacity
• A wide range of accessories, auxiliaries, and lug connections available

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 40A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Square D™ PowerPact® I-Line® Molded Case Circuit Breaker, Type BGA, 600Y/347 V AC, 40 A, 50/60 Hz, 18 kA Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 3 Pole, Toggle Actuator, I-Line®/Mechanical Lug, 14 to 2/0 AWG Al/Cu Wire, IP40/IK07 Enclosure, -13 to 158 deg F, 5.39 in H x 3.19 in W x 3.5 in D, Gray
