Square D™ CC143.0

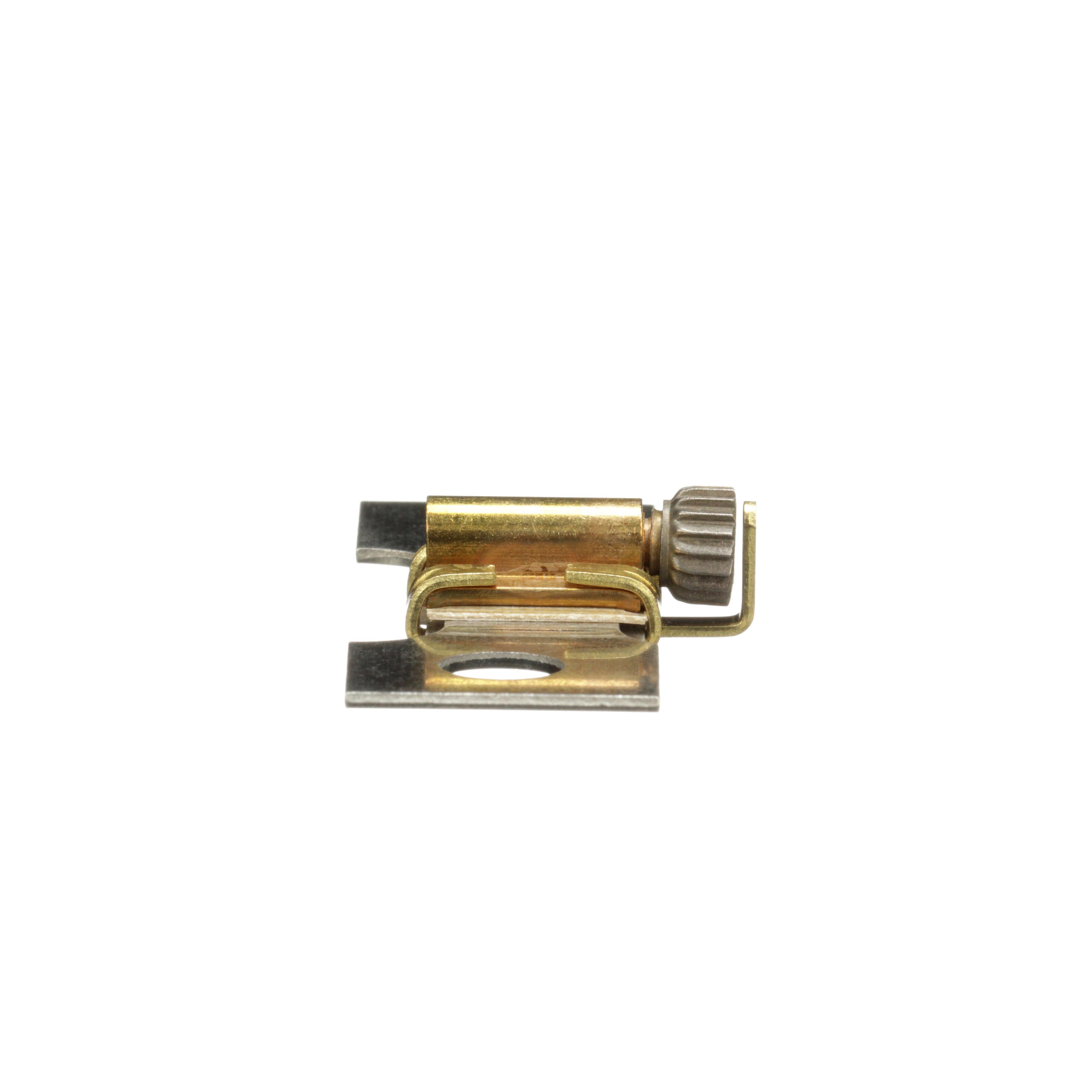

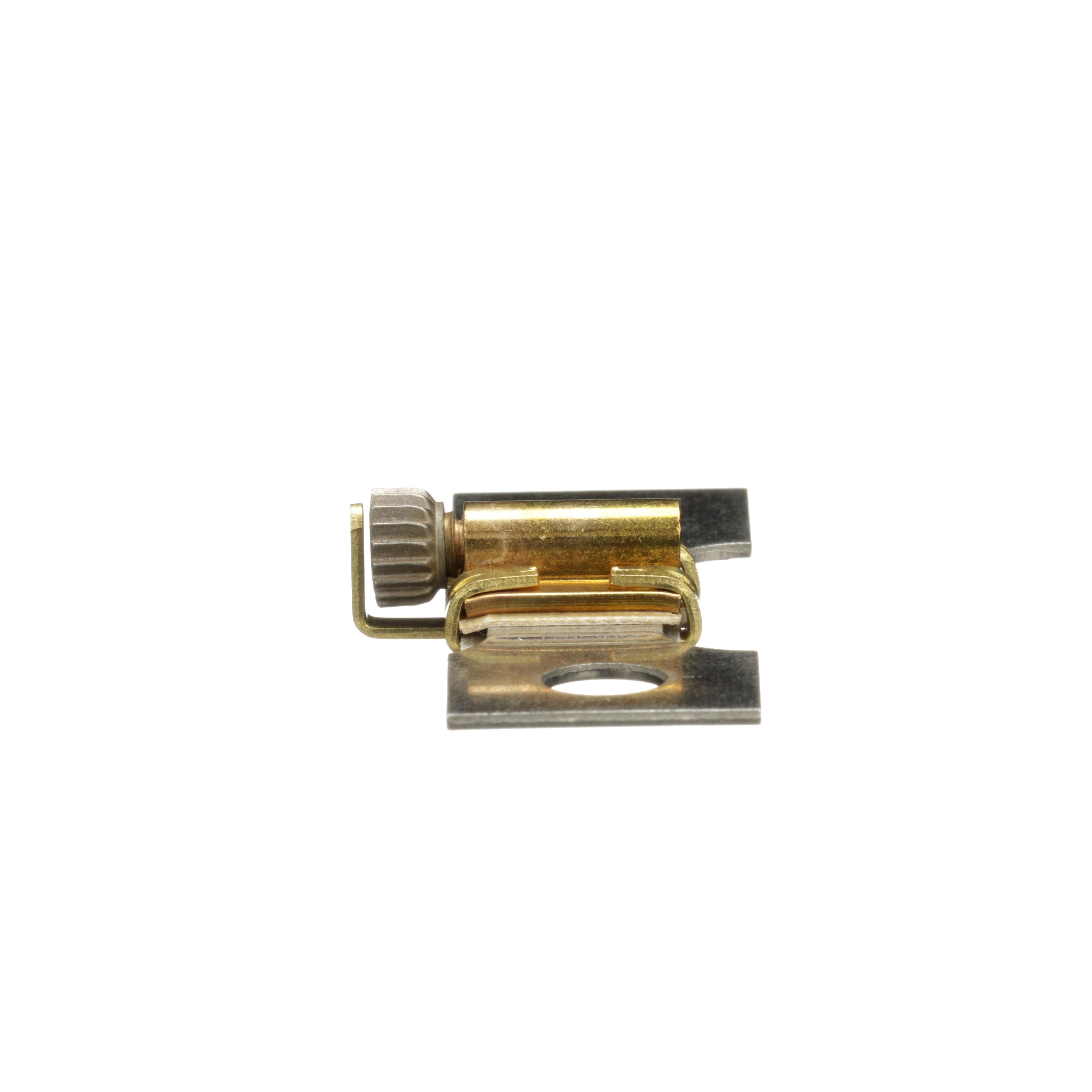

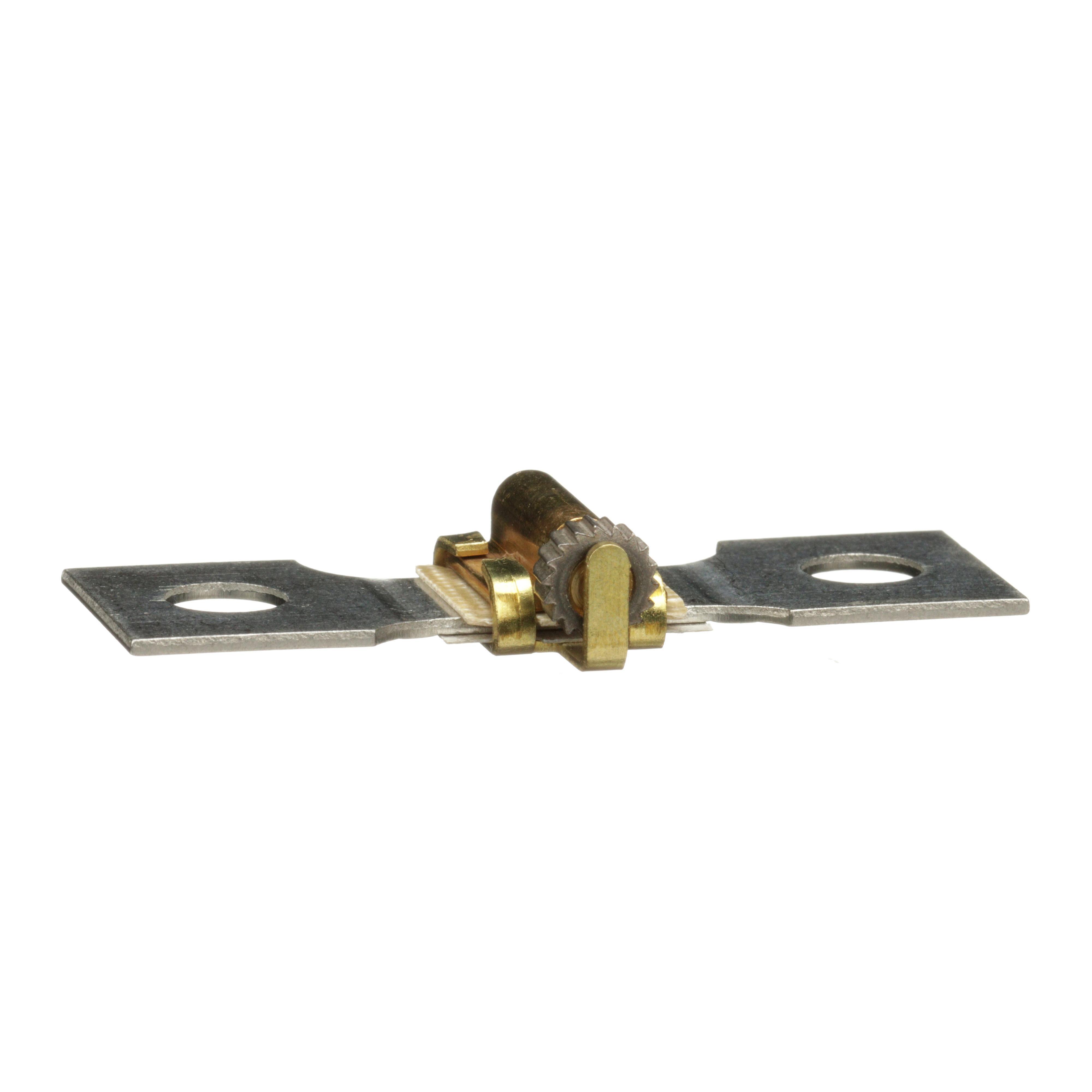

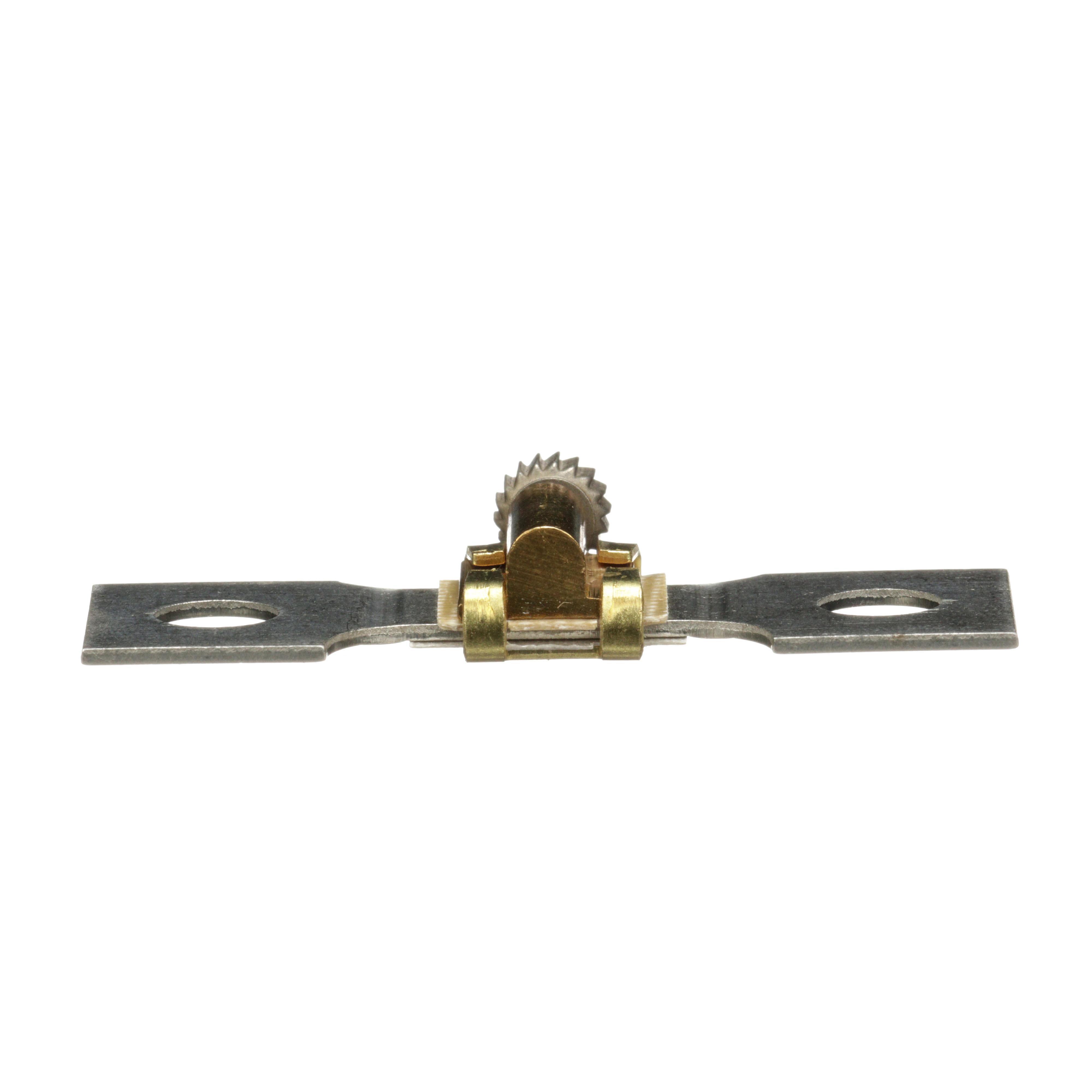

Square D™ CC143.0 Melting Alloy Thermal Unit, 600 VAC
Brand: Square D™
Item ID: 547917
MPN: CC143.0
UPC: 785901588191
Login for Price
Features
- Manual reset
- Full load current range depends on overload relay
- Type CC thermal unit
- 67.2 to 180 A (1 thermal unit), 73 to 102 A (2 thermal unit), 69.1 to 102 A (3 thermal unit) full load current
Description
Square D™ Thermal Unit, Melting Alloy, 600 VAC, 67.2 to 180 A Full Load, Class 87/Standard Trip, 4.8 in L x 3.5 in W x 2.5 in H, Plug-In Mount, 40 deg C
Specifications
Full Load Current |
67.2 to 180 A |
Mounting Type |
Plug-In |
Size |
4.8 in L x 3.5 in W x 2.5 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 87/Standard |
Type |
Melting Alloy |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For melting alloy thermal overload relay, Manual, NEMA Overload Relays, magnetic motor starters and motor control applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1030_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1030_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1430_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1430_Specification_Sheet.pdf
