Square D™ CC156.0

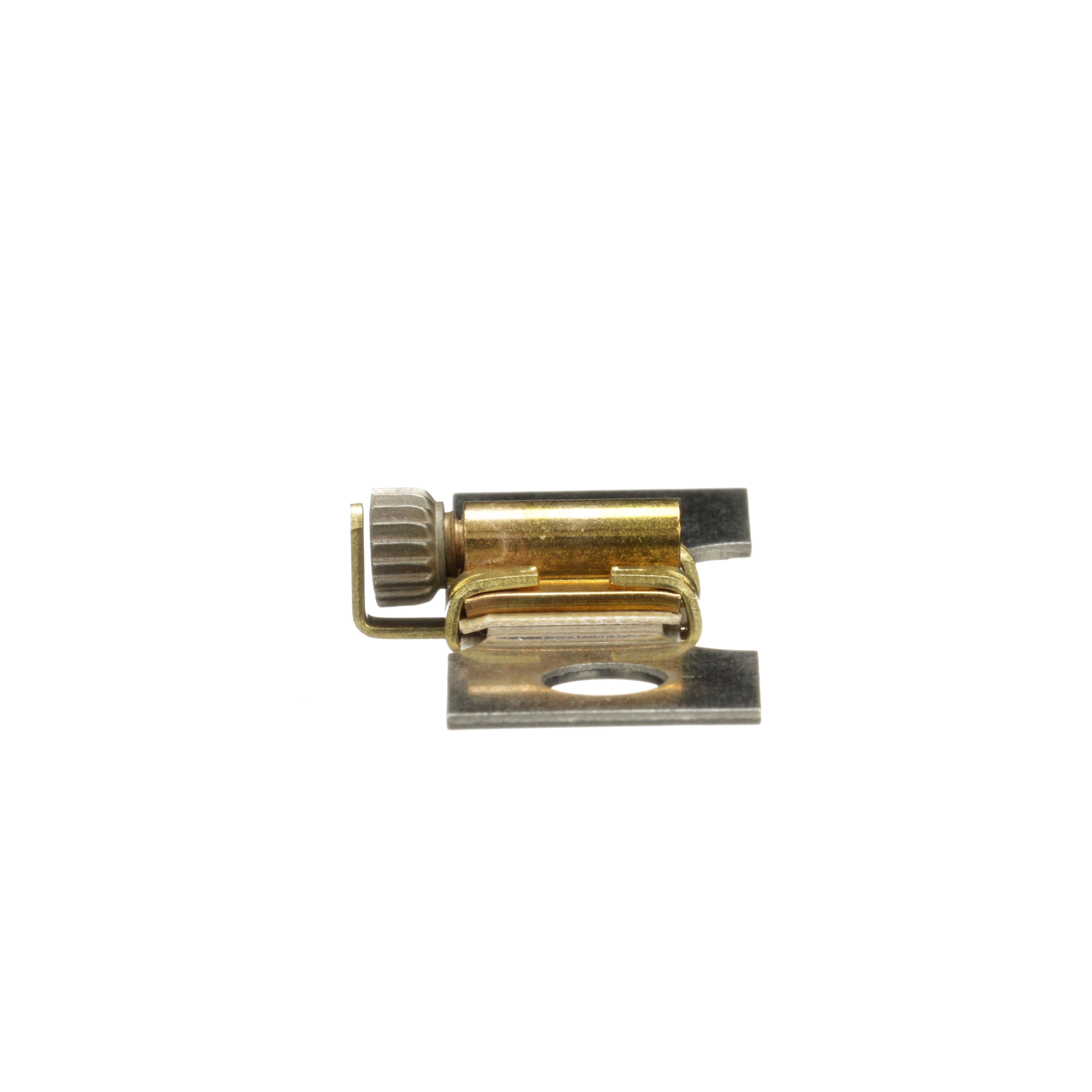

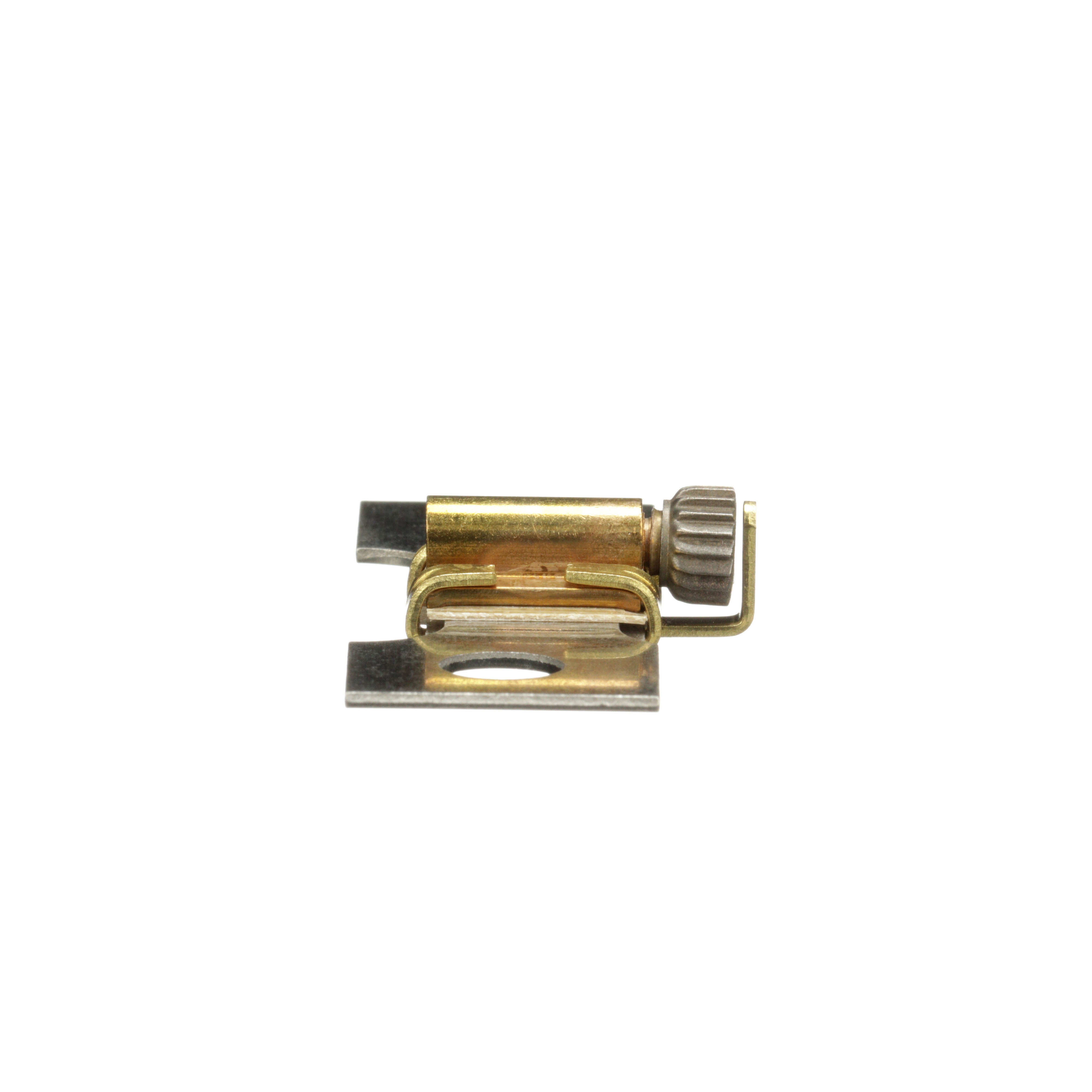

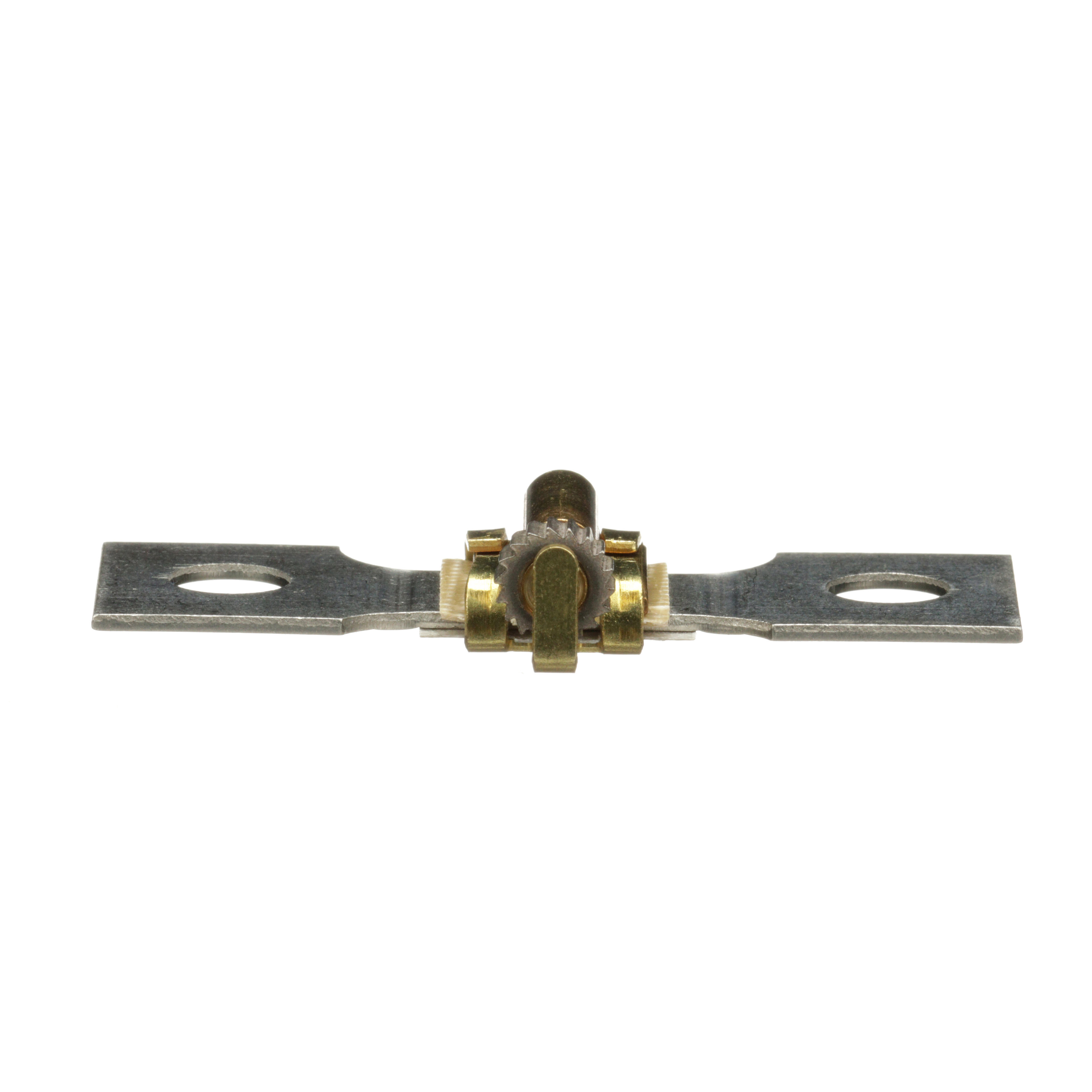

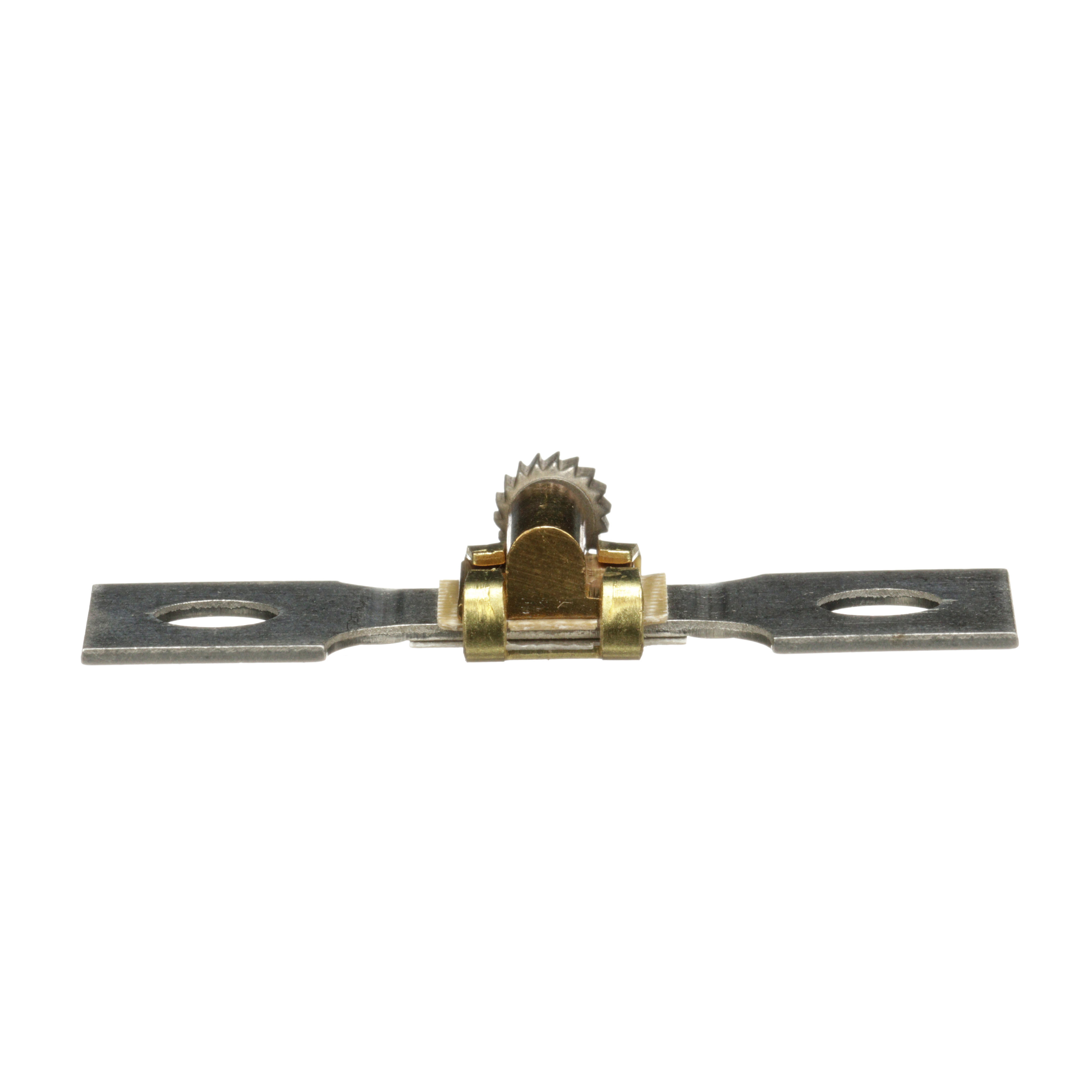

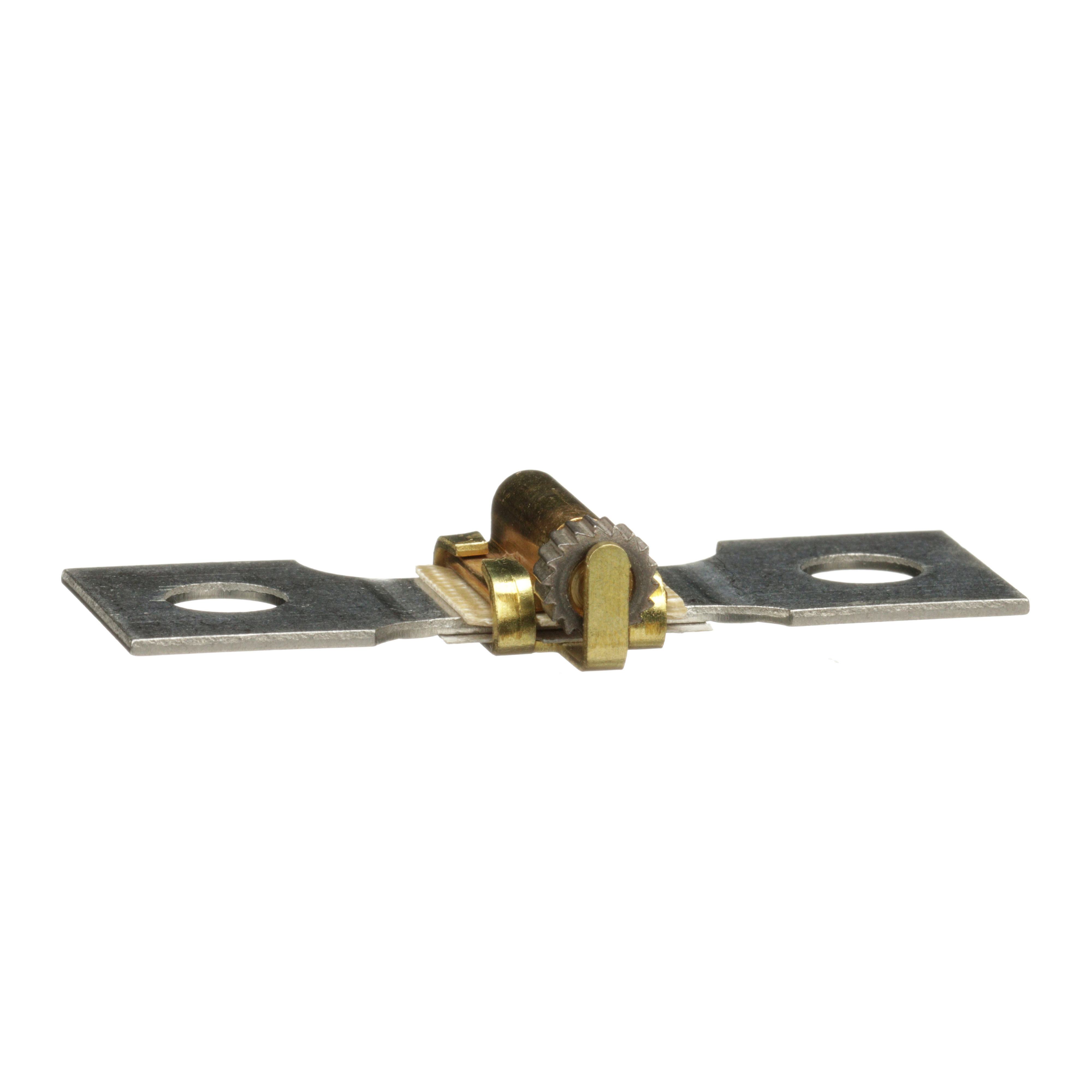

Square D™ CC156.0 Melting Alloy Thermal Unit, 600 VAC
Brand: Square D™
Item ID: 459315
MPN: CC156.0
UPC: 785901588207
Login for Price
Features
- Manual reset
- Full load current range depends on overload relay
- Type CC thermal unit
- 70.4 to 133 A (1 thermal unit), 75 to 110 A (2 thermal unit), 71 to 110 A (3 thermal unit) full load current
Description
Square D™ Thermal Unit, Melting Alloy, 600 VAC, 70.4 to 133 A Full Load, Class 88/Standard Trip, 4.8 in L x 3.5 in W x 2.4 in H, Plug-In Mount, 40 deg C
Specifications
Full Load Current |
70.4 to 133 A |
Mounting Type |
Plug-In |
Size |
4.8 in L x 3.5 in W x 2.4 in H |
Temperature Rating |
40 deg C |
Trip Type |
Class 88/Standard |
Type |
Melting Alloy |
Voltage Rating |
600 VAC |
Standard Approval |
PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For melting alloy thermal overload relay, Manual, NEMA Overload Relays, magnetic motor starters and motor control applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bab8e82378b456ab03854c1f193846ca7003e0243a6f87e96aabd3969302c74e.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9065SEO15_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1030_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1030_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71f98741d4bc4639caba264ad9b56326ed97c57be1108c1ee593fa739b740ad6.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8538SDA46V02S_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d75081fa23fc084cb19fc71ac3ea028841183076854a1f9fc0650685b877fe24.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cb36d3fdc5fddc4ba83a45027eb79cc6318beef272d9d538e8c941f723f19411.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1560_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC1560_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CC156_0_Specification_Sheet.pdf
