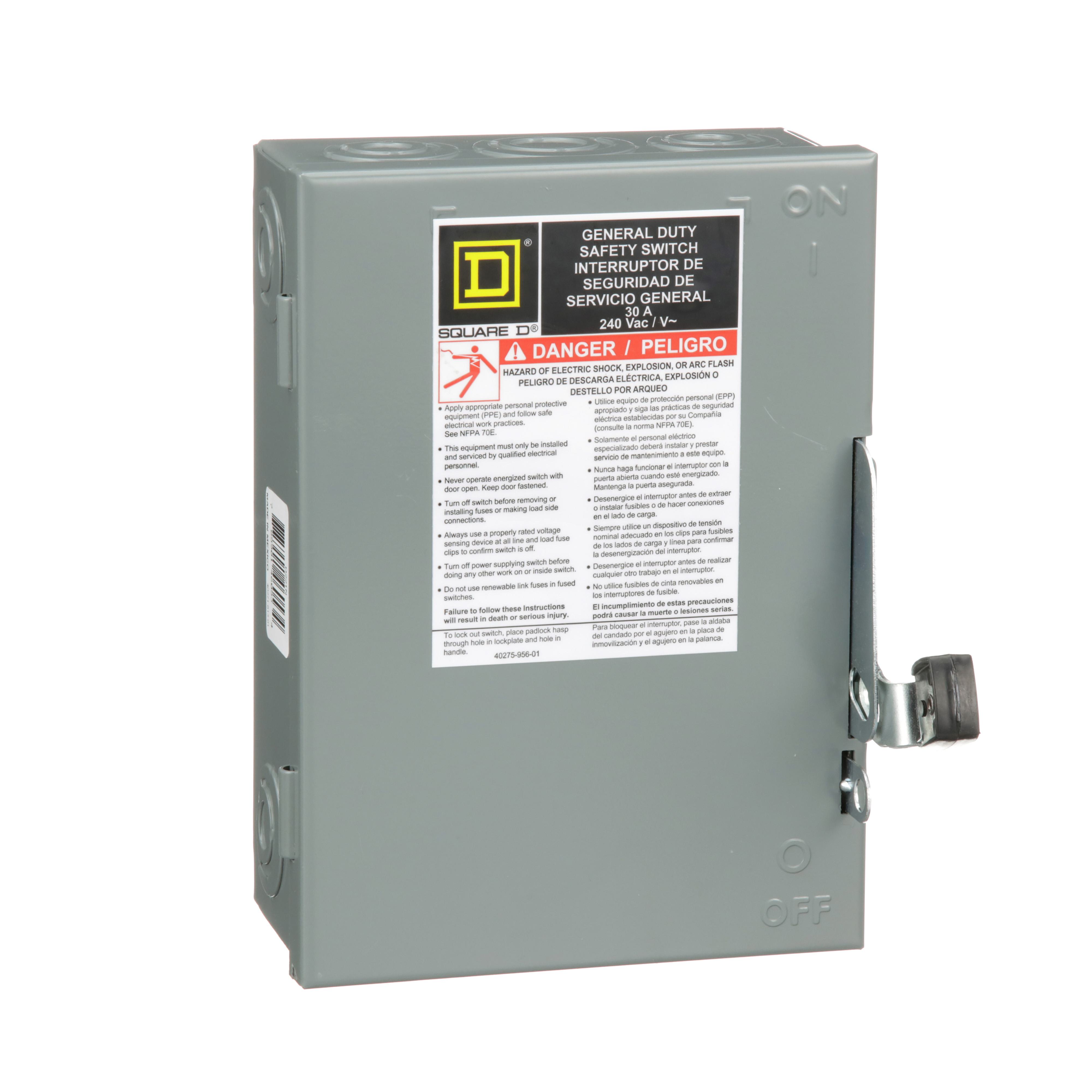

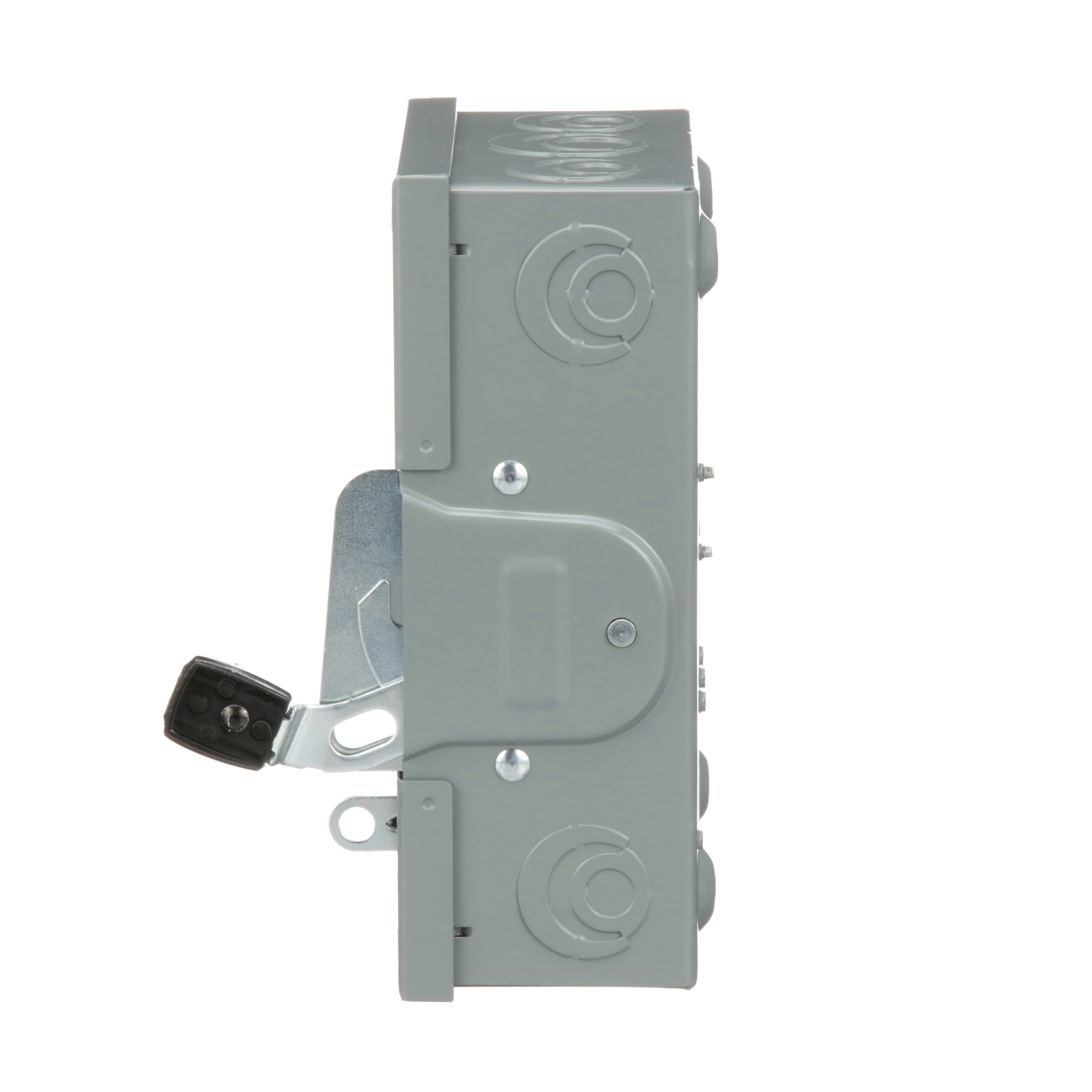

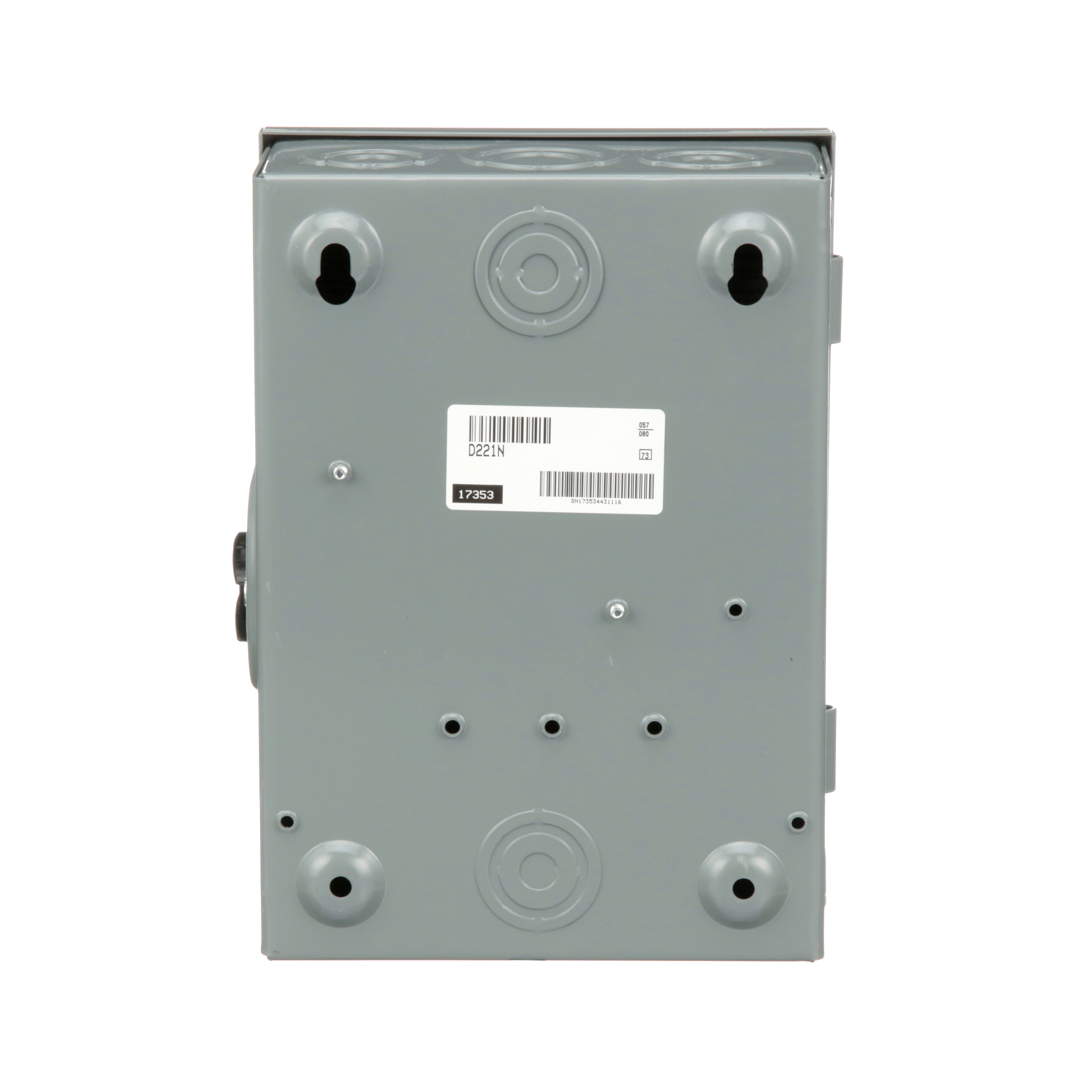

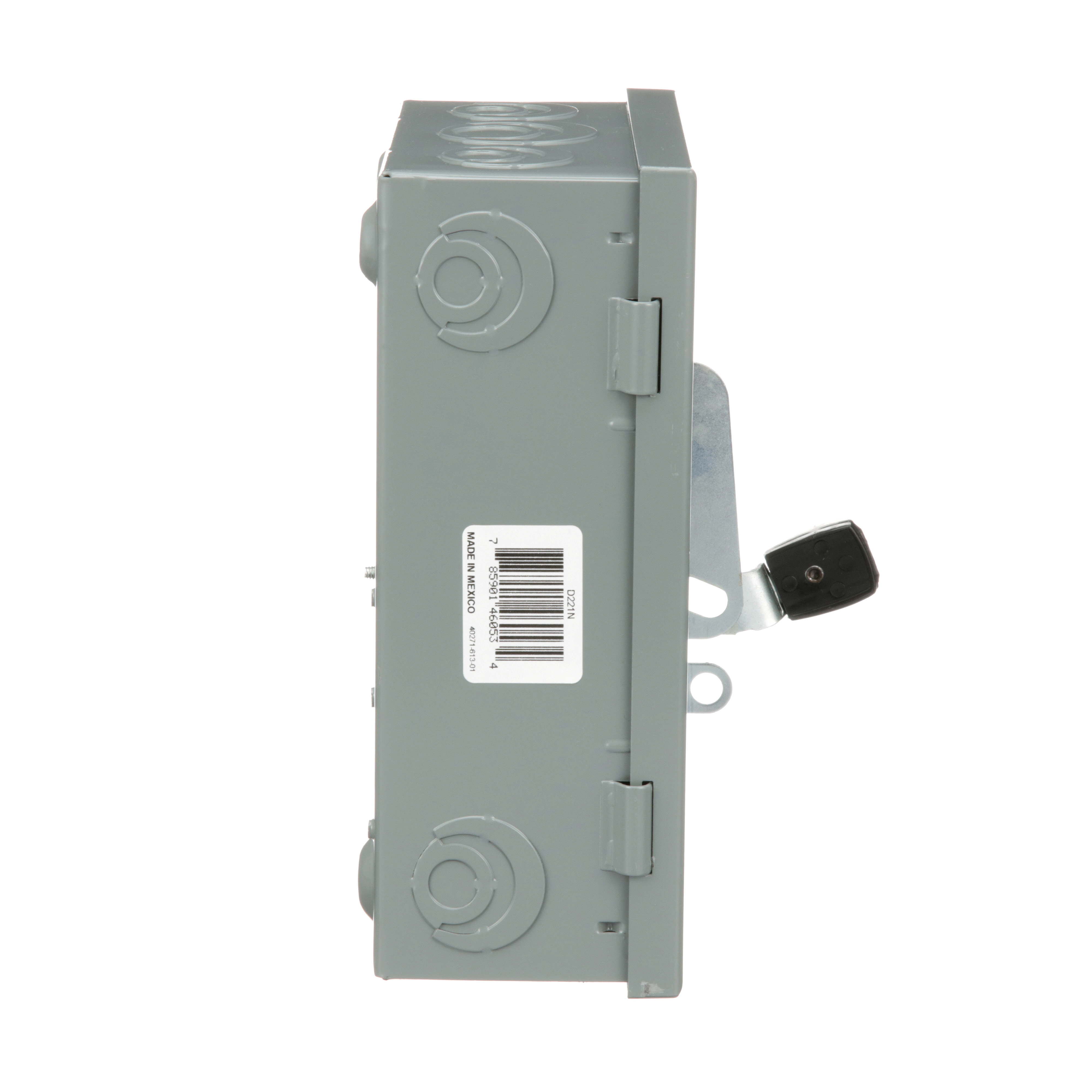

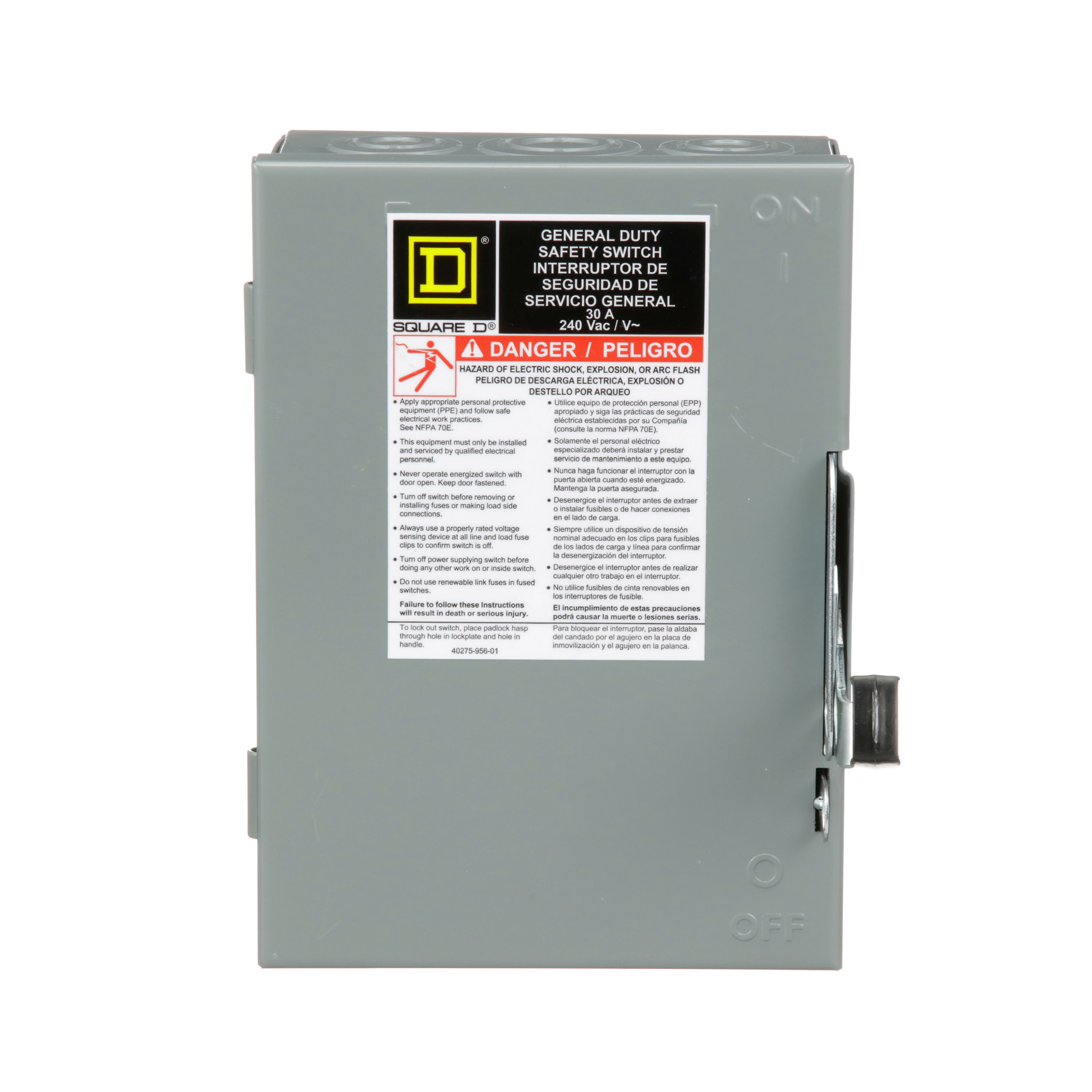

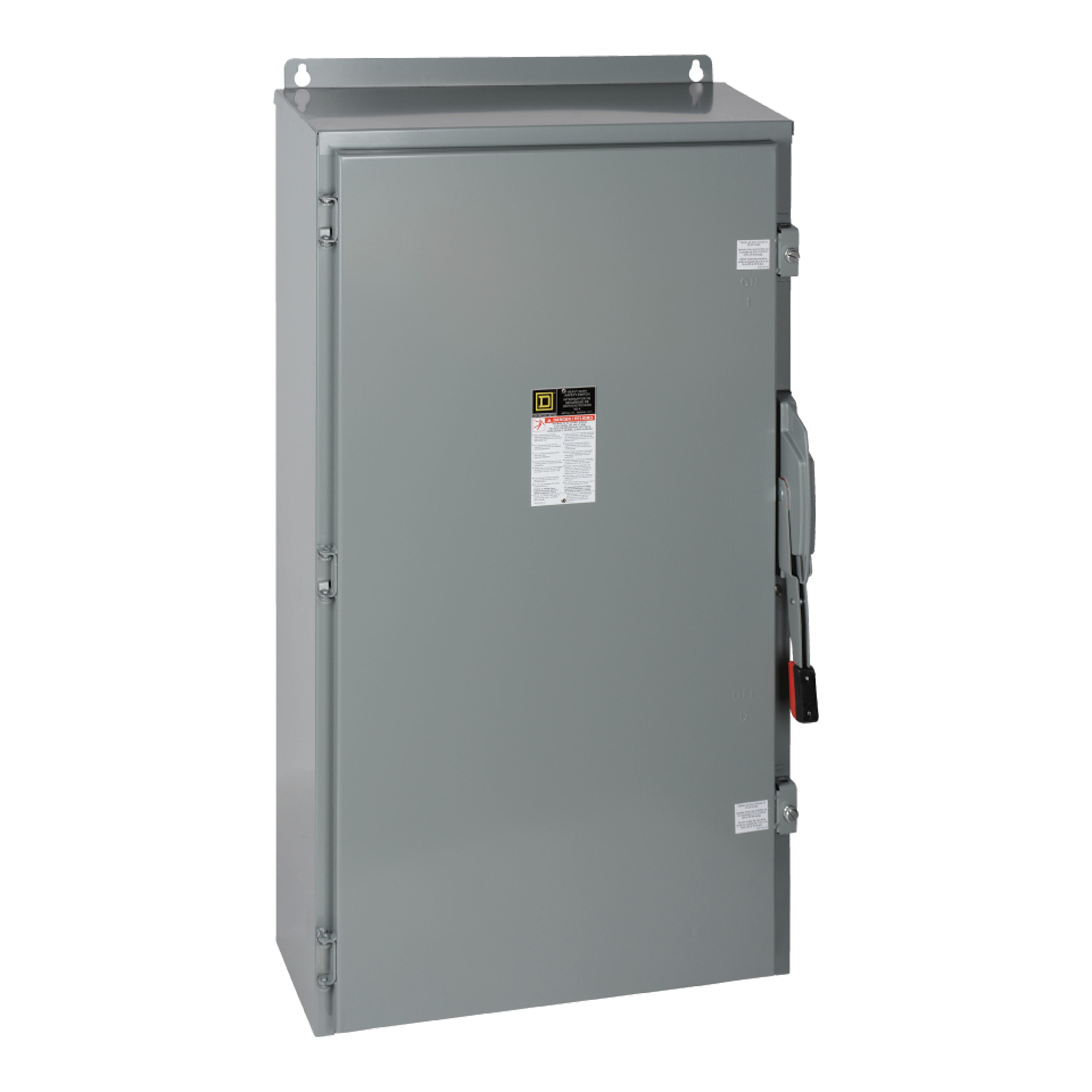

Square D™ D221N
Square D™ D221N E3 Series Fusible General Duty Safety Switch, 240 VAC, 30 A, 3 hp, TPST Contact, 2 Poles
Brand: Square D™
Item ID: 49387
MPN: D221N
Login for Price
Features
- D221N is a General Duty Safety Switch Fusible 240V 30A 2P NEMA1 with a 30A rated current
- This product is a Single Throw Safety Switch with a NEMA 1 rating This switch has a 100 kA current rating and complies to UL listed Standards
- Horsepower rated for motor applications
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Visible blades
- Quick-make and quick-break operating mechanism
- Cover padlock hasp and handle lock-off
- Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
- Indoor environmental conditions
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory installed neutral assembly or a field installed equipment grounding kit.
Square D™, D221N, Safety Switch, Fusible General Duty, Series: E3 Series, 240 VAC, 30 A, 3 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 6.75 in W x 3.63 in D x 9.25 in H Dimensions, Steel, Galvanized
Specifications
Actuator Type |
Handle |
Amperage Rating |
30 A |
Contact Form |
TPST |
Dimensions |
6.75 in W x 3.63 in D x 9.25 in H |
Enclosure Type |
NEMA 1 |
Finish |
Galvanized |
Frequency Rating |
50/60 Hz |
Horsepower |
3 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
3 |
Phase |
1 ph |
Series |
E3 Series |
Short Circuit Current Rating |
100 kA |
Terminal Type |
Lug |
Type |
Fusible General Duty |
Voltage Rating |
240 VAC |
Standard Approval |
RoHS Compliant|UL File No. E2875|NEMA KS1-1990|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
General Purpose and Indoor Applications |
