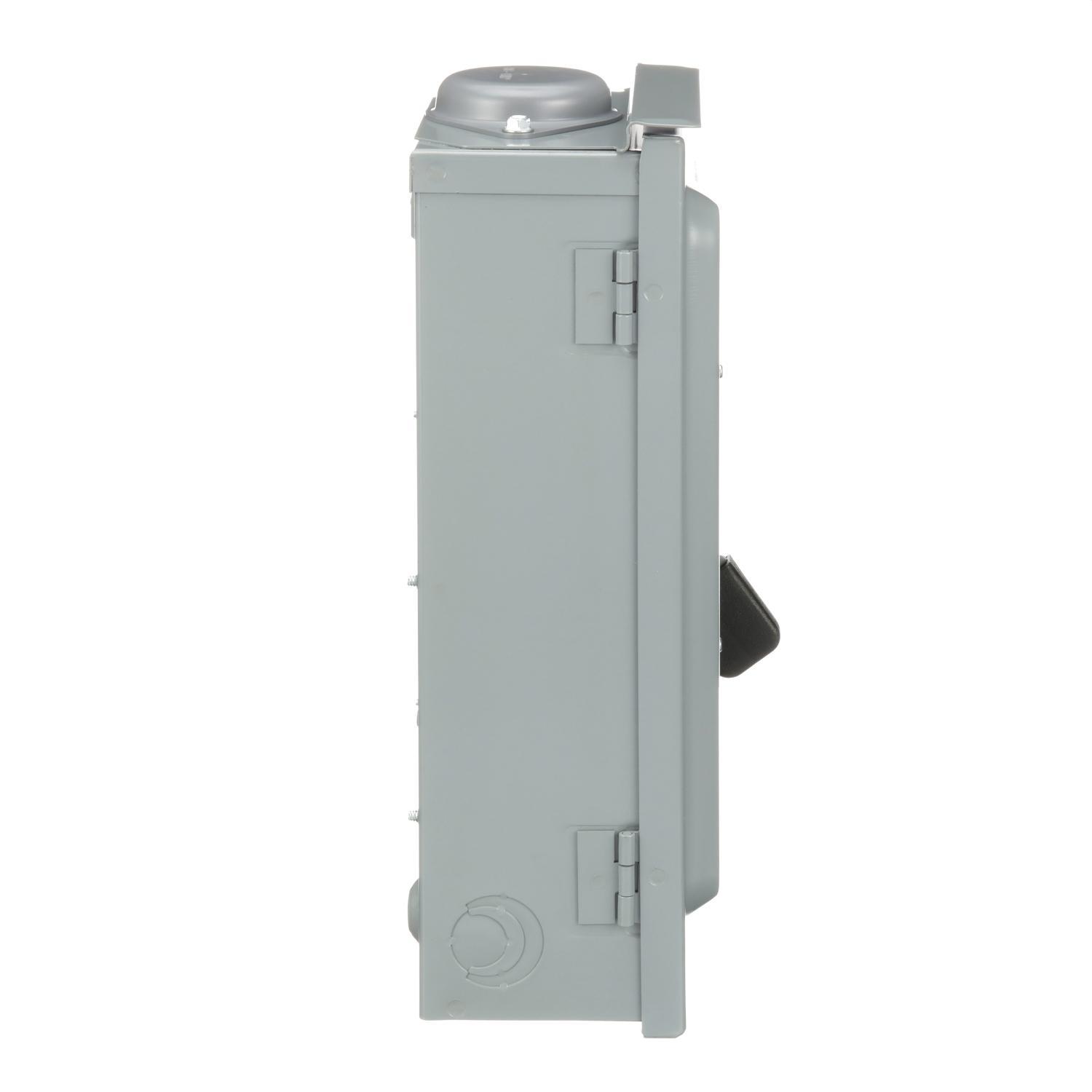

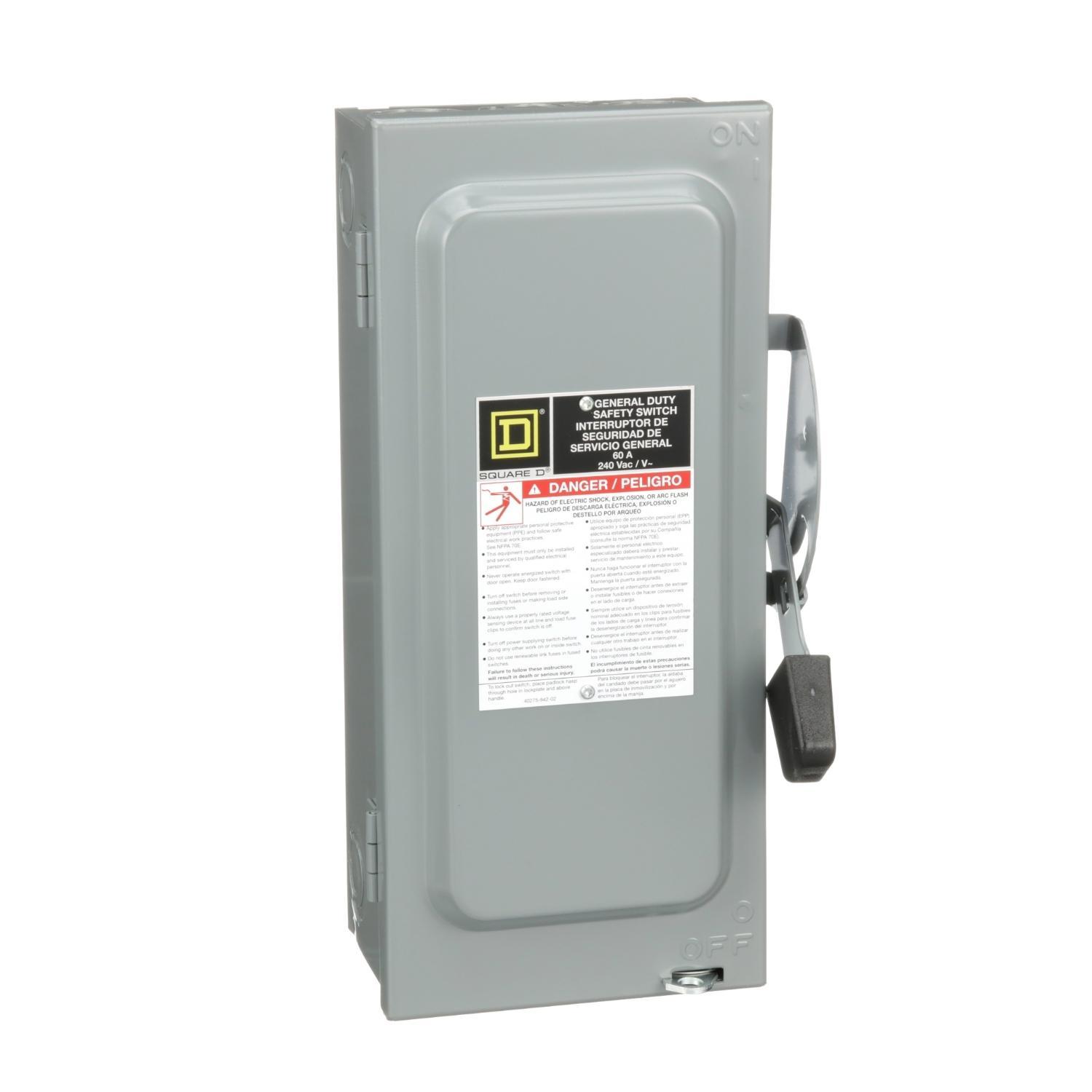

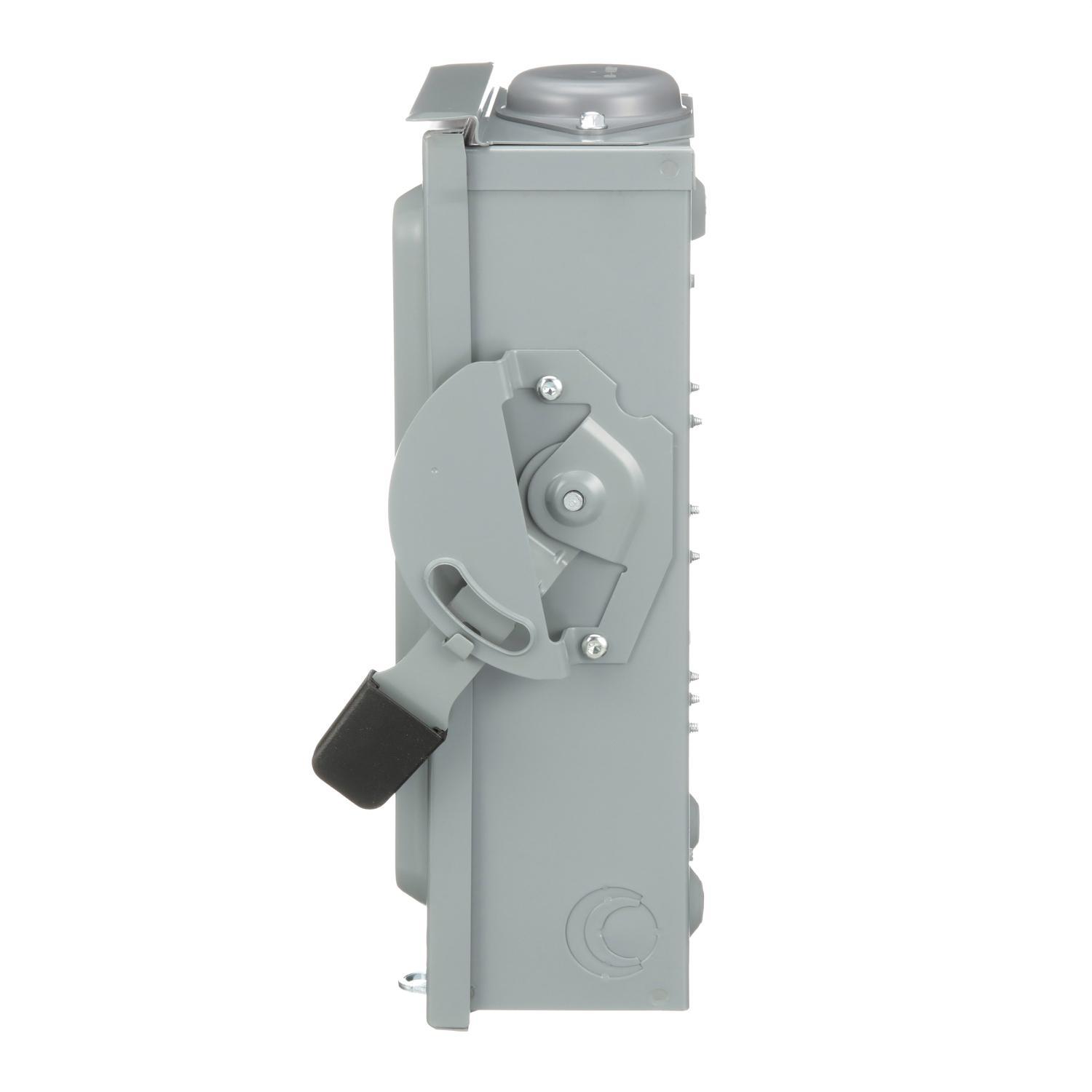

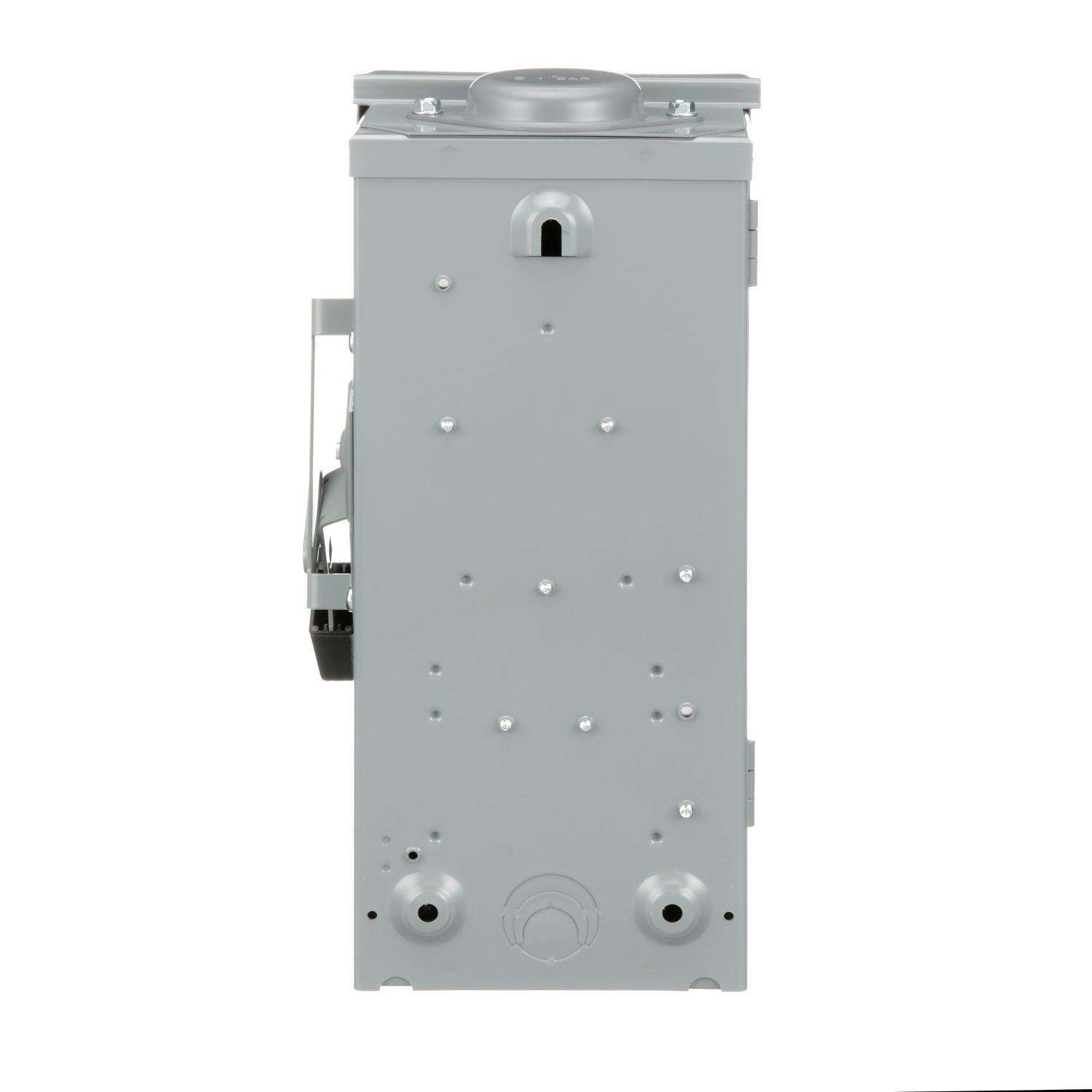

Square D™ D222N

• D222N is a General Duty Safety Switch Fusible 240V 60A 2P NEMA1 with a 60A rated current
• This product is a Single Throw Safety Switch with a NEMA 1 rating This switch has a 100 kA current rating and complies to UL listed Standards
• Horsepower rated for motor applications
• Spring reinforced plated copper fuse clips
• Visible blades
• Cover padlock hasp and handle lock off
• Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
• Indoor environmental conditions
• Tangential knockout alleviate the need for offset bends
• Insulated, bonded solid neutral assemblies are standard in fusible switches
• Quick-make and quick-break operating mechanism

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over-current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory-installed neutral assembly or a field-installed equipment grounding kit.

Square D™, D222N, General Duty Safety Switch, Enclosed Fusible, Series: F1, 240 VAC, 60 A, 10 hp/15 hp, 1/3 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 14.6 in H x 6.51 in W x 4.87 in D Dimensions, Steel, Galvanized
