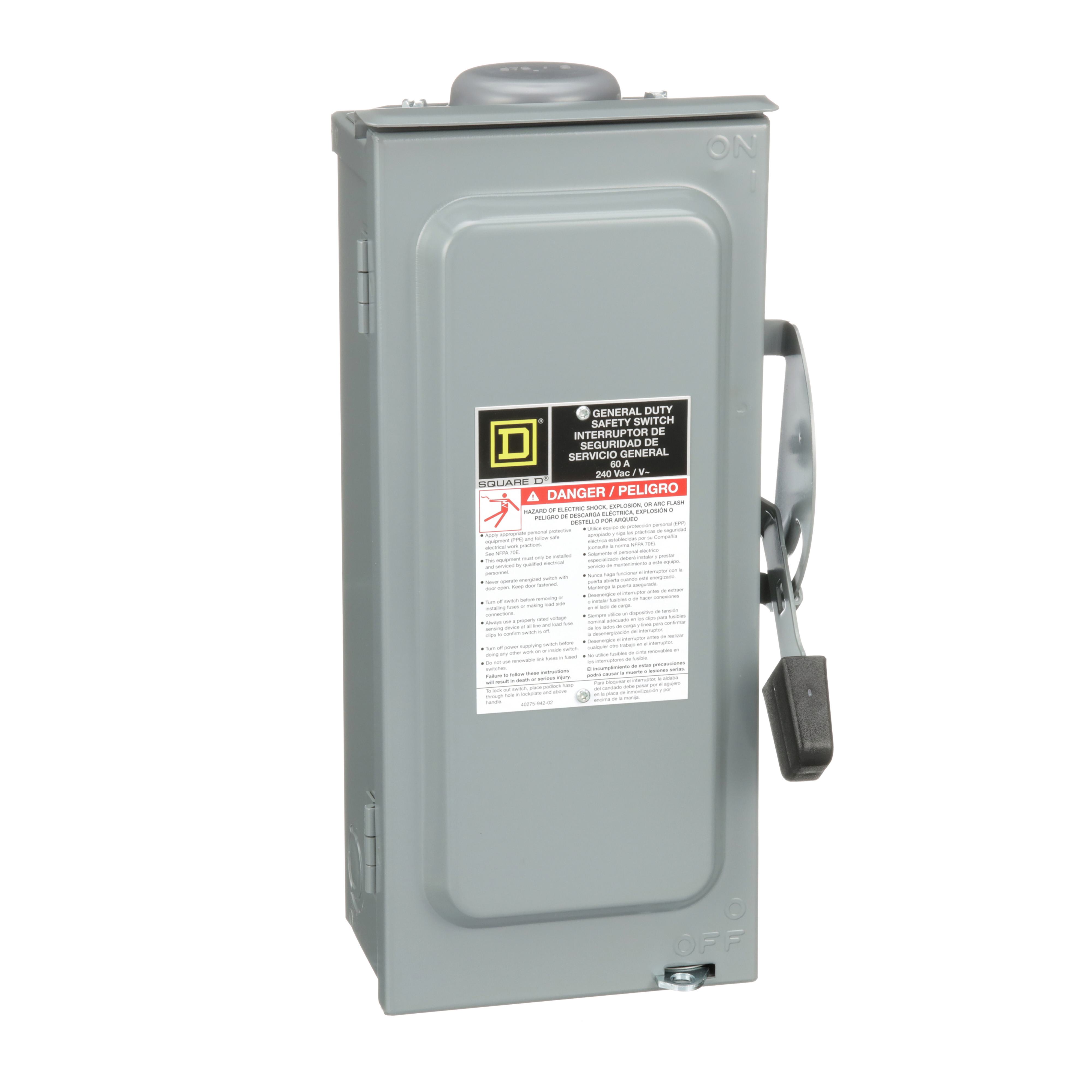

Square D™ D222NRB F1 Series Fusible General Duty Iceproof Rainproof Safety Switch, 240 VAC, 60 A, 10 hp, TPST Contact, 2 Poles
Brand: Square D™
Item ID: 49390
MPN: D222NRB
Login for Price
Features
- Horsepower rated for motor applications
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Visible blades
- Quick-make and quick-break operating mechanism
- Cover padlock hasp and handle lock-off
- Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
- Rainproof and sleet/ice proof
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory installed neutral assembly or a field installed equipment grounding kit.
Square D™ Safety Switch, Fusible General Duty Iceproof Rainproof, Series: F1 Series, 240 VAC, 60 A, 10 hp, 50/60 Hz, 2 Pole, 3 Wires, 100 kA Short Circuit Current, TPST, Handle Actuator, NEMA 3R, Surface Mount, Lug Terminal, 6.63 in W x 4.87 in D x 14.88 in H, Steel, Hot Dipped Galvanized
Specifications
Actuator Type |
Handle |
Amperage Rating |
60 A |
Contact Form |
TPST |
Dimensions |
6.63 in W x 4.87 in D x 14.88 in H |
Enclosure Type |
NEMA 3R |
Finish |
Hot Dipped Galvanized |
Frequency Rating |
50/60 Hz |
Horsepower |
10 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
3 |
Series |
F1 Series |
Short Circuit Current Rating |
100 kA |
Terminal Type |
Lug |
Type |
Fusible General Duty Iceproof Rainproof |
Voltage Rating |
240 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL File No. E2875|NEMA KS1-1990|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Indoor and Outdoor Applications |
