Square D™ D225NR

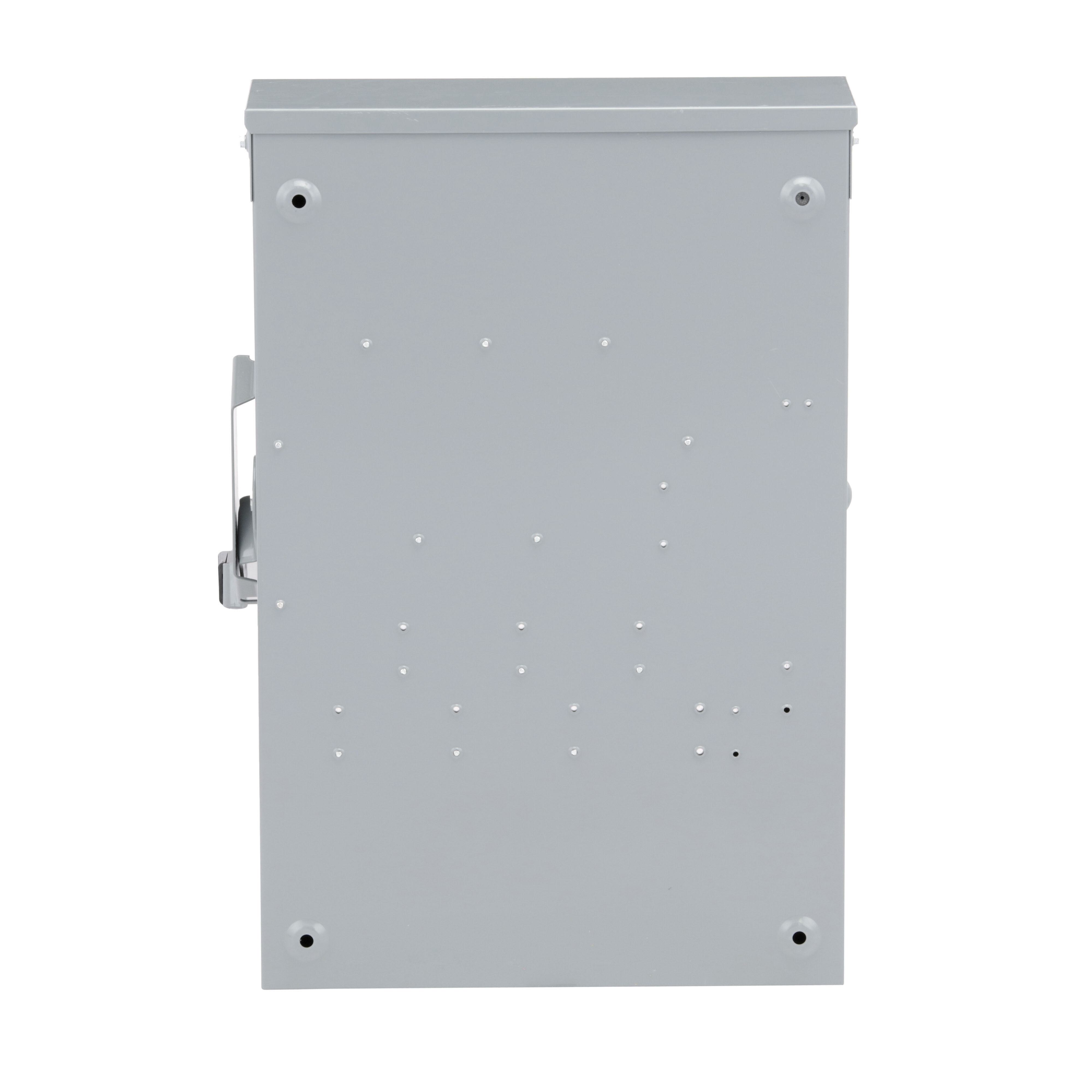

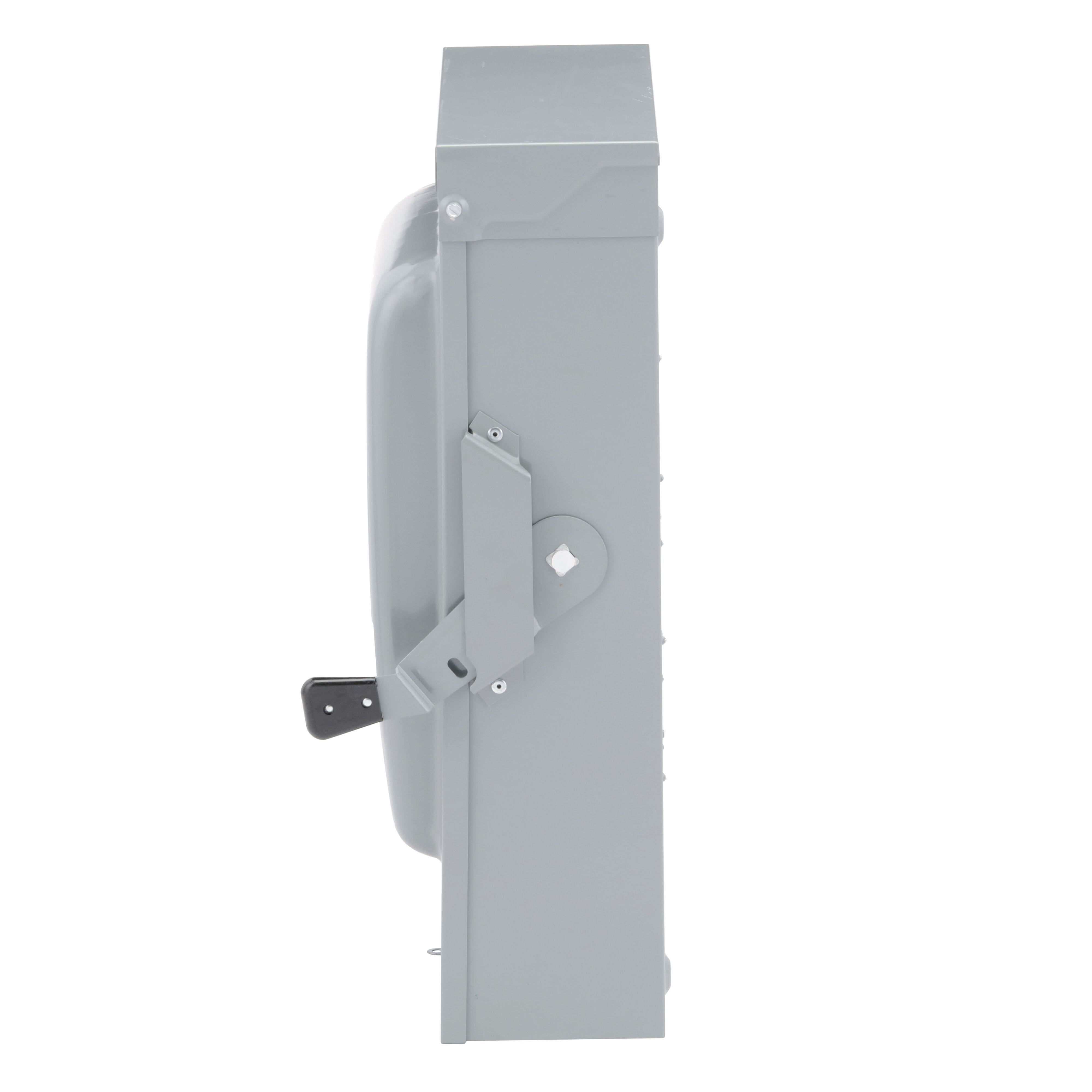

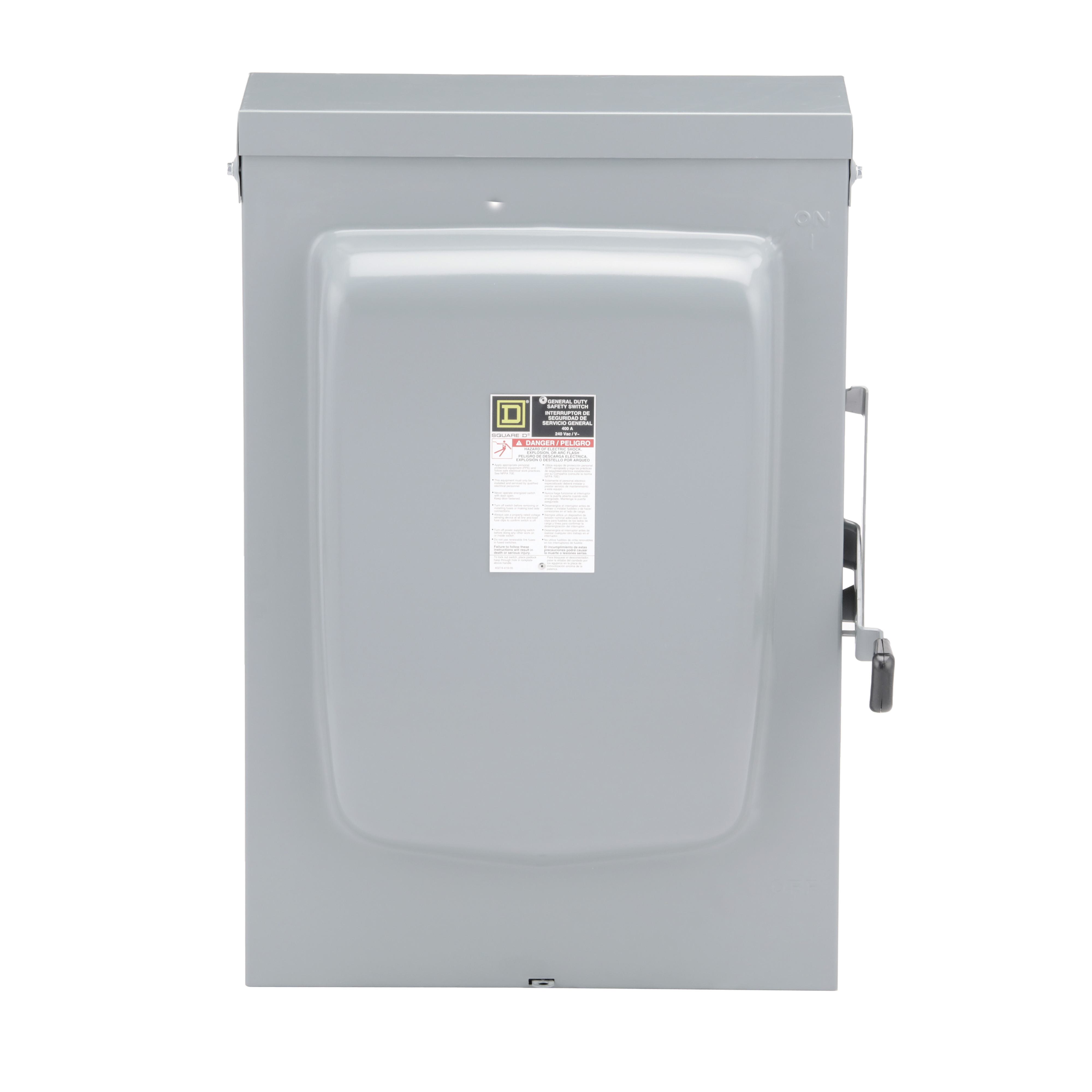

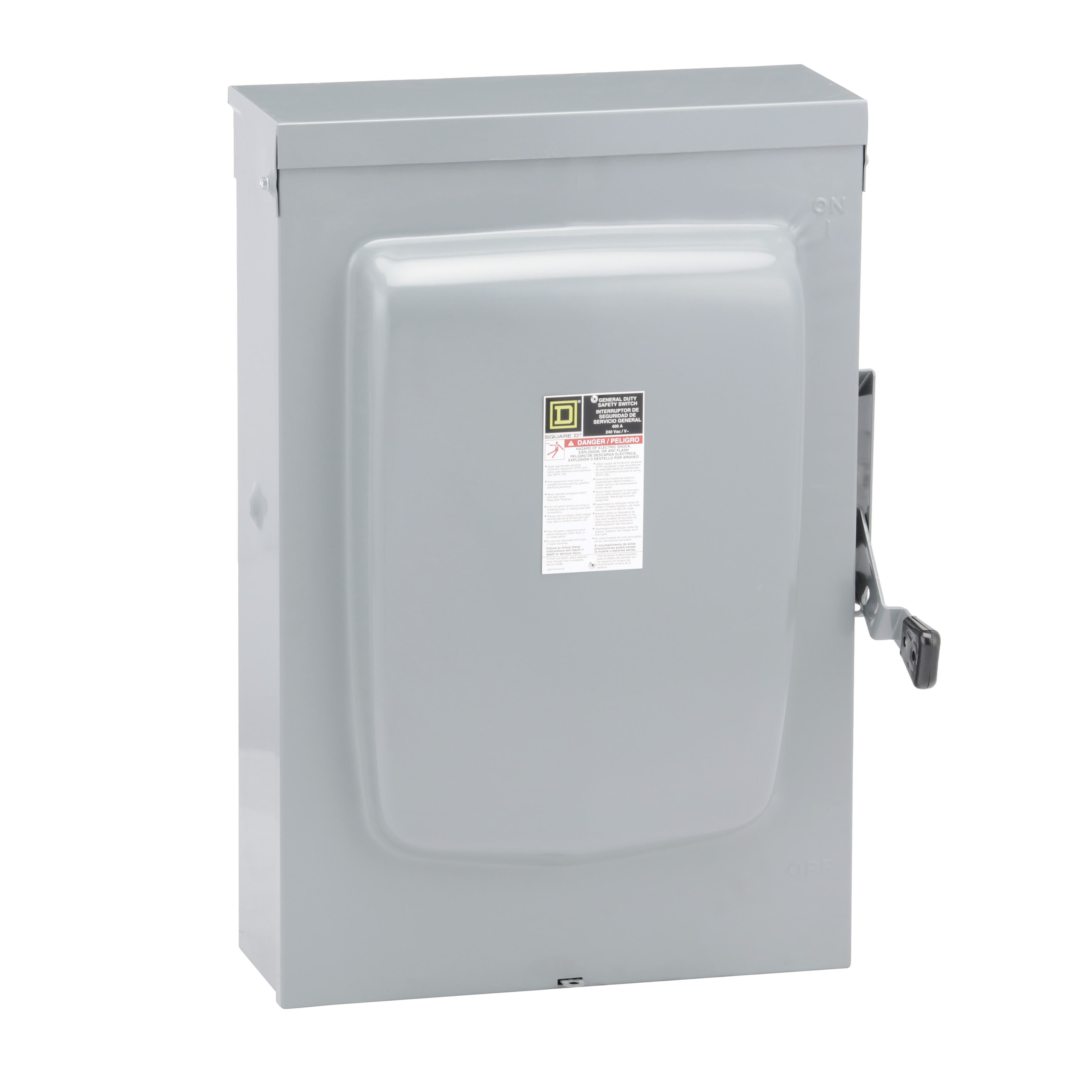

Square D™ D225NR E1 Series Fusible General Duty Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 240 VAC, 400 A, DPST Contact, 2 Poles
Brand: Square D™
Item ID: 49396
MPN: D225NR
UPC: 785901460817
Login for Price
Features
- D225NR is a General Duty Safety Switch Fusible 240V 400A 2P NEMA3R with a 400A rated current
- This product is a Single Throw Safety Switch with a NEMA 3R rating This switch has a 100 kA current rating and complies to UL listed Standards
- Visible blades for positive indication that switch is off
- Quick-make, quick break operating mechanism
- Multiple padlock provisions in the OFF position
- Tangential knockouts alleviate the need for offset bends
- Spring reinforced plated copper fuse clips
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory installed neutral assembly or a field installed equipment grounding kit.
Square D™ Safety Switch, Fusible General Duty Iceproof Rainproof Sleetproof, Series: E1 Series, 240 VAC, 400 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 21.38 in W x 10.13 in D x 30.63 in H Dimensions, Steel, Gray, Baked Enamel/Galvanized/Phosphatized
Specifications
Actuator Type |
Handle |
Amperage Rating |
400 A |
Color |
Gray |
Contact Form |
DPST |
Dimensions |
21.38 in W x 10.13 in D x 30.63 in H |
Enclosure Type |
NEMA 3R |
Finish |
Baked Enamel/Galvanized/Phosphatized |
Frequency Rating |
50/60 Hz |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
3 |
Series |
E1 Series |
Short Circuit Current Rating |
100 kA |
Terminal Type |
Lug |
Type |
Fusible General Duty Iceproof Rainproof Sleetproof |
Voltage Rating |
240 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|NEMA KS1|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
General Purpose, Indoor/Outdoor, Light Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a41315c90b15c9a19a009c771384b69d74b7c63b4bf60bbf5193e66e46bb8137.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_D225NR_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_59b2a2756d7ba34449e82fd86fd9484888e820ed43116f4dceabad032df37b01.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CD321N_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_D225NR_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2bcaa652776e044e3148bb3d10e9ff657488ba57aa20fe9b8d63583fcd4a6bf.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_D225NR_Specification_Sheet.pdf
