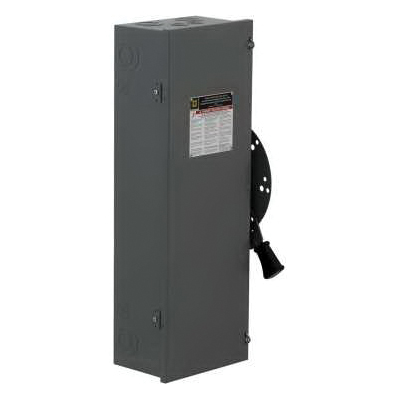

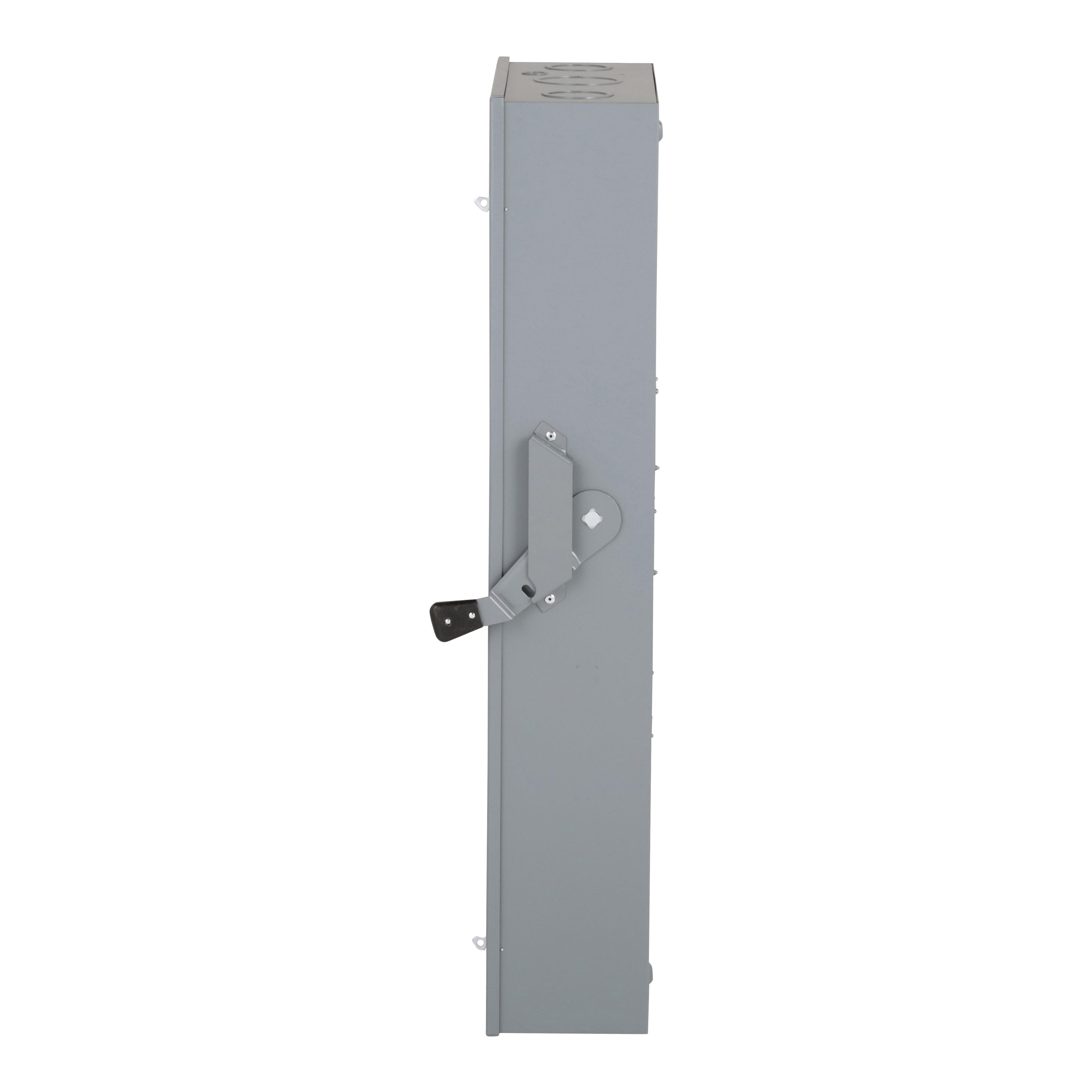

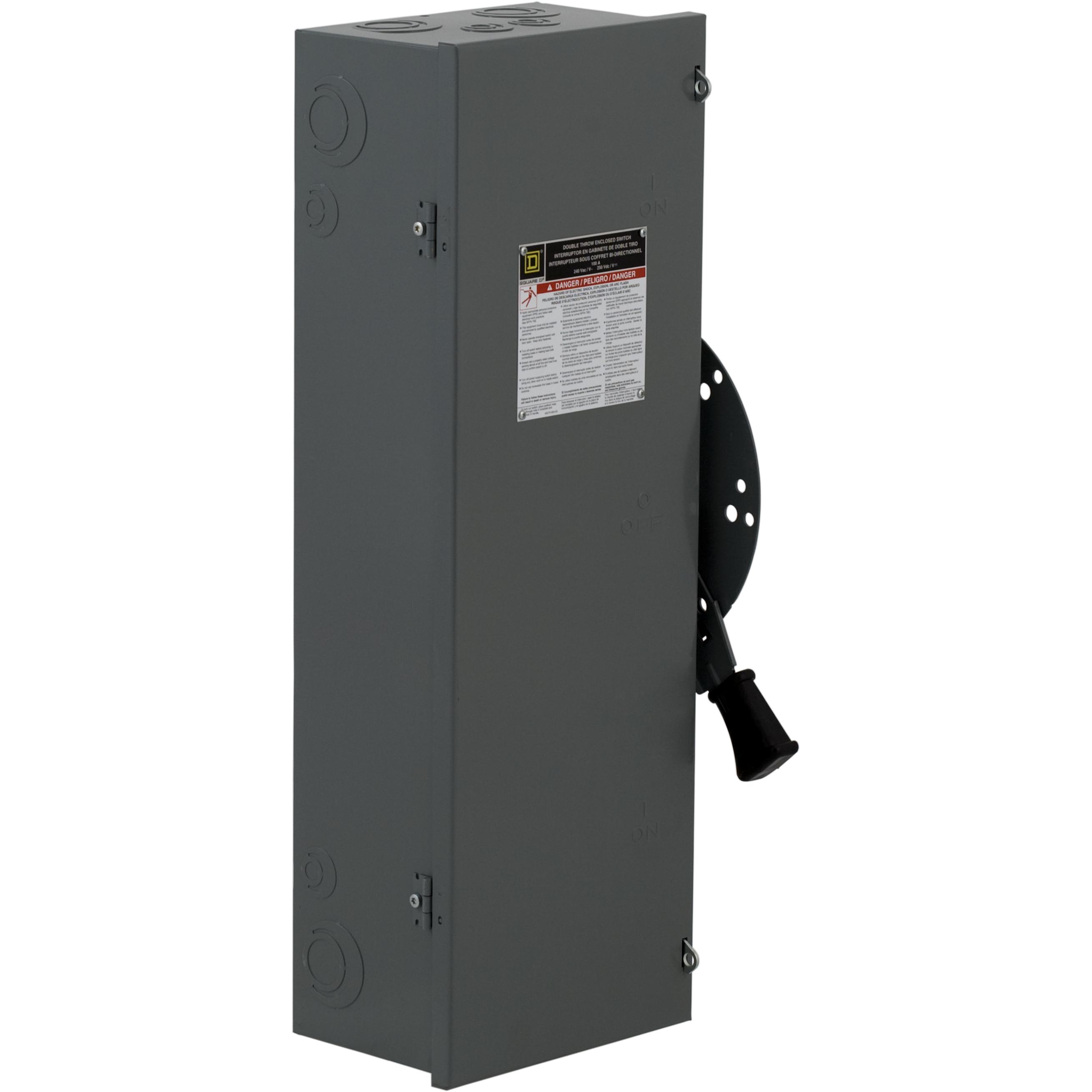

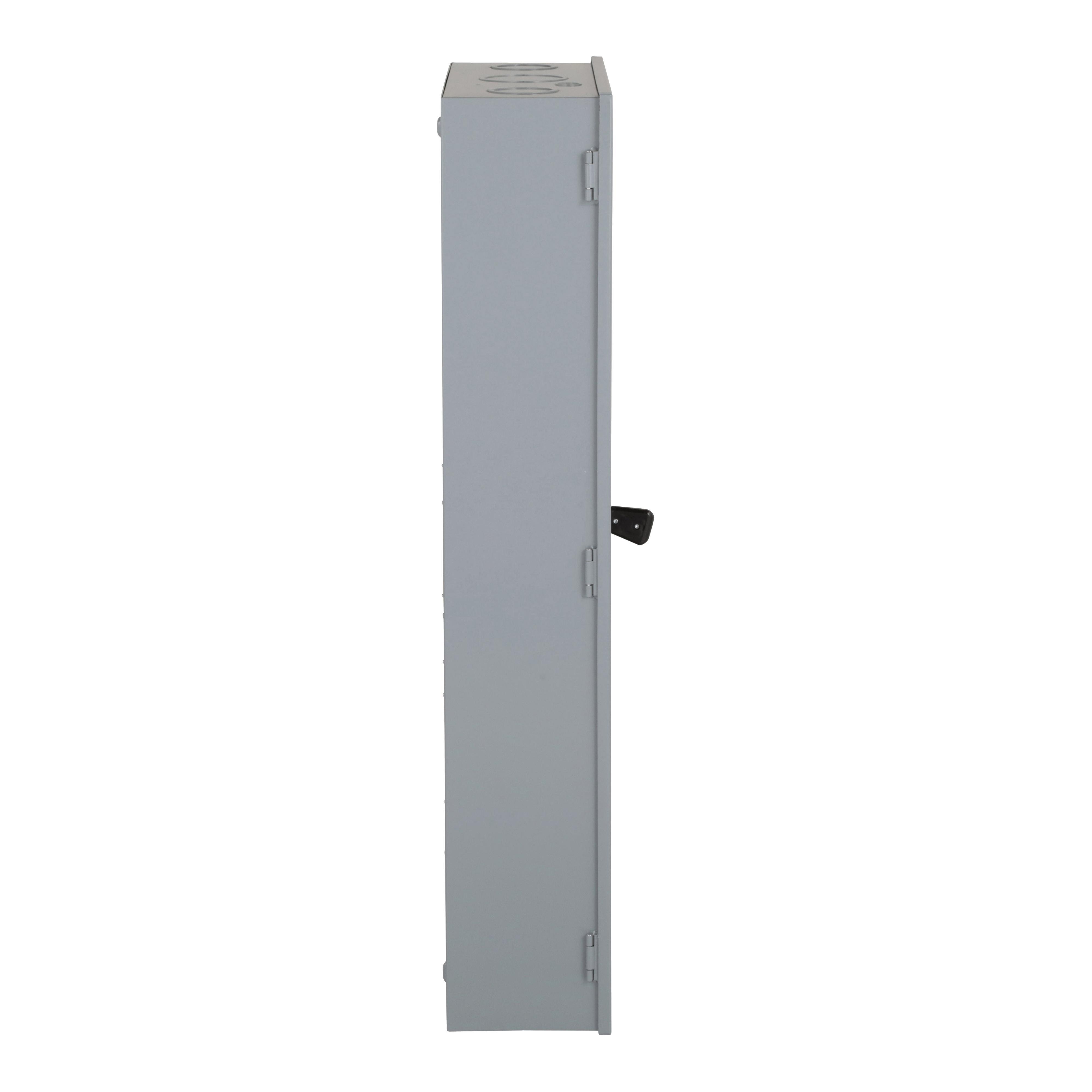

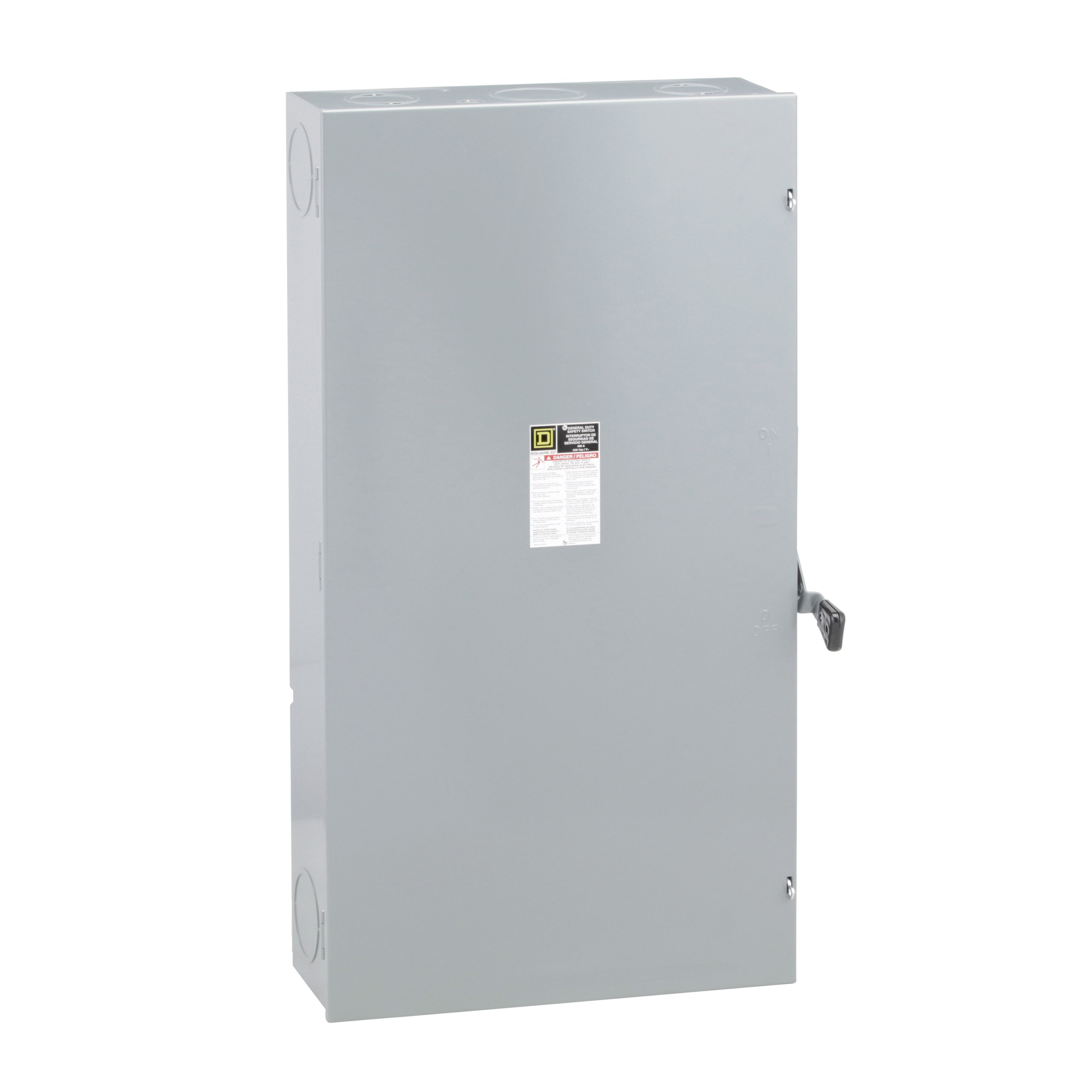

Square D™ D226N
Square D™ D226N E3 Series Fusible General Duty Safety Switch, 240 VAC, 600 A, Single Throw Contact, 2 Poles
Brand: Square D™
Item ID: 441993
MPN: D226N
UPC: 785901460848
Login for Price
Features
- D226N is a General Duty Safety Switch Fusible 240V 600A 2 POLE NEMA1 with a 600A rated current
- This product is a Single Throw Safety Switch with a NEMA 1 rating This switch has a 100 kA current rating and complies to UL listed Standards
- Suitable for service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive OFF indication
- Handle lock-off provision for multiple padlocks OFF position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Spring reinforced plated copper fuse clips
- Factory installed neutral
Description
Designed for residential and commercial applications where durability and economy are prime considerations. An excellent choice for disconnecting lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is provided.
Square D™ Safety Switch, Fusible General Duty, Series: E3 Series, 240 VAC, 600 A, 2 Pole, 100 kA Short Circuit, Single Throw Contact Form, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 24.88 in W x 8.88 in D x 49.13 in H Dimensions, Gray
Specifications
Amperage Rating |
600 A |
Color |
Gray |
Contact Form |
Single Throw |
Dimensions |
24.88 in W x 8.88 in D x 49.13 in H |
Enclosure Type |
NEMA 1 |
Mounting Type |
Surface |
Number of Poles |
2 |
Series |
E3 Series |
Short Circuit Current Rating |
100 kA |
Terminal Type |
Lug |
Type |
Fusible General Duty |
Voltage Rating |
240 VAC |
Standard Approval |
RoHS Compliant|Federal Specification WS-865c|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
General Purpose, Indoor, Light Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6aecc15f338b2084b4a02fc4e7f0b04b5d4b280dd5cf21020f7fc89390f8c0eb.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_CD321N_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_D226N_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1c13ac3b8ee71d1499b0063d9e255f9d3478d3ae496554c13a158a6c522a1937.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_D226N_Specification_Sheet.pdf
