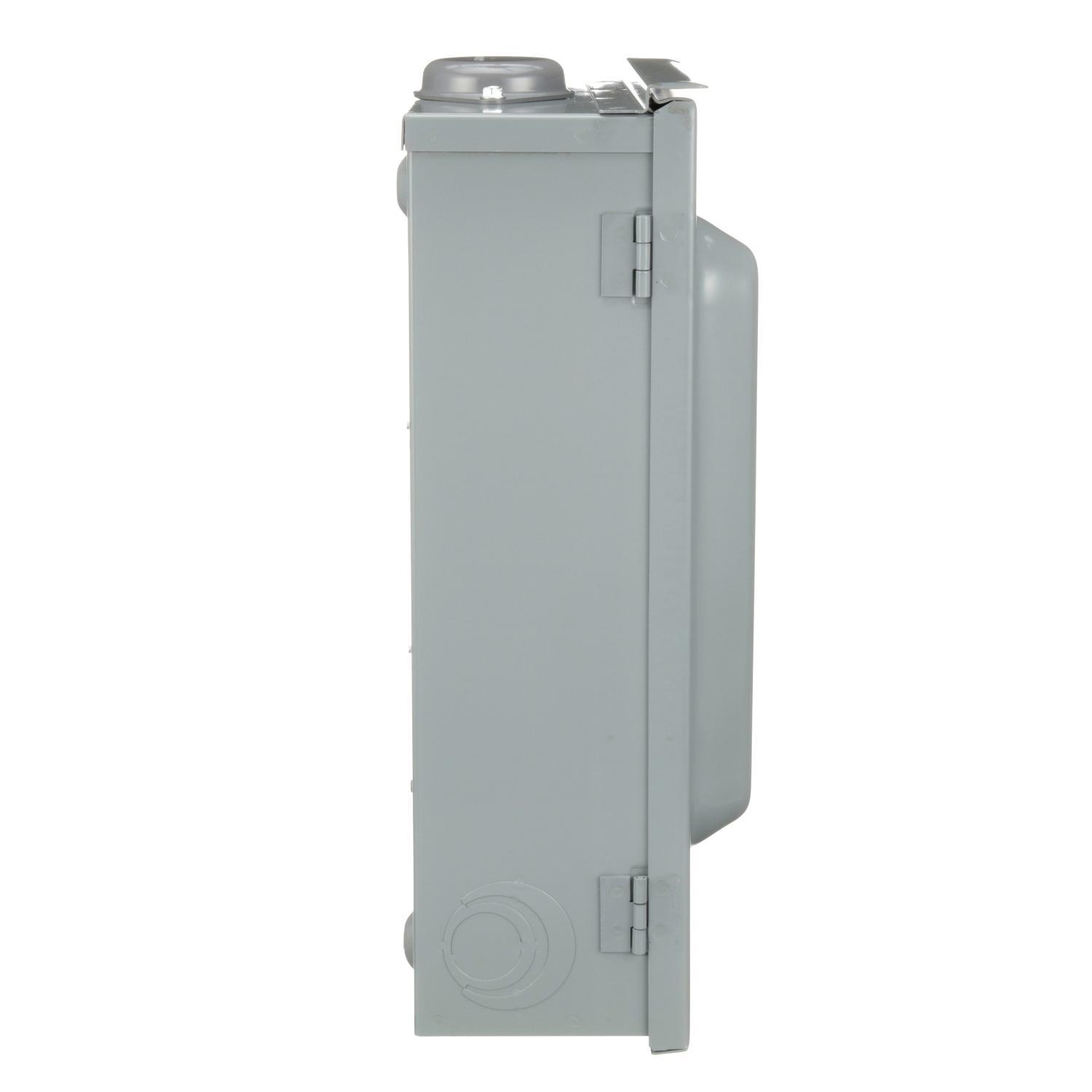

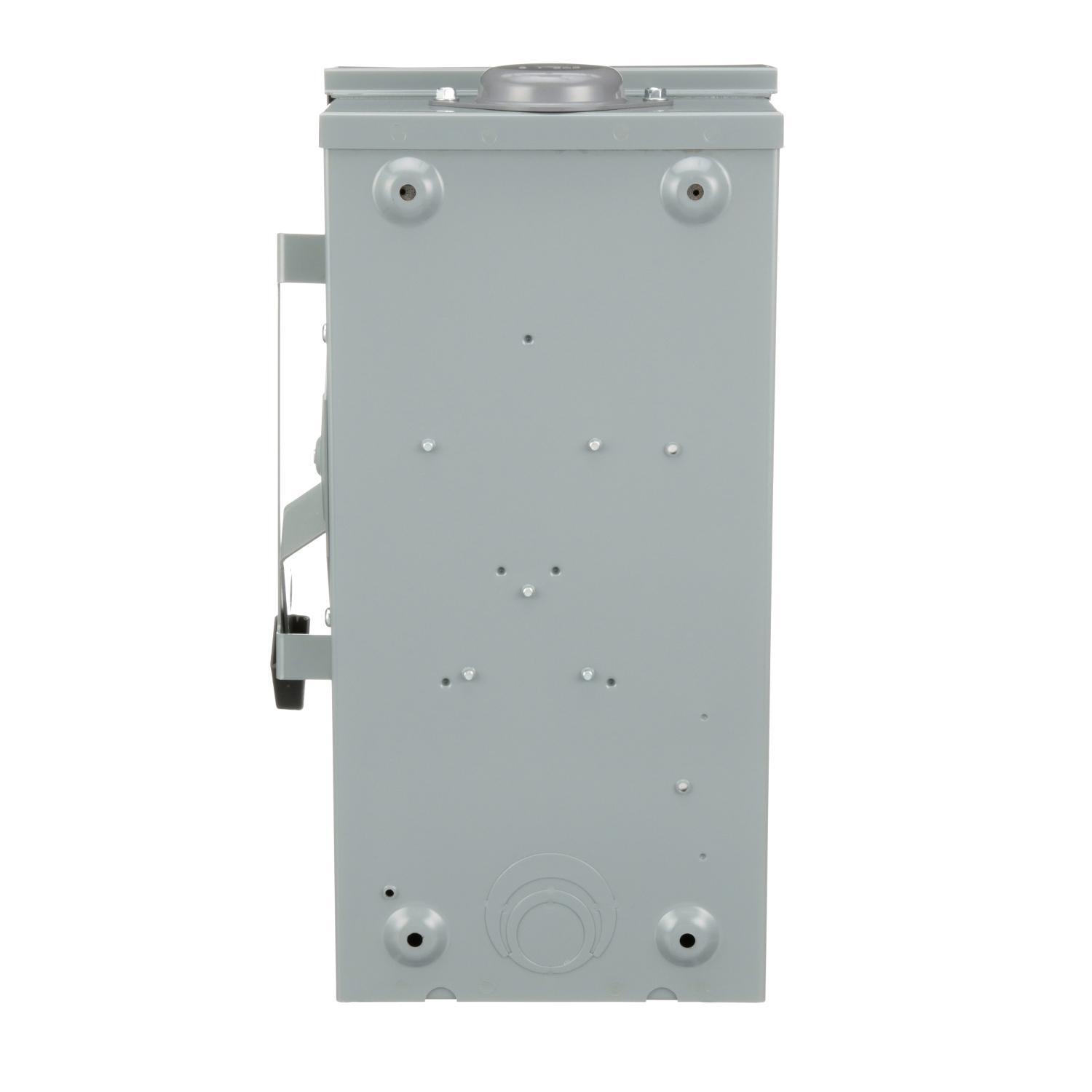

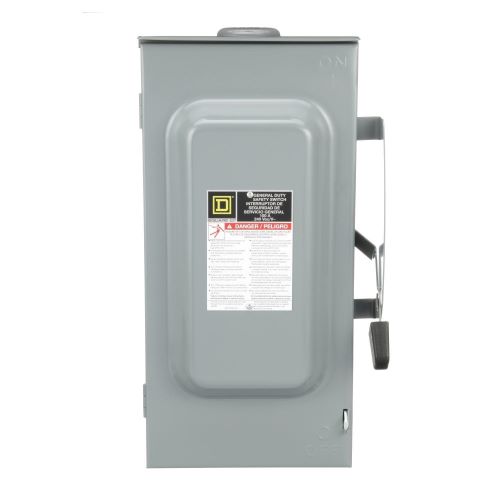

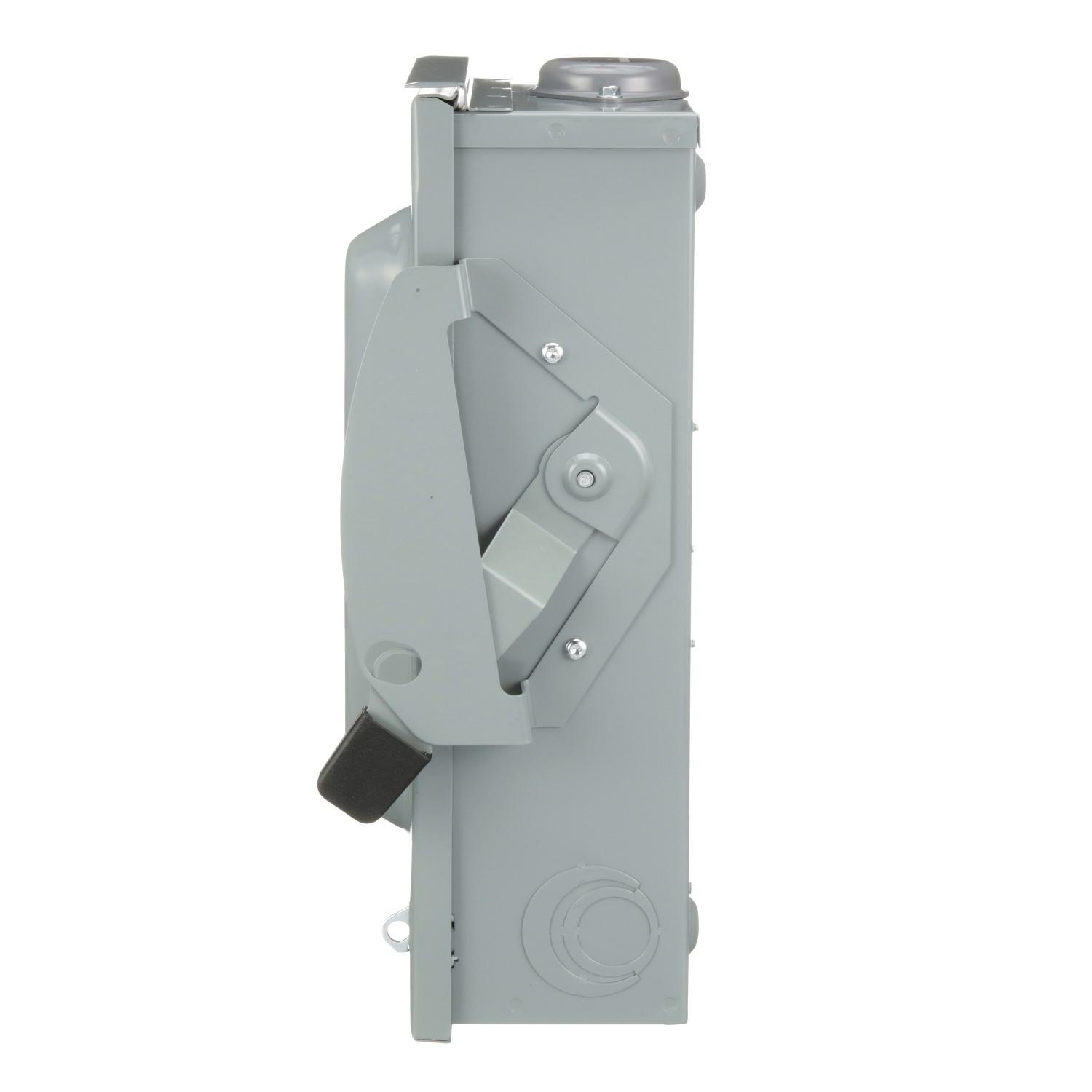

Square D™ D323NRB

• D323NRB is a General Duty Safety Switch Fusible 240V 100A 3P NEMA3R with a 100A rated current
• This product is a Single Throw Safety Switch with a NEMA 3R rating This switch has a 100 kA current rating and complies to UL listed Standards
• Horsepower rated for motor applications
• Tangential knockouts alleviate the need for offset bends
• Spring reinforced plated copper fuse clips
• Insulated, bonded solid neutral assemblies (standard in fusible switches)
• Visible blades
• Quick-make, quick-break operating mechanism
• Cover padlock hasp and handle lock off
• Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
• Rainproof and sleet/ice proof
• Indoor/outdoor environmental conditions

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over-current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory-installed neutral assembly or a field-installed equipment grounding kit.

Square D™, D323NRB, General Duty Safety Switch, Enclosed Fusible, Series: F3, 240 VAC, 100 A, 15 hp/30 hp, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 17-1/2 in H x 8-1/2 in W x 6-1/2 in D Dimensions, Steel, Galvanized
