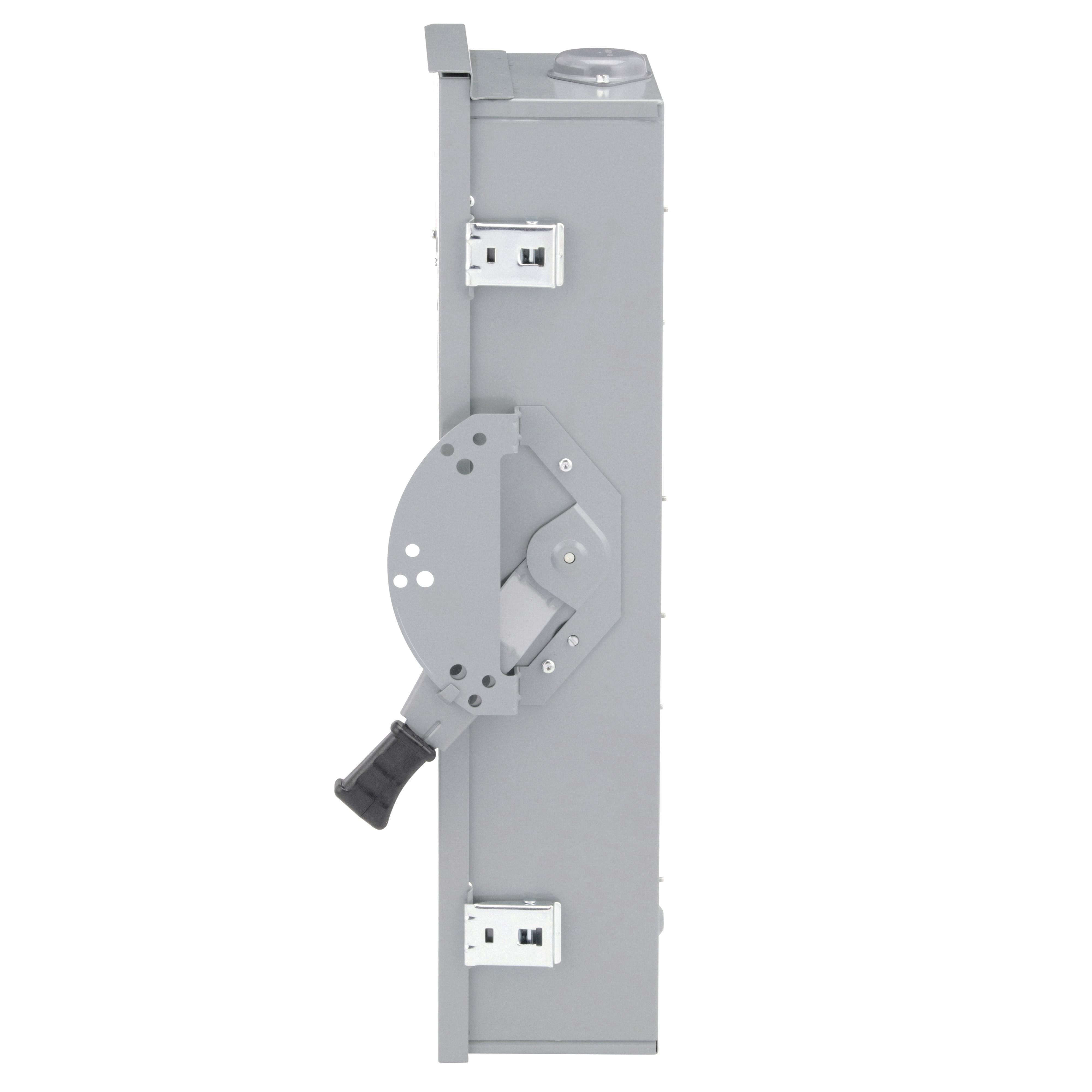

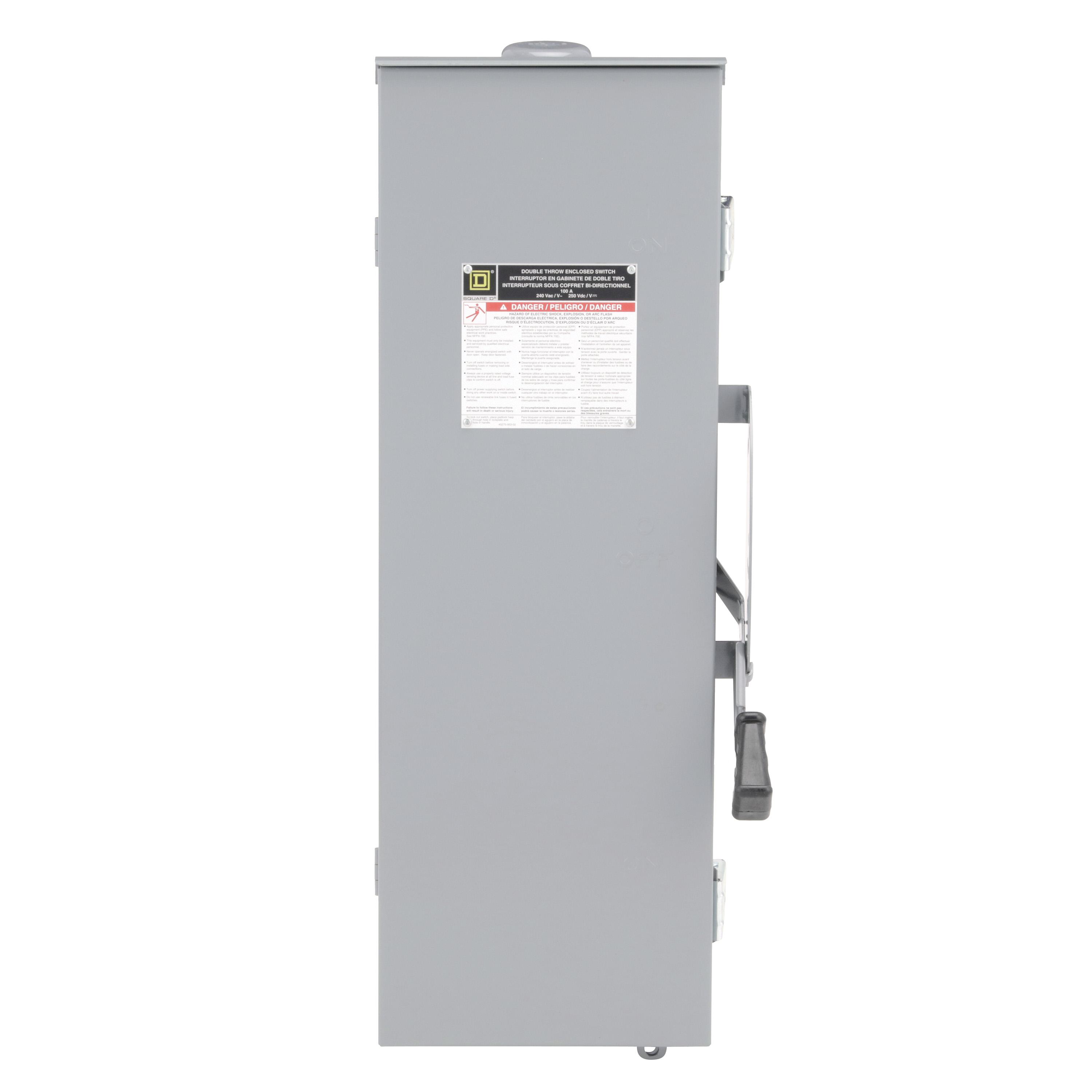

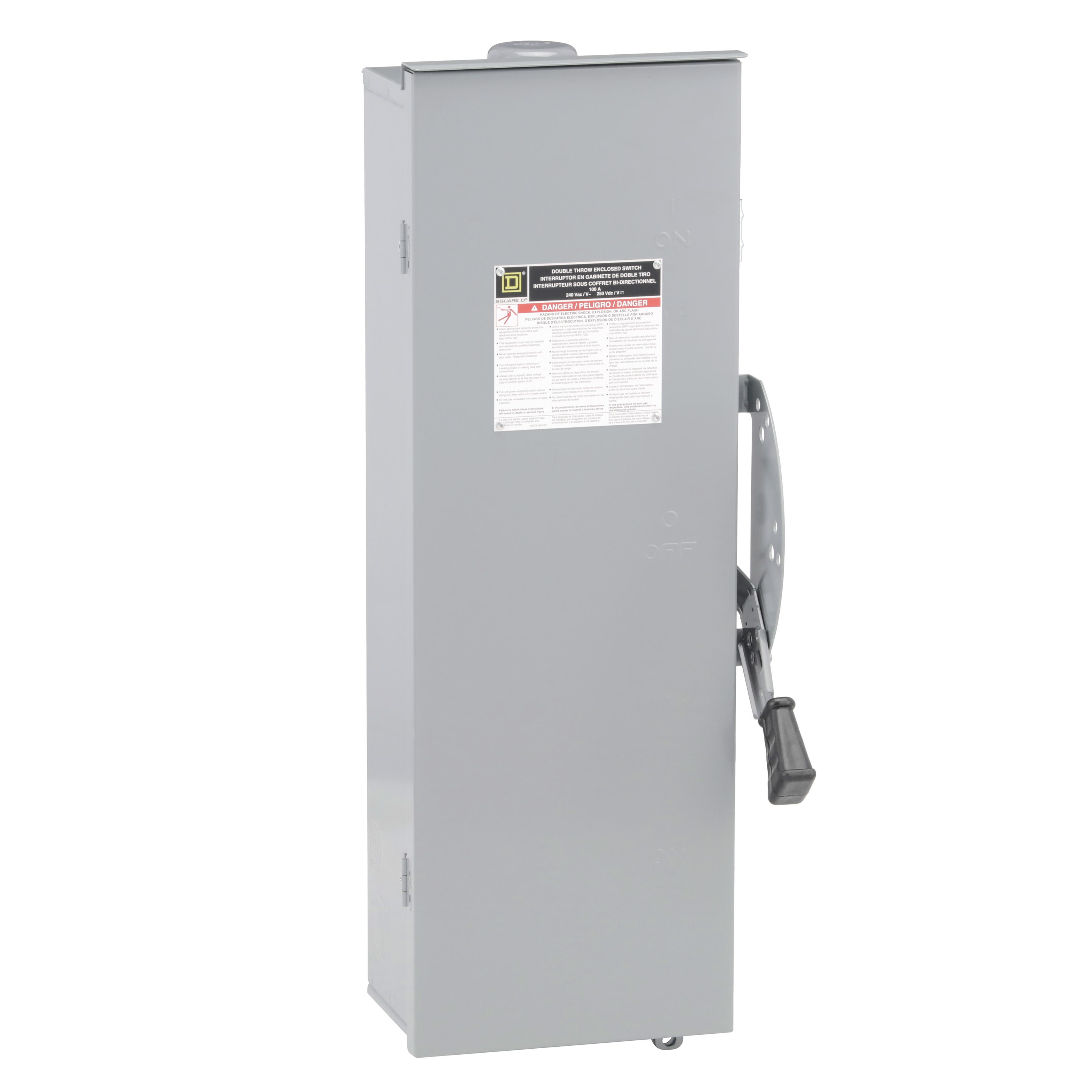

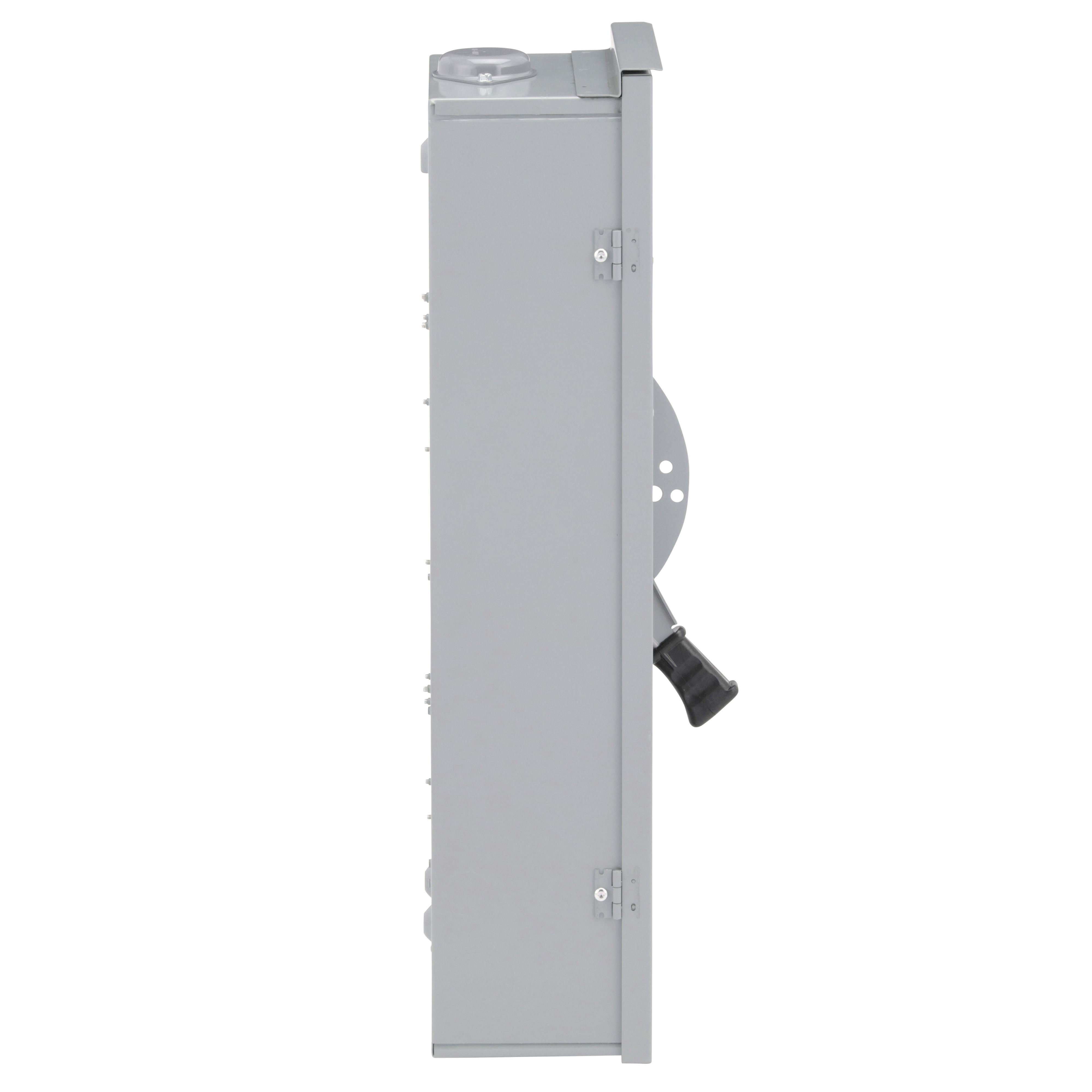

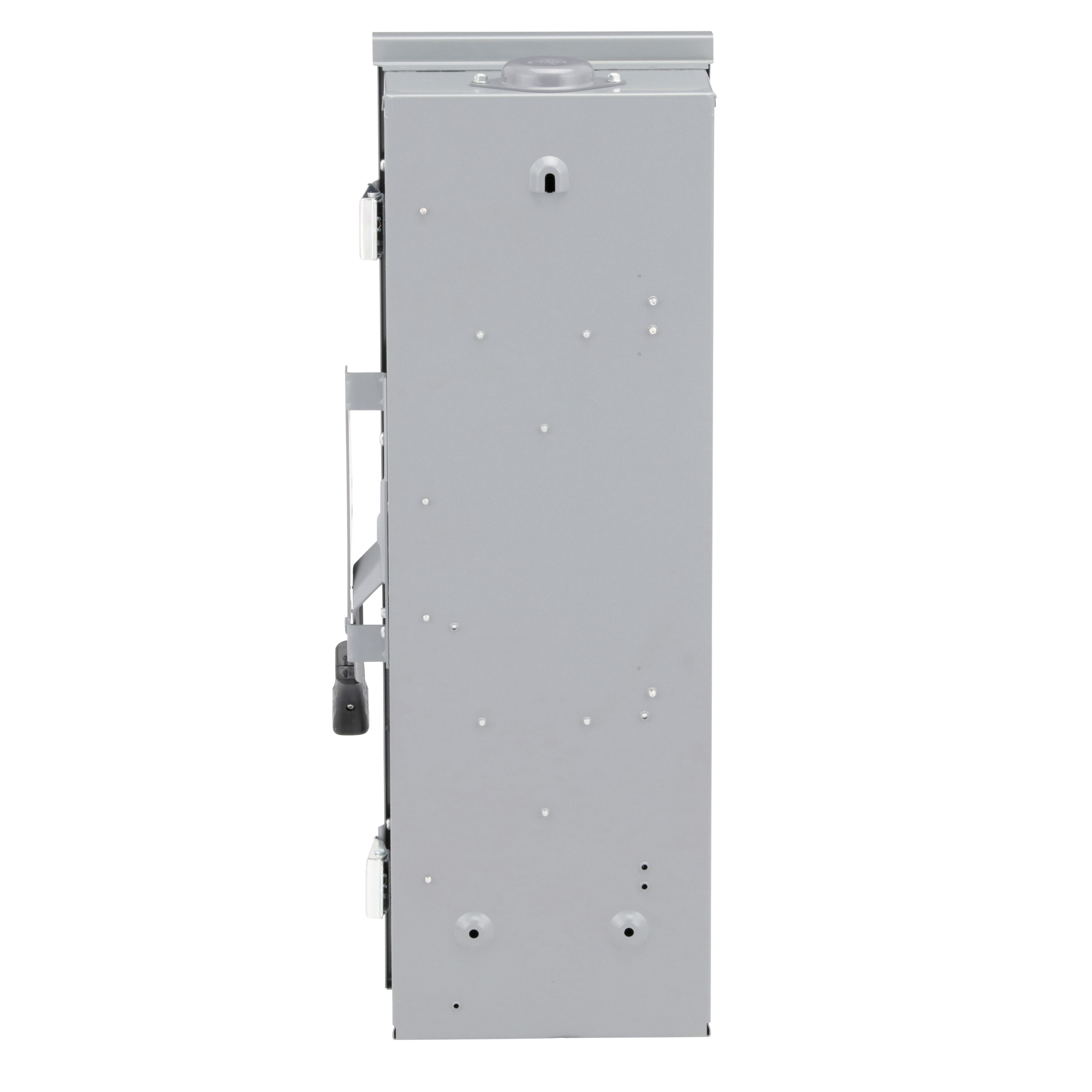

Square D™ DTU223RB
Square D™ DTU223RB F5 Series Non-Fusible Iceproof Rainproof Sleetproof Safety Switch With Bolt-On Provision, 240/250 VAC/VDC, 100 A, 15 hp, 20 hp, DPDT Contact, 2 Poles
Brand: Square D™
Item ID: 245709
MPN: DTU223RB
UPC: 785901308492
Login for Price
Features
- DTU224NRB is a Double Throw Safety Switch, NOT FUSIBLE 240V 100A 2P NEMA3R with Neutral
- This product is a Double Throw Safety Switch with a NEMA 1 rating This switch has a current rating and complies to UL listed Standards
- Suitable for service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive OFF indication
Description
Double throw safety switches are designed to transfer a load from one power source to another power source. 30 to 100 A F Series switches can be field converted to transfer a power source from one load to another.
Square D™ Safety Switch, Non-Fusible Iceproof Rainproof Sleetproof, Series: F5 Series, 240/250 VAC/VDC, 100 A, 15 hp, 20 hp, 1 ph, 2 Pole, 2 Wires, 200 kA Short Circuit, DPDT Contact Form, NEMA 3R Enclosure, Surface Mounting, 11.96 in W x 6.93 in D x 30.5 in H Dimensions, Steel, Hot Dipped Galvanized
Specifications
Amperage Rating |
100 A |
Contact Form |
DPDT |
Dimensions |
11.96 in W x 6.93 in D x 30.5 in H |
Enclosure Type |
NEMA 3R |
Finish |
Hot Dipped Galvanized |
Horsepower |
15 hp, 20 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
2 |
Phase |
1 |
Series |
F5 Series |
Short Circuit Current Rating |
200 kA |
Type |
Non-Fusible Iceproof Rainproof Sleetproof |
Voltage Rating |
240/250 VAC/VDC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Educational, General Purpose, Healthcare, Industrial, Indoor/Outdoor, Light Commercial, Manufacturing, Mining, Mineral, Residential and Wastewater Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZCKD029_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H82344_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZCKD05_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU223RB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_32e0438076833641b2c30420c515fd8dc7c8b79c5f8999890d40920c1416f4b0.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU223RB_Specification_Sheet.pdf
