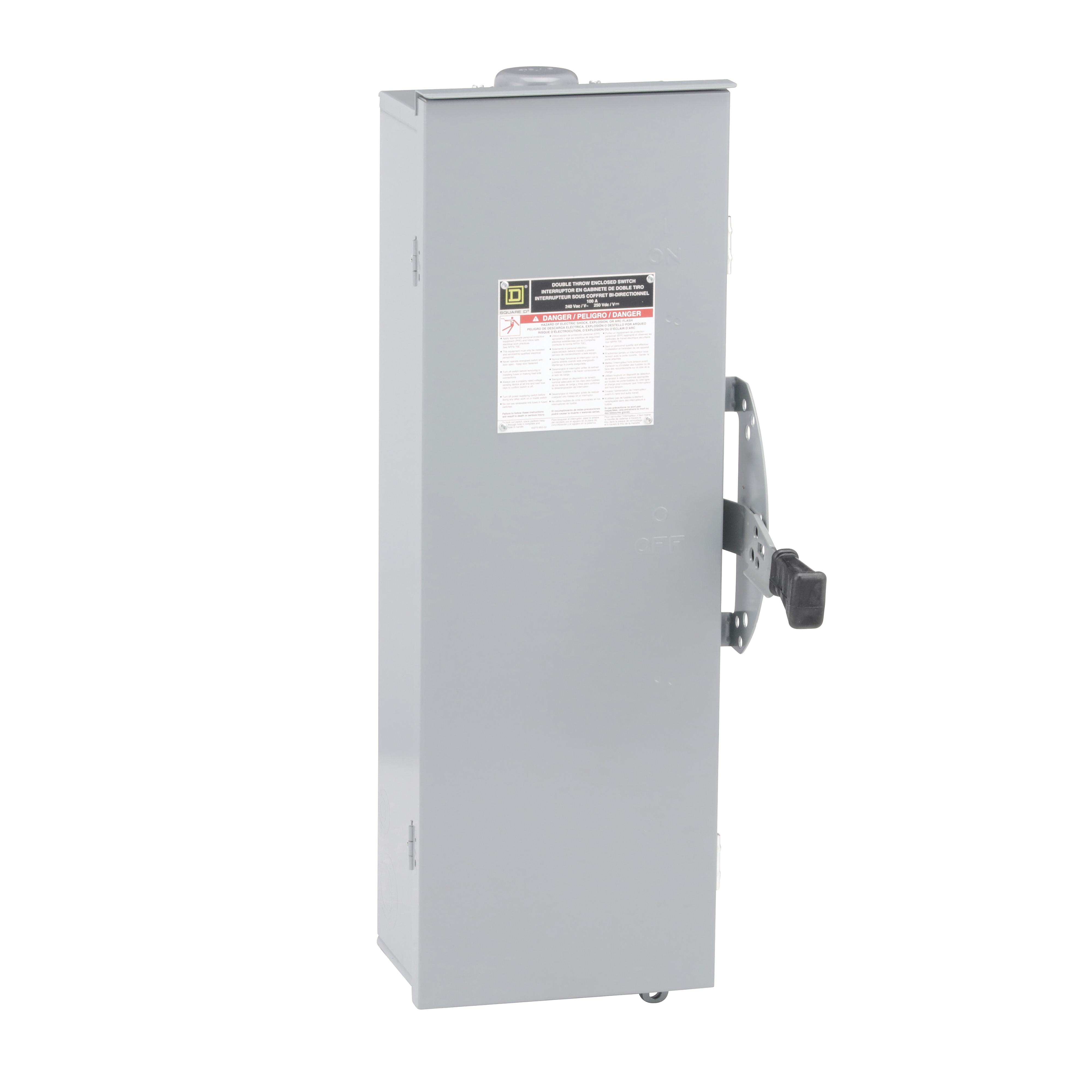

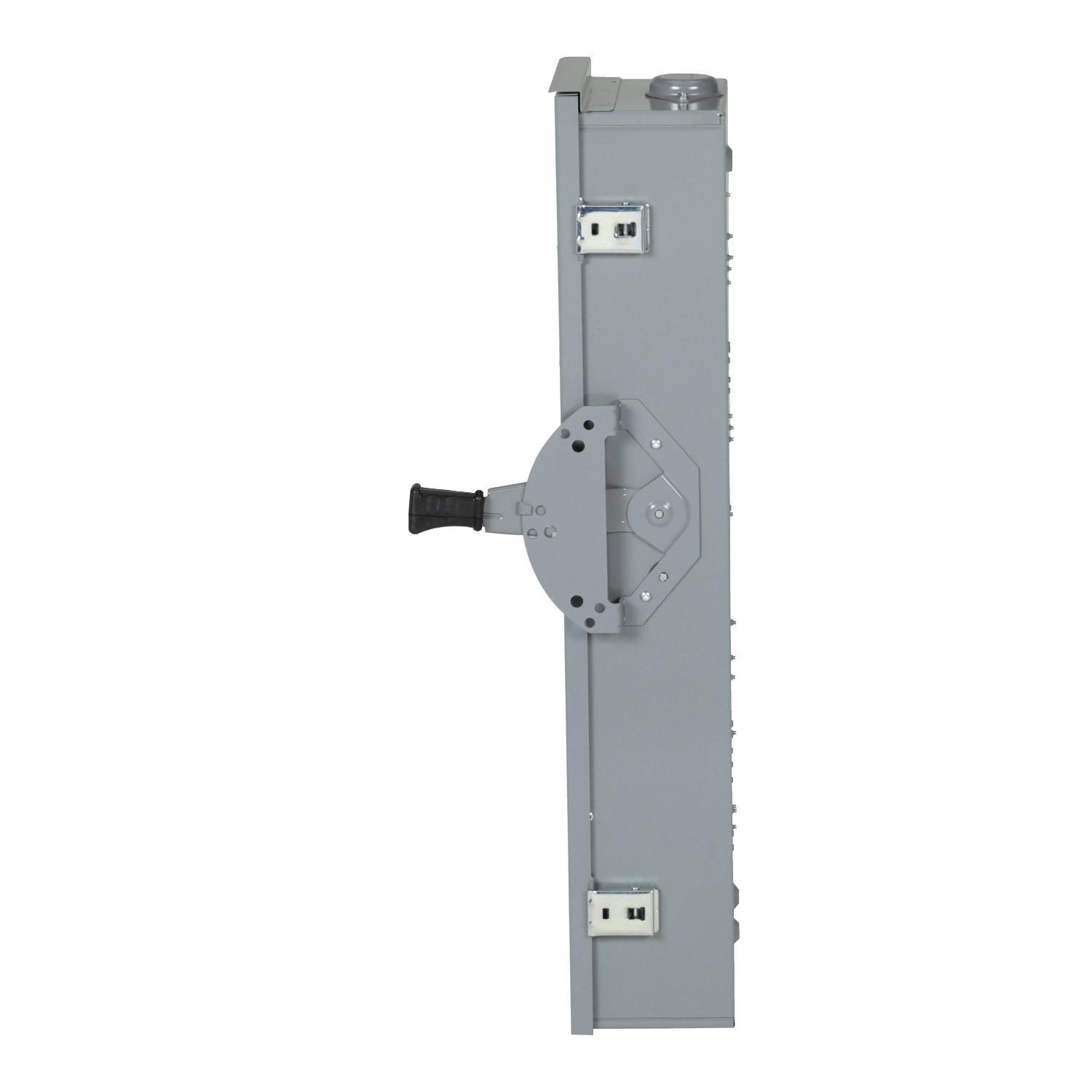

Square D™ DTU323RB F5 Series Non-Fusible Iceproof Rainproof Sleetproof Safety Switch With Bolt-On Provision, 240/250 VAC/VDC, 100 A, 15 hp, 20 hp, 30 hp, TPDT Contact, 3 Poles
Brand: Square D™
Item ID: 245716
MPN: DTU323RB
UPC: 785901308737
Login for Price
Features
- DTU323RB is a Double Throw Safety Switch, NOT FUSIBLE 240V 100A 3P NEMA3R with a 100A rated current
- This product is a Double Throw Safety Switch with a NEMA 1 rating This switch has a current rating and complies to UL listed Standards
- Suitable for service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive OFF indication
Description
Double throw safety switches are designed to transfer a load from one power source to another power source. 30 to 100 A F Series switches can be field converted to transfer a power source from one load to another.
Square D™ Safety Switch, Non-Fusible Iceproof Rainproof Sleetproof, Series: F5 Series, 240/250 VAC/VDC, 100 A, 15 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, TPDT Contact Form, NEMA 3R Enclosure, Surface Mounting, 11.96 in W x 6.93 in D x 30.5 in H Dimensions, Steel, Hot Dipped Galvanized
Specifications
Amperage Rating |
100 A |
Contact Form |
TPDT |
Dimensions |
11.96 in W x 6.93 in D x 30.5 in H |
Enclosure Type |
NEMA 3R |
Finish |
Hot Dipped Galvanized |
Horsepower |
15 hp, 20 hp, 30 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
1/3 |
Series |
F5 Series |
Short Circuit Current Rating |
200 kA |
Type |
Non-Fusible Iceproof Rainproof Sleetproof |
Voltage Rating |
240/250 VAC/VDC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Educational, General Purpose, Healthcare, Industrial, Indoor/Outdoor, Light Commercial, Manufacturing, Mining, Mineral, Residential and Wastewater Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001C21_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_07e4e4b270c4055e8c74a8163cfc996244d7894cba1f97baeba01362822719bd.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H82344_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_88f9c2c5052efbbfd69b13e64691573f6951f5623dca29753a98e093244c707e.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001SK43J38R_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU323RB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7b57dc83a534ab060d46794af1db5cfea143ed49ec1849f51854a65a0c8c06f3.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU323RB_Specification_Sheet.pdf
