Square D™ DTU324N

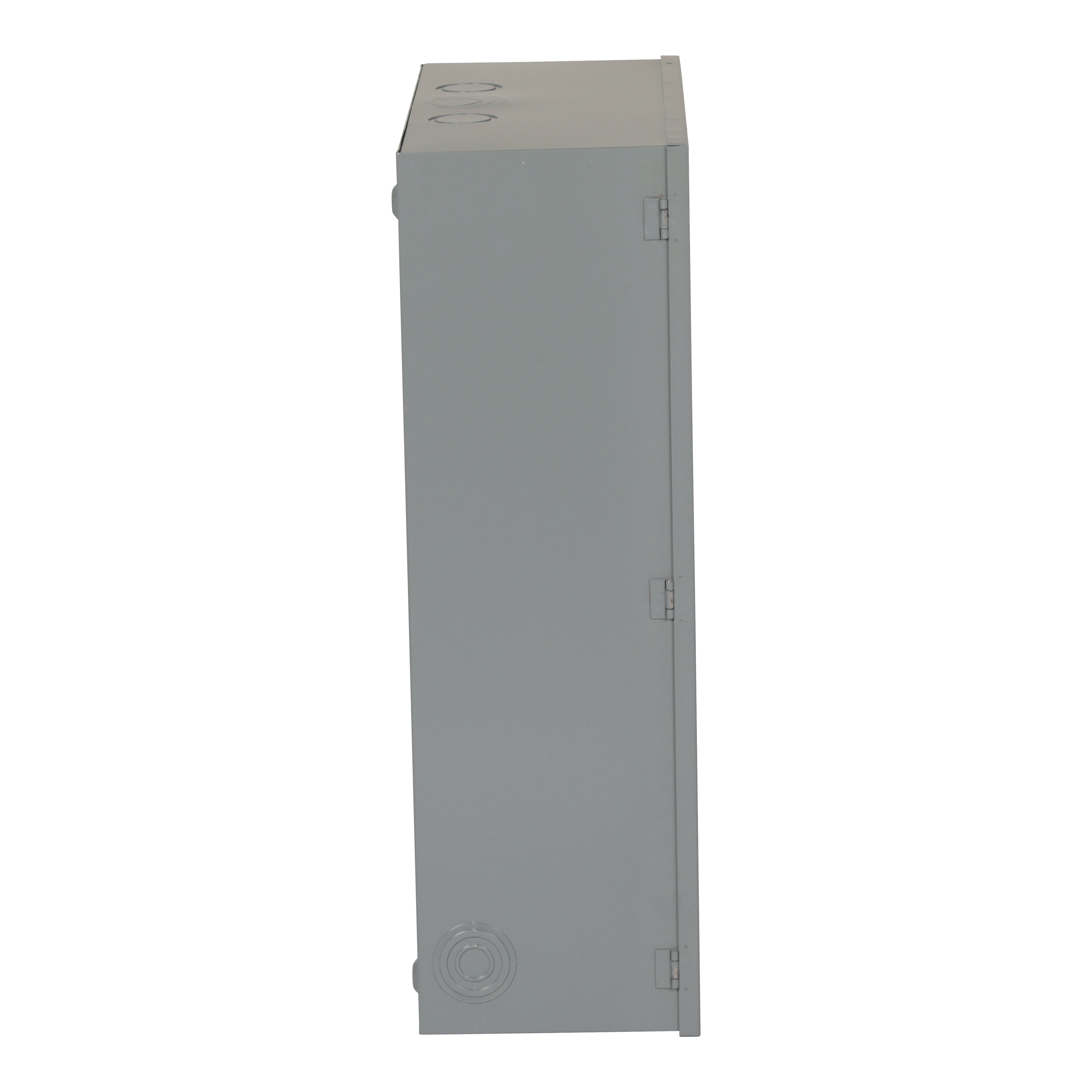

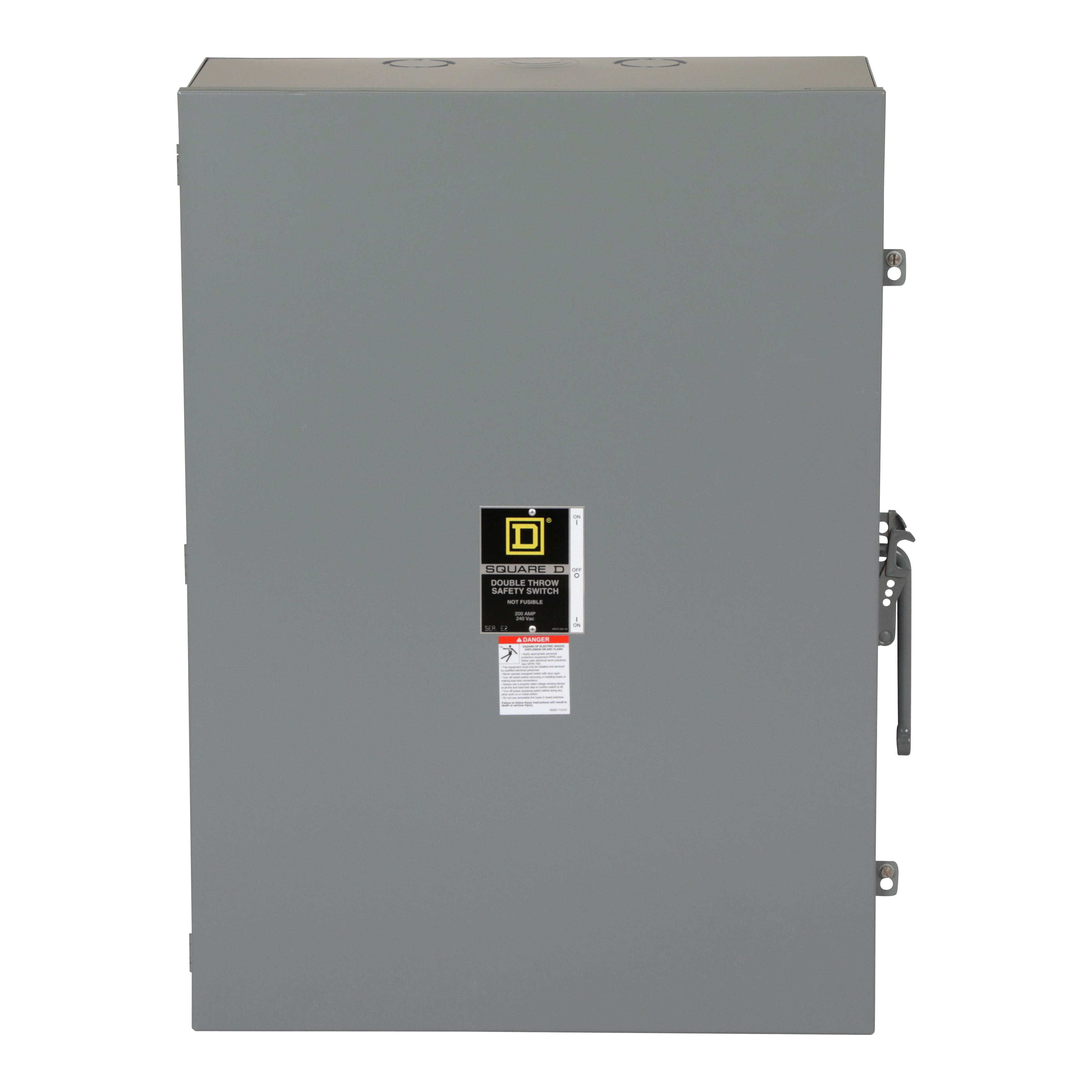

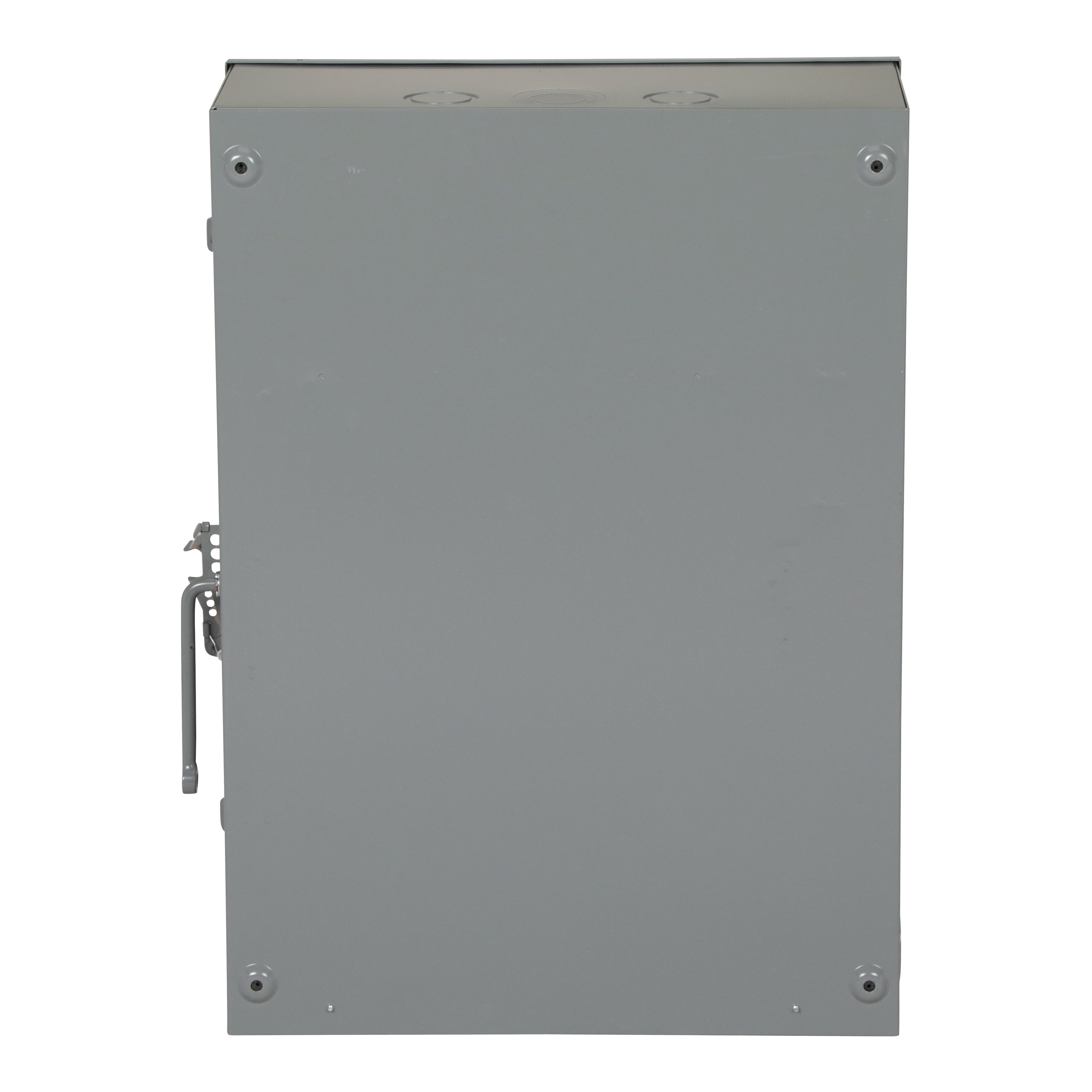

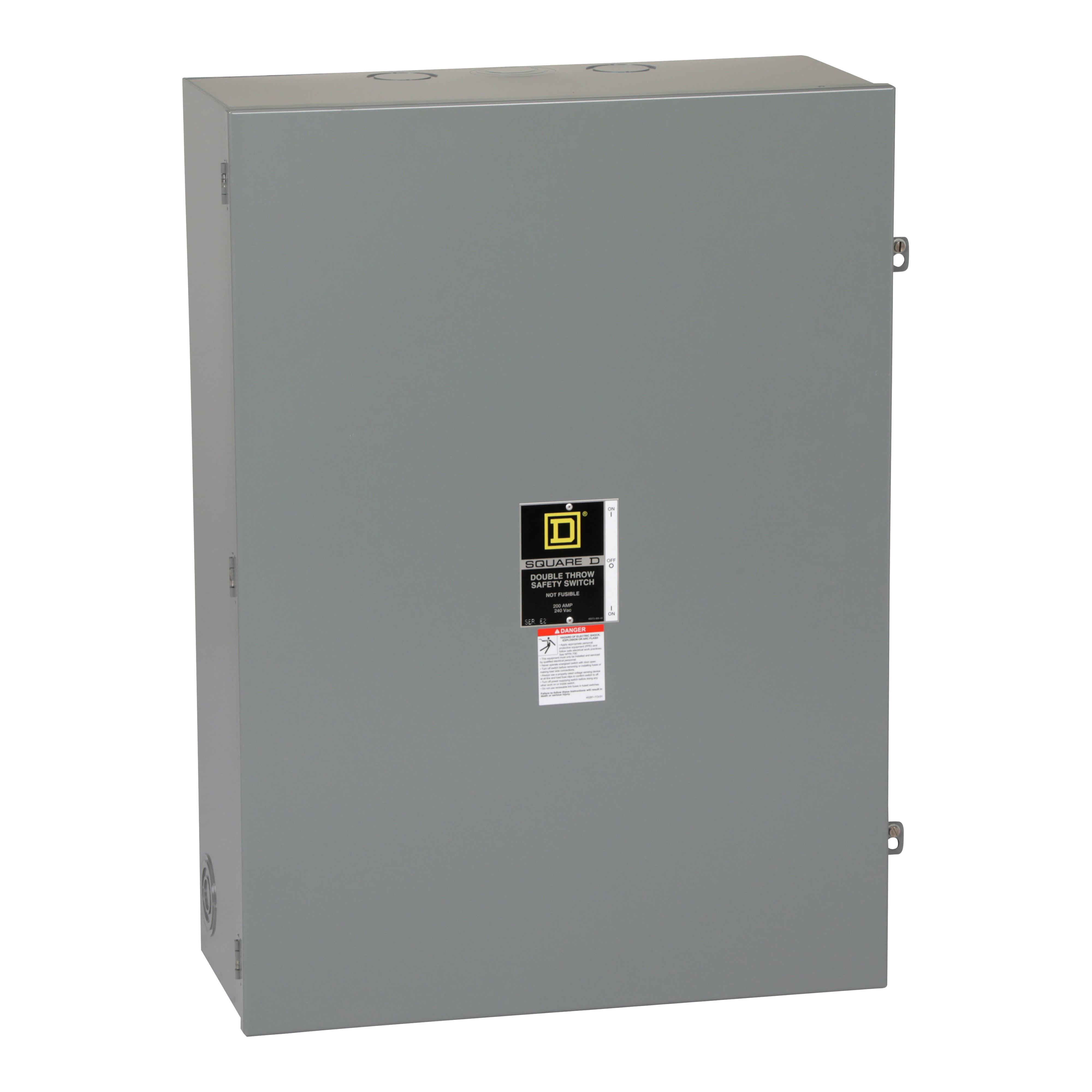

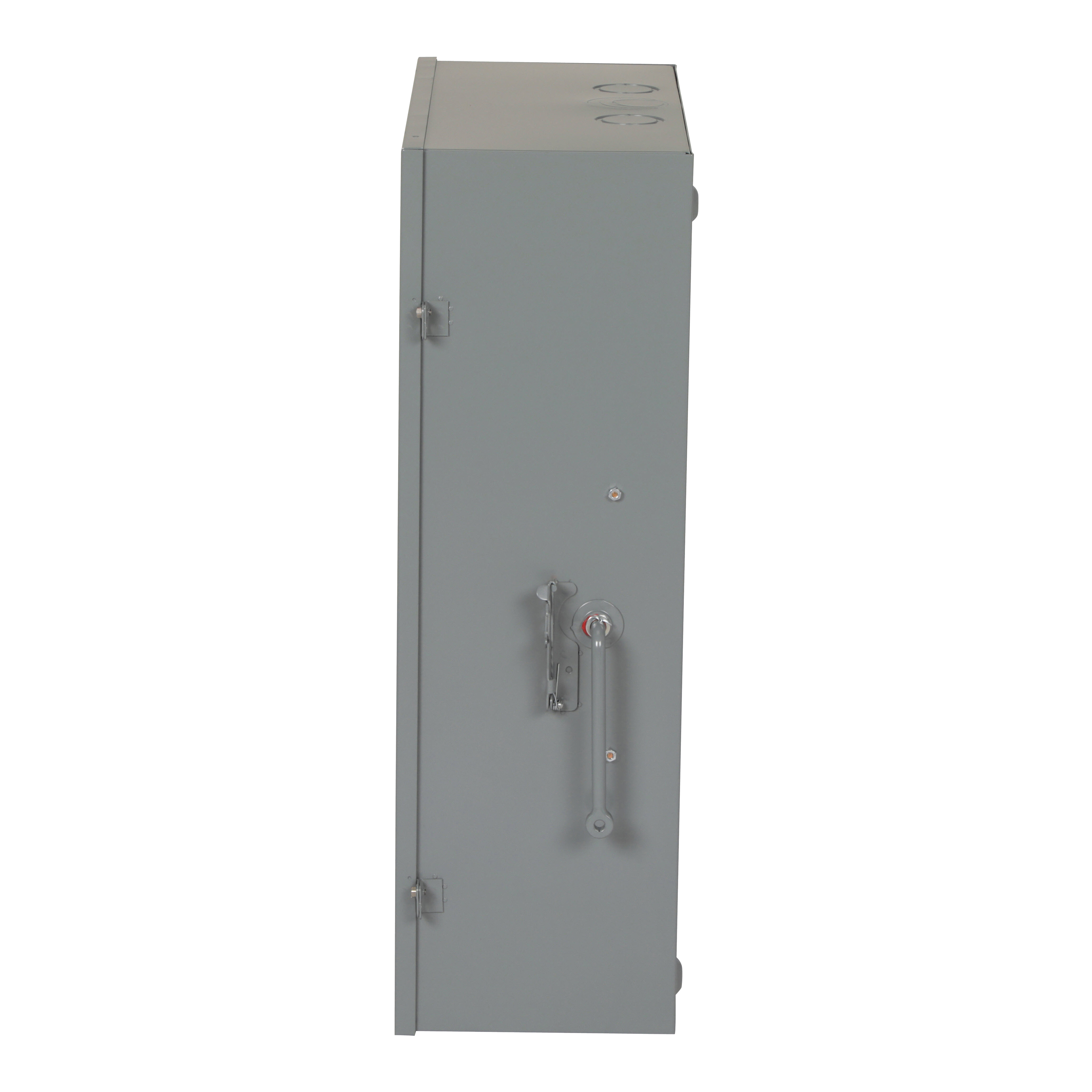

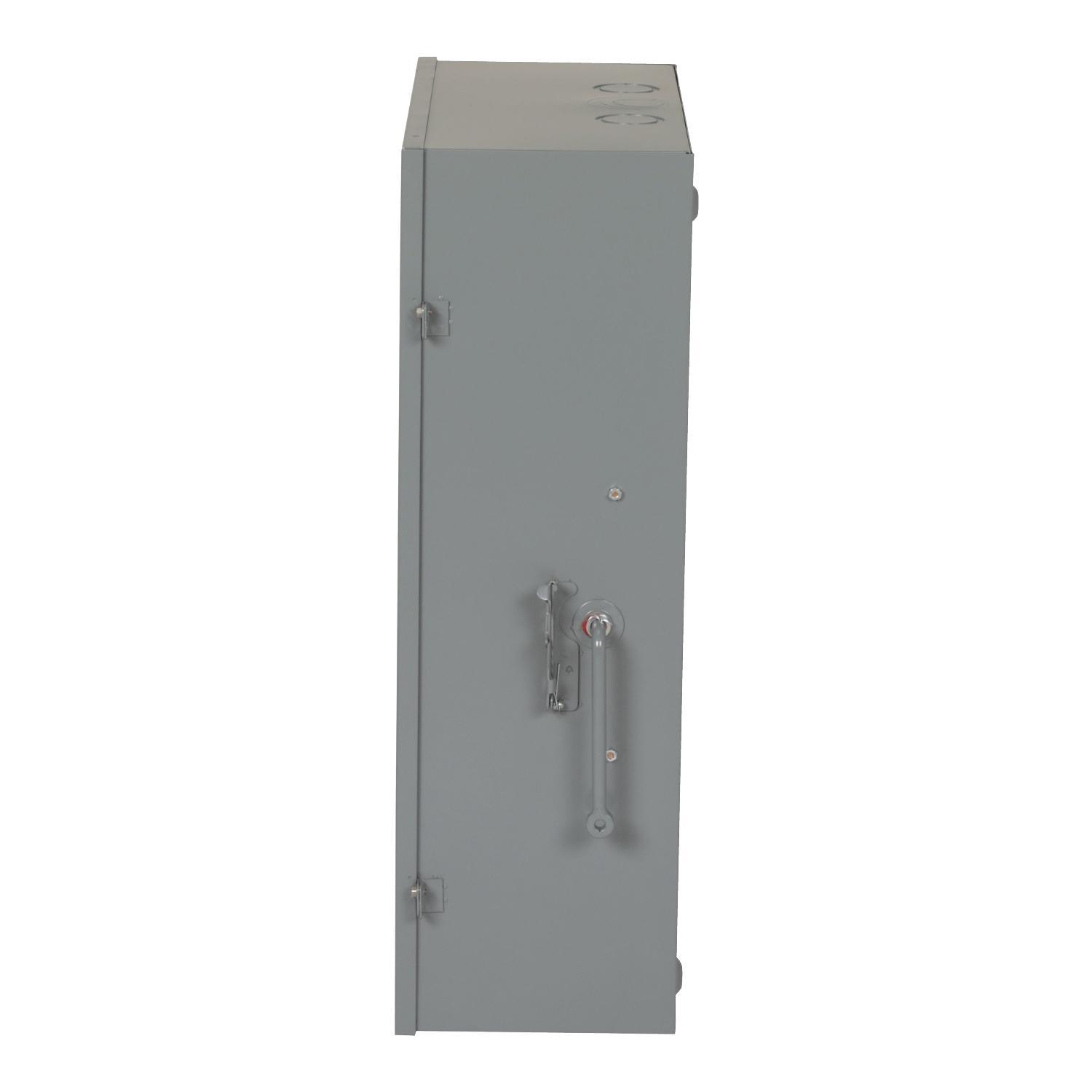

Square D™ DTU324N E1 Non-Fusible Disconnect Safety Switch With Factory Installed Neutral, 240 VAC, 200 A, 15 hp, TPDT Contact, 3 Poles
Brand: Square D™
Item ID: 400521
MPN: DTU324N
UPC: 785901911746
Login for Price
Features
- Suitable for use as service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive "Off" indication
Description
Double throw safety switches are designed to transfer a load from 1-power source to another power source. 30 to 100 a f series switches can be field converted to transfer a power source from 1-load to another.
Square D™ Safety Switch, Non-Fusible Disconnect, Series: E1, 240 VAC, 200 A, 15 hp, 3 ph, 3 Pole, 100 kA Short Circuit, TPDT Contact Form, NEMA 1 Enclosure, Surface Mounting, 26.25 in W x 10.63 in D x 32.5 in H Dimensions, Steel, Baked Enamel
Specifications
Amperage Rating |
200 A |
Contact Form |
TPDT |
Dimensions |
26.25 in W x 10.63 in D x 32.5 in H |
Enclosure Type |
NEMA 1 |
Finish |
Baked Enamel |
Horsepower |
15 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Phase |
3 |
Series |
E1 |
Short Circuit Current Rating |
100 kA |
Type |
Non-Fusible Disconnect |
Voltage Rating |
240 VAC |
Standard Approval |
RoHS Compliant|UL File No. E2875|CSA File No. LL89067|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Service Entrance Equipment, Residential, Light Commercial, Industrial, Indoor and General Purpose Applications |
