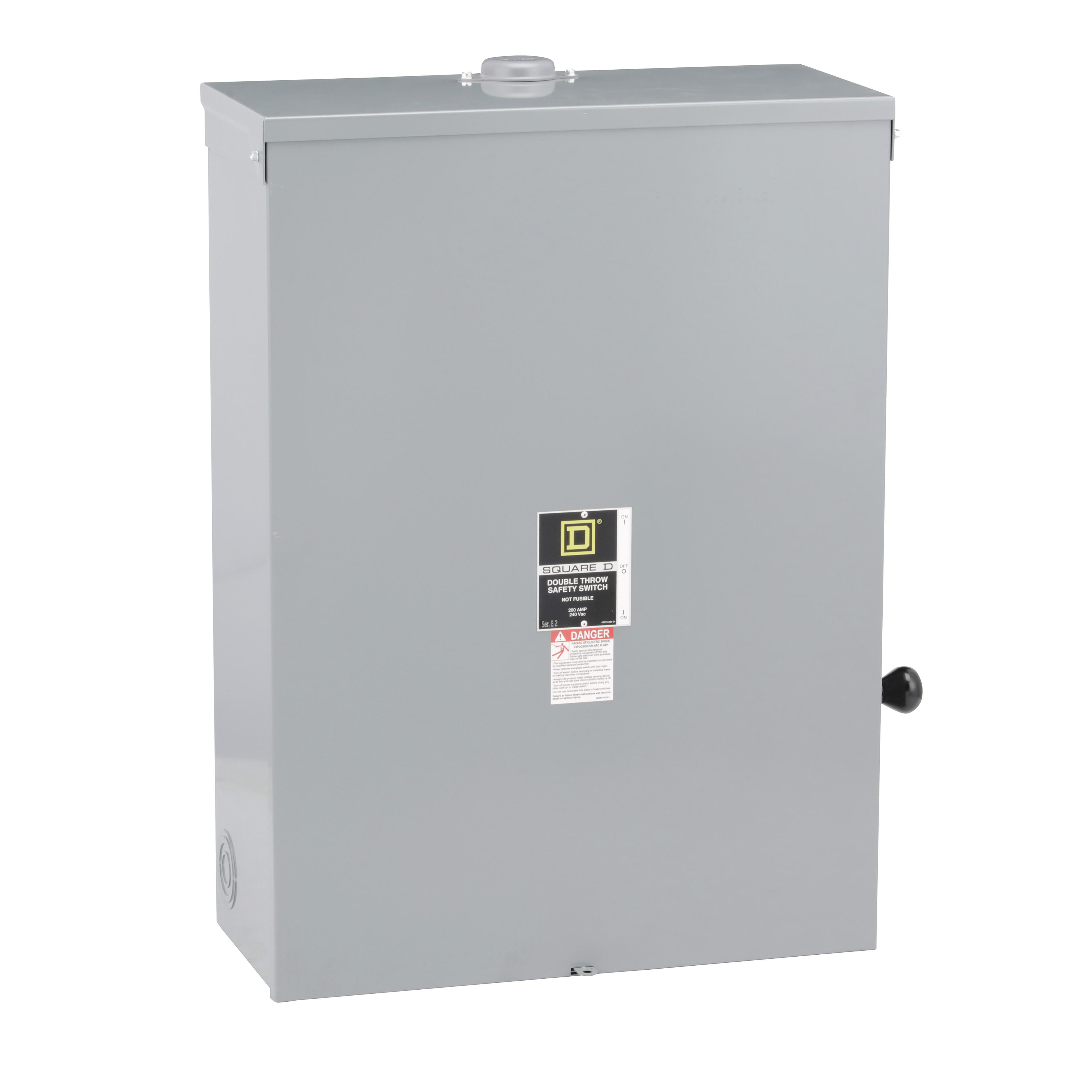

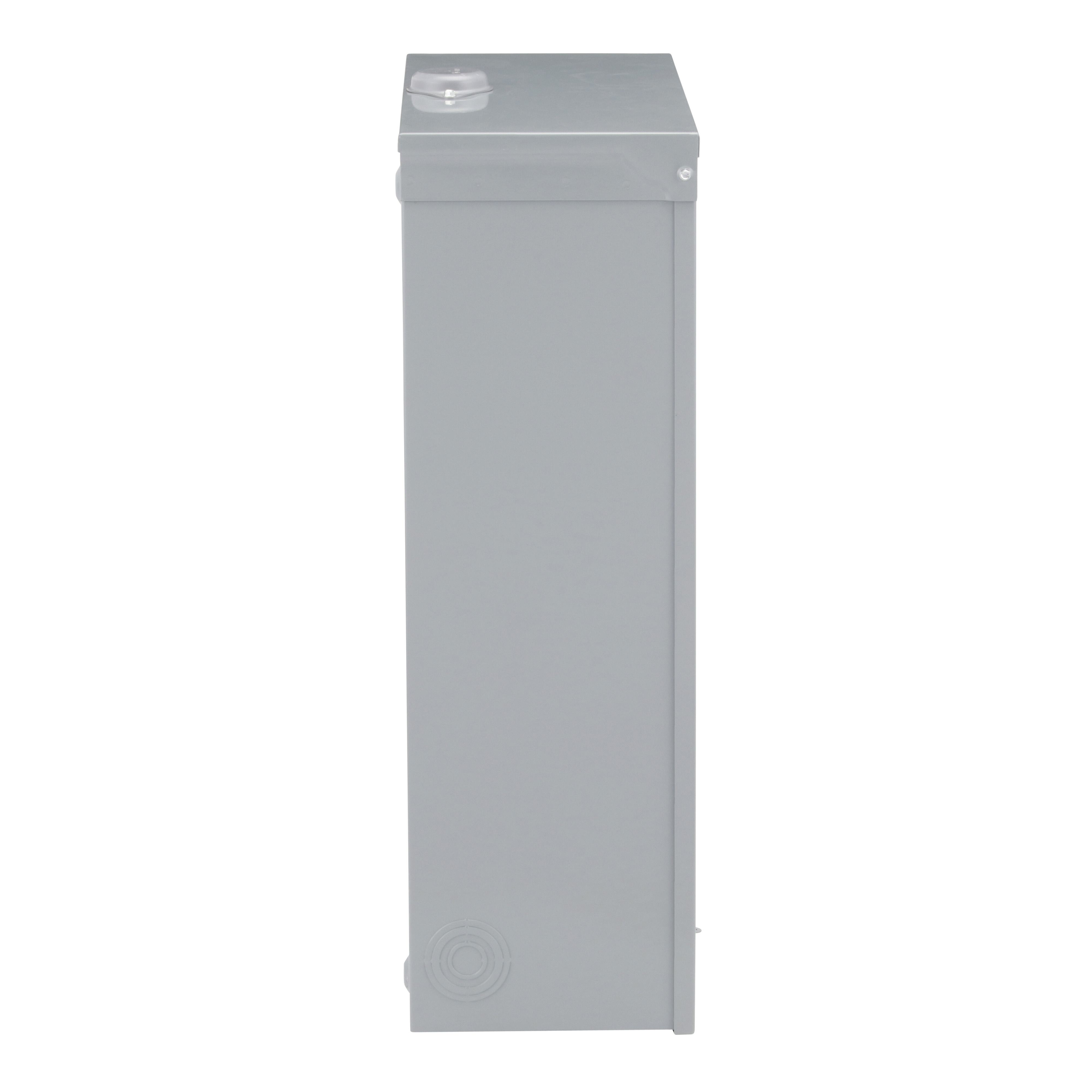

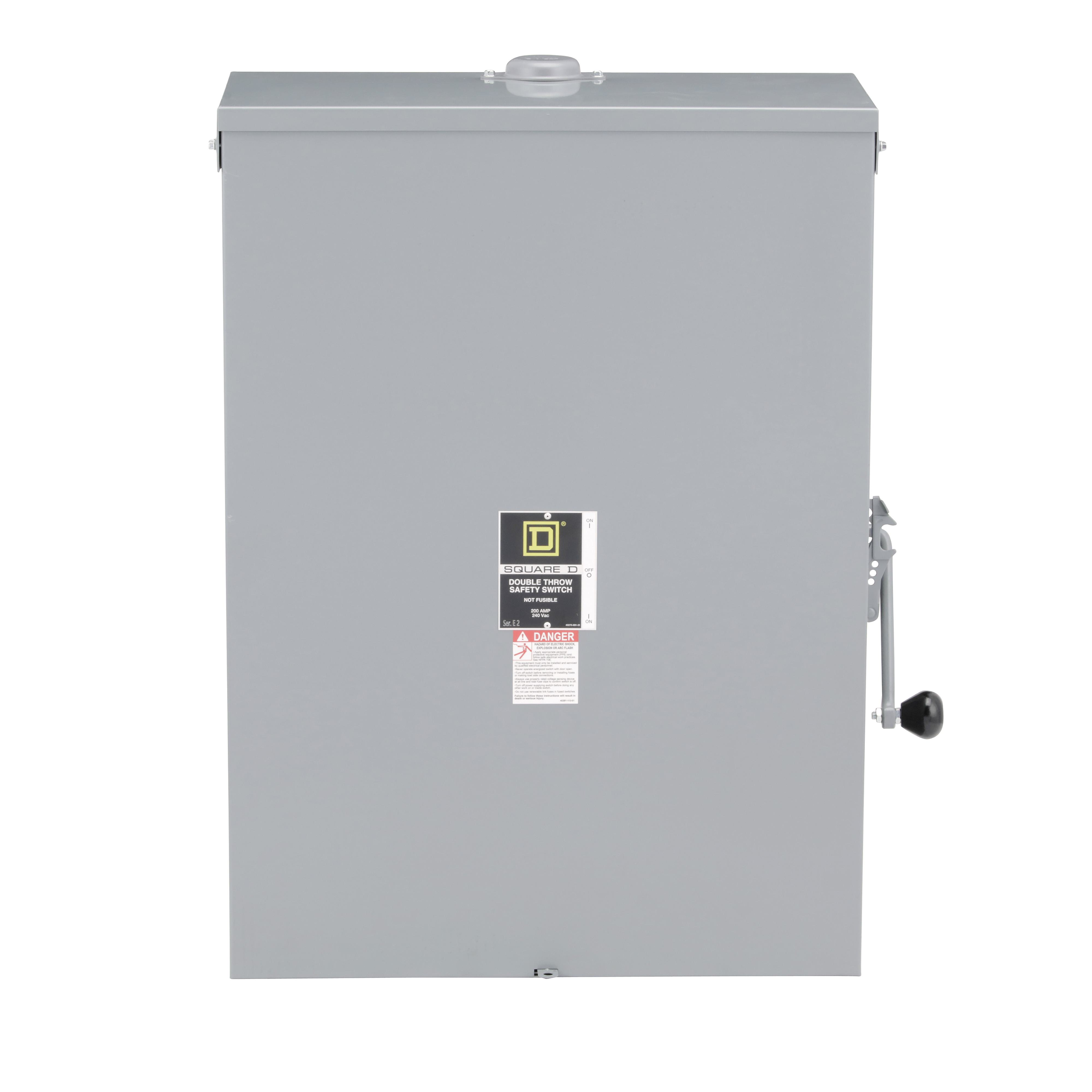

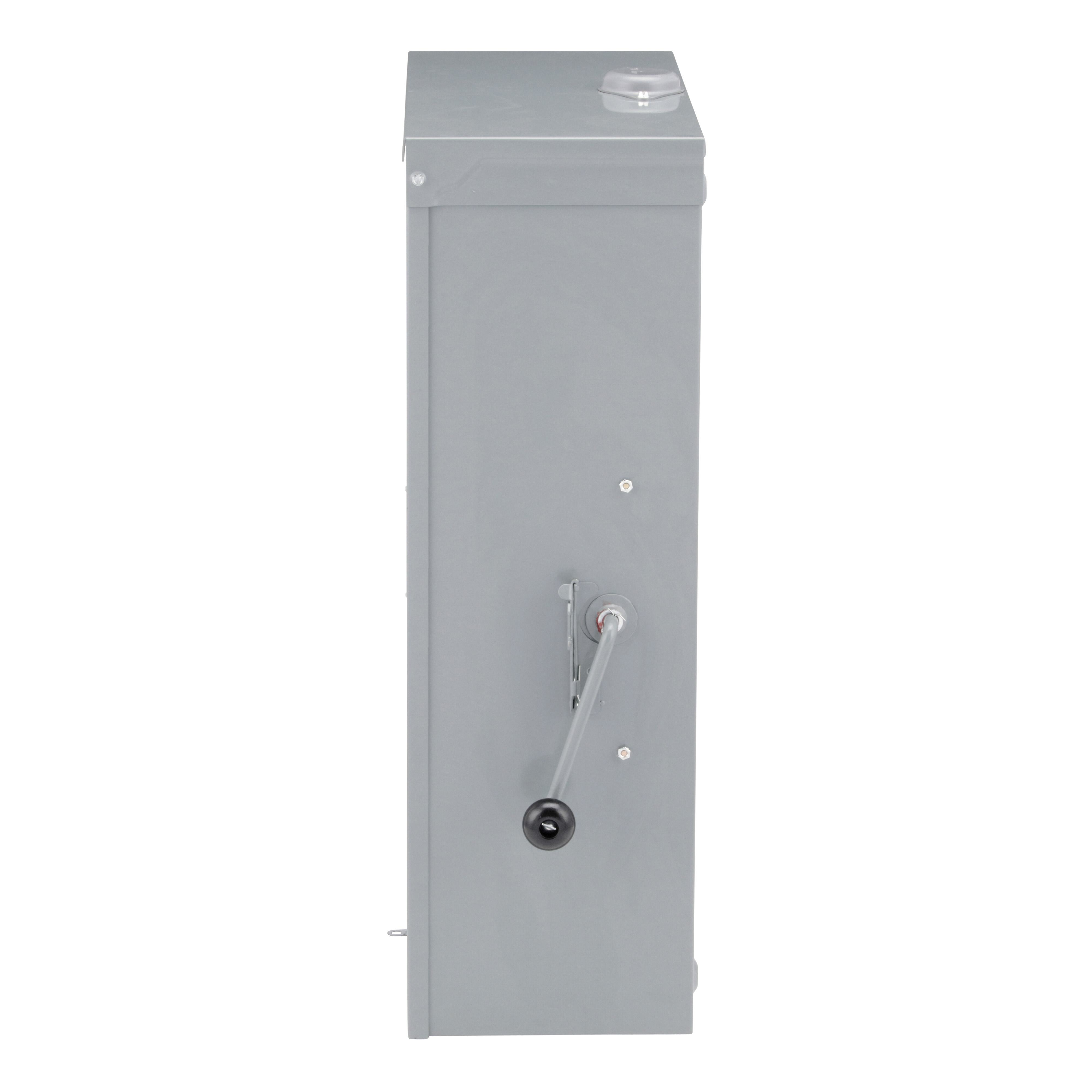

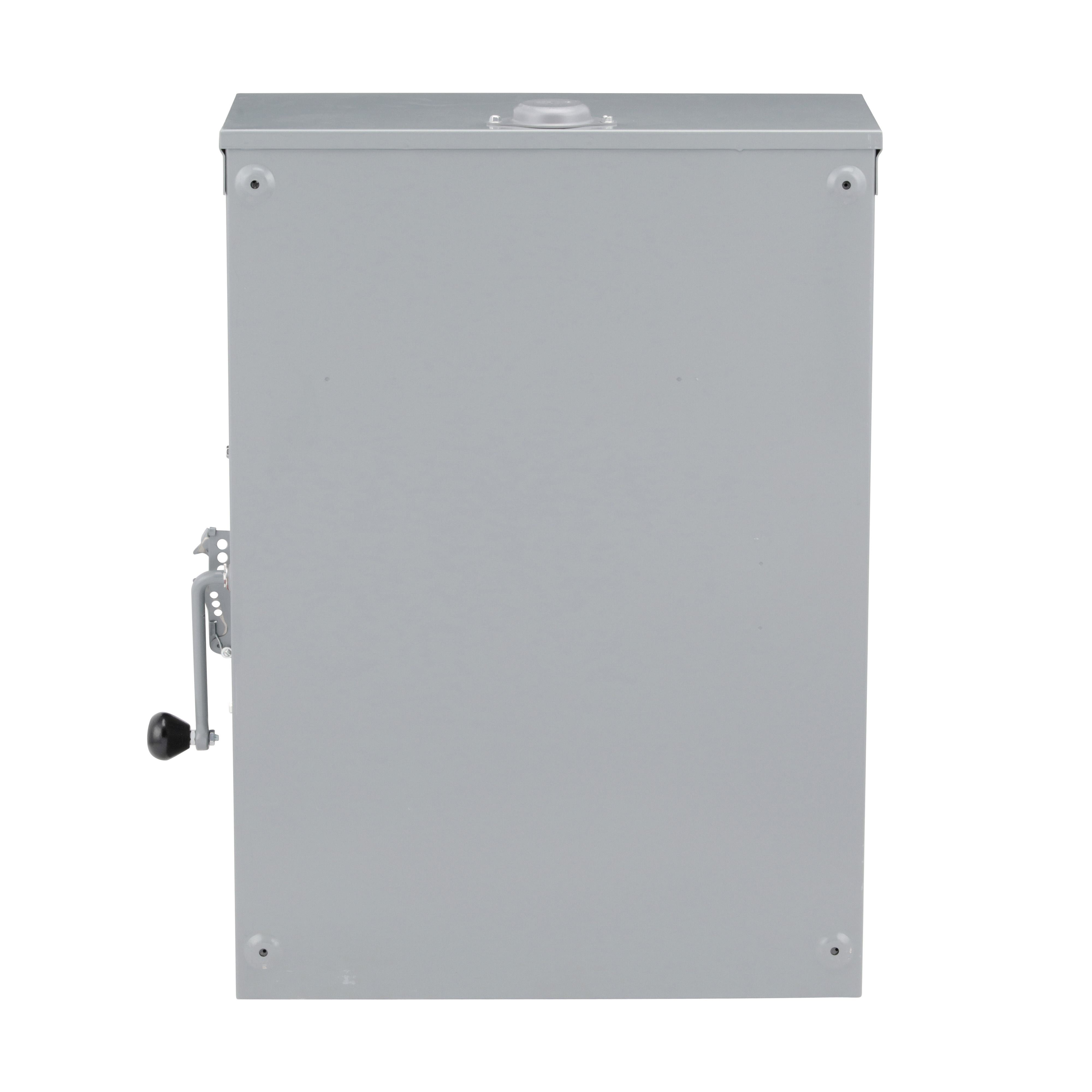

Square D™ DTU324NRB
Square D™ DTU324NRB E1 Series Non-Fusible Iceproof Rainproof Sleetproof Safety Switch With Bolt-On Factory Installed Neutral, 240/250 VAC/VDC, 200 A, 15 hp, TPDT Contact, 3 Poles
Brand: Square D™
Item ID: 50044
MPN: DTU324NRB
UPC: 785901185901
Login for Price
Features
- DTU324NRB is a Double Throw Safety Switch, NOT FUSIBLE 600V 200A 3P NEMA1 with a 100A rated current
- This product is a Double Throw Safety Switch with a NEMA 3R rating This switch has a current rating and complies to UL listed Standards
- Suitable for service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive OFF indication
Description
Double throw safety switches are designed to transfer a load from one power source to another power source. 30 to 100 A F Series switches can be field converted to transfer a power source from one load to another.
Square D™ Safety Switch, Non-Fusible Iceproof Rainproof Sleetproof, Series: E1 Series, 240/250 VAC/VDC, 200 A, 15 hp, 3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, TPDT Contact Form, NEMA 3R Enclosure, Surface Mounting, 26.25 in W x 10.63 in D x 32.5 in H Dimensions, Steel, Hot Dipped Galvanized
Specifications
Amperage Rating |
200 A |
Contact Form |
TPDT |
Dimensions |
26.25 in W x 10.63 in D x 32.5 in H |
Enclosure Type |
NEMA 3R |
Finish |
Hot Dipped Galvanized |
Horsepower |
15 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
3 |
Series |
E1 Series |
Short Circuit Current Rating |
200 kA |
Type |
Non-Fusible Iceproof Rainproof Sleetproof |
Voltage Rating |
240/250 VAC/VDC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Educational, General Purpose, Healthcare, Industrial, Indoor/Outdoor, Light Commercial, Manufacturing, Mining, Mineral, Residential and Wastewater Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Service_Wire_CONW76_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H82344_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU324NRB_RoHS.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e867daa790874d5c875d4fc3542a7daee94bc2dc1717a05574dfff4c38298b2e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3da1ea179e4209aa2de2ed188ec179838f59e56c7ceb00781a85954227a2812.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU324NRB_Specification_Sheet.pdf
