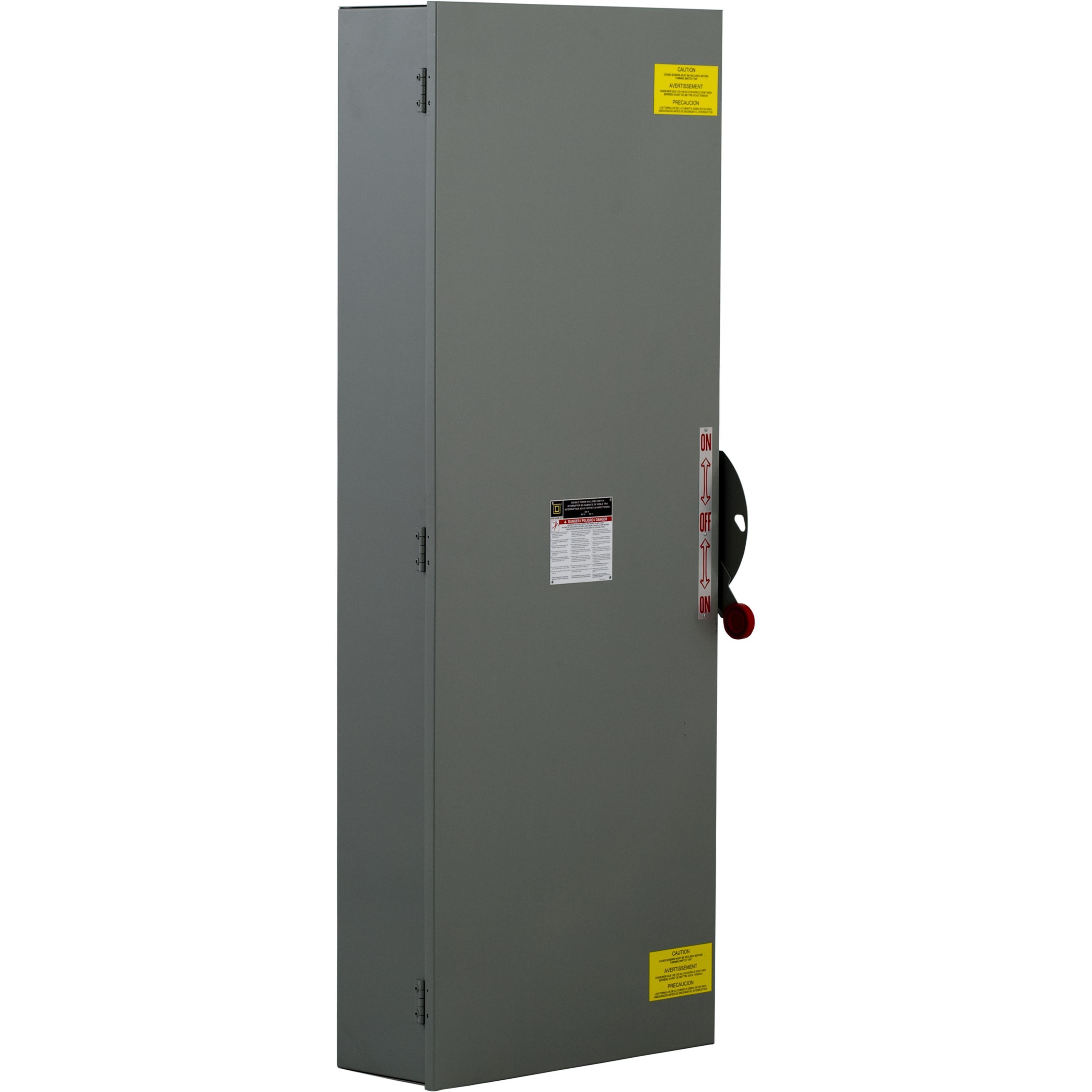

Square D™ DTU326
Square D™ DTU326 A1 General Purpose Non-Fusible Double Throw Safety Switch, 240 VAC/250 VDC, 600 A, 125 hp at 240 VAC, 50 hp at 250 VDC, 3 Poles
Brand: Square D™
Item ID: 391331
MPN: DTU326
UPC: 785901430063
Login for Price
Features
- Used for manual transfer of one load between two power sources
- Suitable for use as service entrance equipment
- Quick make, quick break operating mechanism
- Visible blade switches for positive OFF indication
Description
Double throw safety switches are designed to transfer a load from one power source to another power source. 30 to 100 A F series switches can be field converted to transfer a power source from one load to another.
Square D™ Double Throw Safety Switch, General Purpose Non-Fusible, Series: A1, 240 VAC/250 VDC, 600 A, 125 hp at 240 VAC, 50 hp at 250 VDC, 3 Phase, 3 Pole, 3 Wires, 200 kA Short Circuit, NEMA 1 Enclosure, Surface Mounting, 63.31 in H x 24.46 in W x 8.88 in D Dimensions, Steel
Specifications
Amperage Rating |
600 A |
Dimensions |
63.31 in H x 24.46 in W x 8.88 in D |
Enclosure Type |
NEMA 1 |
Horsepower |
125 hp at 240 VAC, 50 hp at 250 VDC |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
3 |
Series |
A1 |
Short Circuit Current Rating |
200 kA |
Type |
General Purpose Non-Fusible |
Voltage Rating |
240 VAC/250 VDC |
Standard Approval |
UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6aecc15f338b2084b4a02fc4e7f0b04b5d4b280dd5cf21020f7fc89390f8c0eb.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU326_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_78b32c7a03116e24c56187746fff467f3fd146b3998b441bc4b2c70f4f216493.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU326_Specification_Sheet.pdf
