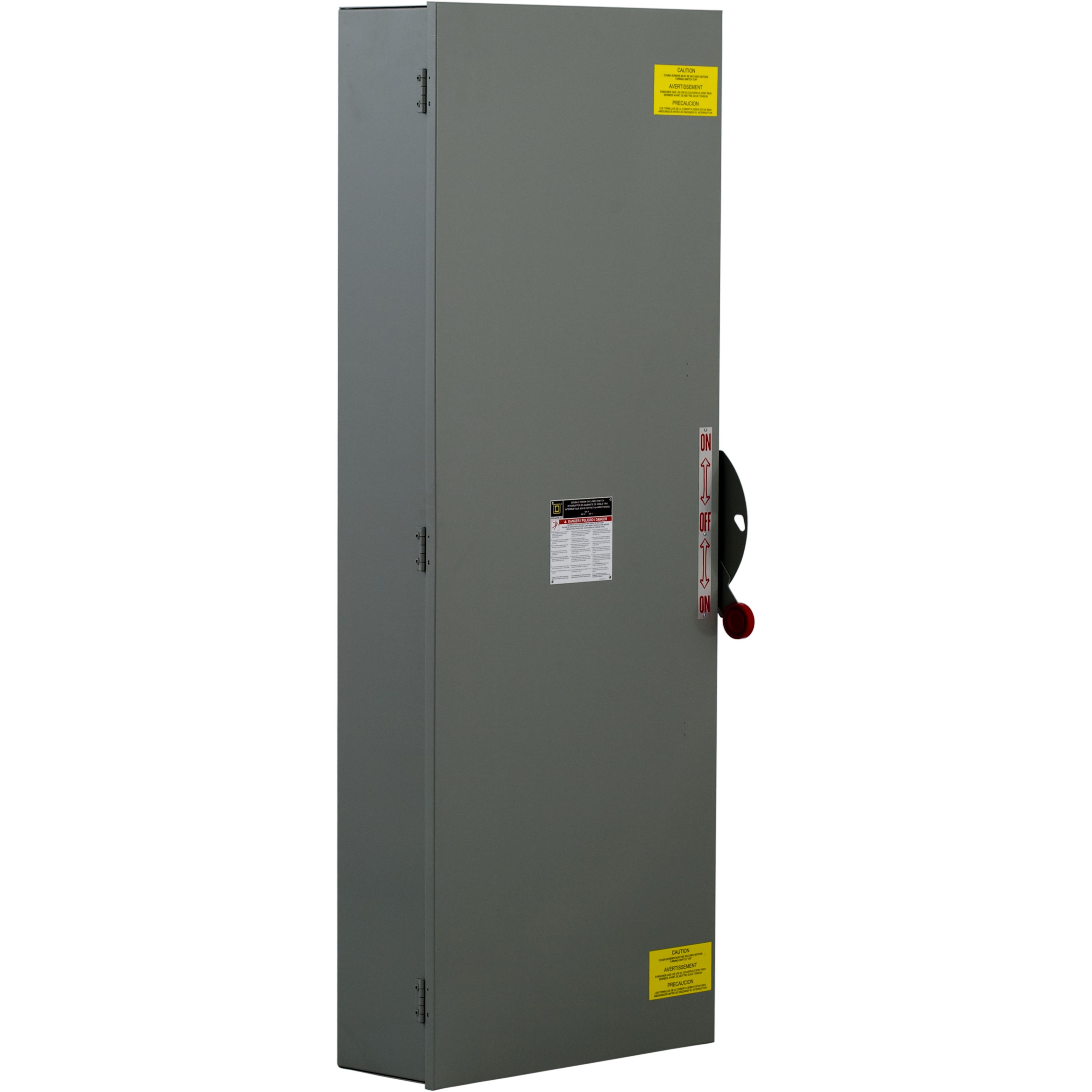

Square D™ DTU366R
Square D™ DTU366R A1 General Purpose Non-Fusible Safety Switch, 600 VAC/VDC, 600 A, 350 hp at 600 VAC, 3 Poles
Brand: Square D™
Item ID: 533158
MPN: DTU366R
UPC: 785901568384
Login for Price
Features
- Used for manual transfer of one load between two power sources
- Suitable for use as service entrance equipment
- Quick-make, quick break operating mechanism
- Visible blade switches for positive Off indication
- Rainproof and ice/sleetproof
Description
Double throw safety switches are designed to transfer a load from 1-power source to another power source. 30 to 100 a f series switches can be field converted to transfer a power source from 1-load to another.
Square D™ Safety Switch, General Purpose Non-Fusible, Series: A1, 600 VAC/VDC, 600 A, 350 hp at 600 VAC, 3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, Double Throw Actuator, NEMA 3R Enclosure, Surface Mounting, 23.66 in W x 8.88 in D x 63.76 in H Dimensions, Steel, Galvannealed
Specifications
Actuator Type |
Double Throw |
Amperage Rating |
600 A |
Dimensions |
23.66 in W x 8.88 in D x 63.76 in H |
Enclosure Type |
NEMA 3R |
Finish |
Galvannealed |
Horsepower |
350 hp at 600 VAC |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
3 |
Series |
A1 |
Short Circuit Current Rating |
200 kA |
Type |
General Purpose Non-Fusible |
Voltage Rating |
600 VAC/VDC |
Standard Approval |
RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial, Indoor/Outdoor Applications |
