Square D™ DTU463

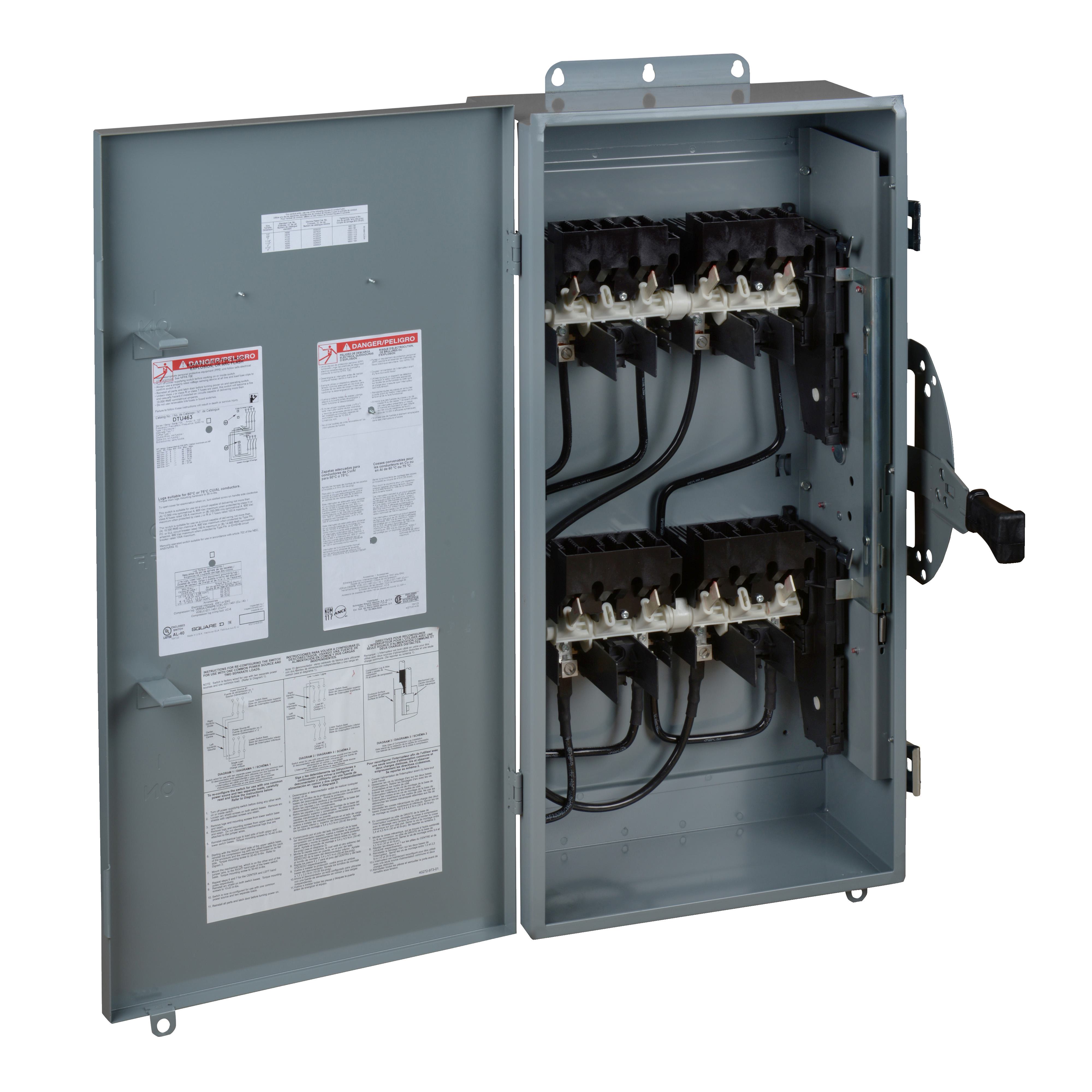

Square D™ DTU463 F5 General Purpose Non-Fusible Double Throw Safety Switch, 600 VAC/VDC, 100 A, 3 hp at 240 VAC, 7.5 hp at 240 VAC, 5 hp at 250 VDC, 4PDT Contact, 4 Poles
Brand: Square D™
Item ID: 527893
MPN: DTU463
UPC: 785901308713
Login for Price
Features
- Used for manual transfer of one load between two power sources
- Suitable for use as service entrance equipment
- Quick make, quick break operating mechanism
- Visible blade switches for positive "OFF" indication
Description
Double throw safety switches are designed to transfer a load from one power source to another power source. 30 to 100 A F series switches can be field converted to transfer a power source from one load to another.
Square D™ Double Throw Safety Switch, General Purpose Non-Fusible, Series: F5, 600 VAC/VDC, 100 A, 3 hp at 240 VAC, 7.5 hp at 240 VAC, 5 hp at 250 VDC, 3 Phase, 4 Pole, 4 Wires, 200 kA Short Circuit, 4PDT Contact Form, NEMA 1 Enclosure, Surface Mounting, 29.94 in H x 11.96 in W x 6.93 in D Dimensions, Steel
Specifications
Amperage Rating |
100 A |
Contact Form |
4PDT |
Dimensions |
29.94 in H x 11.96 in W x 6.93 in D |
Enclosure Type |
NEMA 1 |
Horsepower |
3 hp at 240 VAC, 7.5 hp at 240 VAC, 5 hp at 250 VDC |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
4 |
Number of Wires |
4 |
Phase |
3 |
Series |
F5 |
Short Circuit Current Rating |
200 kA |
Type |
General Purpose Non-Fusible |
Voltage Rating |
600 VAC/VDC |
Standard Approval |
RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_S48536_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97400c1ae31d7b013e5d42fd3275be70e464529b6272be913810a0f94a12303a.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H82344_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU463_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5902baeb4603f1dfb6e0b55b0e755fbb29da53c5ac8b7b3a3578e0527fd5737c.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_DTU463_Specification_Sheet.pdf
