Square D™ DU322

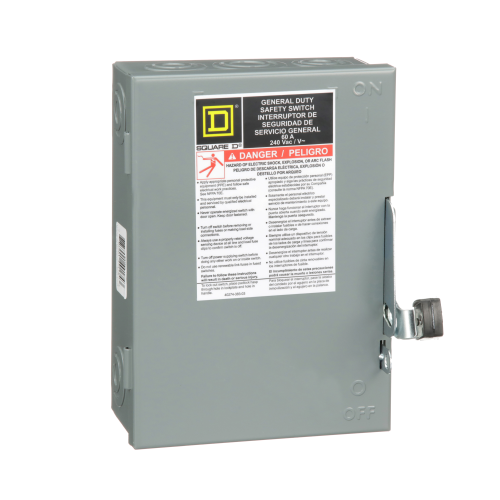

Square D™ DU322 E1 Series Enclosed General Duty Non-Fusible Safety Switch, 240 VAC, 60 A, 10 to 15 hp, TPST Contact, 3 Poles
Brand: Square D™
Item ID: 50054
MPN: DU322
Login for Price
Features
- DU322 is a Heavy Duty Safety Switch Not Fusible GD 240V 60A 3P NEMA1 with a 60A rated current
- This product is a Single Throw Safety Switch with a NEMA 1 rating This switch has a current rating and complies to UL listed Standards
- Visible blades for positive indication that switch is OFF
- Quick-make, quick-break operating mechanism
- Multiple padlock provision in off position
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory installed neutral assembly or a field installed equipment grounding kit.
Square D™ Safety Switch, Enclosed General Duty Non-Fusible, Series: E1 Series, 240 VAC, 60 A, 10 to 15 hp, 1/3 ph, 3 Pole, 3 Wires, TPST, NEMA 1, Surface Mount, Lug Terminal, 7.25 in W x 3.63 in D x 9.25 in H, Steel
Specifications
Amperage Rating |
60 A |
Contact Form |
TPST |
Dimensions |
7.25 in W x 3.63 in D x 9.25 in H |
Enclosure Type |
NEMA 1 |
Horsepower |
10 to 15 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
1/3 ph |
Series |
E1 Series |
Terminal Type |
Lug |
Type |
Enclosed General Duty Non-Fusible |
Voltage Rating |
240 VAC |
Standard Approval |
RoHS Compliant|UL File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Commercial, General Purpose, Indoor and Residential Applications |
