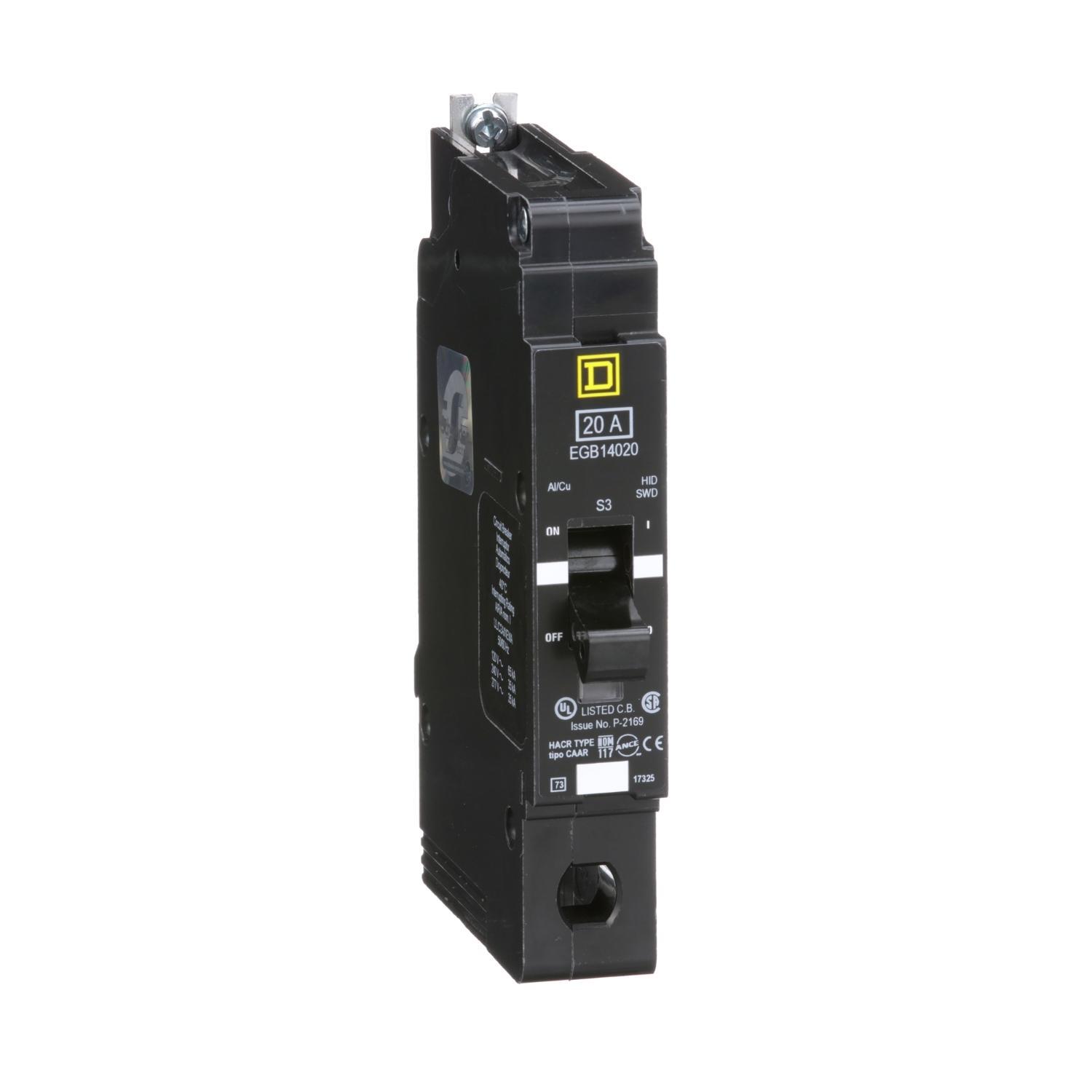

Square D™ EGB14020
Square D™ E-FRAME EGB14020 Type EGB Molded Case Standard Miniature Circuit Breaker, 277 VAC, 20 A, 35 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 395977
MPN: EGB14020
Login for Price
Features
- Visi-Trip® trip indicator
- 270 A hold, 875 A trip
- For merchandised NF panelboard
- 12 to 6 AWG Aluminum, 14 to 6 AWG copper
Description
Square D™ E-FRAME Miniature Circuit Breaker, Type EGB Molded Case Standard, 277 VAC, 20 A, 50/60 Hz Frequency, 35 kA Interrupt, E Frame, Thermal Magnetic Trip, 270 to 875 A Trip, 1 Pole, 1 ph, Lug Connection, 12 to 6 AWG, 14 to 6 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 0.98 in W x 5.66 in H Dimensions
Specifications
Amperage Rating |
20 A |
Connection Type |
Lug |
Dimensions |
4.05 in L x 0.98 in W x 5.66 in H |
Frame |
E |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
35 kA |
Mounting Type |
Bolt-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Range |
270 to 875 A |
Trip Type |
Thermal Magnetic |
Type |
Type EGB Molded Case Standard |
Voltage Rating |
277 VAC |
Wire Size |
12 to 6 AWG, 14 to 6 AWG |
Standard Approval |
CSA Certified|HACR Rated|NOM 117|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL Listed |
Application |
For providing overload and short circuit protection |
